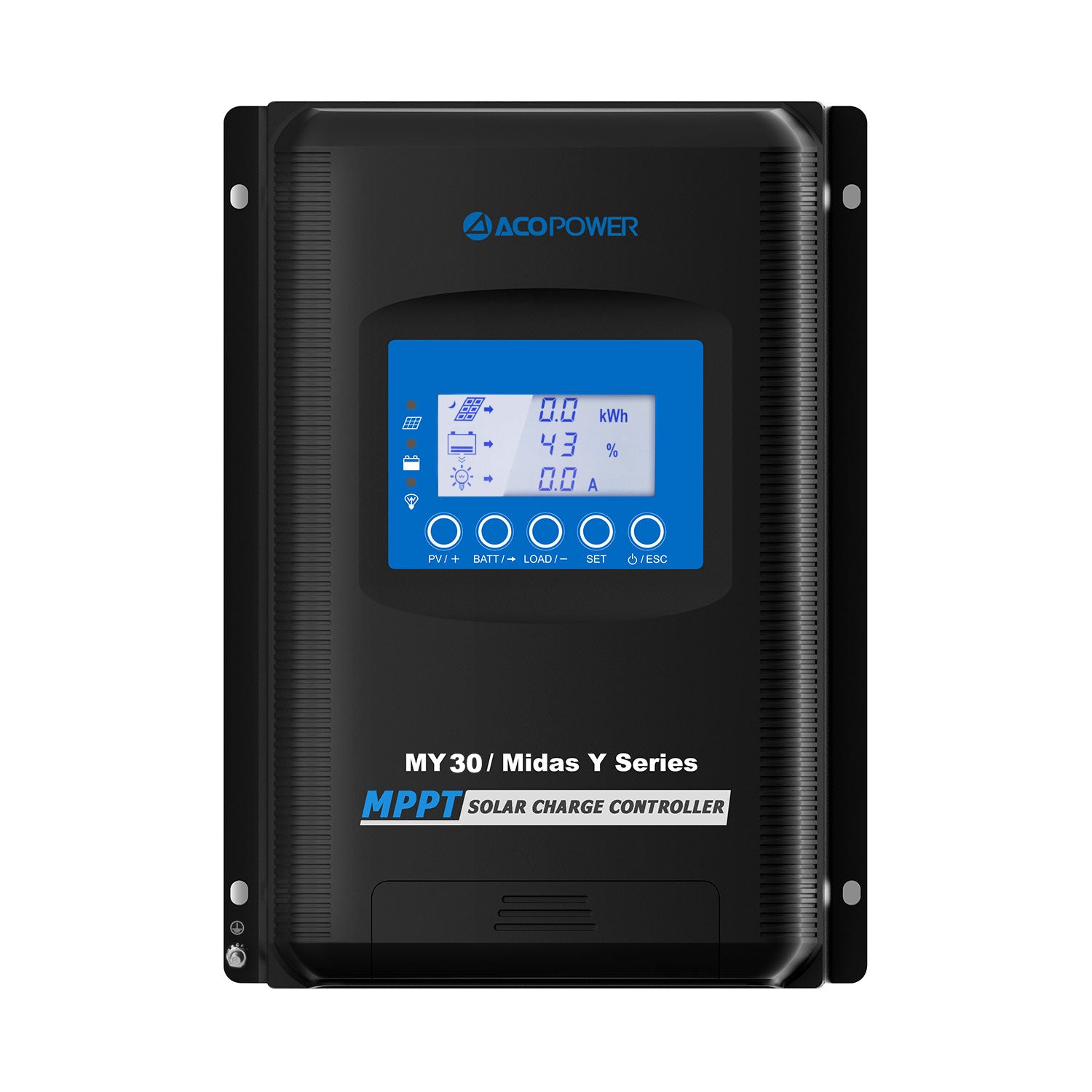

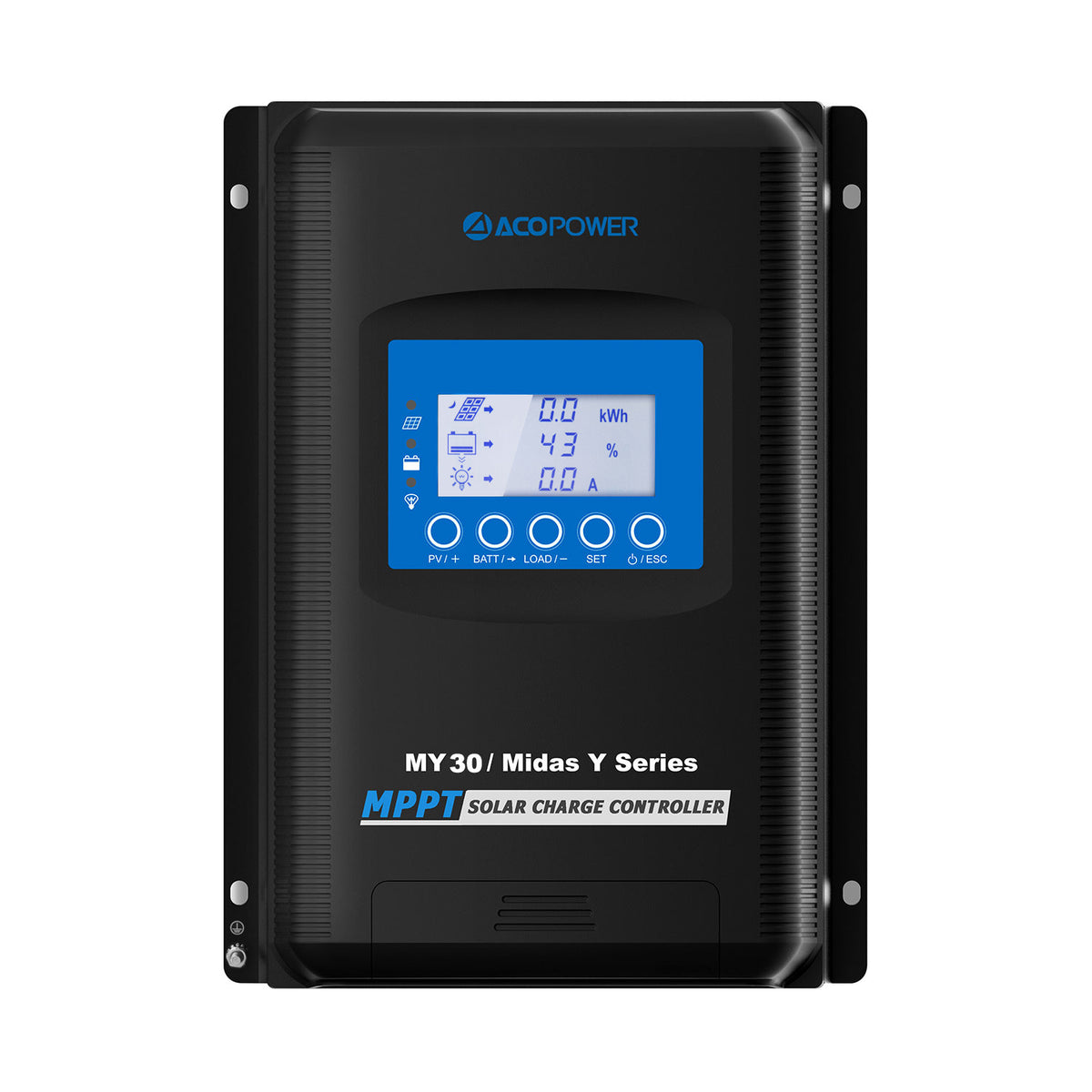

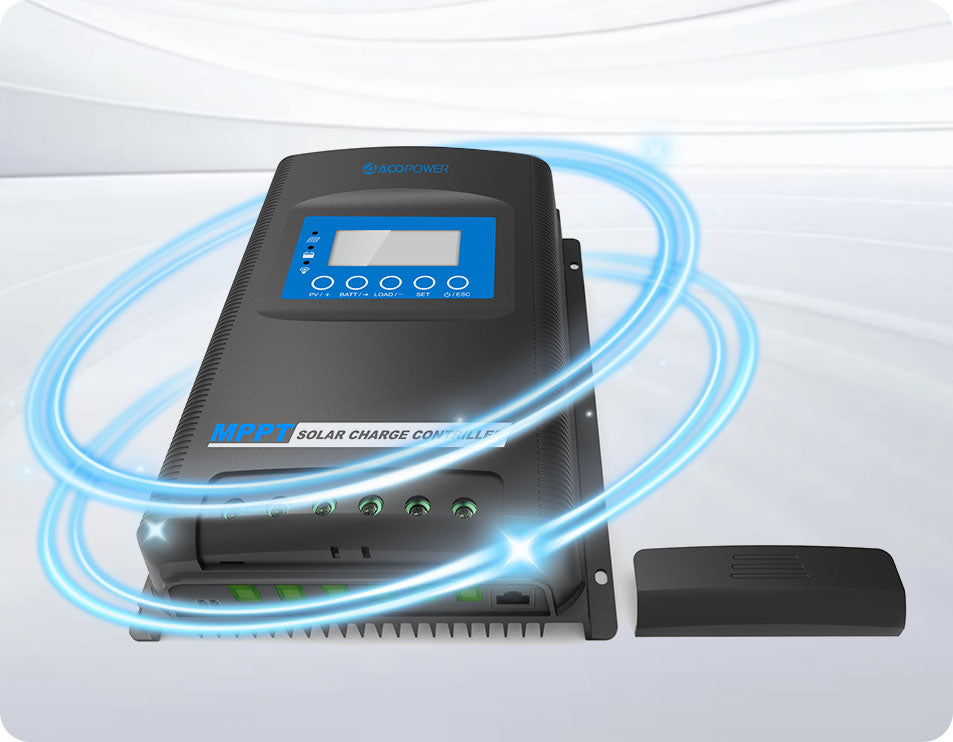

ACOPOWER Midas 30A MPPT Solar Charge Controller

SKU: HY-MY30N/A

$ 139.80


  • This negative ground controller featuring advanced MPPT technology with high tracking efficiency of up to 99.5% and peak conversion efficiency of 98% maximizes the energy from solar panels to charge your system. Includes Temperature Sensor and Automatic Temperature Compensation
  • Very user friendly. Auto identifies 12V/24V DC system voltage. Compatible with various deep cycle battery options: sealed, gel, flooded and lithium-ion. LiFePO4 multiple load control method.
  • Built-in MPPT charge controller protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.

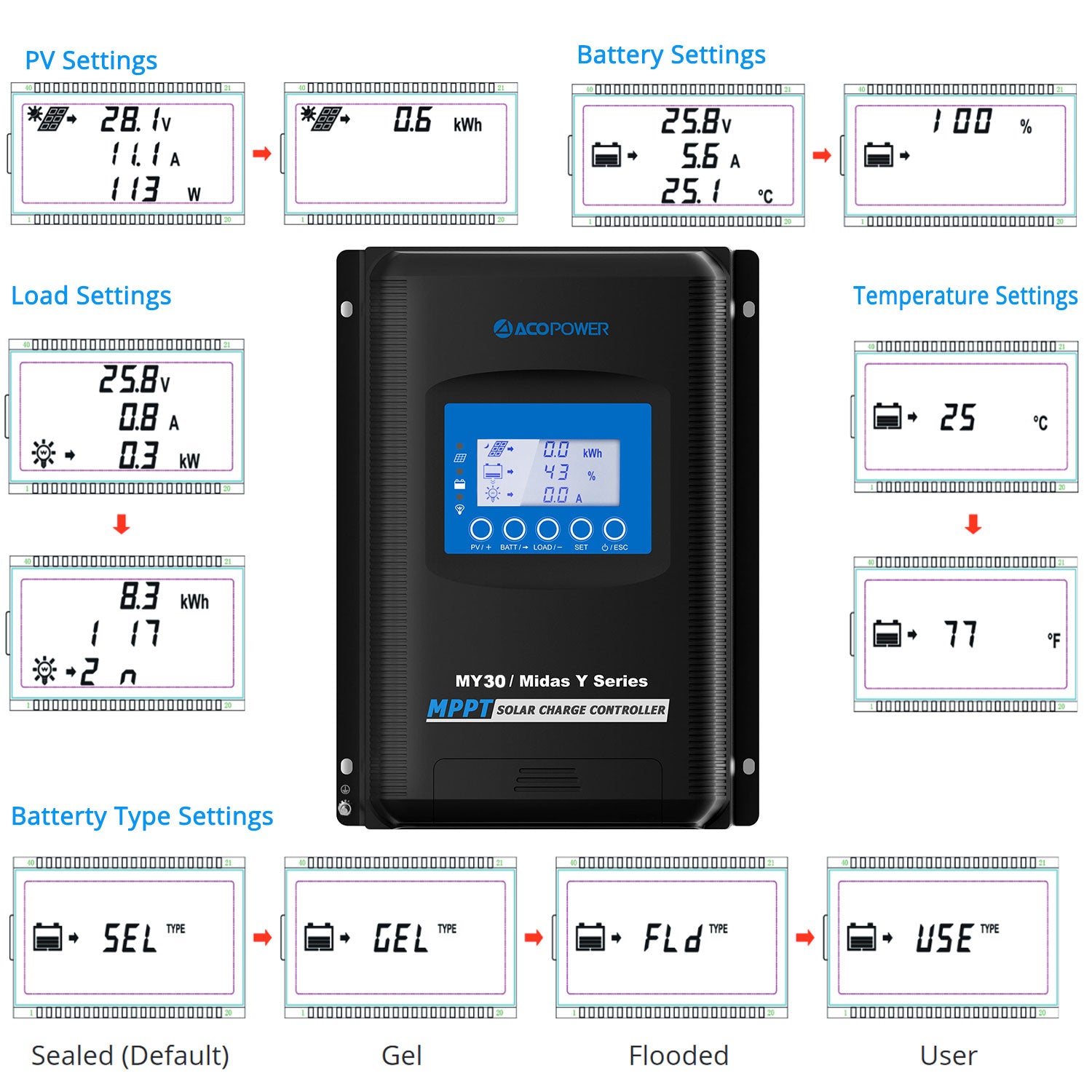

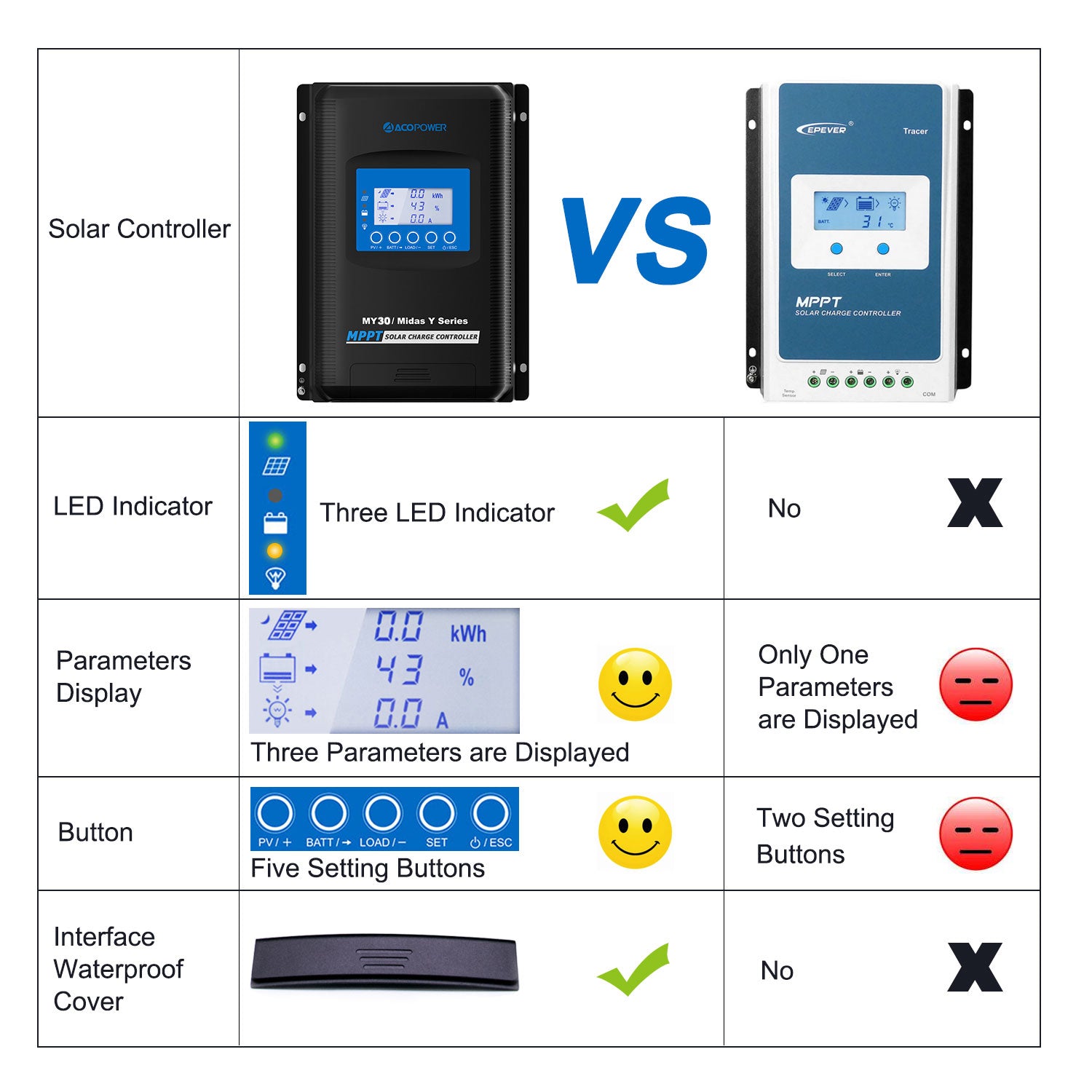

  • This charge controller, with backlight LCD screen and die-cast aluminum design is optimized for a long battery life and improved system performance and includes 4-Stage battery charging (bulk, boost, float, and equalization) and temperature compensation.
  • 100% money back guarantee. US based company with local support and 18 months warranty.

Out of stock
Specification
Nominal system voltage: 12/24VDC AutoRated charge current: 30A
Battery input voltage range: 8V~32VMax.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W, 24V/780WMPP voltage range: V(BAT+2V)~72V
Working environment temperature: -25℃~+50℃Storage temperature range: -35℃~+80℃

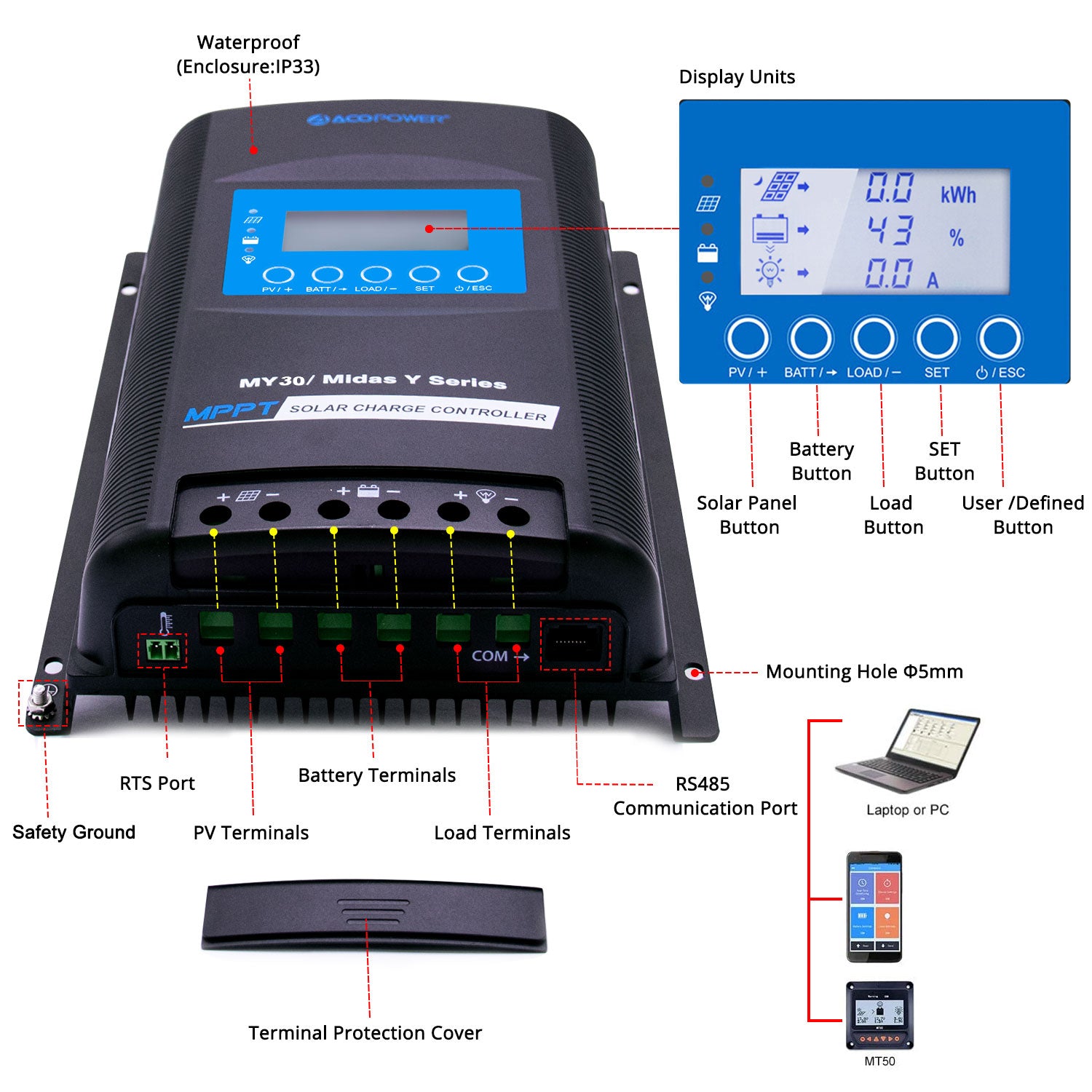

Grounding: Common negativeCommunication: RS485
Power Terminals: 6AWG(16mm2)Enclosure: IP30

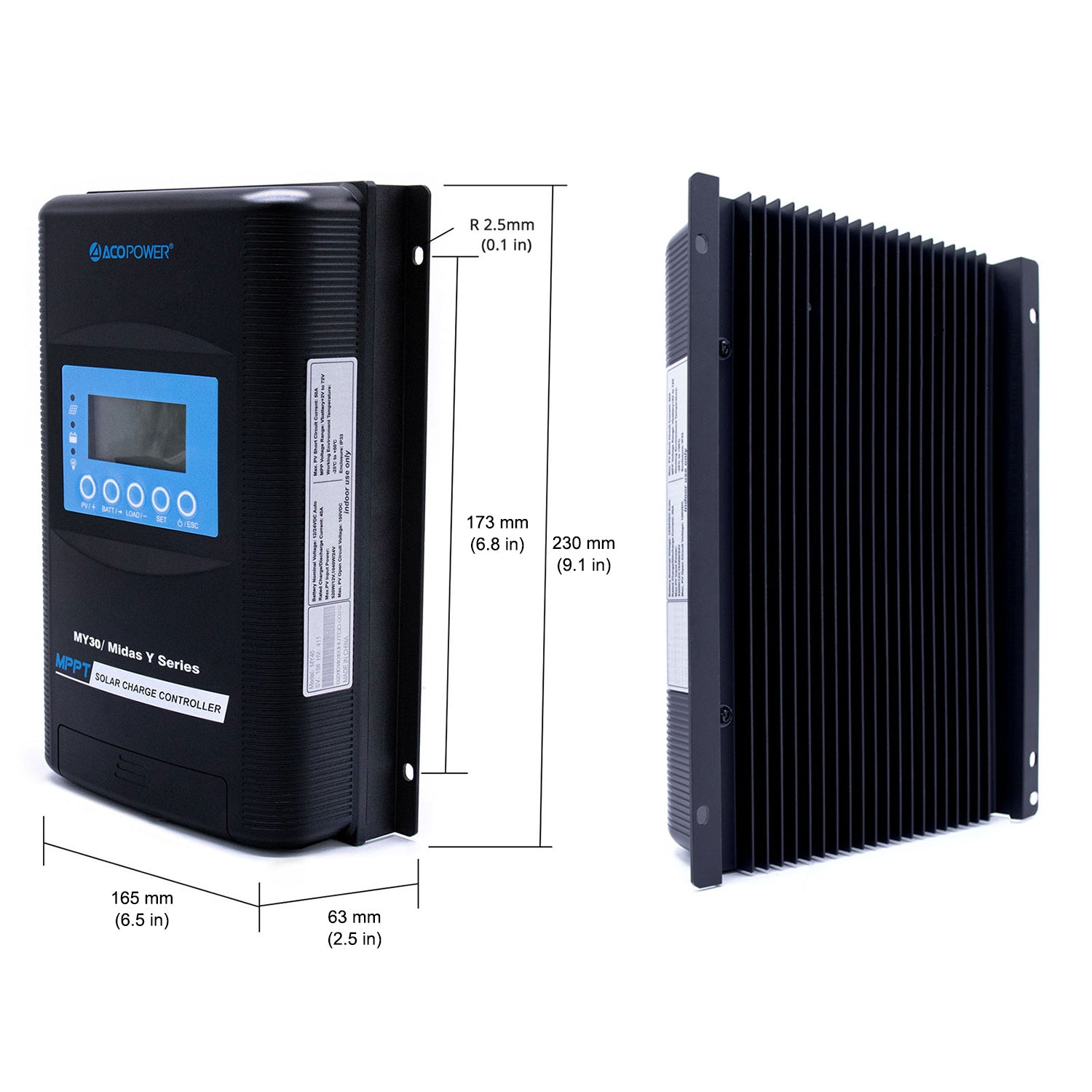

Dimensions: 228x164x55mmWeight: 1.2kg
WARRANTY INFORMATION
Solar Charge Controllers: The controller itself comes with a 1-year warranty.
Accessories: The accessories come with a 6-months warranty
