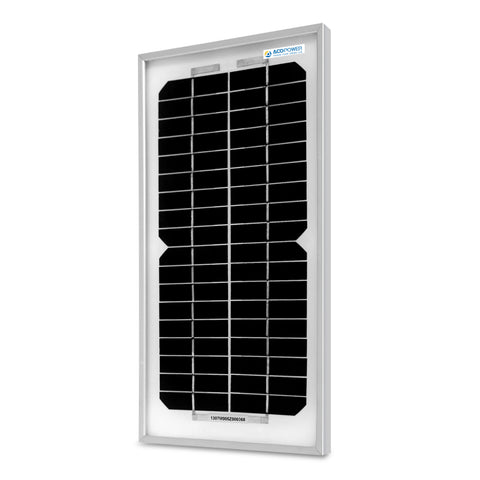

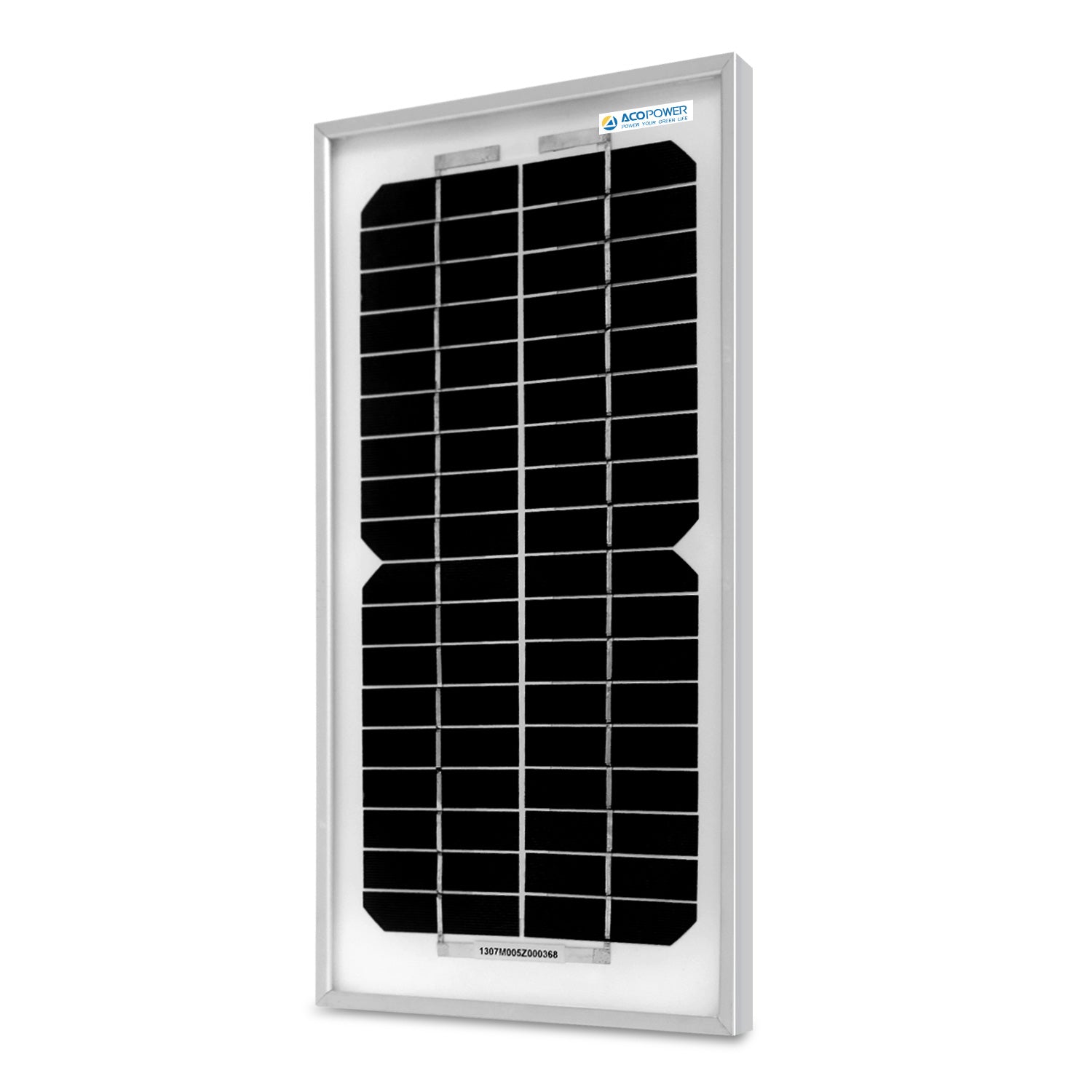

ACOPower 5 Watt Mono Solar Panel for 12V Battery Charging
High Efficiency：New high-performance mono cells encapsulated in EVA ensure excellent conversion rate up to 21-23%. Imp: 0.59A Vmp: 17.00V

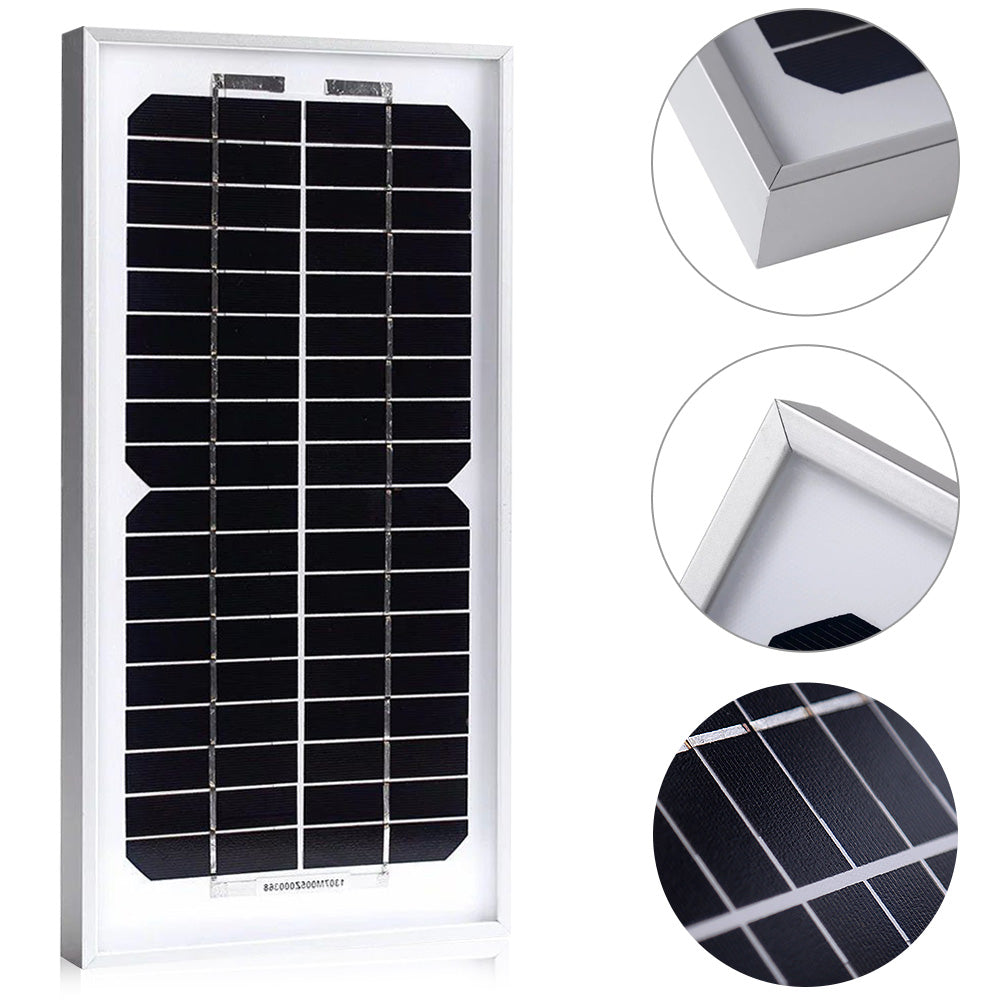

Durable & Waterproof：IP65 waterproof rate. The high-transparent, low iron tempered glass, and aluminum frame can stand with high winds (2400Pa), hail, and snow load (5400Pa)
Easy Installation：Pre-drilled mounting holes on the frame allow for easy and quick install
Versatile：Perfect for small off-grid applications, such as gate openers, fences, security cameras, lights. Trickle charging the battery of boats, RVs, SUVs, etc.
Warranty：2-year limited material and workmanship warranty. 10-year 90% output warranty. 25-year 80% output warranty
Package List
1 x 5W Solar Panel
1 x User Manual
| Built-in Components | |

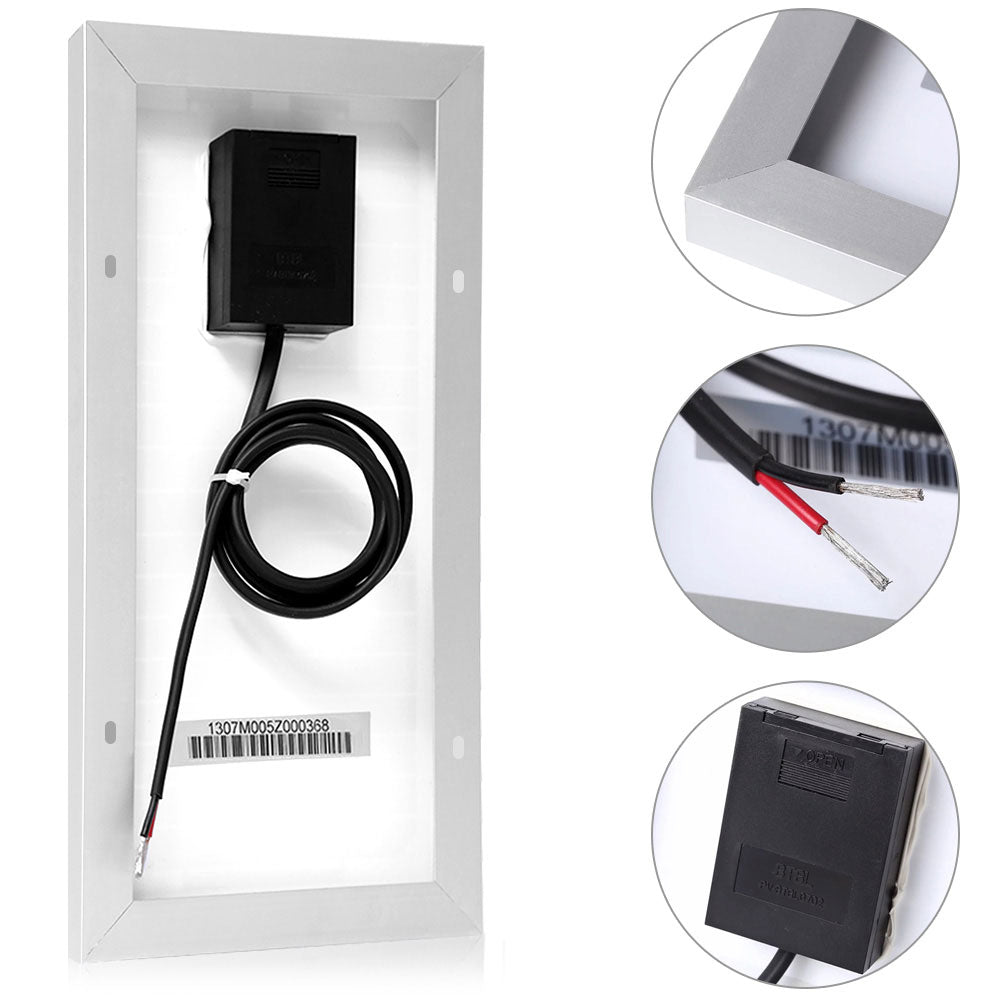

| ACOPower 5 Watt Monocrystalline Solar Panel | IP65 Rated waterproof junction box |
| Output Cables: 16 AWG (3.2ft long) | |
| Specification | |
| Maximum Power at STC (Pmax): 5W | Open-Circuit Voltage (Voc): 21.4V |
| Maximum Operating Voltage (Vmp): 18V | Short-Circuit Current (Isc): 0.31A |
| Maximum Operating Current (Imp): 0.28A | Operating Temperature: -40ºC to 85ºC |

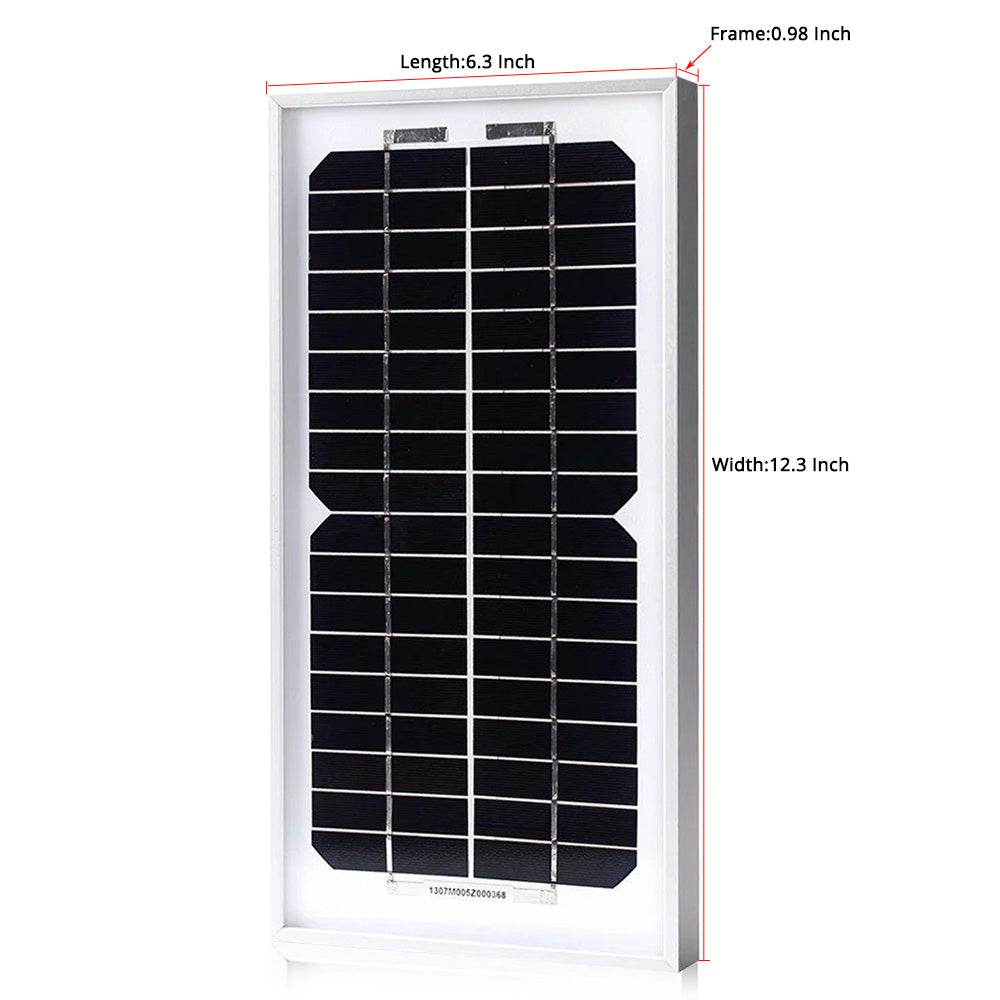

| Dimension: 320x160x25mm / 12.6x6.3x1 in | Weight: 1kg / 2.2 lbs |
| WARRANTY INFORMATION |
| Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty. |
| Accessories: 1-year material warranty |
User Manual
