ACOPOWER 500W Mono RV Solar System
ACOPOWER 500W Mono RV Solar System
ACOPOWER 500W Mono RV Solar System
ACOPOWER 500W Mono RV Solar System
ACOPOWER 500W Mono RV Solar System
ACOPOWER 500W Mono RV Solar System
ACOPOWER 500W Mono RV Solar System

ACOPOWER 500W Mono RV Solar System

HY-600AH3KW-500WMB

Regular price $3,598.00
/

WORRY FREE SHOPPING
free shipping
reliable warranty
secure payment
  • Solar charging will provide about 2400 Watt Hours (Wh) or 200 Amp hours of charge per day (depends on sunlight availability)
  • Perfect kit for having an off-grid 12 volt battery system. 3000 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use;Designed for RVs, cabins, homes, boats, back-up and remote power use
  • Bundle and save! Purchase all the components together and save time and money!
  • Complete kit includes: 5pcs 100 Watt Monocrystalline Solar Panel, 3pcs 200Ah Gel(Maintenance Free) Deep Cycle Battery,3000W 3000 Watt DC to AC Power Inverter, 40-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets;
  • California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business.

ACOPOWER 500 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER’s 500 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 5pcs 100 Watt Monocrystalline Solar Panels, 3000W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 3pcs 200Ah Gel Deep Cycle Battery, 40-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.

Specification:

100W Monocrystalline Solar Panel
• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8 lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

3000W Inverter 12VDC to 120VAC
 Continuous output 3000W
 Surge Power 6000W
 Wave Form: Pure Sine Wave
 Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
 Weight: 12.1lb
 dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch
12V 200 Ah Rechargeable Deep Cycle GEL Battery
 Nominal Voltage 12V
 Rated capacity (10 hour rate): 200Ah
 dimension(inch): 20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
 Approx. Weight: 62.5kg(137.5lbs)±3%
MPPT 40A Charge Controller
• Rated charge current: 40A
• Battery voltage range: 8V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/520W,24V/1040W
• Common positive grounding design
• Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

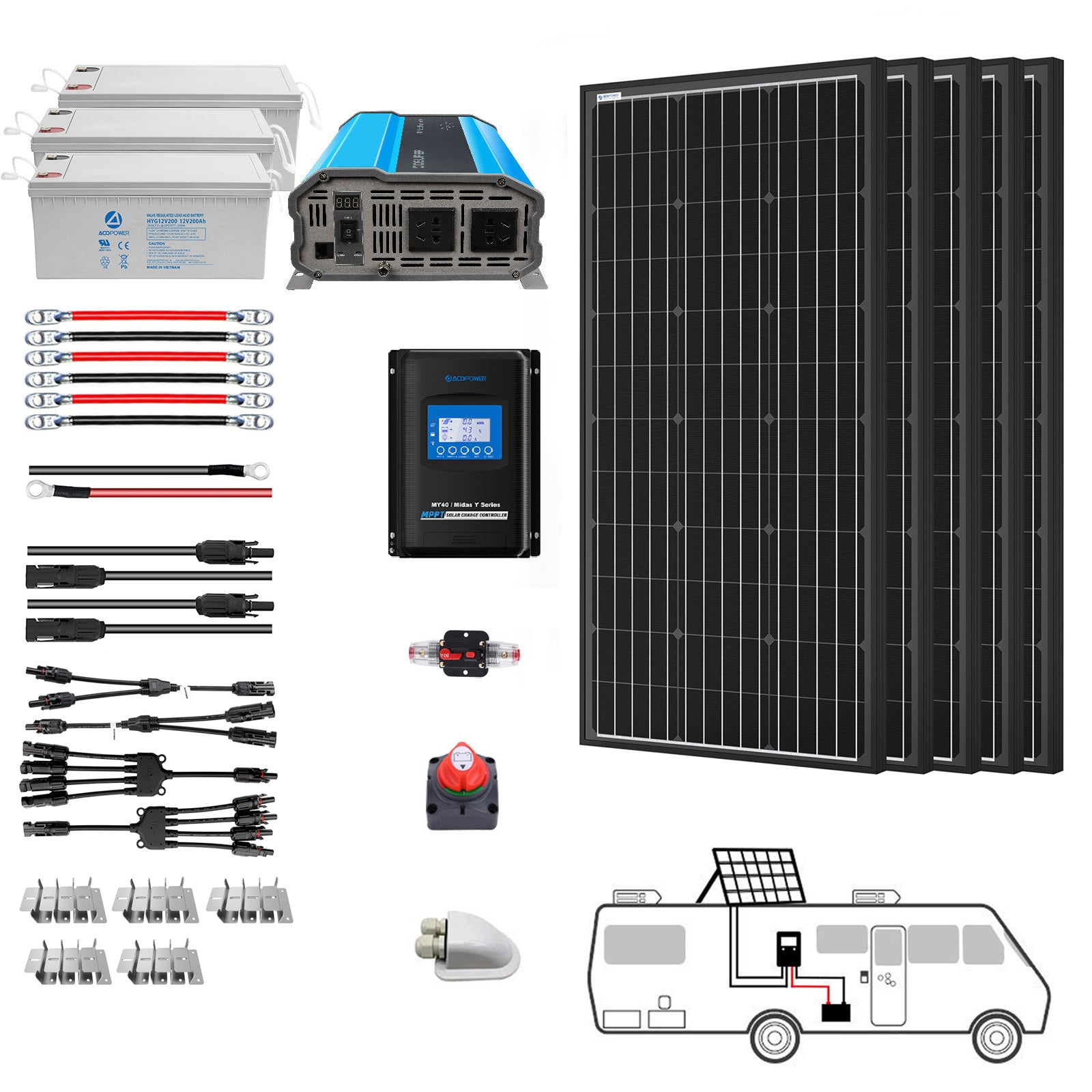

Package List:
• 5PCS 100W Mono Solar Panel
• 1PC 3000W Inverter
• 3PC 200Ah Gel Battery
• 1PC 40A MPPT Charge Controller
• 1PC 50A Fuse
• 1PC Battery Switch
• 5 Sets Mounting Z Bracket
• 2 Pairs 30ft 12AWG PV Cable
• 3 Pair 1Ft 2AWG Battery Cable
• 1 Pair 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing
• 2 Pairs y branch solar panel connectors

ACOPOWER 100W Mono Solar Panel, 12V
Maximum Power at STC (Pmax): 100WOpen-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.48VShort-Circuit Current (Isc): 6.14A
Maximum Operating Current (Imp): 5.71AOperating Temperature: -40ºC to 85ºC
Dimension: 1130x510x35mm / 44.5x20.1x1.4 inWeight: 5.8 kg / 12.8 lbs
ACOPOWER 3000W Power Inverter
Related power: 3000WOverload Protection: 1800W±100W
Peak Power: 6000WOvertemperature protection: 105±5℃
Input voltage: DC12V(11-14V)Overtemperature protection recover: ≤65℃
Output voltage: AC110V± 10%Output short circuit protection: Have
Output frequency: 50HZ ± 2HZRemote Control Function Optional
Output waveform: Pure Sine Wave Mounting bracket OptionalTHD: ≤3%
Conversion efficiency: ≥90%Input quiescent current: ≤0.6A
USB output: 5V 2400mA Auto (MAX)USB overcurrent protection: ≤3.5A
Cooling way: Temperature-control fanDisplay model: LED+LCD
Undervoltage protection: 10.0V ± 0.5VOvervoltage protection: 15.5V±0.5V
Shell Material: ABS+PC+aluminium alloyDimension: 242×463×118mm
Weight: 5.5kg

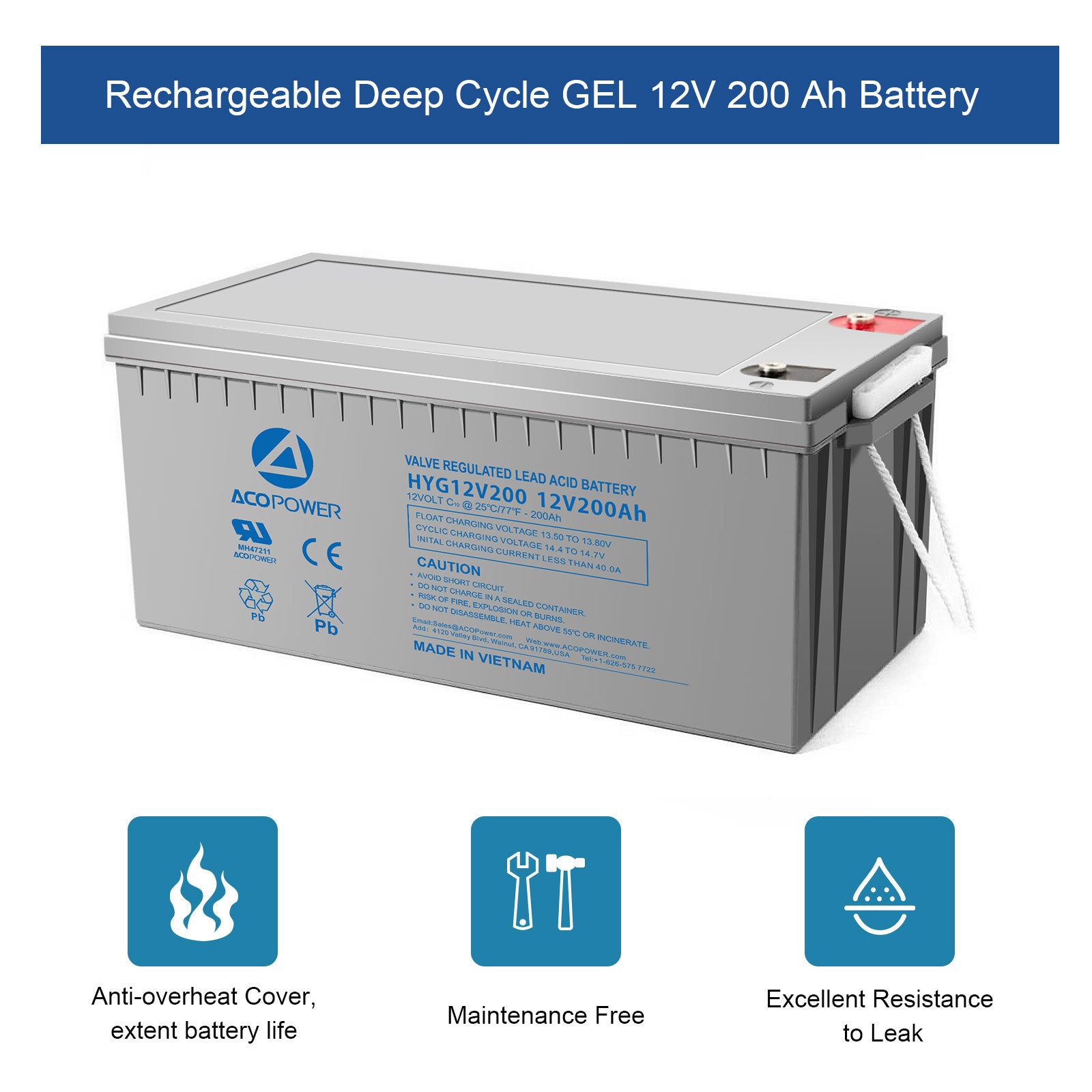

ACOPOWER HYG12-200Ah Rechargeable Gel Deep Cycle 12V 200Ah Battery
Nominal Voltage: 12VRated capacity (10 hour rate): 200Ah
Terminal type: T16AInternal resistance (Fully charged,25℃): Approx.3.3m Ω
Nominal operating temperature: 25℃±3℃(77℉±5℉)Maximum charging current: 40A
Dimension: 20.55x9.37x8.58 inWeight: 62.5kg(137.8lbs)±3%
ACOPOWER Midas 40A MPPT Negative Ground Solar Panel Charge Controller LCD Display
Nominal System Voltage: 12/24VDC AutoGrounding: Common negative
Rated Charge Current: 40ABattery Input Voltage Range: 8V~32V
Max. PV Open Circuit Voltage: 100V (1) 92V (2)Rated charge Power: 520W/12V 1040W/24V
MPPT Voltage Range: (Battery Voltage+2V) ~72VRS485 Interface: 5VDC/200mA(RJ45)
Working temperature: -25℃~+50℃Storage temperature: -20℃~+70℃
Terminals: Up to 6 AWGEnclosure: IP33
Dimension: 10x7.28x2.67 in / 255×185×67.8mmWeight: 3.75lbs / 1.7kg
