ACOPOWER Lithium Battery Poly Solar Power Complete System with Battery and Inverter for RV Boat 12V Off Grid Kit

SKU: HYL200AH-P200WN/A

$ 1,968.00


Wide Application:Perfect 200W-800W Solar RV kit for having an off-grid 12 volt Lithium battery 12V Solar Panel system. 1500 Watt Pure Sine Wave Inverter provides plenty of AC power 120VAV to run your household appliances and the battery bank will supply plenty of energy for moderate use; Designed for RVs, cabins, homes, boats, back-up and remote power use
MPPT Controller:30A-60A MPPT Charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%; 4-Stage battery charging process for a rapid, efficient, and safe battery charging ,Solar charging 200W-800W will provide about 960Wh-3840Wh (Watt-hour} or 80Ah320Ah (Ampere-Hour) of charge per day (Depends on sunlight availability)
High Capacity Li-Battery Packs:With 2560Wh-3840Wh of 2-3pcs 100Ah lithium batteries, which have higher charging/discharging efficiency and more than 3000 times deep cycles than lead acid batteries. Built-in BMS(battery management system), the 30A-60A MPPT solar charge controller can also prevent the lithium battery from getting damaged and provide double protections.
Installation Ready:One kit-everything you need DIY your solar charge system, the kit includes the necessary tools to start. Complete kit includes: 8pcs 100 Watt Polycrystalline Solar Panel, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Battery with Built-in 100A BMS,1500W DC to AC Power Inverter, 60 amp MPPT Solar Charge Controller (w/ LCD Display), a 60A fuse, a battery switch, a battery monitor, all necessary Cables, all necessary solar mounting Z brackets
California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business. 24/7 Free Technical Support Service, 100% Customer Satisfaction Service;


BATTERY BANK CAPACITY: Li200Ah 1.5kW

  • Li200Ah 1.5kW
  • Li300Ah 1.5kW
  • Li400Ah 3kW
  • Li600Ah 3kW

SOLAR KIT SIZE: 200W MPPT30A

  • 200W MPPT30A
  • 300W MPPT30A
  • 400W MPPT40A
  • 500W MPPT40A
  • 600W MPPT50A
  • 800W MPPT60A
Will not ship until [19041994]
$ 1,968.00
Out of stock
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage: 12.8VCharge voltage: 14.2 - 14.6V
Battery Capacity:1280WHDepth of Discharge (DoD): 100%
Standard charge current: 20AMax continuous charge current: 50A
Max continuous discharge current: 100Adimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

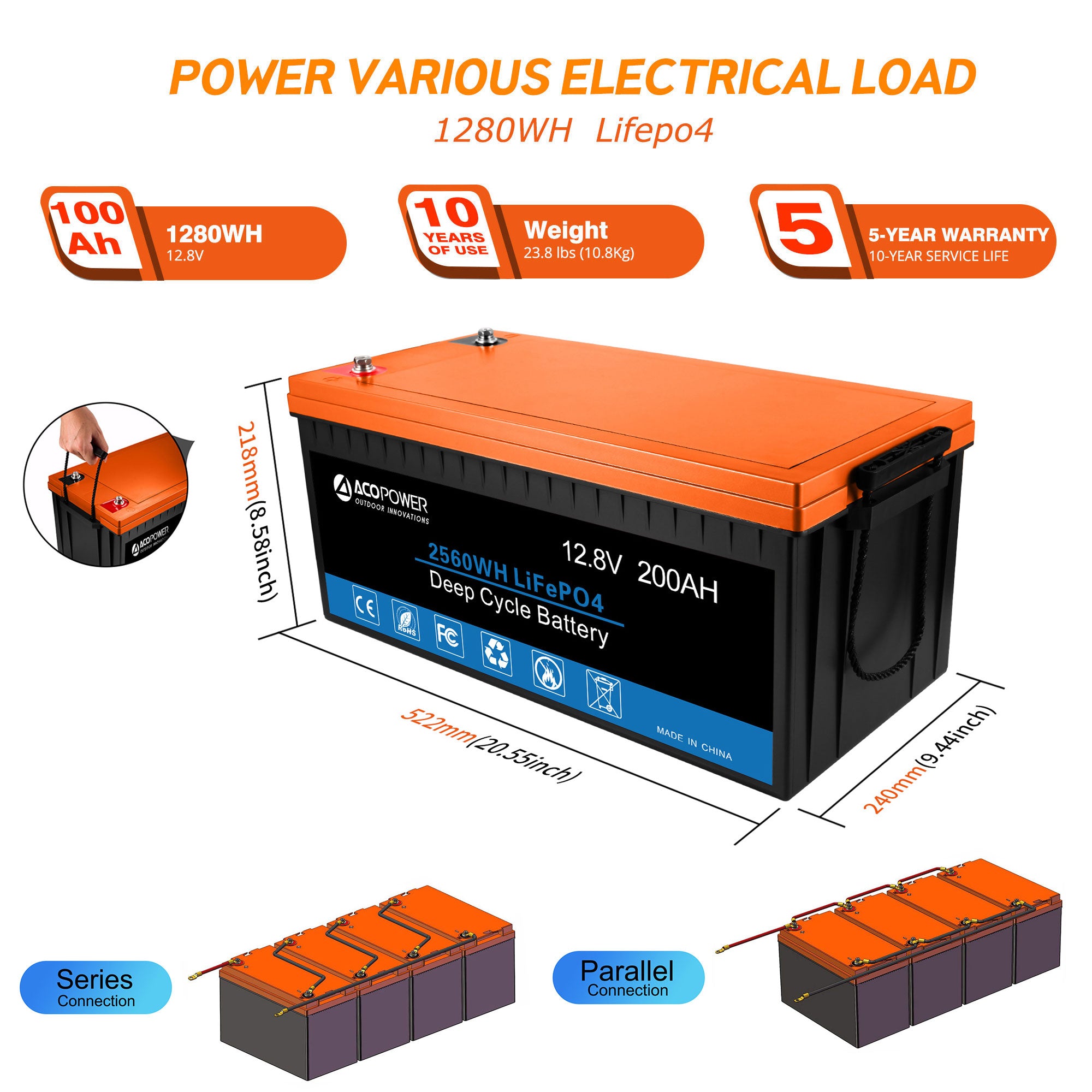

12V 200Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage: 12.8VCharge voltage: 14.2 - 14.6V
Battery Capacity:2560WHDepth of Discharge (DoD): 100%
Standard charge current: 50AMax continuous charge current: 100A
Max continuous discharge current: 200Adimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
Approx. Weight: 48.94lb
100W Poly Solar Panel
Nominal for 12V battery chargerPeak Power (Pmax):100W
Peak Circuit Voltage(Voc):22VMax Power Voltage(Vmp):17.48V
Short Circuit Current(Isc):6.21AMax Power Current(Imp):5.72A
Weight:17.6lbDimension:40.2*26.4*1.4 Inch
Application Class: Class A
1500W Pure Sine Wave Inverter
Continuous output 1500WSurge Power 3000W
Wave Form: Pure Sine WaveProtection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protectionDimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch
Weight: 7.79lb
3000W Pure Sine Wave Inverter
Continuous output 3000WSurge Power 6000W
Wave Form: Pure Sine WaveProtection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protectionDimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch
Weight: 12.1lb
MPPT Solar Charge Controller 30A
Rated charge current: 30ABattery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDCMax.PV input power: 12V/390W,24V/780W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 40A
Rated charge current: 40ABattery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDCMax.PV input power: 12V/520W,24V/1040W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 50A
Rated charge current: 50ABattery voltage range: 8V~68V
Max.PV open circuit voltage: 150VMax.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
MPPT Solar Charge Controller 60A
Rated charge current: 60ABattery voltage range: 8V~68V
Max.PV open circuit voltage: 150VMax.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
Compatible with Various Deep Cycle Battery options:Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
