ACOPower 200 Watt 12 Volts Monocrystalline for Water Pumps, Residential Power Supply

SKU: HY200-12MB-1N/A

$ 219.00

  • 200W Power: Size 58.7x26.4x1.4 Inch inches; Weight 26.5 Lbs; High modules conversion efficiency cells. Monocrystalline modules provide for the highest efficiency rate.
  • Advanced encapsulation material with multi-layered sheet minimizations enhances cell performance and provides a longer service life. Corrosion-resistant aluminum frame allows extended outdoor use. Glass is anti-reflective, highly transparent, and low iron-tempered. No hot-spot heating.
  • Each solar panel is easy to install via a pre-drilled hole and comes with a 12AWG cable with 35 inches PV male/female quick connectors.

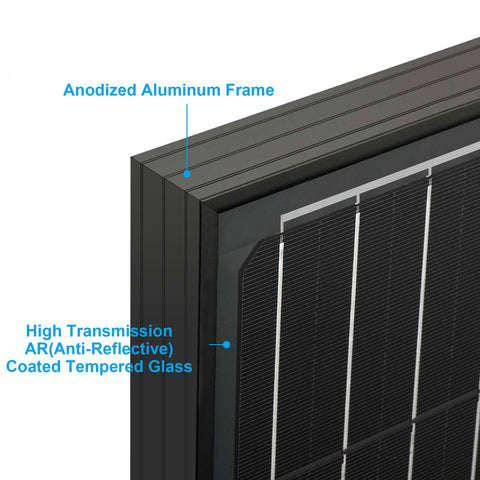

  • Durable lightweight anodized aluminum frame and reinforced safety and anti-reflection coated glass. Includes waterproof IP-65 rated Junction box.
  • US based company with local support and 5 years equipment and 20 years performance warranty.

Size: 1 Pack

  • 1 Pack
  • 2 Pack
  • 3 Pack
  • 4 Pack
  • 5 Pack
Will not ship until [19041994]
$ 219.00
Out of stock

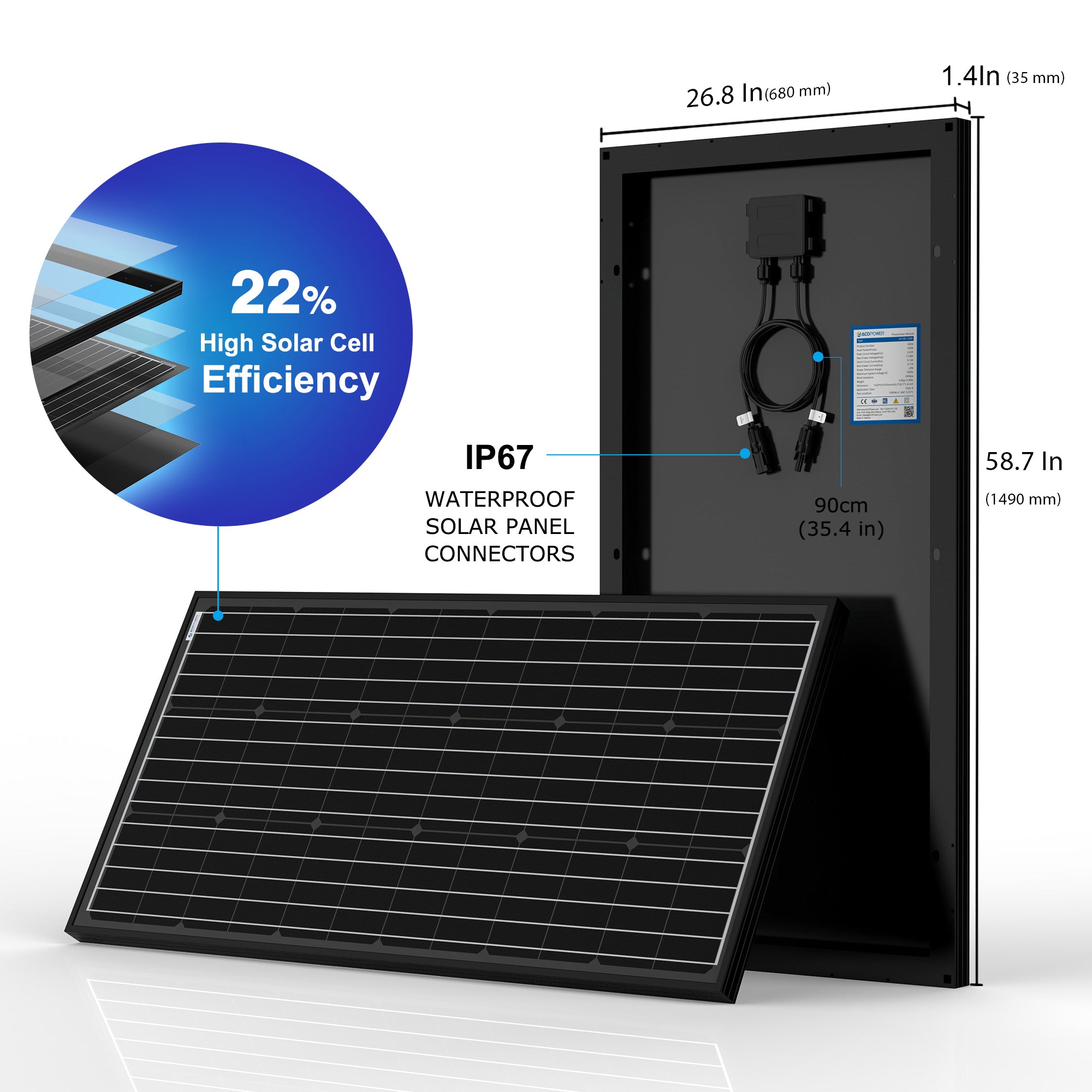

  • Dimensions:Size: 58.7×26.8×1.4inches; Weight 26.5 Lbs; 72pcs 5x5 inches high modules conversion efficiency cells
  • Application: Mainly used for home roof-top, outdoor water pump, solar plants

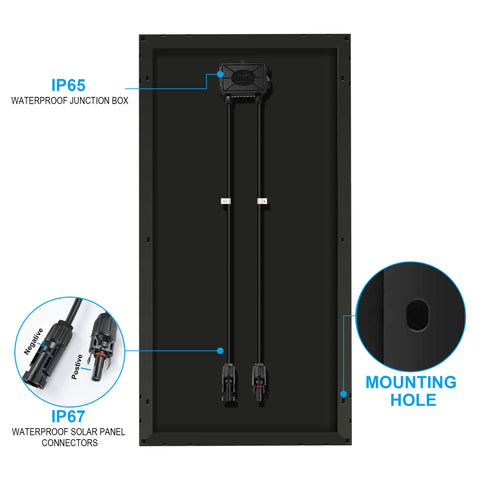

  • EASY INSTALLATION: Pre-drilled holes and installation ready; IP65 rated junction box with diodes and 30 inches cable with MC4 connectors pre-installed
  • HIGH QUALITY MECHANICAL PROPERTIES: Guaranteed positive output tolerance (0-3%); withstand high wind-pressure snow load and extreme temperature
  • Warranty: 25 years of output warranty and 5 years workmanship warranty

200 Watt 12 Volts Monocrystalline
Peak Power Watts-PMAX (Wp): 200WPower Output Tolerance-PMAX (W): 0~+5 W
Maximum Power Voltage-VMPP (V): 20.4 VMaximum Power Current-IMPP (A): 9.80 A
Open Circuit Voltage-VOC (V): 24.3 VShort Circuit Current-ISC (A): 10.2 A
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5NOCT (Nominal Operating Cell Temperature): 45°C (±2°C)
Maximum System Voltage: 1000VDCModule Dimensions: 58.7 × 26.8 × 1.4 inches (1490 × 680 × 35 mm)
Weight: 26.5 lb (12 kg)
