ACOPOWER PTK 200W Portable Solar Panel Kit Briefcase
ACOPOWER PTK 200W Portable Solar Panel Kit Briefcase
ACOPOWER PTK 200W Portable Solar Panel Kit Briefcase
ACOPOWER PTK 200W Portable Solar Panel Kit Briefcase
ACOPOWER PTK 200W Portable Solar Panel Kit Briefcase
ACOPOWER PTK 200W Portable Solar Panel Kit Briefcase
ACOPOWER PTK 200W Portable Solar Panel Kit Briefcase

ACOPOWER PTK 200W Portable Solar Panel Kit Briefcase

HY-PTK-2x100

Regular price $485.99
/

Shop Now, Pay over time. No credit required.

WORRY FREE SHOPPING
free shipping
reliable warranty
secure payment

Description

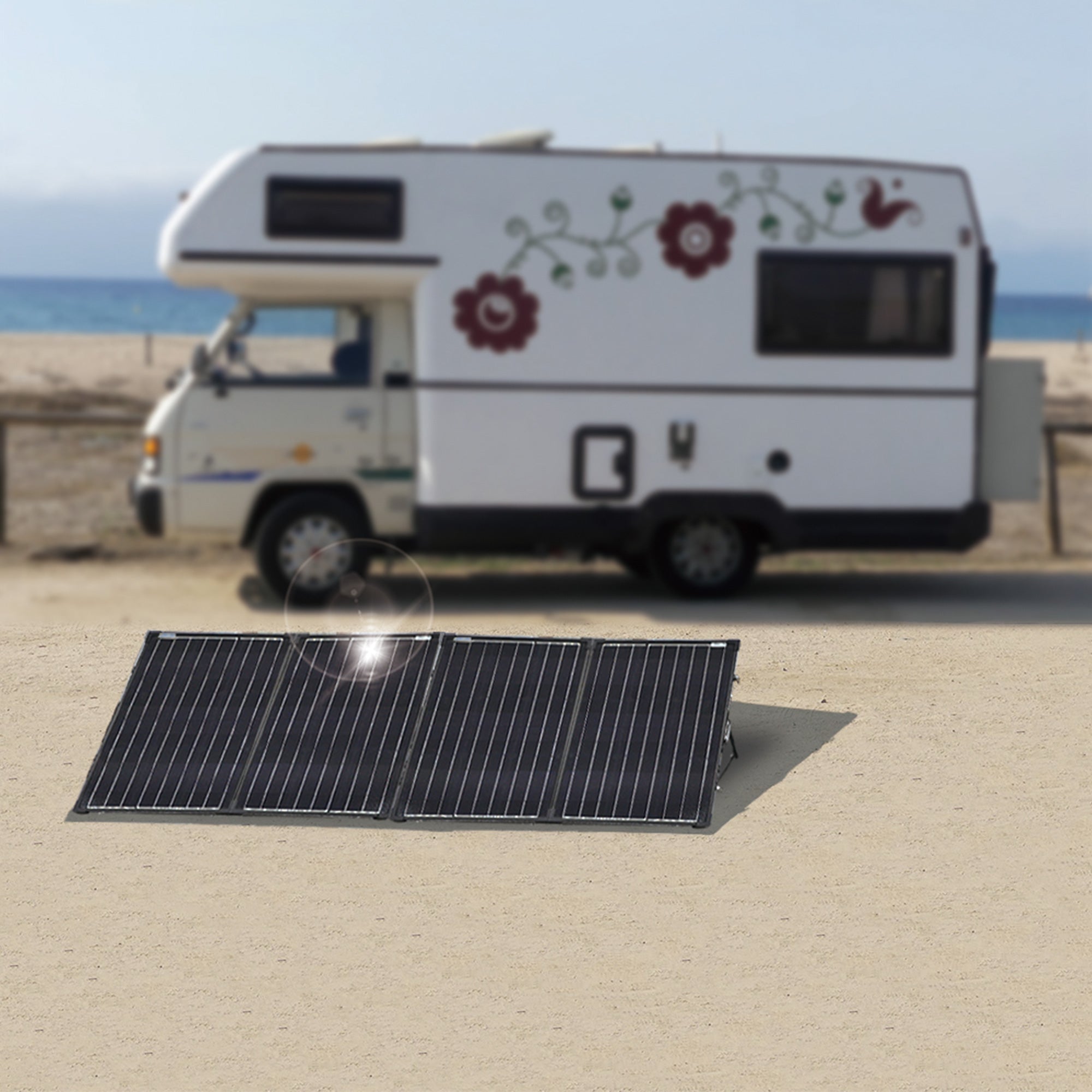

ACOPOWER All Black 200W Mono Foldable Solar Panel Kit with Charge Controller is the key component to a system when going solar Off -Grid system. The 200w solar panels is relatively compact and is a breeze to set up.Whether you are going camping in the mountains or taking a trip to the beach, this solar suitcase can be a great start to your off-grid system! This solar kit has several uses including marine, dry camp, RVS and other off-grid applications.

If you have any questions regarding this product, please call us at 1 (626) 838-5511 or email support@acopower.com.

Key Features

EAN: 6970051093600

  • Negative Ground Controller Featuring Advanced MPPT Technology with High Tracking Efficiency up to 99.5% and Peak Conversion Efficiency of 98%. Maximizing the Energy From Solar Panels to Charge your System. With Temperature Sensor, Automatic Temperature Compensation The Solar Panel's Power Generation 10~20% Higher than the PWM Solar Charge Controller

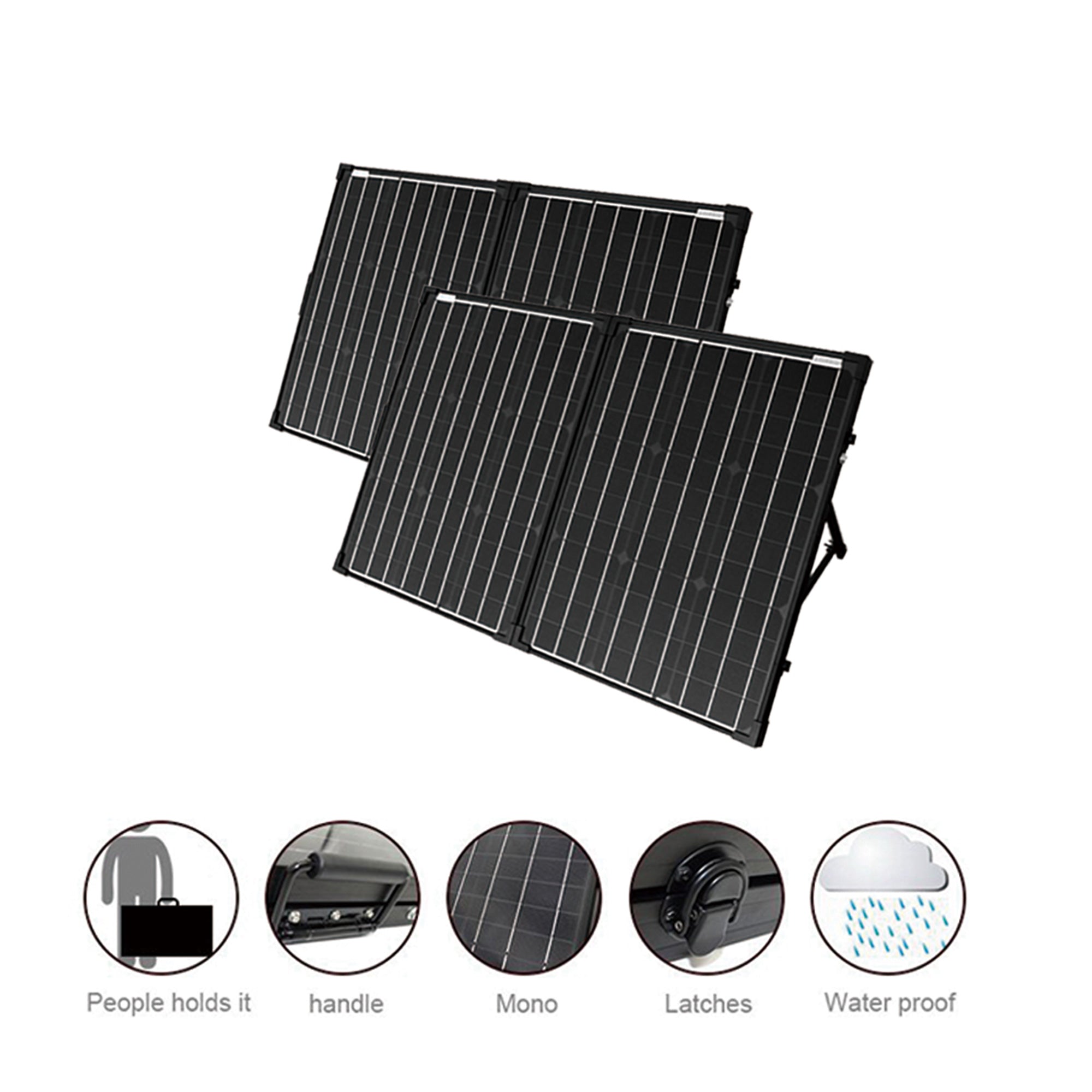

  • Four 50W solar panels attached in pairs for portability. Case design facilitates transportation and helps keep solar panel safe when storing

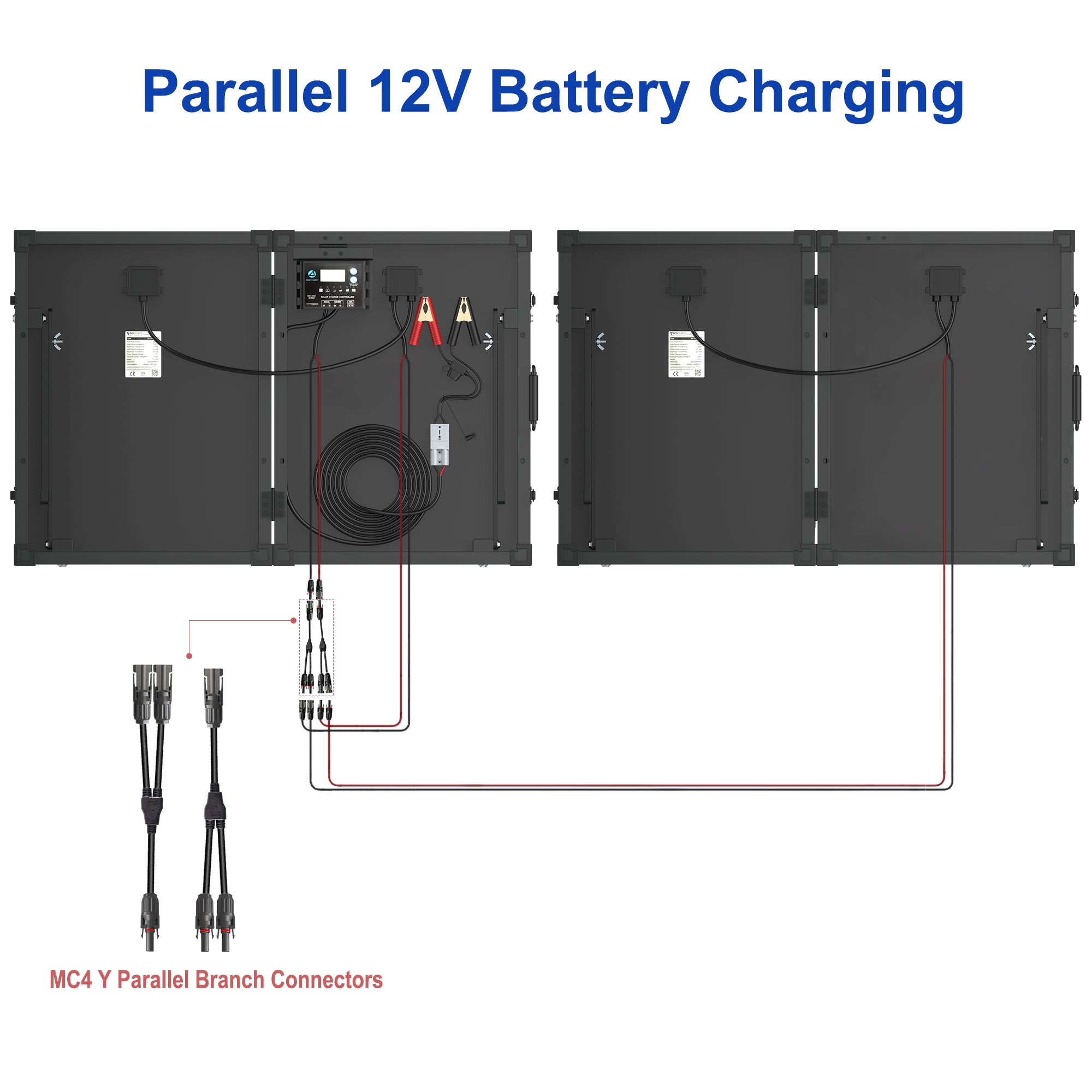

  • Grade A monocrystalline solar panels with 20A waterproof charge controller, MC-4 connector, and alligator clips makes this product an ideal option for 12V battery charging

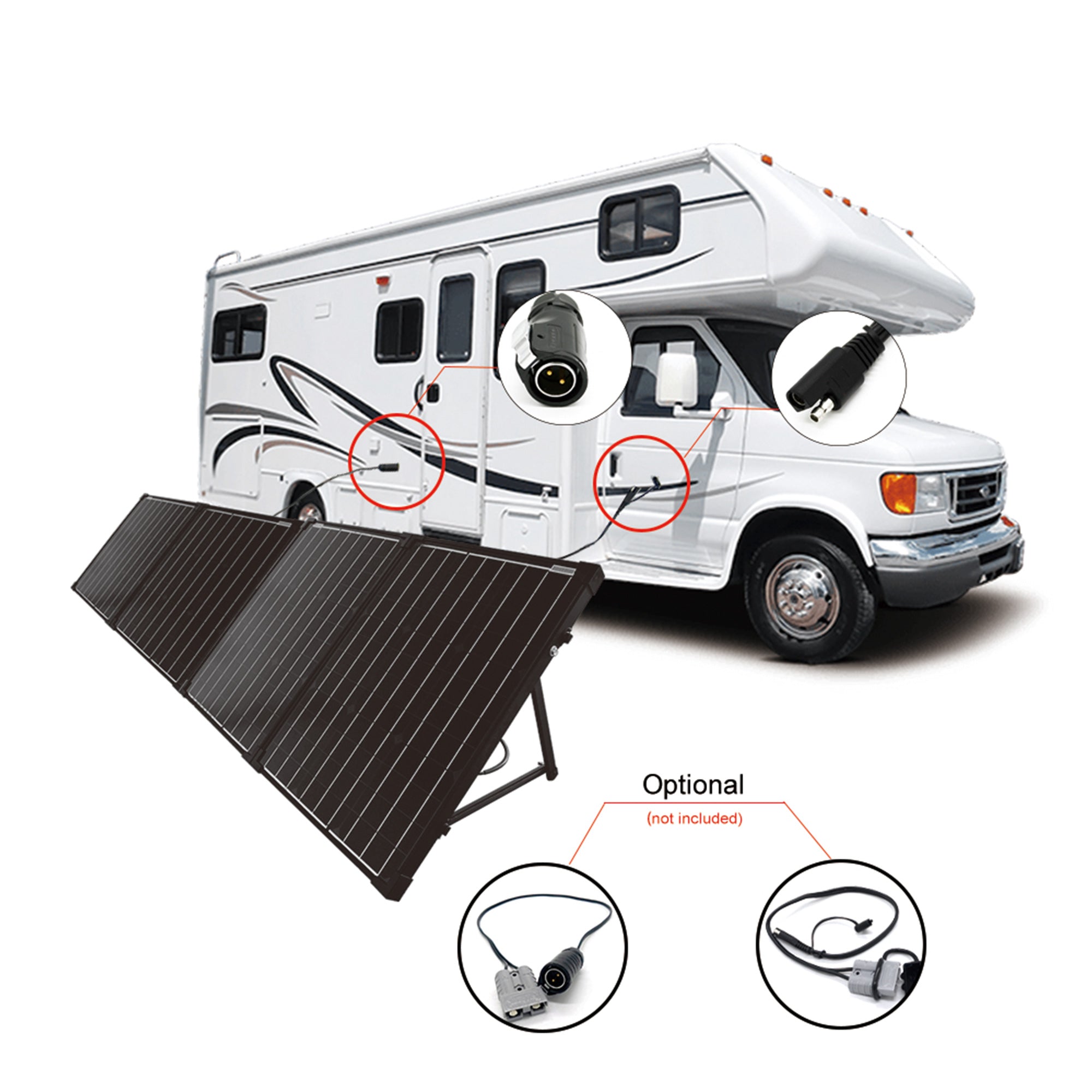

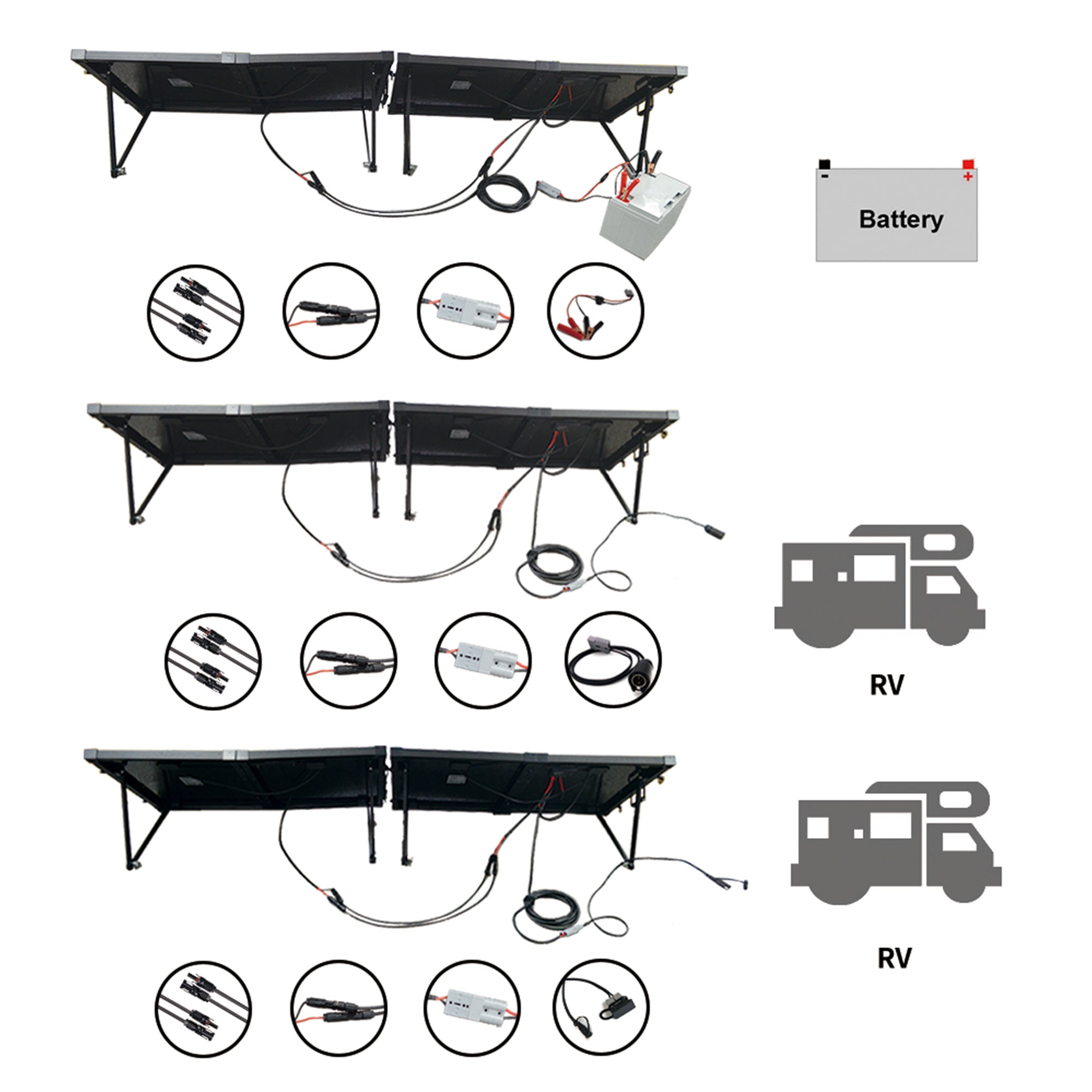

  • Pre-installed stand allows for easy and quick set-up. MC-4 connectors or Anderson plug allow easy installation to RV or battery unit
  • Aluminum frame, corner protectors, lock-latches, and carrying handle make this a lightweight and portable product

Package List

  • 2 x 100W Portable Solar Panel
  • 1 x 20A charge controller
  • 3 x User Manual
ACOPOWER 200W Foldable Solar Panel
Module Type: 2×50WMaximum Power: 2x100W
Open-Circuit Voltage (Voc): 22.3VMaximum Operating Voltage (Vmp): 17.8V
Short-Circuit Current (Isc): 2 x 1.3.03AMaximum Operating Current (Imp): 2 x 1.81A
Folded size: 25.6x19.9x1.2 in / 650x505x30mmUnfolded size:
Weight: 66.2 lbs / 30kg
20A Solar Charge Controller
Nominal Voltage: 12V/24V DCRated Charge Current: 20A
Max. PV Input Voltage: 50VGrounding: Common Negative
Battery Start Charging Voltage: 3VTemperature Compensation Coefficient: -24mV/°C
Operating Temperature: -40°F to 140°FStorage Temperature: -40°F to 185°F
Terminals: Up to 10 AWGEnclosure: IP65
Dimensions: 5.59x 3.7x 1.06 inchesWeight: 1.1 lbs
WARRANTY INFORMATION
Panels: The solar panel itself comes with an 18-months workmanship warranty and a 25-year 85% output warranty.
Accessories: 1-year material warranty
