ACOPOWER 50W 12V Solar Charger Kit, 10A Charge Controller with Alligator Clips

SKU: HY-CKM-50W10AN/A

$ 120.99



Out of stock
  • Solar Kit : Used High Modules Conversion Efficiency 50W Mono Solar Panel. Provides Up to 50W Designed specifically for customers new to solar. Easy and convenient to install with pre-drilled holes on panels
  • Upgraded Charge Controller : It has been Upgraded to Positive Grounding Controller New 10A PWM Charge Controller .The 10A charge controller with USB output for 12V battery charge. You Can Expand Your System Up to a Maximum of 2. Positive Grounding Controller Ensures the Broader Off-Grid Applications and Safety.
  • Best free & Clean Power Resource Used in Various Off-Grid Applications that Include 12 arrays, WaterPumping Systems, Signaling Systems and other Off-Grid

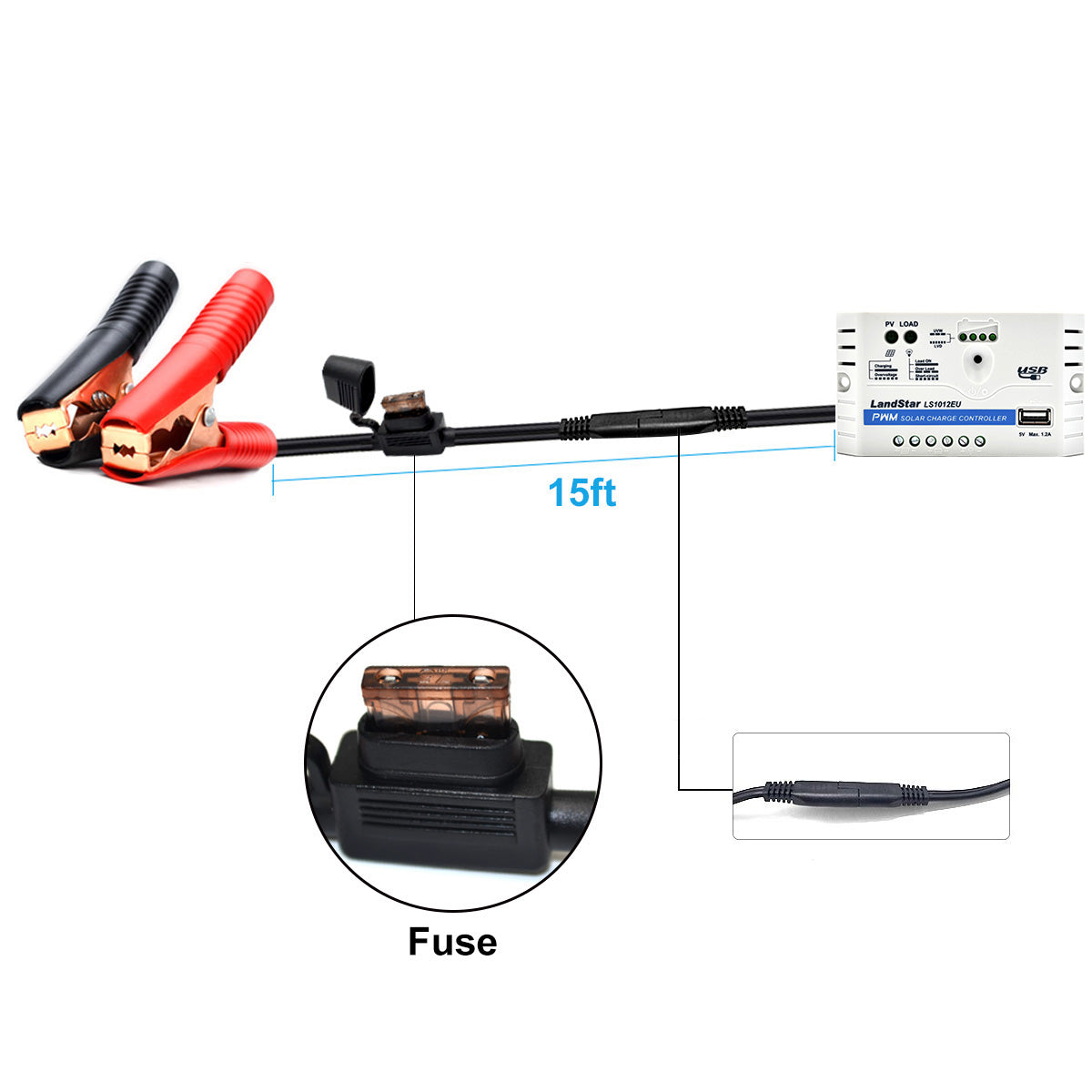

  • Safety: Comes with a 50W 12V polycrystalline solar panel, a 10A PWM Charge Controller with SAE Connectors and Alligator Clamps . 20ft cable from charge controller to battery; SAE connector for pre-wired 2 Pin socket in sidewall of RV;Alligator clamps- to clip to your battery in 10 seconds with protection. The alligator clamps won't have voltage and current until a proper battery is connected, avoid any touching accidents.
  • Application: Basic Component for Off-Grid Solar Panel 12V/24V/36V/48V System, Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, Cabins, Caravan, Cars, Green House Solar Systems. Withstand High Wind (2400Pa) and Snow Loads (5400Pa); Lightweight Anodized Aluminum Frame and Reinforced Safety and anti-Reflection Coated Glass 3.2mm Thick and Waterproof IP-65 Rated Junction Box which Allows The Panel Lasts for a Long Time.
  •  Warranty: 5 years material and workmanship warranty and 25 years power output warranty; Accessories, 1 year material & workmanship warranty.

Package List:

  • 1 x LS1024EU Solar Charging Controller with Alligator Clips
  • 1 x HY050-12M Solar Panel
  • 2 x User Manual

Application Scope

  • Courtyard lighting.
  • Small household lighting system.
  • Street lighting.
  • Portable solar power.
  • Solar Pump
  • All small power electrical devices & small PV system.
Specification
Maximum Power at STC (Pmax): 50WOpen-Circuit Voltage (Voc): 21.94V
Maximum Operating Voltage (Vmp): 17.21VShort-Circuit Current (Isc): 3.12A
Maximum Operating Current (Imp): 2.91AOperating Temperature: -40ºC to 85ºC
Dimension: 670x550x35mm / 26.4x21.7x1.4 inWeight: 5kg / 11 lbs

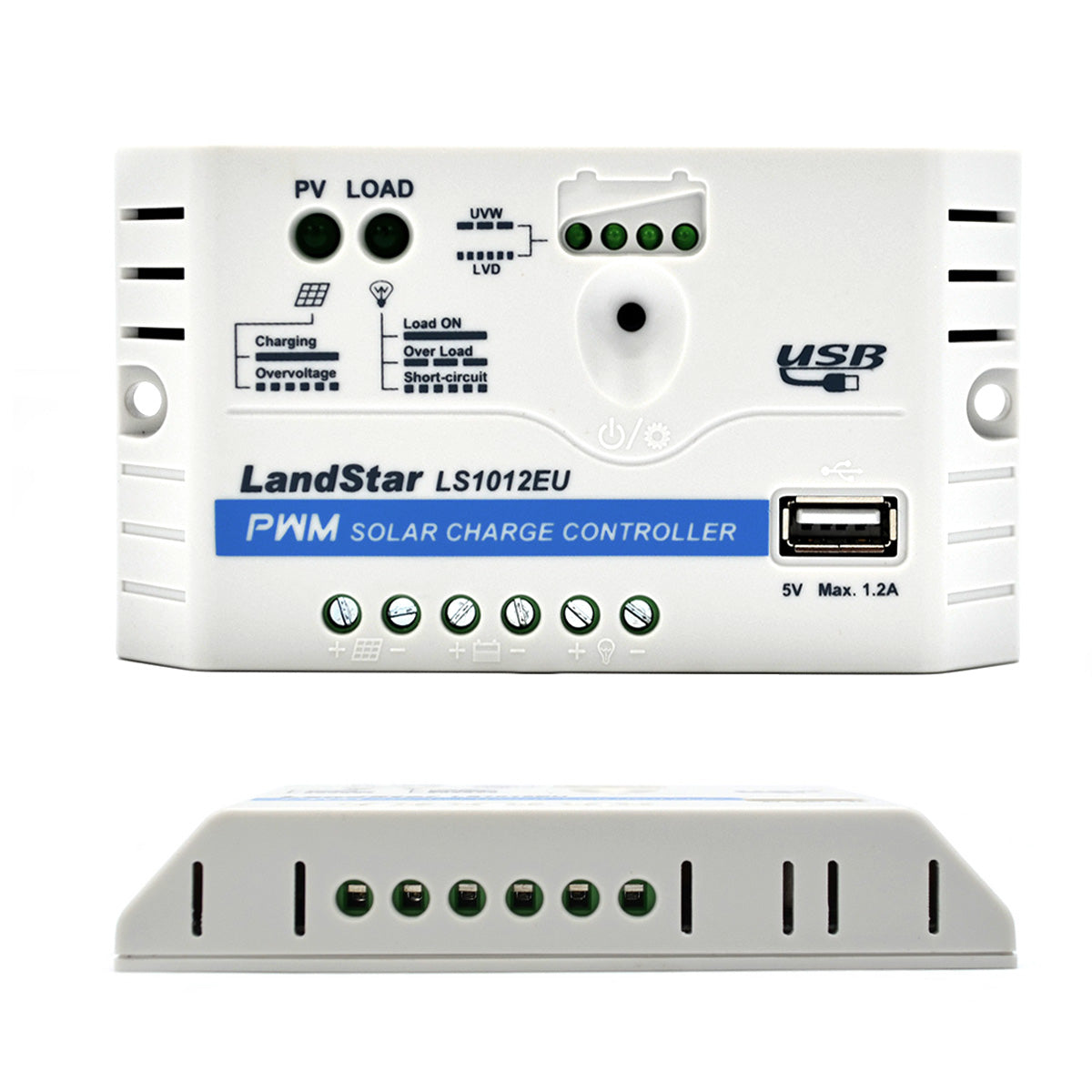

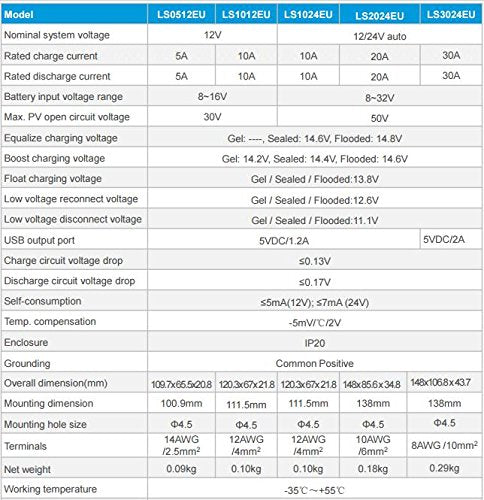

10A PWM Charge Controller
Nominal system voltage: 12/24VDC AutoRated charge/discharge current: 10A
Max. PV open circuit voltage: 50VBattery input voltage range: 8~32V
Battery type: Sealed / Gel / FloodedGrounding: Common positive
Working temperature: -35℃~+55℃USB output: 5VDC/1.2A
Terminals: 12AWG(4mm2)Enclosure: IP20
Dimensions: 120.3x67x21.8mmWeight: 0.23 lbs /0.103kg
WARRANTY INFORMATION
Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
Accessories: 1-year material warranty
