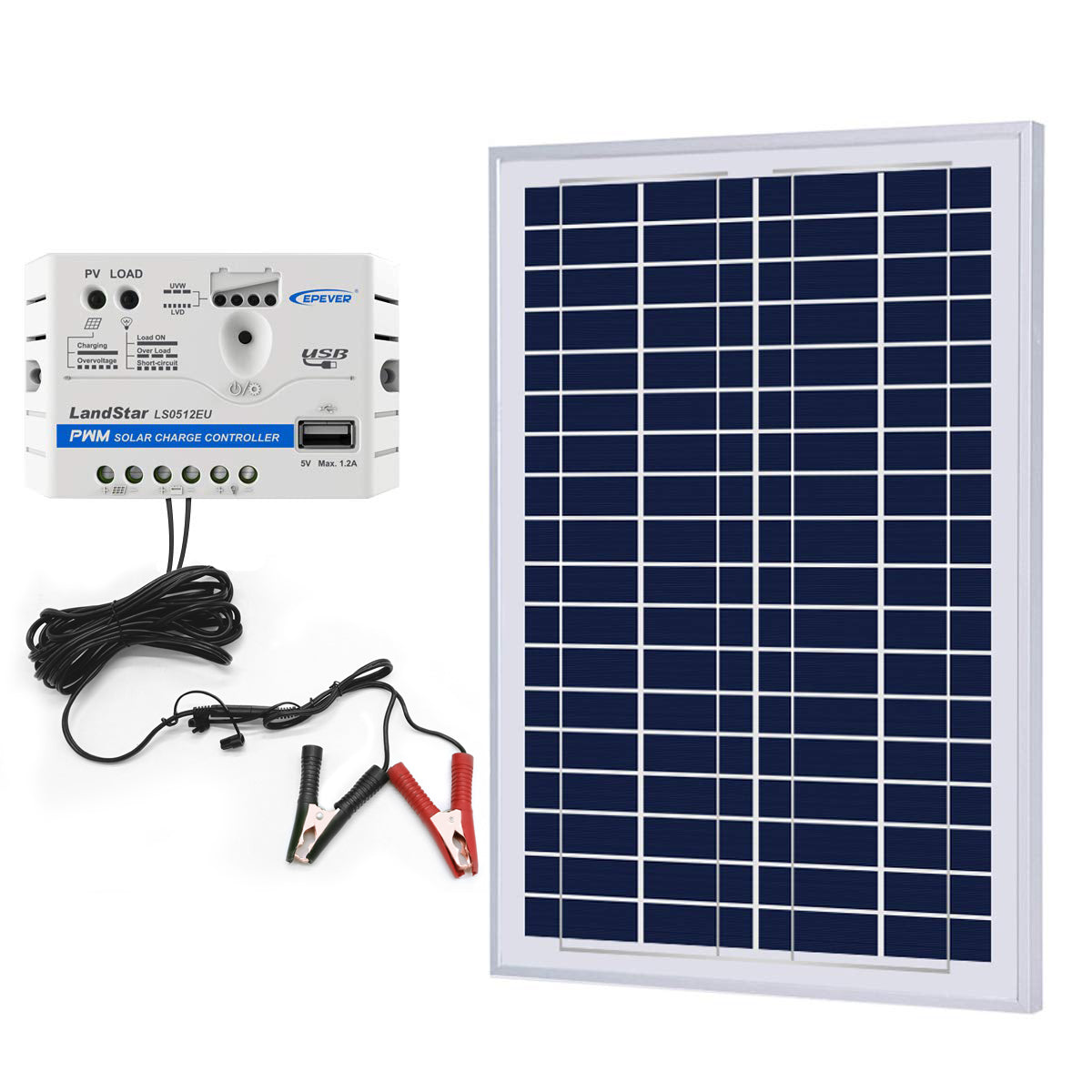

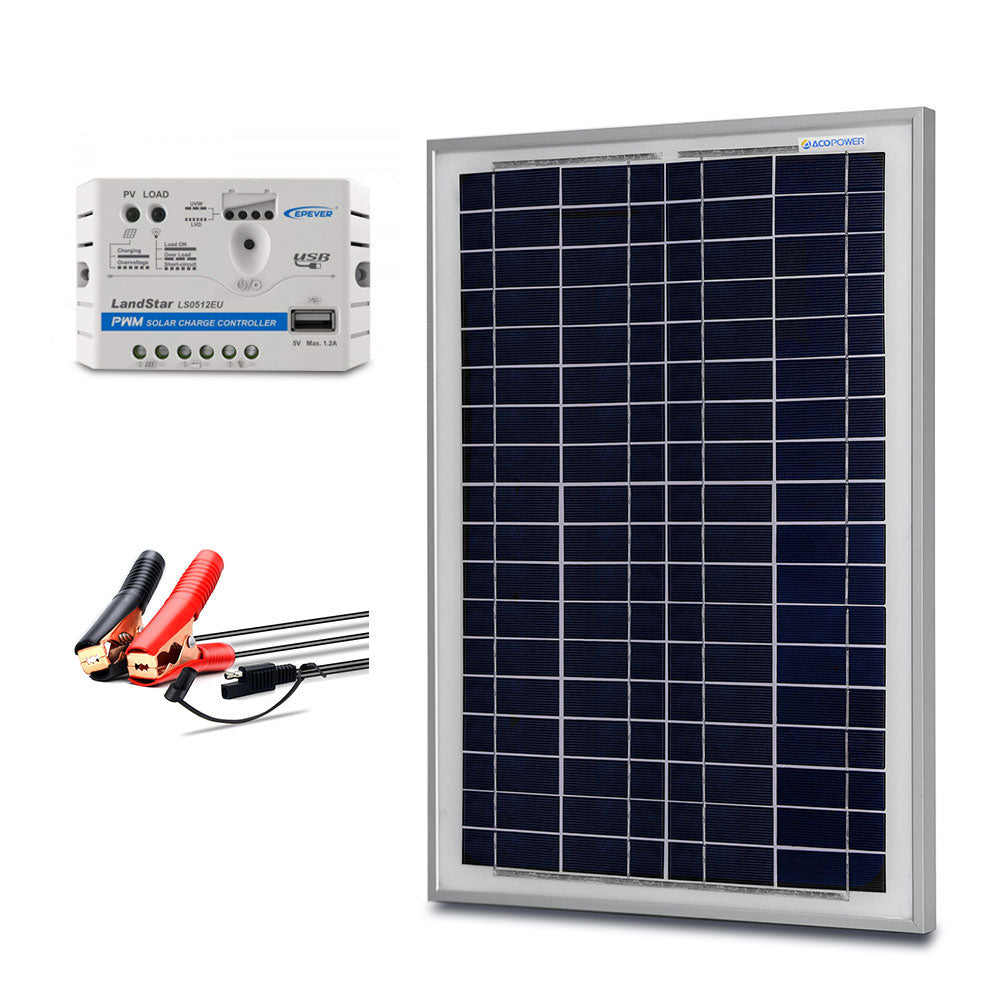

ACOPower 25W Off-grid Solar Kits, 5A charge controller with SAE connector

SKU: HY-CKP-25WN/A

$ 79.99 $ 59.90


  • Solar Kit Used High Modules Conversion Efficiency 25W Poly Solar Panel. Provides Up to 25W Designed specifically for customers new to solar. Easy and convenient to install with pre-drilled holes on panels. The kit charges 12 Volts lead acid batteries including Sealed, Flooded, GEL and AGM, which mostly serve in boats, cars, RV and campers;
  • The Charge Controller has been Upgraded to Positive Grounding Controller New 5A PWM Charge Controller. The 5A charge controller with 5V USB output for phones/USB devices . You Can Expand Your System Up to a Maximum of 2. Positive Grounding Controller Ensures the Broader Off Grid Applications and Safety. Regulator for a protection of your battery and devices, stop charging after battery's full charge, automatically start when voltage drops.

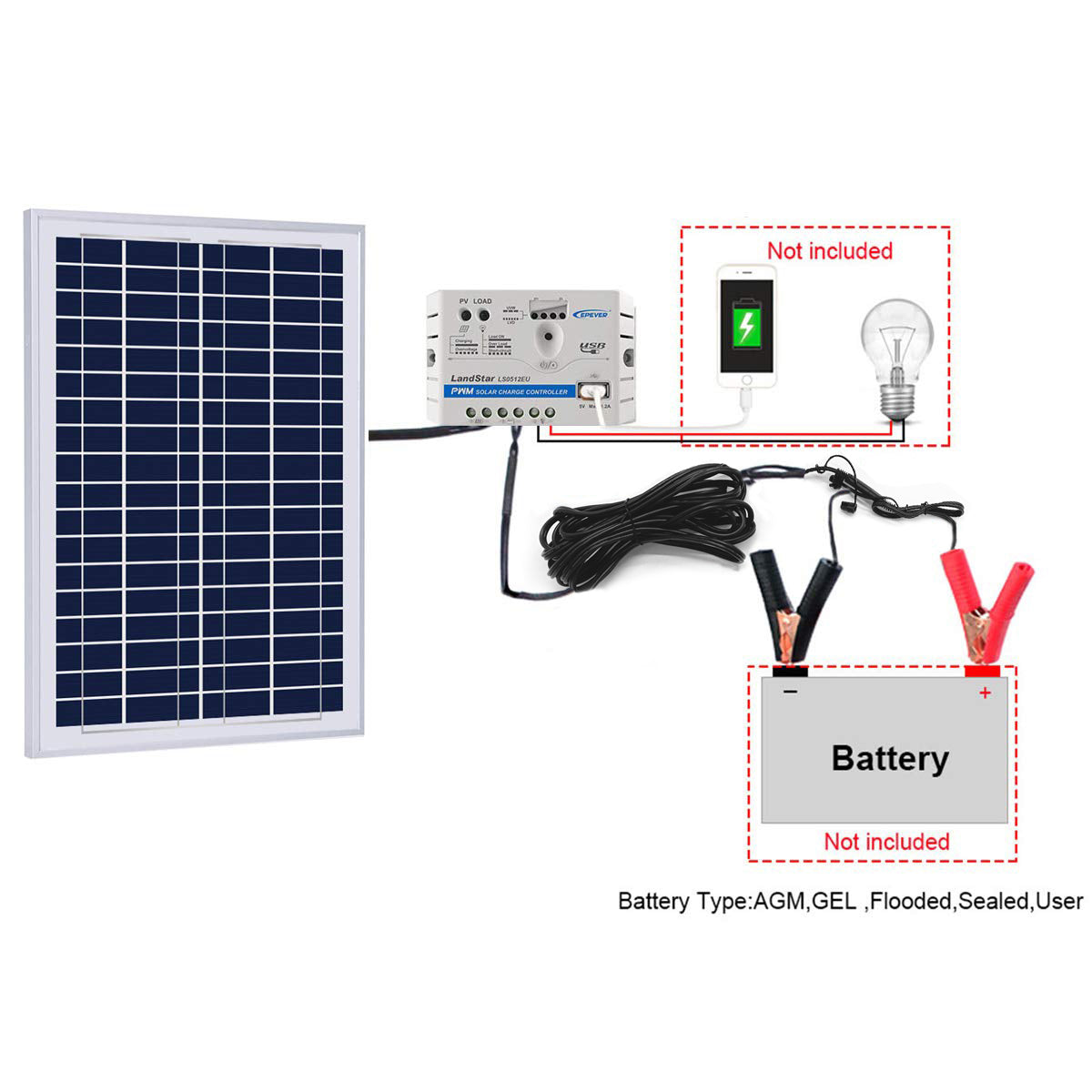

  • Safety: Comes with a 25W 12V polycrystalline solar panel, a 5A PWM Charge Controller with Alligator Clips . 15ft cable from charge controller to battery, 5A fuse and alligator clamps- to clip to your battery in 10 seconds with protection. The alligator clamps won't have voltage and current until a proper battery is connected, avoid any touching accidents.
  • Application: Basic Component for Off-Grid Solar Panel 12V/24V/36V/48V System, Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, Cabins, Caravan, Cars, Green House Solar Systems. Withstand High Wind (2400Pa) and Snow Loads (5400Pa); Lightweight Anodized Aluminum Frame and Reinforced Safety and anti-Reflection Coated Glass 3.2mm Thick and Waterproof IP-65 Rated Junction Box which Allows The Panel Lasts for a Long Time.
  • Warranty: Connect the charge controller to battery firstly, then connect solar panel. Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, and Cabins. Panels, 5 years material and workmanship warranty and 25 years power output warranty; Accessories, 1 year material & workmanship warranty.
  • Package List:
    1 x LS0512EU Solar Charging Controller with SAE adapter and Alligator Clips
    1 x HY025-12P Solar Panel
    2 x User Manual

Notify me when this product is available:

  • Solar Kit : Used High Modules Conversion Efficiency 25W Poly Solar Panel. Provides Up to 25W Designed specifically for customers new to solar. Easy and convenient to install with pre-drilled holes on panels
  • Upgraded Charge Controller & Expandable : It has been Upgraded to Positive Grounding Controller New 5A PWM Charge Controller . The 5A charge controller with USB output for 12V battery charge. You Can Expand Your System Up to a Maximum of 2. Positive Grounding Controller Ensures the Broader Off Grid Applications and Safety.
  • Green Solar System: Best free & Clean Power Resource Used in Various Off-Grid Applications that Include 12 arrays, WaterPumping Systems, Signaling Systems and other Off-Grid

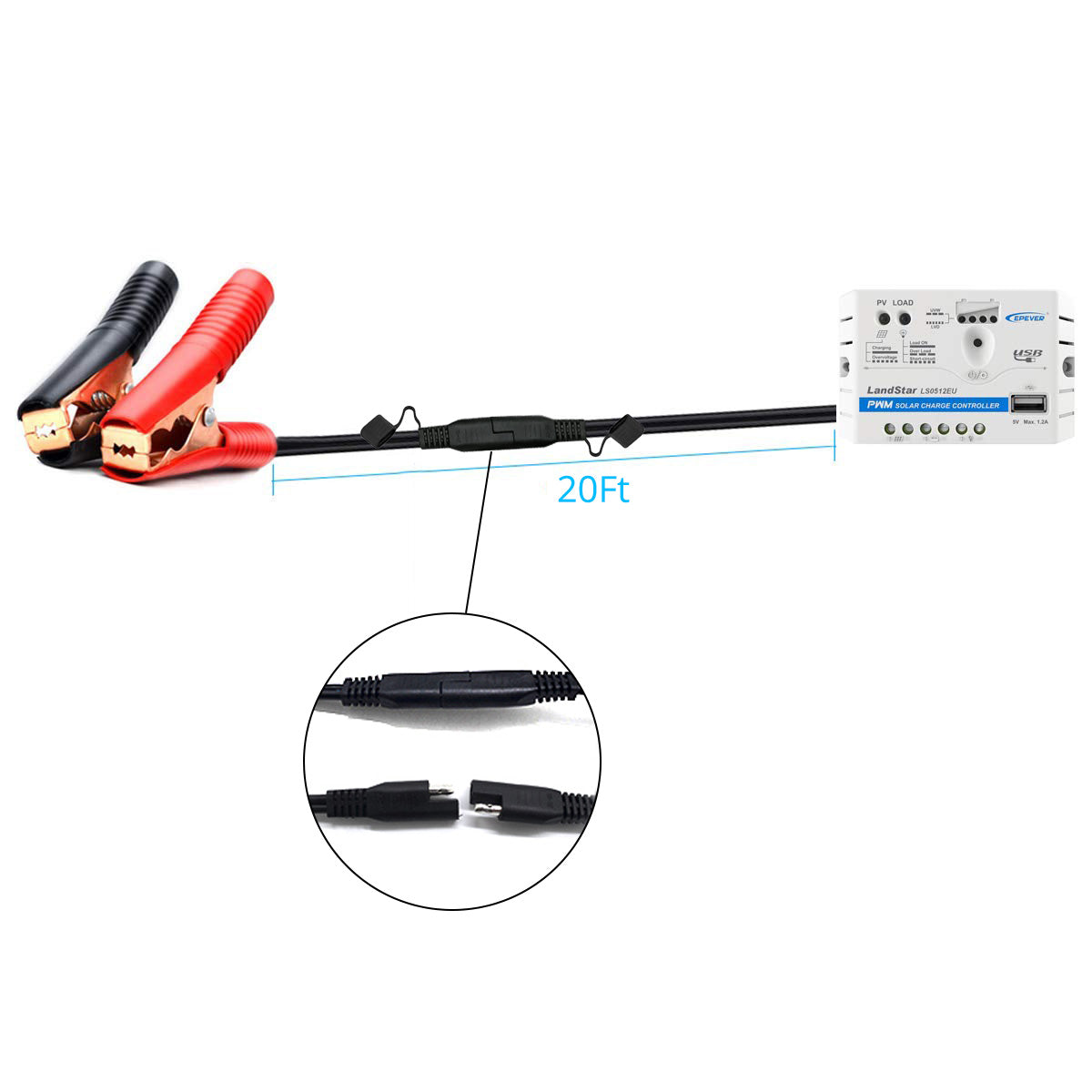

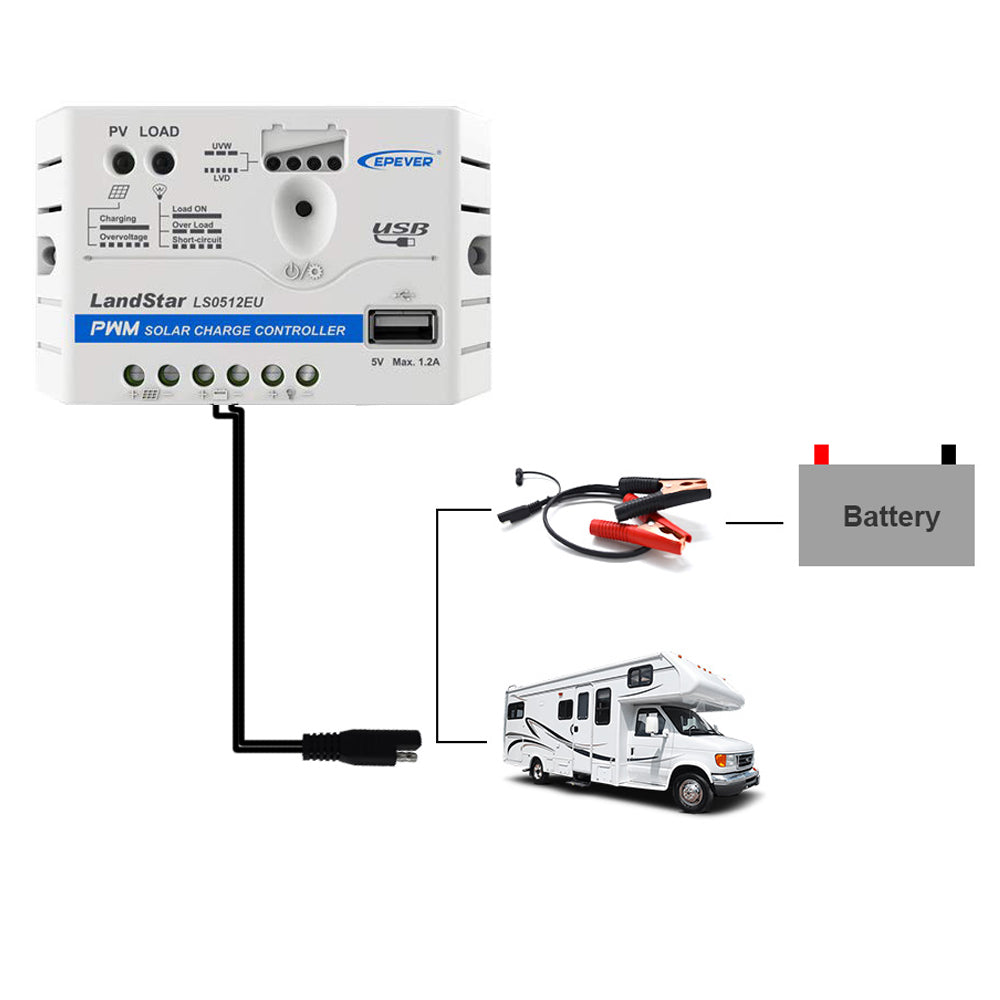

  • Excellent Accessories & Electronic Protection: Comes with a 25W 12V polycrystalline solar panel, a 5A PWM Charge Controller with SAE Connectors and Alligator Clamps. 20ft cable from charge controller to battery; SAE connector for pre-wired 2 Pin socket in sidewall of RV; Alligator clamps to clip to your battery in 10 seconds with protection. The alligator clamps won't have voltage and current until a proper battery is connected, avoid any touching accidents.
  • Application: Basic Component for Off-Grid Solar Panel 12V/24V/36V/48V System, Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, Cabins, Caravan, Cars, Green House Solar Systems. Withstand High Wind (2400Pa) and Snow Loads (5400Pa); Lightweight Anodized Aluminum Frame and Reinforced Safety and anti-Reflection Coated Glass 3.2mm Thick and Waterproof IP-65 Rated Junction Box which Allows The Panel Lasts for a Long Time.
  • Warranty: 5 years material and workmanship warranty and 25 years power output warranty; Accessories, 1 year material & workmanship warranty.

Package List:

  • 1 x LS0512EU Solar Charging Controller with SAE adapter and Alligator Clips
  • 1 x HY025-12P Solar Panel
  • 2 x User Manual

Application Scope

  • Courtyard lighting.
  • Small household lighting system.
  • Street lighting.
  • Portable solar power.
  • Solar Pump
  • All small power electrical devices & small PV system.

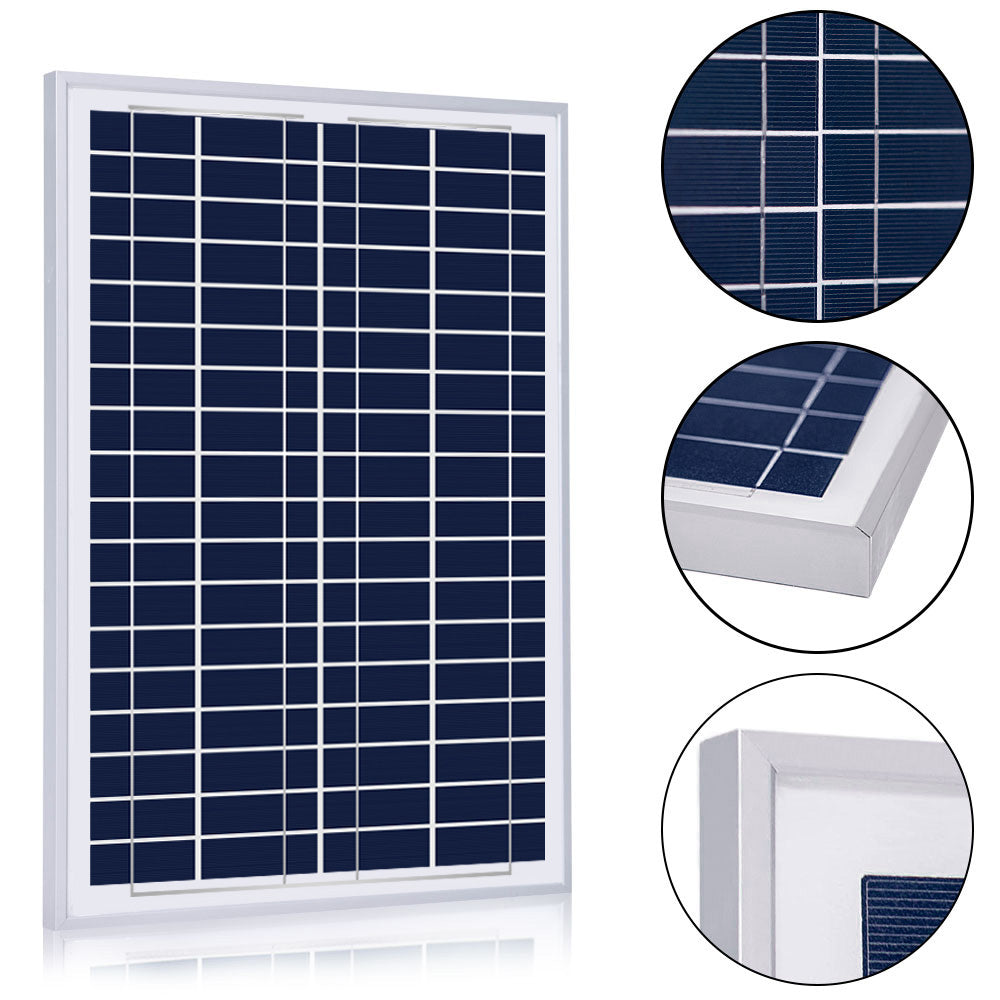

Specification
Maximum Power at STC (Pmax): 25WOpen-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.5VShort-Circuit Current (Isc): 1.54A
Maximum Operating Current (Imp): 1.43AOperating Temperature: -40ºC to 85ºC
Dimension: 510x360x20mm / 20.1x14.2x0.8 inWeight: 3.2kg / 7 lbs

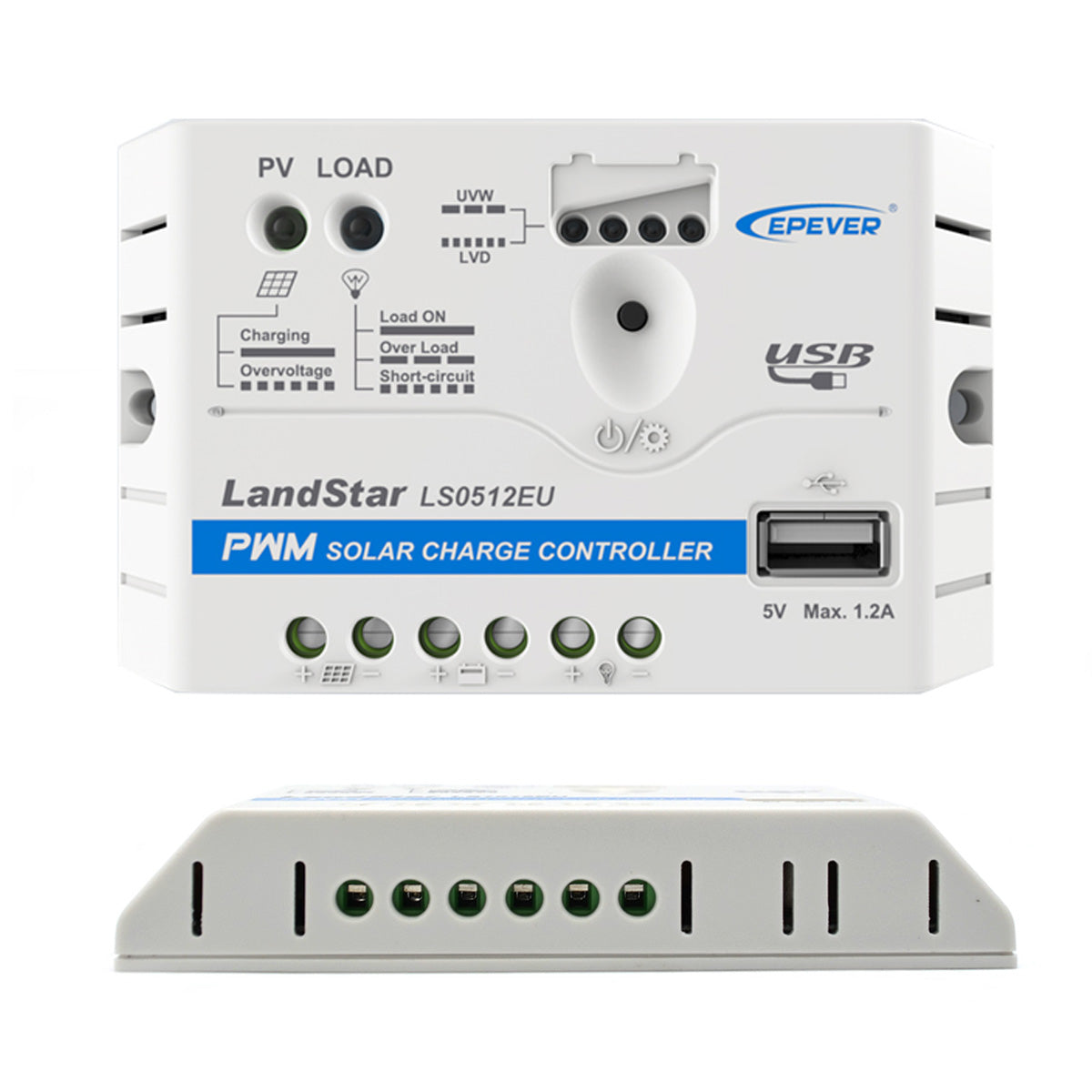

5A PWM Charge Controller
Nominal system voltage: 12VDCRated charge/discharge current: 5A
Max. PV open circuit voltage: 30VBattery input voltage range: 8~16V
Battery type: Sealed / Gel / FloodedGrounding: Common positive
Working temperature: -35℃~+55℃USB output: 5V/1.2A
Terminals: 14AWG/2.5mmEnclosure: IP20
Dimensions: 109.2x65.5x20.8mmWeight: 0.21 lbs /0.095kg
WARRANTY INFORMATION
Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
Accessories: 1-year material warranty
