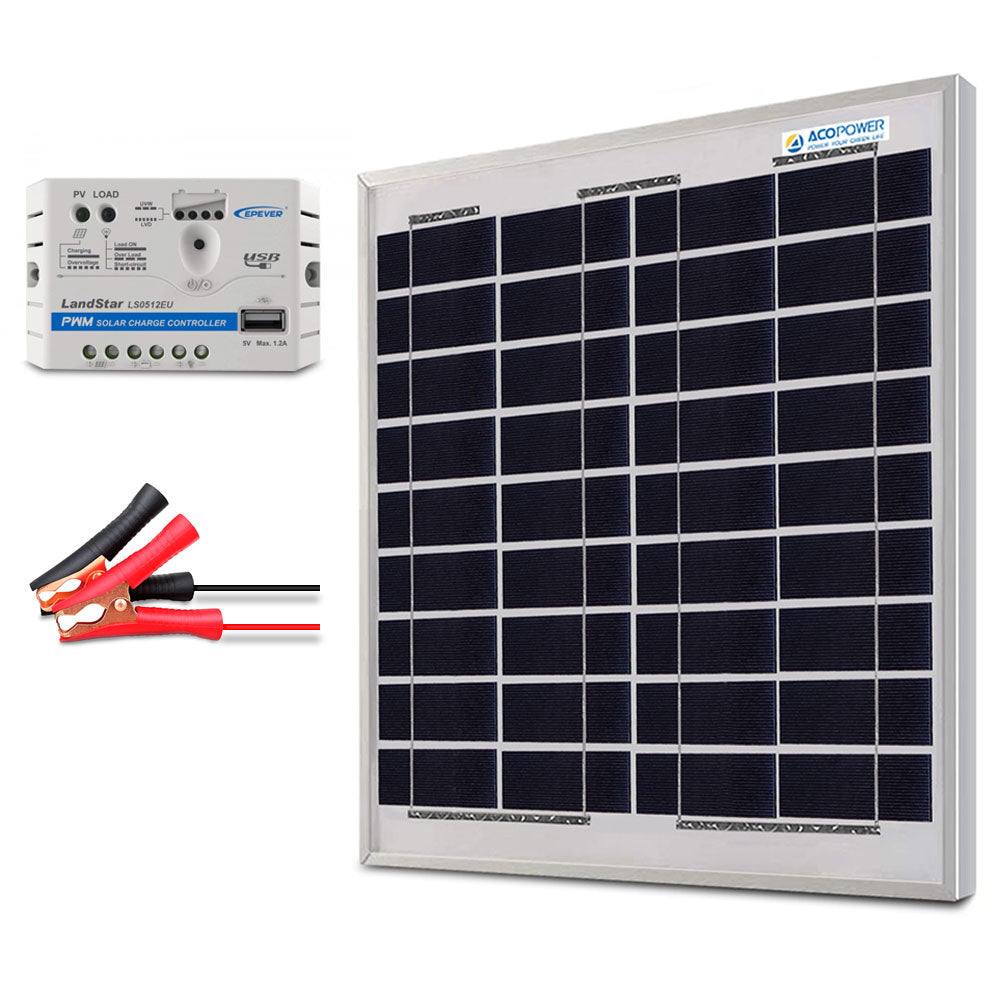

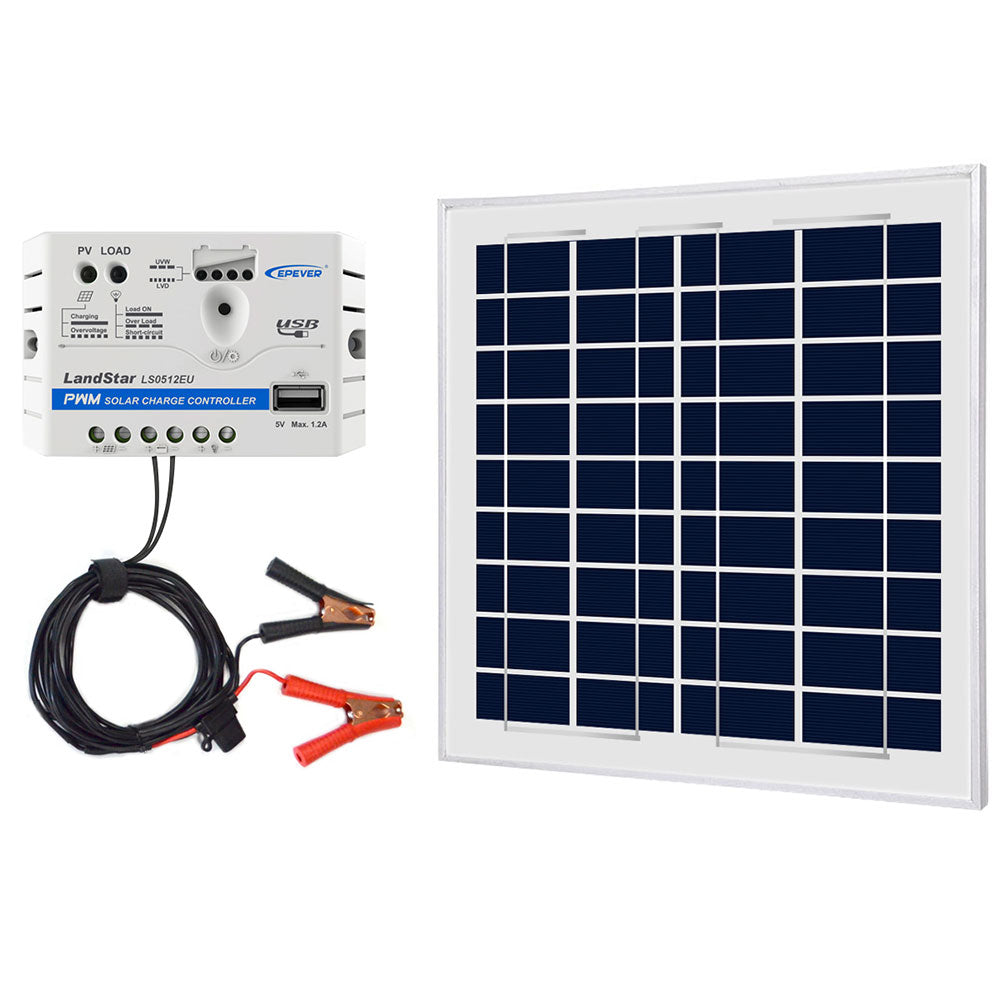

ACOPower 15W 12V Solar Charger Kit, 5A Charge Controller with Alligator Clips

SKU: HY-CKP-15WN/A

$ 58.99 $ 49.90

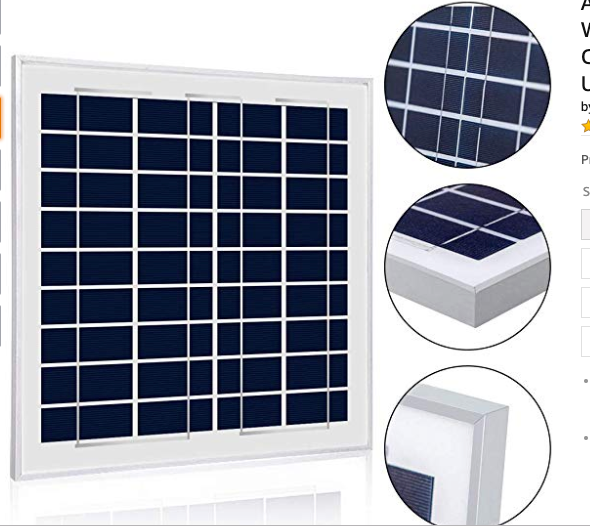

  • Solar Kit Used High Modules Conversion Efficiency 15W Poly Solar Panel. Provides Up to 15W Designed specifically for customers new to solar. Easy and convenient to install with pre-drilled holes on panels

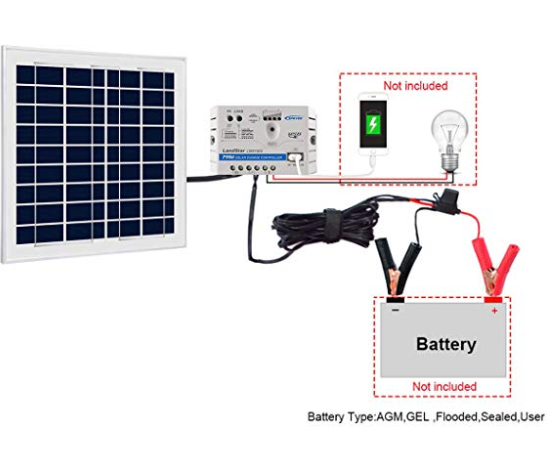

  • Easy Installation With Pre-Drilled Hole. Each Solar Panel Comes With 12AWG Cable with PV Male/Female Quick Connectors. a 5A PWM Charge Controller with SAE Connectors and Alligator Clamps . 20ft cable from charge controller to battery; SAE connector for pre-wired 2 Pin socket in sidewall of RV;Alligator clamps- to clip to your battery in 10 seconds with protection. The alligator clamps won't have voltage and current until a proper battery is connected, avoid any touching accidents.
  • The Charge Controller has been Upgraded to Positive Grounding Controller New 5A PWM Charge Controller. The 5A charge controller with 5V USB output for phones/USB devices . You Can Expand Your System Up to a Maximum of 2. Positive Grounding Controller Ensures the Broader Off Grid Applications and Safety. Regulator for a protection of your battery and devices, stop charging after battery's full charge, automatically start when voltage drops.
  • Best free & Clean Power Resource Used in Various Off-Grid Applications that Include 12 arrays, WaterPumping Systems, Signaling Systems and other Off-Grid
  • Aplications & Warranty: Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, and Cabins. Panels, 5 years material and workmanship warranty and 25 years power output warranty; Accessories, 1 year material & workmanship warranty.
  • Package List
    1 x 15W Solar Panel
    1 x 5A Solar Charging Controller with Alligator Clips
    2 x User Manual

Out of stock

  • Solar Kit Used High Modules Conversion Efficiency 15W Poly Solar Panel. Provides Up to 15W Designed specifically for customers new to solar. Easy and convenient to install with pre-drilled holes on panels The Charge Controller has been Upgraded to Positive Grounding
  • The 5A charge controller with 5V USB output for phones/USB devices . You Can Expand Your System Up to a Maximum of 2. Positive Grounding Controller Ensures the Broader Off Grid Applications and Safety. Regulator for a protection of your battery and devices, stop charging after battery's full charge, automatically start when voltage drops.
  • Best free & Clean Power Resource Used in Various Off-Grid Applications that Include 12 arrays, WaterPumping Systems, Signaling Systems and other Off-Grid
  • Easy Installation With Pre-Drilled Hole. Each Solar Panel Comes With 12AWG Cable with PV Male/Female Quick Connectors. a 5A PWM Charge Controller with SAE Connectors and Alligator Clamps . 20ft cable from charge controller to battery; SAE connector for pre-wired 2 Pin socket in sidewall of RV;Alligator clamps- to clip to your battery in 10 seconds with protection. The alligator clamps won't have voltage and current until a proper battery is connected, avoid any touching accidents.
  • Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, and Cabins.

Package List

  • 1 x 15W Solar Panel
  • 1 x 5A Solar Charging Controller with Alligator Clips
  • 2 x User Manual

Application Scope

  • Courtyard lighting.
  • Small household lighting system.
  • Street lighting.
  • Portable solar power.
  • Solar Pump
  • All small power electrical devices & small PV system.
Specification

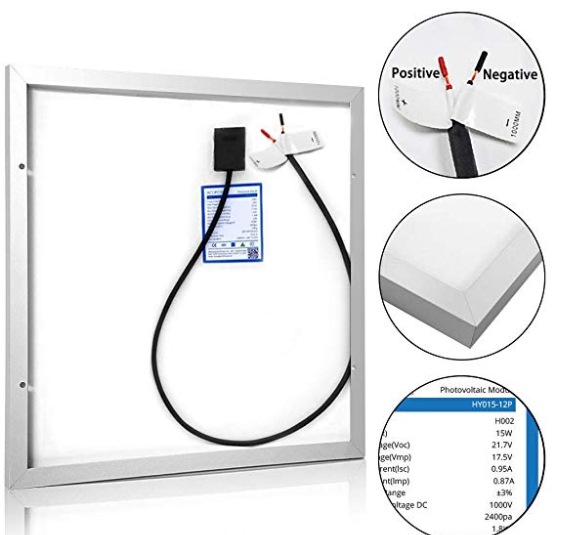

Maximum Power at STC (Pmax): 15WOpen-Circuit Voltage (Voc): 21.7V
Maximum Operating Voltage (Vmp): 17.5VShort-Circuit Current (Isc): 0.95A
Maximum Operating Current (Imp): 0.87AOperating Temperature: -40ºC to 85ºC

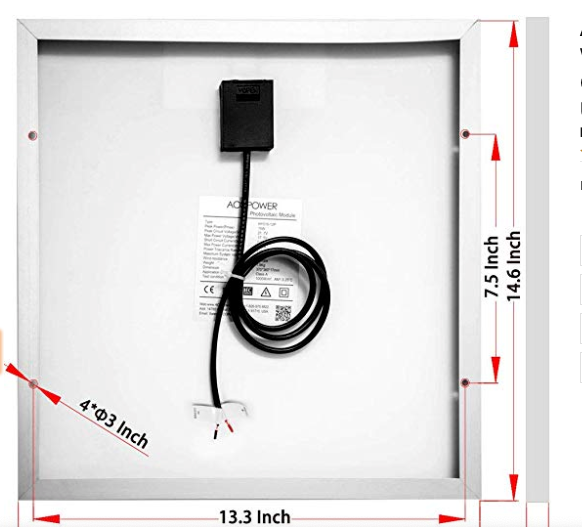

Dimension: 370x360x20mm / 14.6x14.2x0.8 inWeight: 1.8kg / 4 lbs

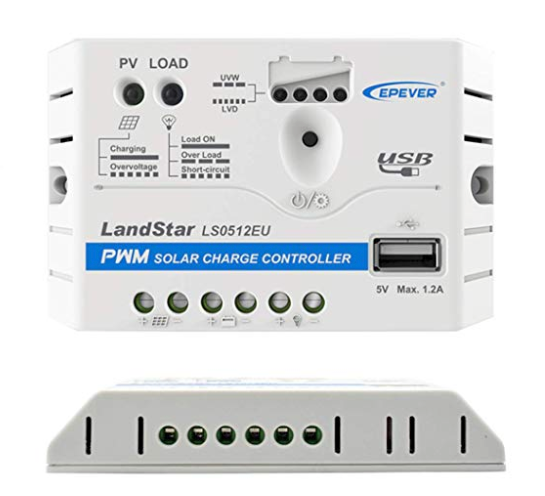

5A PWM Charge Controller
Nominal system voltage: 12VDCRated charge/discharge current: 5A
Max. PV open circuit voltage: 30VBattery input voltage range: 8~16V
Battery type: Sealed / Gel / FloodedGrounding: Common positive
Working temperature: -35℃~+55℃USB output: 5V/1.2A
Terminals: 14AWG/2.5mmEnclosure: IP20
Dimensions: 109.2x65.5x20.8mmWeight: 0.21 lbs /0.095kg
WARRANTY INFORMATION
Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
Accessories: 1-year material warranty
