ACOPOWER 50W 12V Mono Black Solar Charger Kit, 5A Charge Controller with Alligator Clips

HY-CKM-50W
Regular price $108.99

Shop Now, Pay over time. No credit required.

Checkout Secure

Customer Service Based in California!

Limited Stock - Ships In 48 Hours or Less!

Need Help? Call Us: 626-575-7722

  • Image of Secure Ordering
  • Image of 100% Satisfaction Guaranteed
  • Image of Lowest Prices Guaranteed
  • Image of Free shipping (when you spend over XXX)

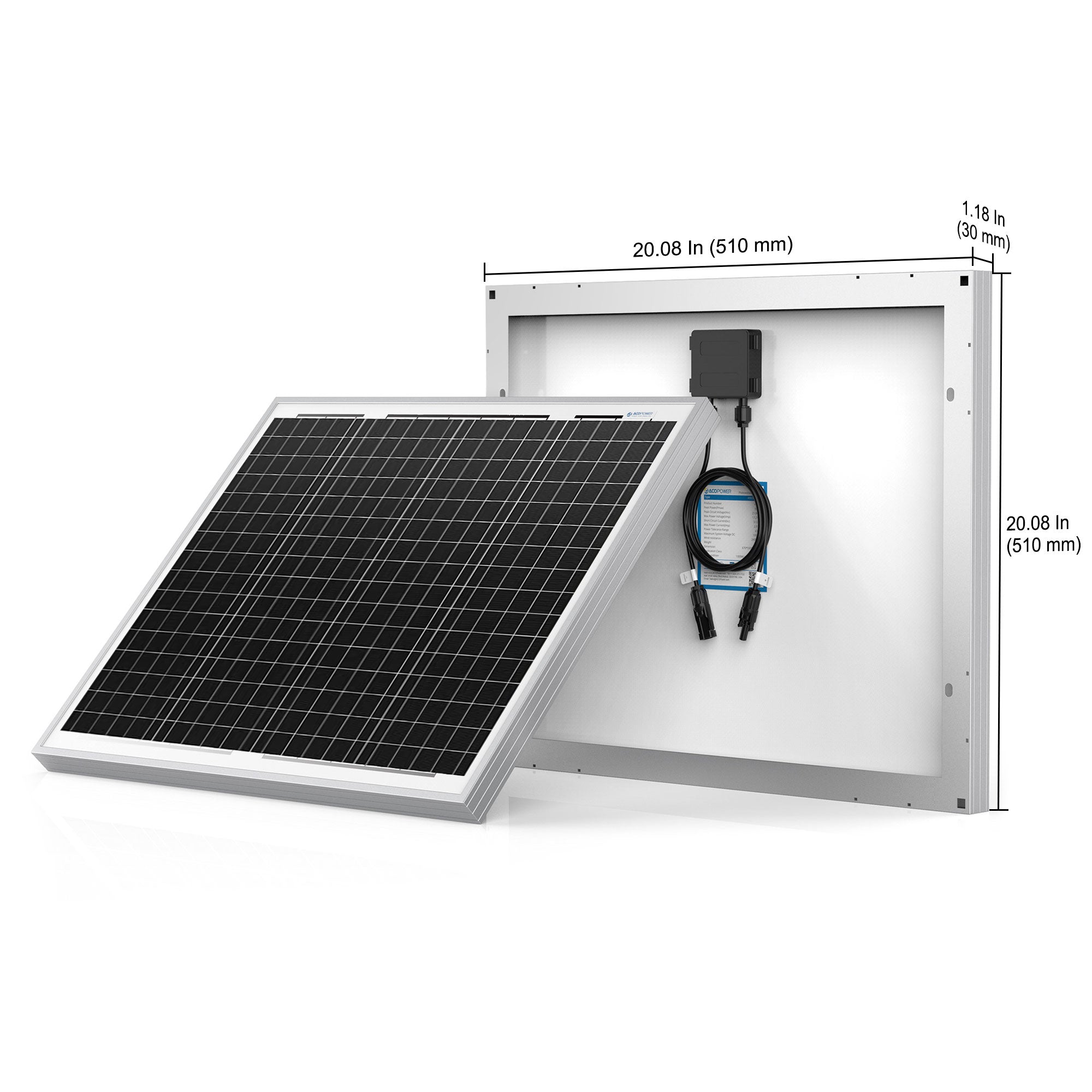

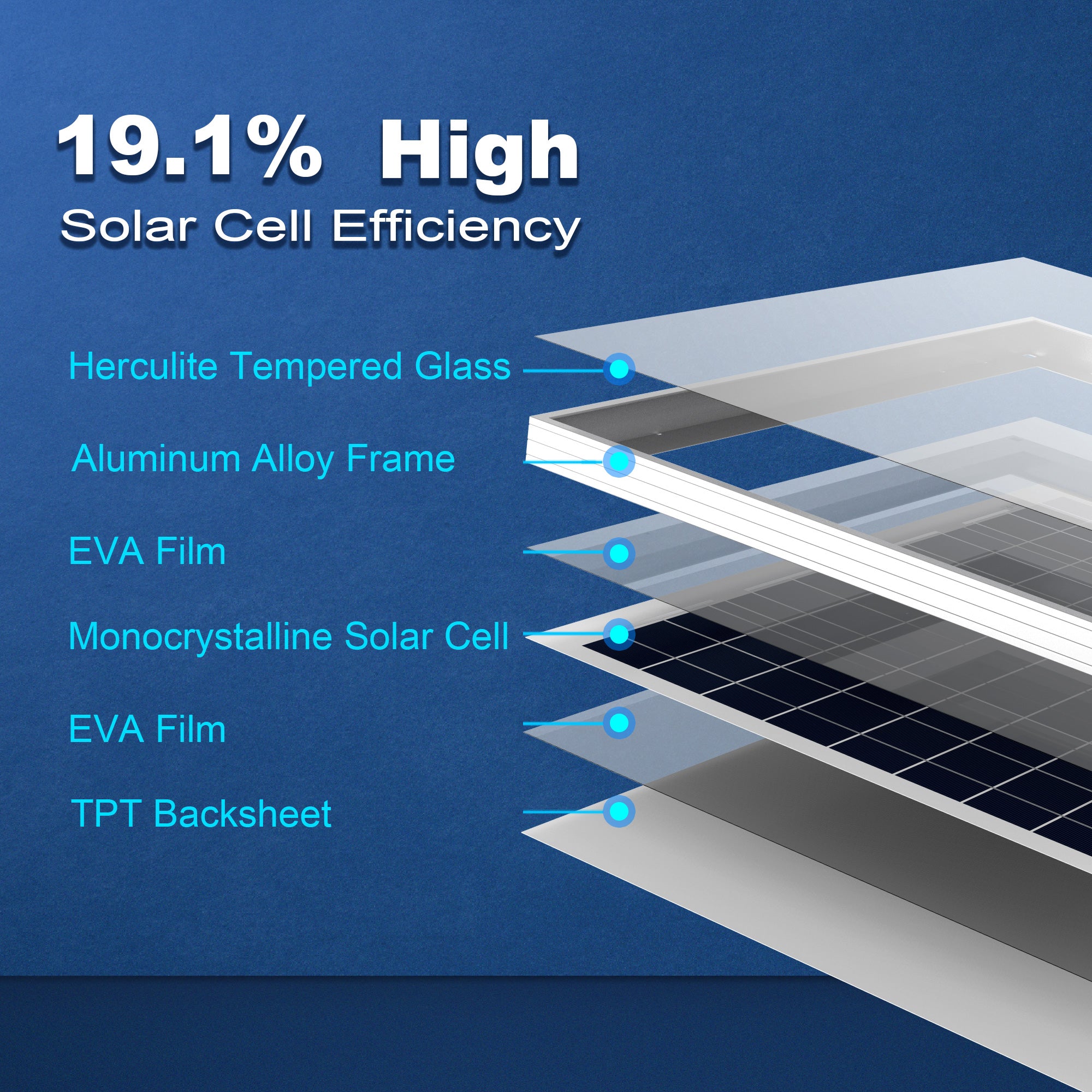

  • Solar Kit : Used High Modules Conversion Efficiency 50W All Black Mono Solar Panel. Provides Up to 50W Designed specifically for customers new to solar. Easy and convenient to install with pre-drilled holes on panels

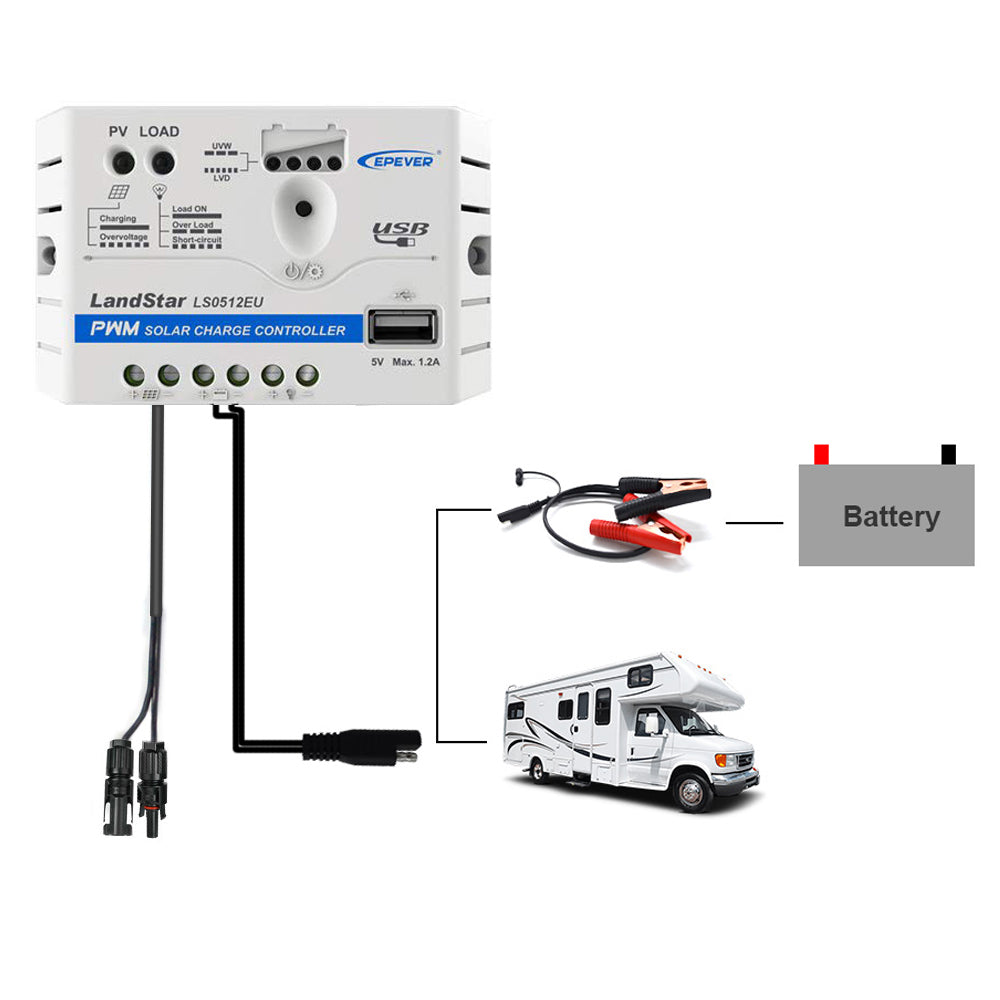

  • Upgraded Charge Controller: It has been Upgraded to Positive Grounding Controller New 5A PWM Charge Controller. The 5A charge controller with USB 5V/1.2A Terminal output for 12V battery charge. You Can Expand Your System Up to a Maximum of 2. Positive Grounding Controller Ensures the Broader Off-Grid Applications and Safety.
  • Best free & Clean Power Resource Used in Various Off-Grid Applications that Include 12 arrays, WaterPumping Systems, Signaling Systems and other Off-Grid

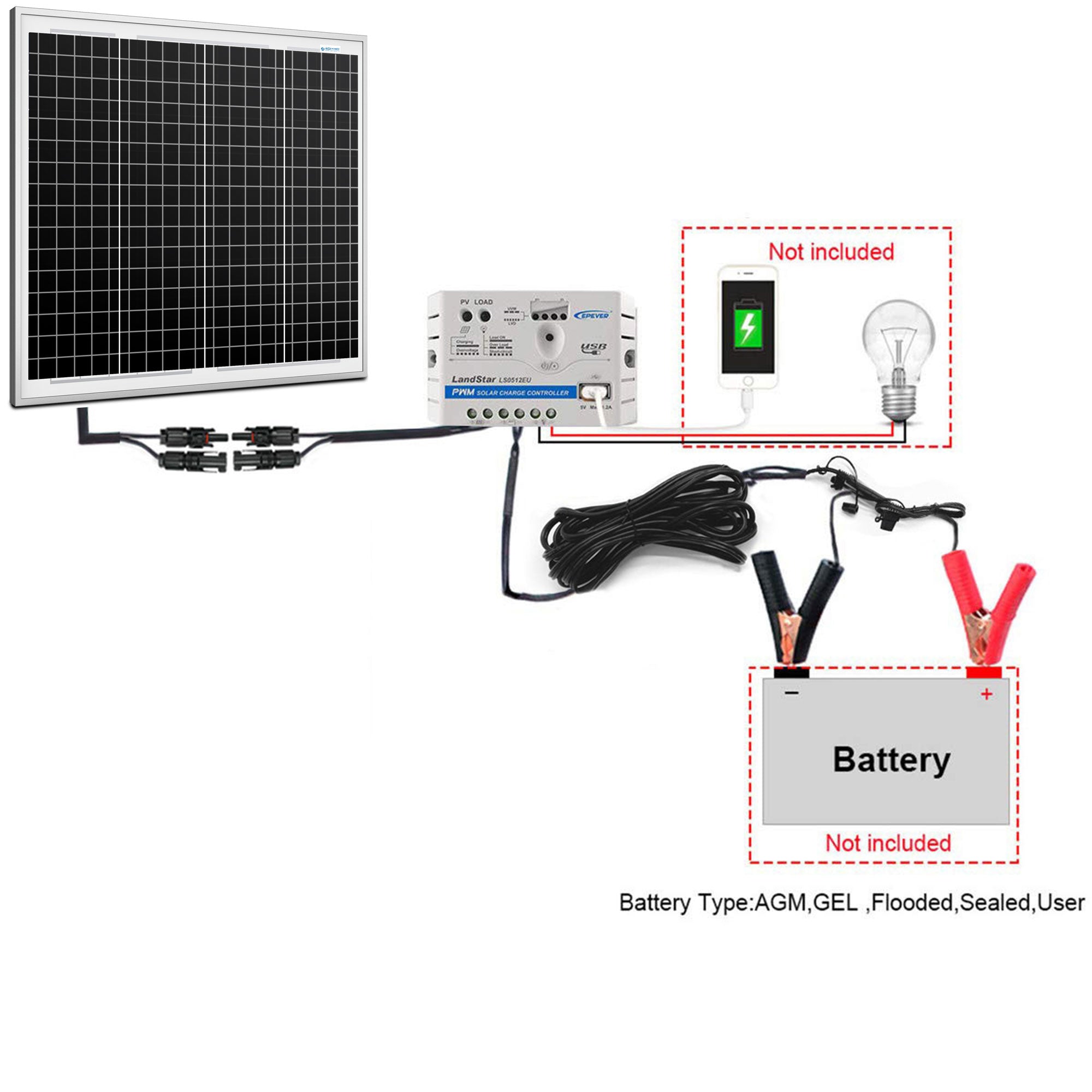

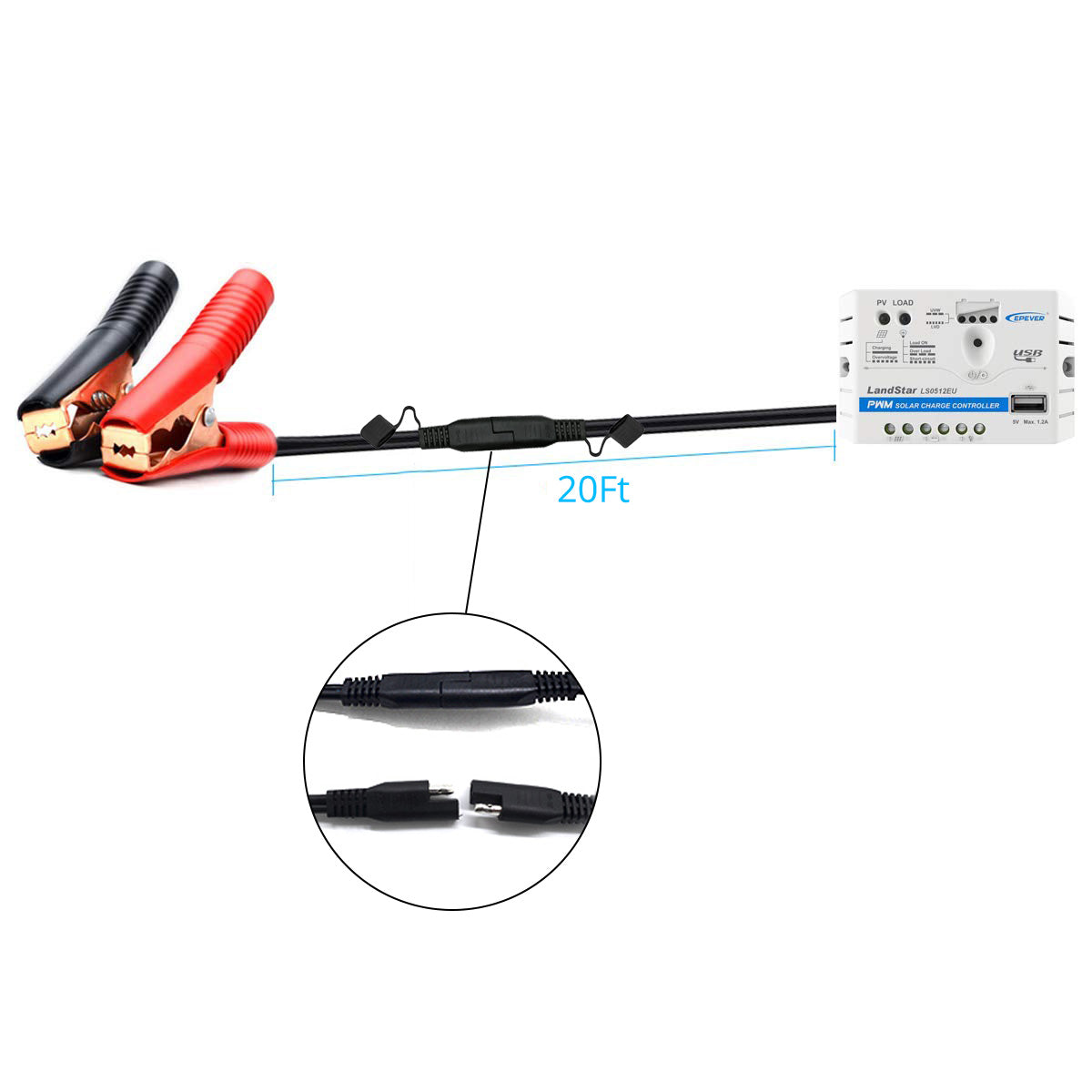

  • Safety: Comes with a 50W 12V polycrystalline solar panel, a 10A PWM Charge Controller with SAE Connectors and Alligator Clamps . 20ft cable from charge controller to battery; SAE connector for pre-wired 2 Pin socket in sidewall of RV;Alligator clamps- to clip to your battery in 10 seconds with protection. The alligator clamps won't have voltage and current until a proper battery is connected, avoid any touching accidents.

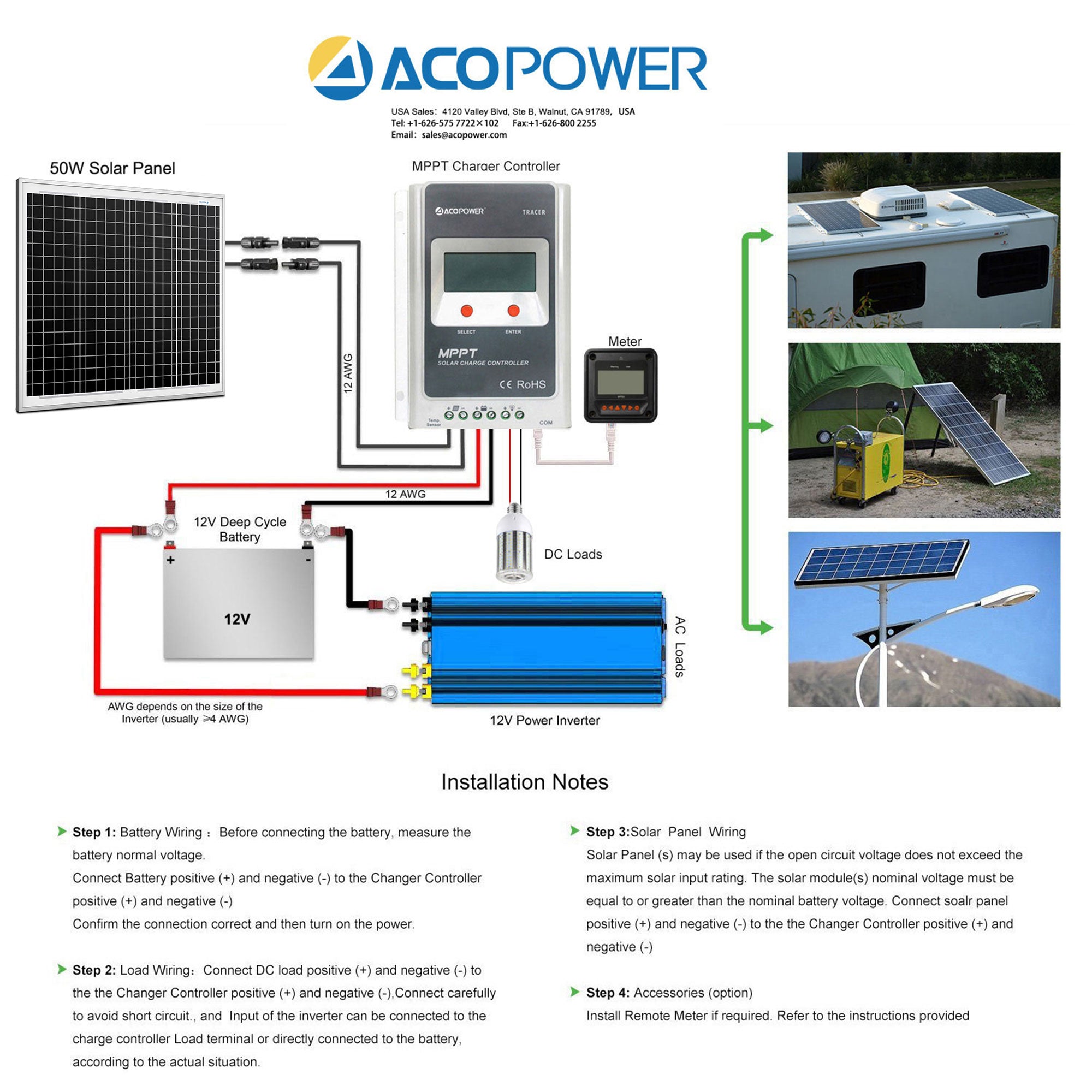

  • Application: Basic Component for Off-Grid Solar Panel 12V/24V/36V/48V System, Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, Cabins, Caravan, Cars, Green House Solar Systems. Withstand High Wind (2400Pa) and Snow Loads (5400Pa); Lightweight Anodized Aluminum Frame and Reinforced Safety and anti-Reflection Coated Glass 3.2mm Thick and Waterproof IP-65 Rated Junction Box which Allows The Panel Lasts for a Long Time.
  •  Warranty: 5 years material and workmanship warranty and 25 years power output warranty; Accessories, 1 year material & workmanship warranty.

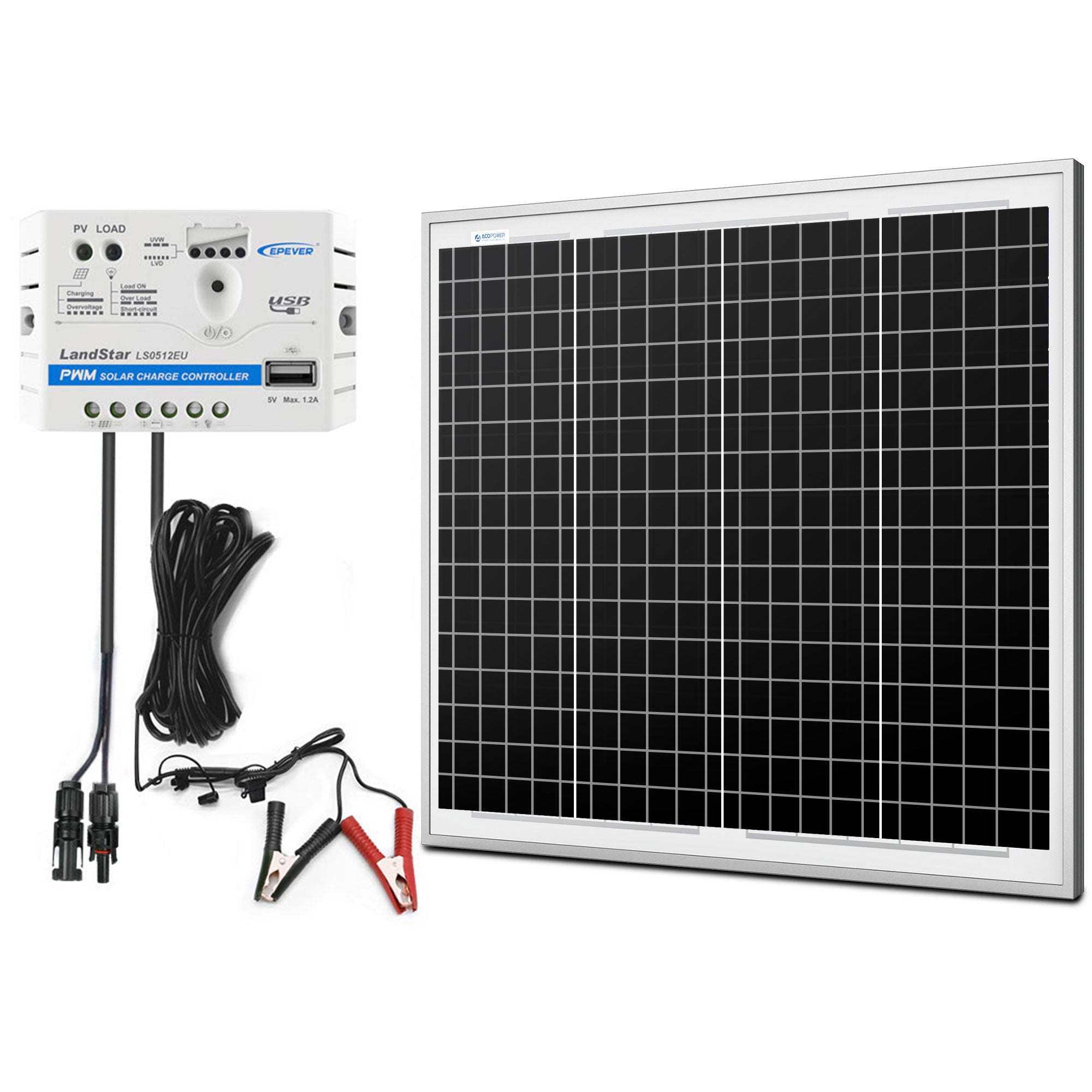

Package List:

  • 1 x LS0512EU Solar Charging Controller with Alligator Clips
  • 1 x HY050-12M Solar Panel
  • 2 x User Manual

Application Scope

  • Courtyard lighting.
  • Small household lighting system.
  • Street lighting.
  • Portable solar power.
  • Solar Pump
  • All small power electrical devices & small PV system.
Specification
Maximum Power at STC (Pmax): 50WOpen-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.5VShort-Circuit Current (Isc): 3.07A
Maximum Operating Current (Imp): 2.86AOperating Temperature: -40ºC to 85ºC
Dimension: 670x550x35mm / 26.4x21.7x1.4 inWeight: 5kg / 11 lbs
5A PWM Charge Controller
Nominal system voltage: 12VDCRated charge/discharge current: 5A
Max. PV open circuit voltage: 30VBattery input voltage range: 8~16V
Battery type: Sealed / Gel / FloodedGrounding: Common positive
Working temperature: -35℃~+55℃USB output: 5V/1.2A
Terminals: 14AWG/2.5mmEnclosure: IP20
Dimensions: 109.2x65.5x20.8mmWeight: 0.21 lbs /0.095kg
