HY-800AH3KW-800WMB

Regular price $4,798.00
/

Shop Now, Pay over time. No credit required.

WORRY FREE SHOPPING
free shipping
reliable warranty
secure payment
  • Solar charging will provide about 3840 Watt Hours (Wh) or 320 Amp hours of charge per day (depends on sunlight availability)
  • Perfect kit for having an off-grid 12 volt battery system. 3000 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use;Designed for RVs, cabins, homes, boats, back-up and remote power use
  • Bundle and save! Purchase all the components together and save time and money!
  • Complete kit includes: 8pcs 100 Watt Monocrystalline Solar Panel, 4pcs 200Ah Gel(Maintenance Free) Deep Cycle Battery,3000W 3000 Watt DC to AC Power Inverter, 60-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets;
  • California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business.

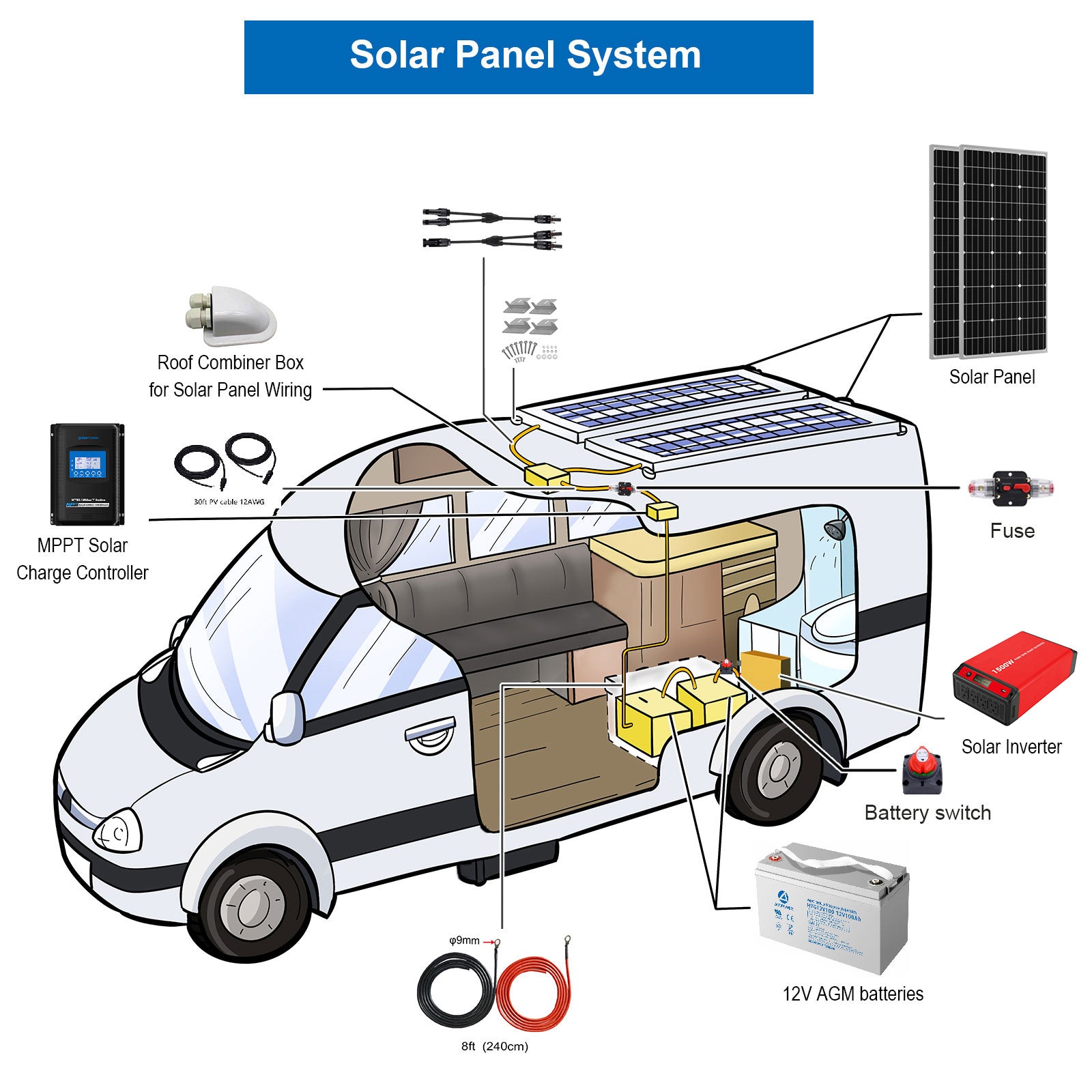

ACOPOWER 800 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER’s 800 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 8pcs 100 Watt Monocrystalline Solar Panels, 3000W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 4pcs 200Ah Gel Deep Cycle Battery, 60-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.

Specification:

100W Monocrystalline Black Solar Panel
• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8 lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

3000W Inverter 12VDC to 120VAC
 Continuous output 3000W
 Surge Power 6000W
 Wave Form: Pure Sine Wave
 Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
 Weight: 12.1lb
 dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch
12V 200 Ah Rechargeable Deep Cycle GEL Battery
 Nominal Voltage 12V
 Rated capacity (10 hour rate): 200Ah
 dimension(inch):20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
 Approx. Weight: 62.5kg(137.5lbs)±3%
MPPT 60A Charge Controller
• Rated charge current: 60A
• Battery voltage range: 8V~68V
• Max.PV open circuit voltage: 150V
• Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
• Common positive grounding design
• Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries.

Package List:
• 8PCS 100W Mono Solar Panel
• 1PC 3000W Inverter
• 4PC 200Ah Gel Battery
• 1PC 60A MPPT Charge Controller
• 1PC 50A Fuse
• 1PC Battery Switch
• 8 Sets Mounting Z Bracket
• 1 Pairs 30ft 12AWG PV Cable
• 4 Pairs 1Ft 2AWG Battery Cable
• 1 Pair 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing
• 7 Pairs y branch solar panel connectors

ACOPOWER 100W Mono Solar Panel, 12V
Maximum Power at STC (Pmax): 100WOpen-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.48VShort-Circuit Current (Isc): 6.14A
Maximum Operating Current (Imp): 5.71AOperating Temperature: -40ºC to 85ºC
Dimension: 1130x510x35mm / 44.5x20.1x1.4 inWeight: 5.8 kg / 12.8 lbs

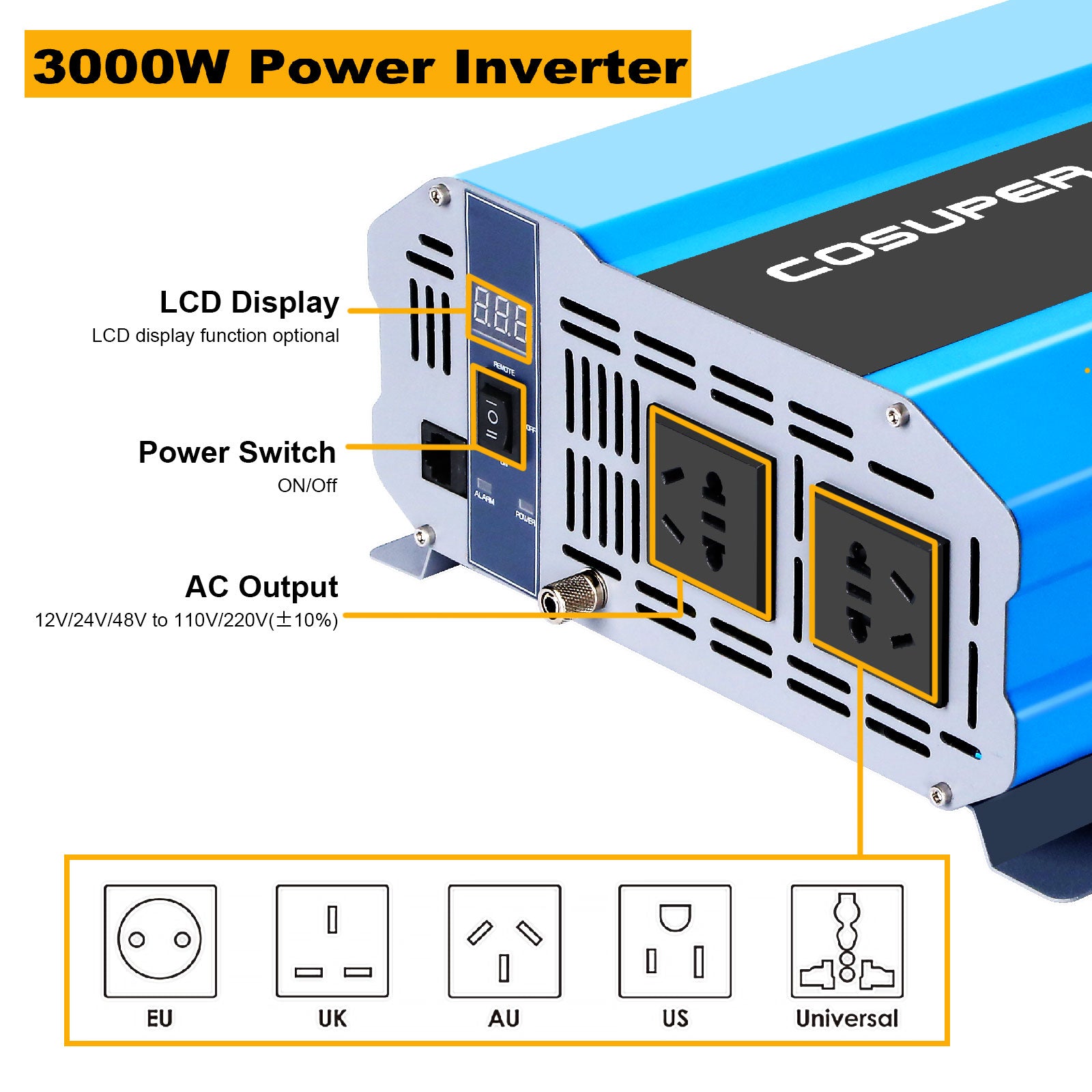

ACOPOWER 3000W Power Inverter
Related power: 3000WOverload Protection: 1800W±100W
Peak Power: 6000WOvertemperature protection: 105±5℃
Input voltage: DC12V(11-14V)Overtemperature protection recover: ≤65℃
Output voltage: AC110V± 10%Output short circuit protection: Have
Output frequency: 50HZ ± 2HZRemote Control Function Optional
Output waveform: Pure Sine Wave Mounting bracket OptionalTHD: ≤3%
Conversion efficiency: ≥90%Input quiescent current: ≤0.6A
USB output: 5V 2400mA Auto (MAX)USB overcurrent protection: ≤3.5A
Cooling way: Temperature-control fanDisplay model: LED+LCD
Undervoltage protection: 10.0V ± 0.5VOvervoltage protection: 15.5V±0.5V
Shell Material: ABS+PC+aluminium alloyDimension: 242×463×118mm
Weight: 5.5kg

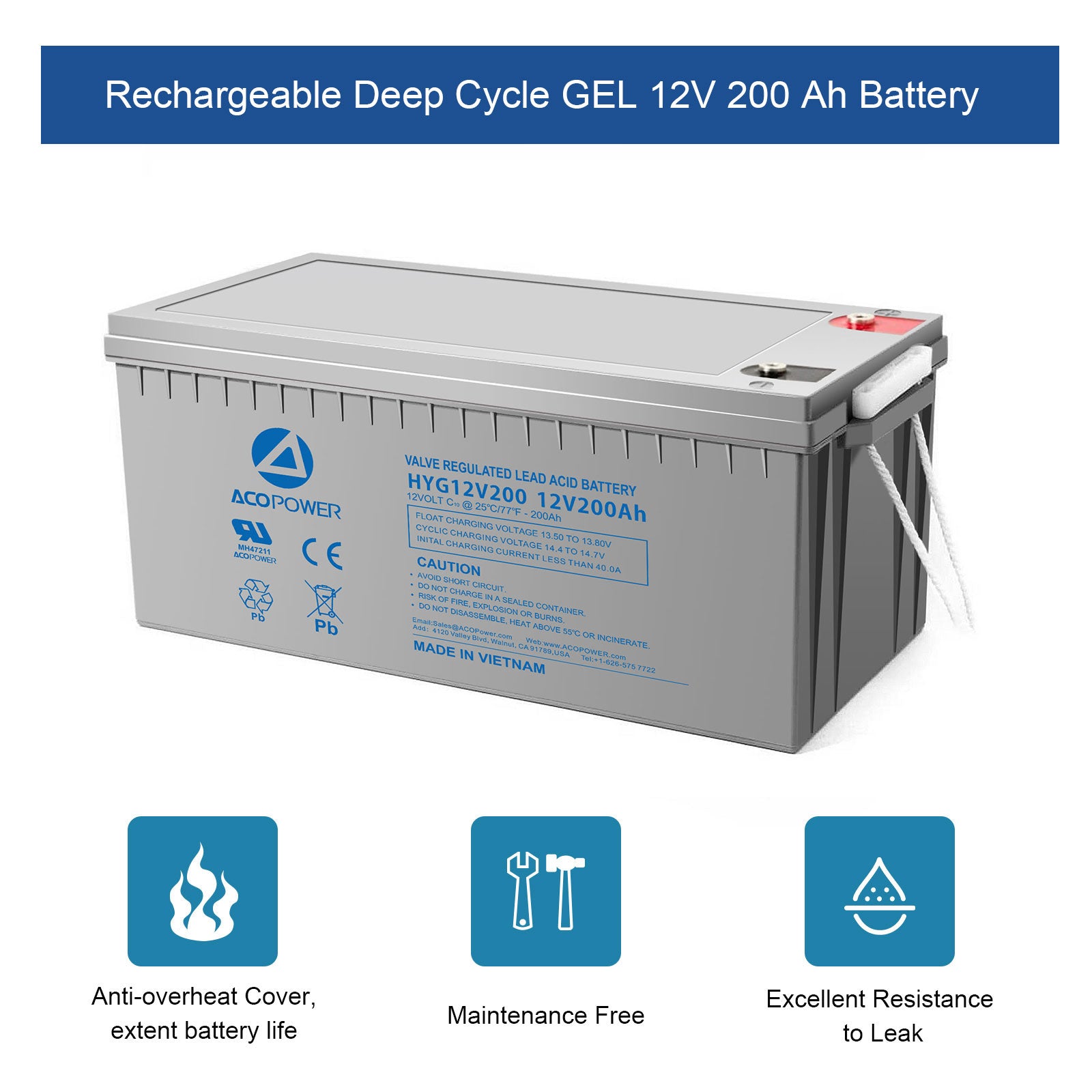

ACOPOWER HYG12-200Ah Rechargeable Gel Deep Cycle 12V 200Ah Battery
Nominal Voltage: 12VRated capacity (10 hour rate): 200Ah
Terminal type: T16AInternal resistance (Fully charged,25℃): Approx.3.3m Ω
Nominal operating temperature: 25℃±3℃(77℉±5℉)Maximum charging current: 40A
Dimension: 20.55x9.37x8.58 inWeight: 62.5kg(137.8lbs)±3%

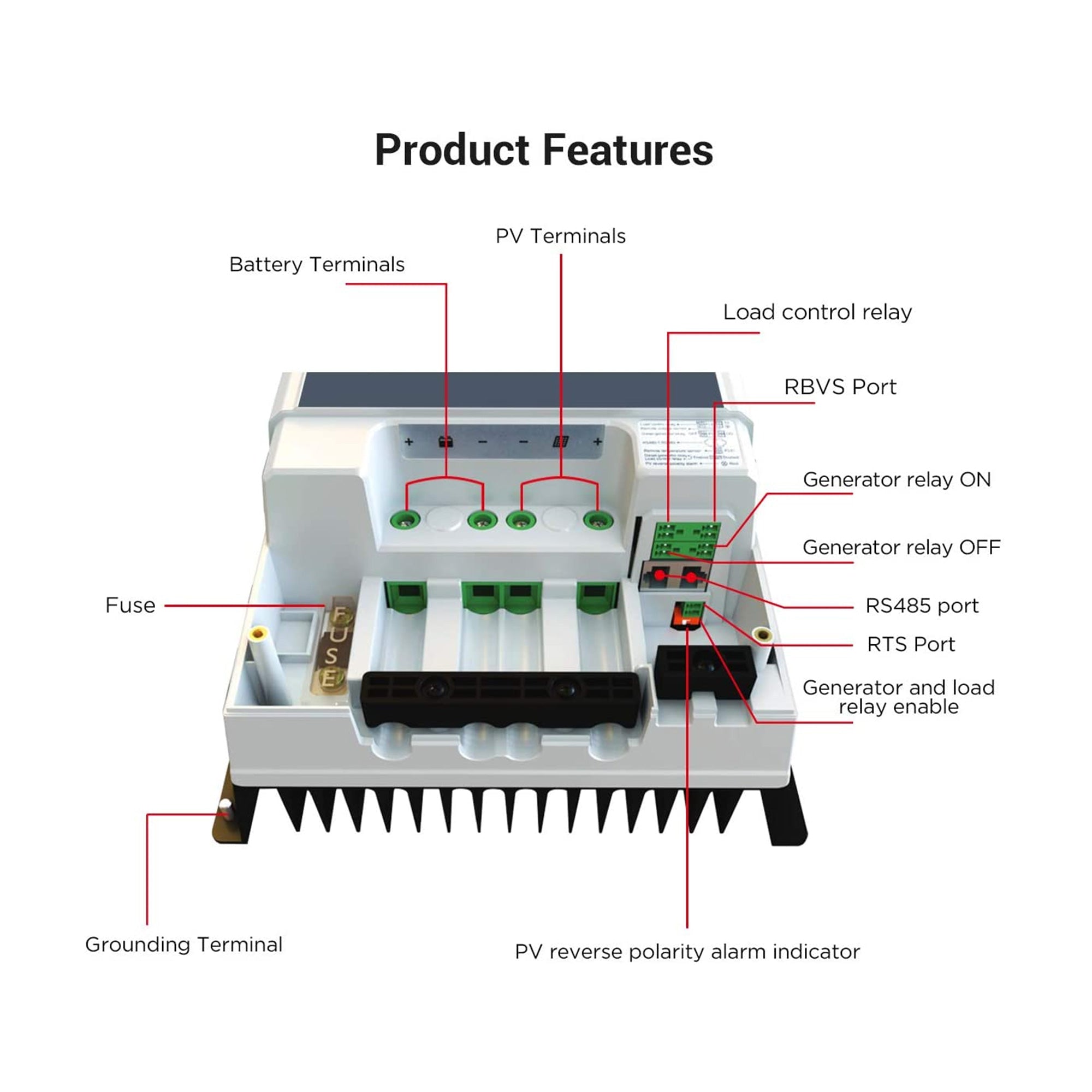

MPPT 60A Charge Controller
Nominal system voltage: 12v/24v/36v/48v DC AutoRated charge current: 60A
Battery input voltage range: 8V~68VMax.PV open circuit voltage: 150V/138V
Max.PV input power: 750W/12V, 1500W/24V, 2250W/36V, 3000W/48VMPP voltage range: V(BAT)+2V~108V
Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteriesCharging Power and Current Limitation Function
Grounding: Common negativeCommunication: RS485 (RJ45 interface)
Power Terminals: 6AWG(16mm2)Enclosure: IP20
Dimensions: 340×232×105.2mmWeight: 3.5kg
