ACOPOWER Flexible RV Solar System

SKU: HYL200AH-F220WN/A

$ 2,198.00


Wide Application:Perfect 220W-660W Flexible Solar RV kit for having an off-grid 12 volt Lithium battery 12V Flexible Solar Panel system. 1500 Watt Pure Sine Wave Inverter provides plenty of AC power 120VAV to run your household appliances and the battery bank will supply plenty of energy for moderate use; Designed for RVs, cabins, homes, boats, fences, security cameras, greenhouse, camper, lawnmower, motorcycle, jet ski, trailer, camper, back-up and remote power use
Flexible Solar Panel:It can be gently flexed to follow a smooth curve of 27 degrees max on a coach roof, RV, boat, caravan, cabin, tent, golf cart etc. Holes on panels are pre-drilled for fast mounting and securing. Solar charging 220W-660W will provide about 1056Wh-3168Wh (Watt-hour} or 88Ah-264Ah (Ampere-Hour) of charge per day (Depends on sunlight availability)
High Capacity Li-Battery Packs:With 2560Wh of 2pcs 100Ah lithium batteries, which have higher charging/discharging efficiency and more than 3000 times deep cycles than lead acid batteries. Built-in BMS(battery management system), the 30A-60A MPPT solar charge controller can also prevent the lithium battery from getting damaged and provide double protections.
Installation Ready:One kit-everything you need DIY your solar charge system, the kit includes the necessary tools to start.
🌞 California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business. 24/7 Free Technical Support Service, 100% Customer Satisfaction Service;


BATTERY BANK CAPACITY: Li200Ah 1.5kW

  • Li200Ah 1.5kW
  • Li300Ah 1.5kW
  • Li400Ah 3kW
  • Li600Ah 3kW

SOLAR KIT SIZE: 220W MPPT30A

  • 220W MPPT30A
  • 330W MPPT30A
  • 440W MPPT40A
  • 550W MPPT50A
  • 660W MPPT60A
Will not ship until [19041994]
$ 2,198.00
Out of stock

Notify me when this product is available:

ACOPOWER 330 Watt Flexible RV Solar system comes with everything you need to start Producing Free, Clean Power from the Sun! Perfect for RV's, Boats, Cabins and Back-up Power! Solar Powered

Specification:

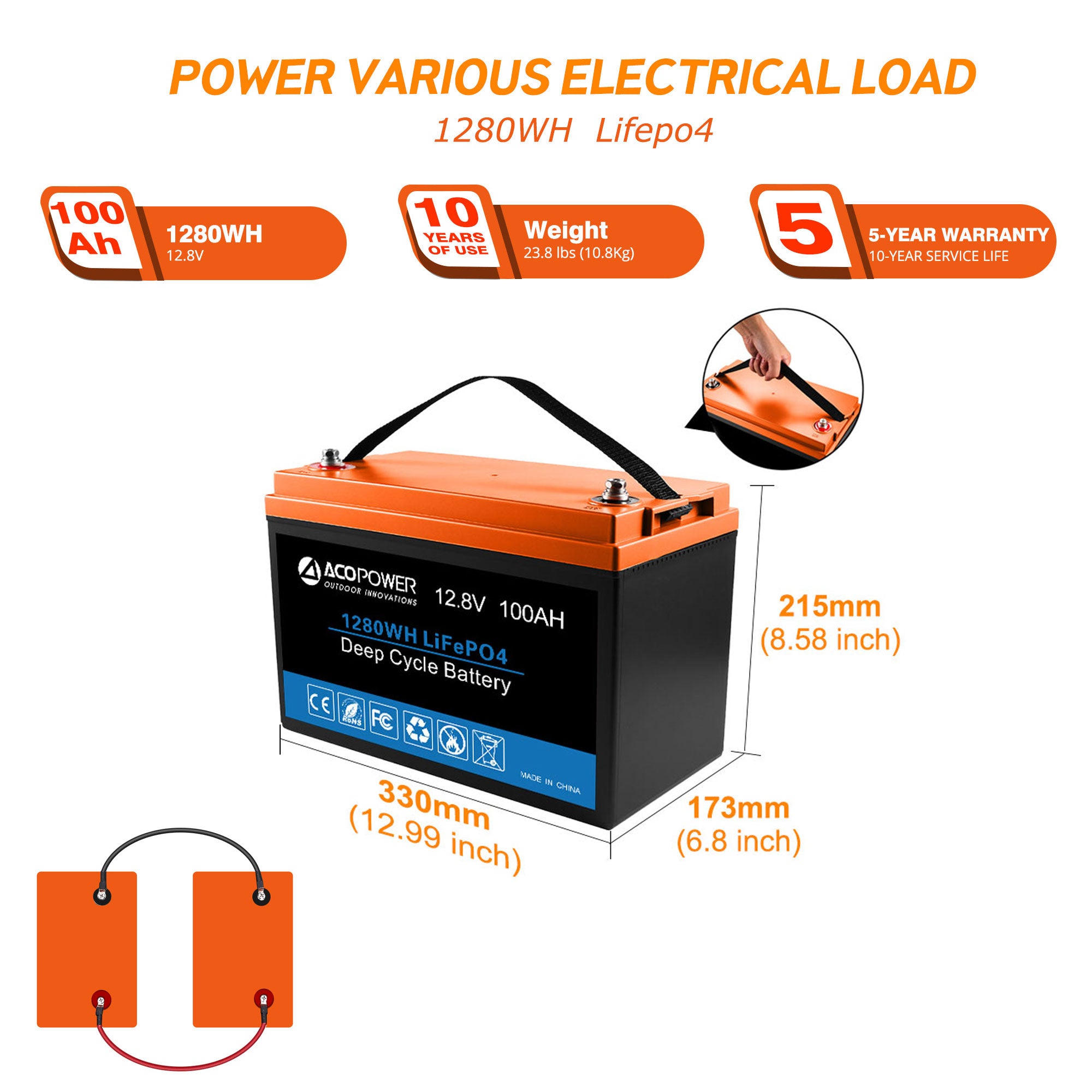

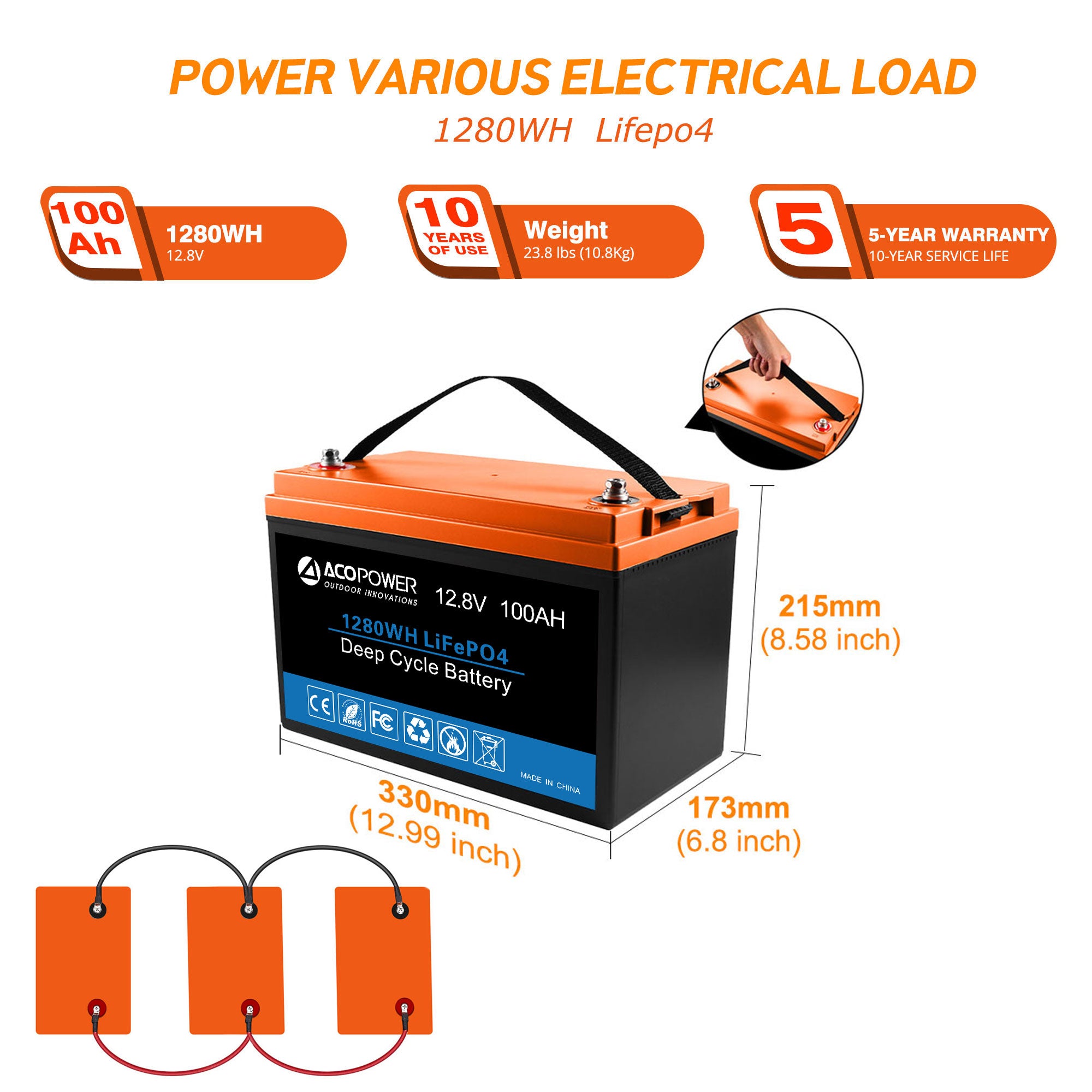

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

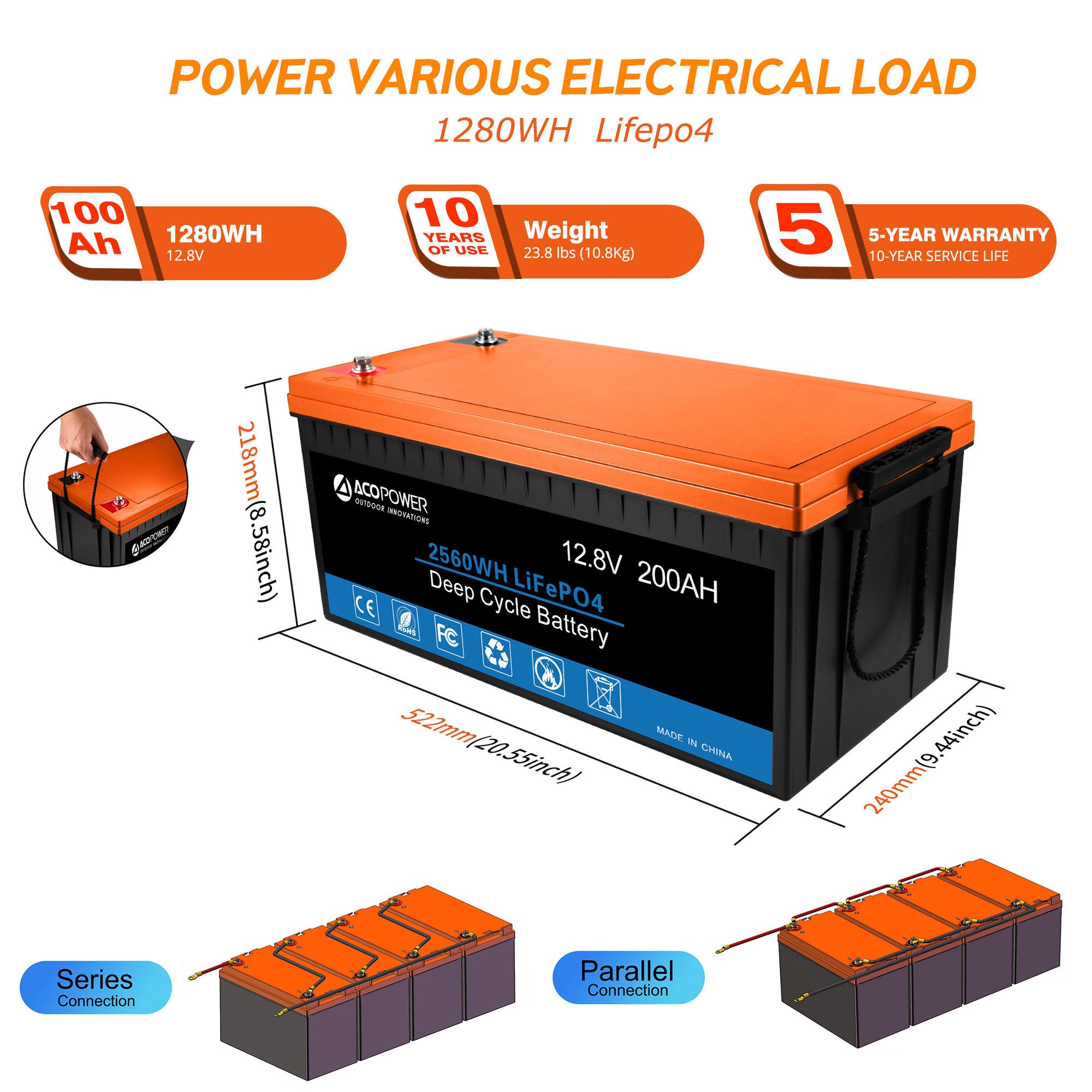

12V 200Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:2560WH
Depth of Discharge (DoD): 100%
Standard charge current: 50A
Max continuous charge current: 100A
Max continuous discharge current: 200A
dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
Approx. Weight: 48.94lb

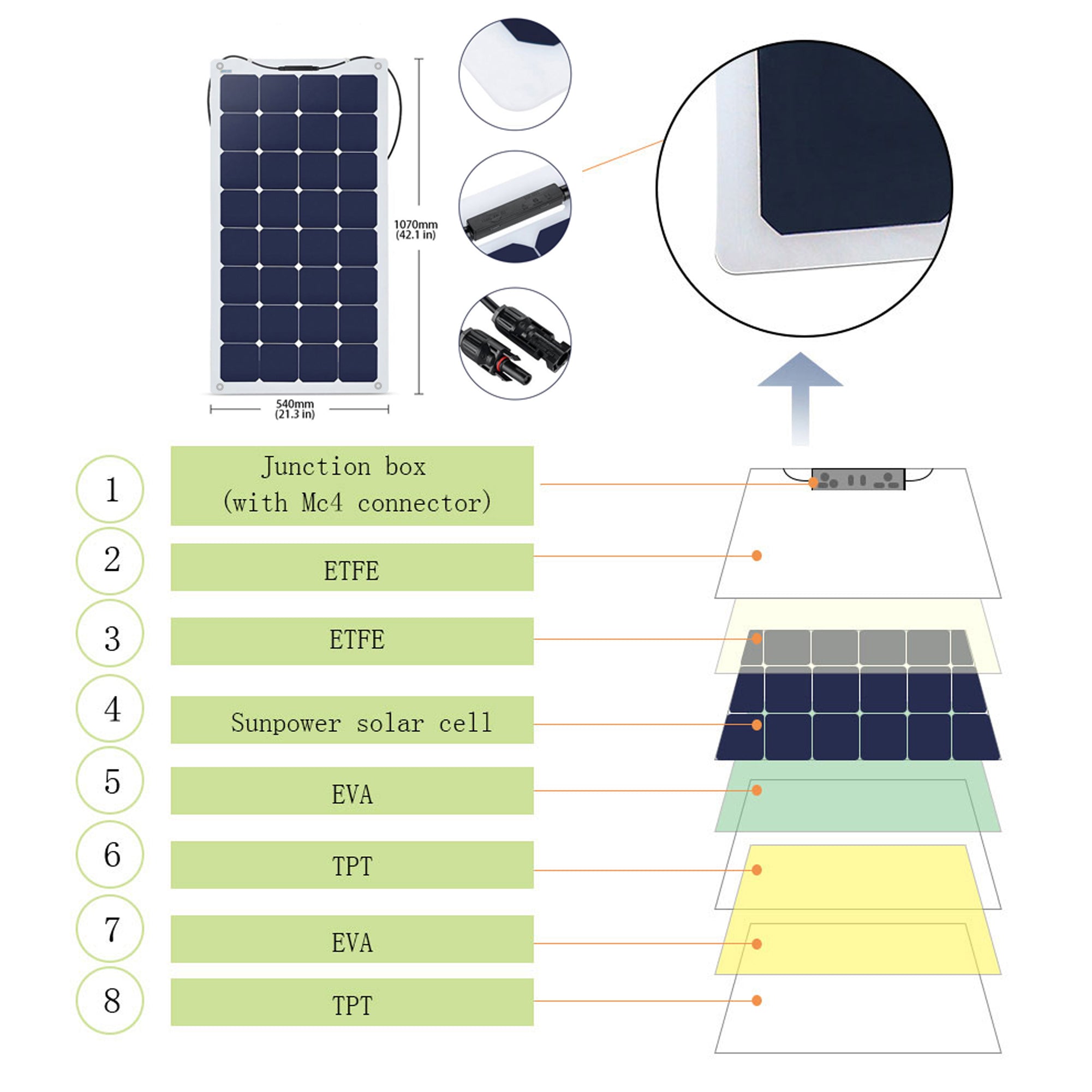

110W Semi-Flexible Solar Panel
Peak Power (Pmax):110W
Peak Circuit Voltage(Voc):20.8V
Max Power Voltage(Vmp):17.6V
Short Circuit Current(Isc):6.87A
Max Power Current(Imp):6.25A
Weight: 4.85 lb
Dimension: 44.68*21.26*0.12 Inch

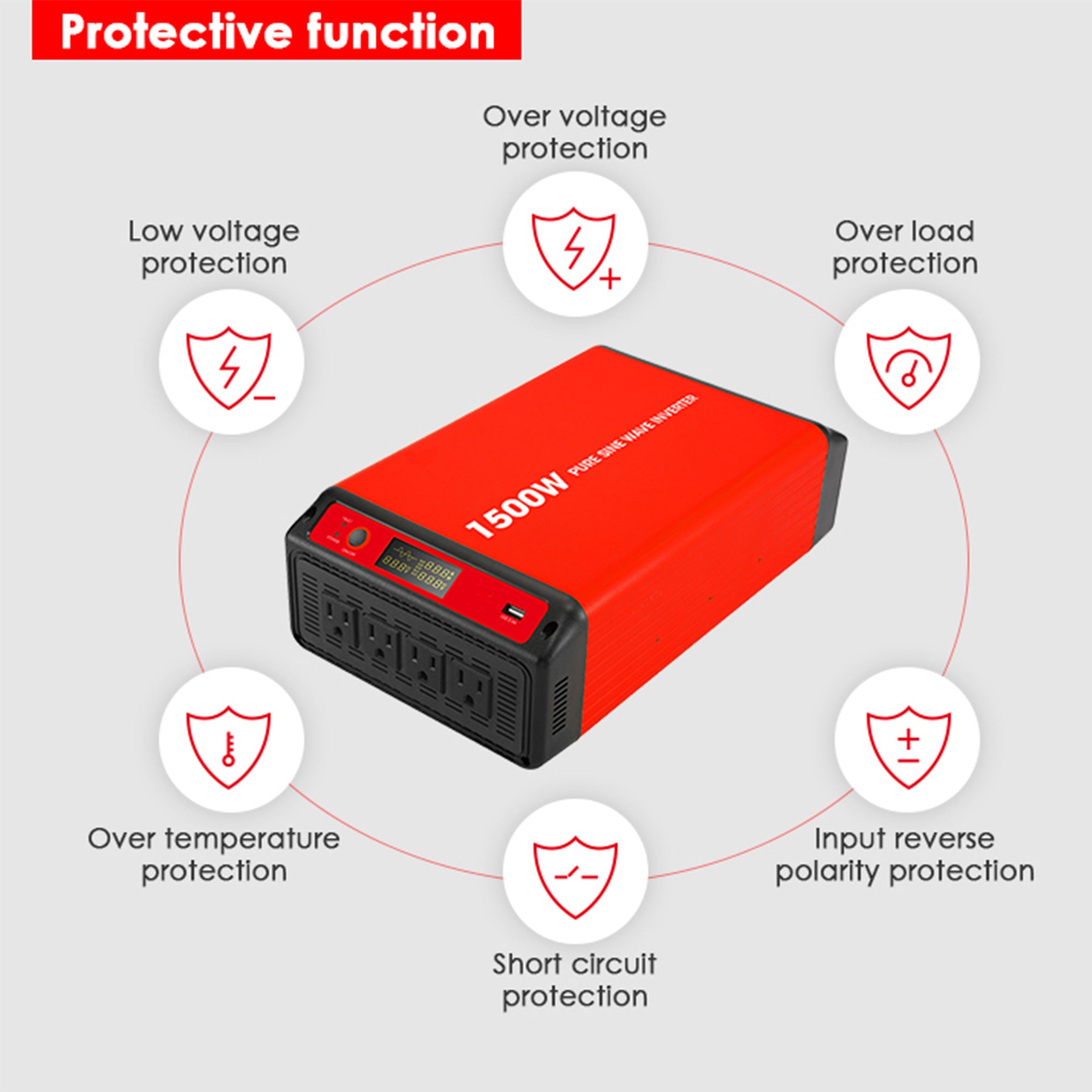

1500W Pure Sine Wave Inverter
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine Wave

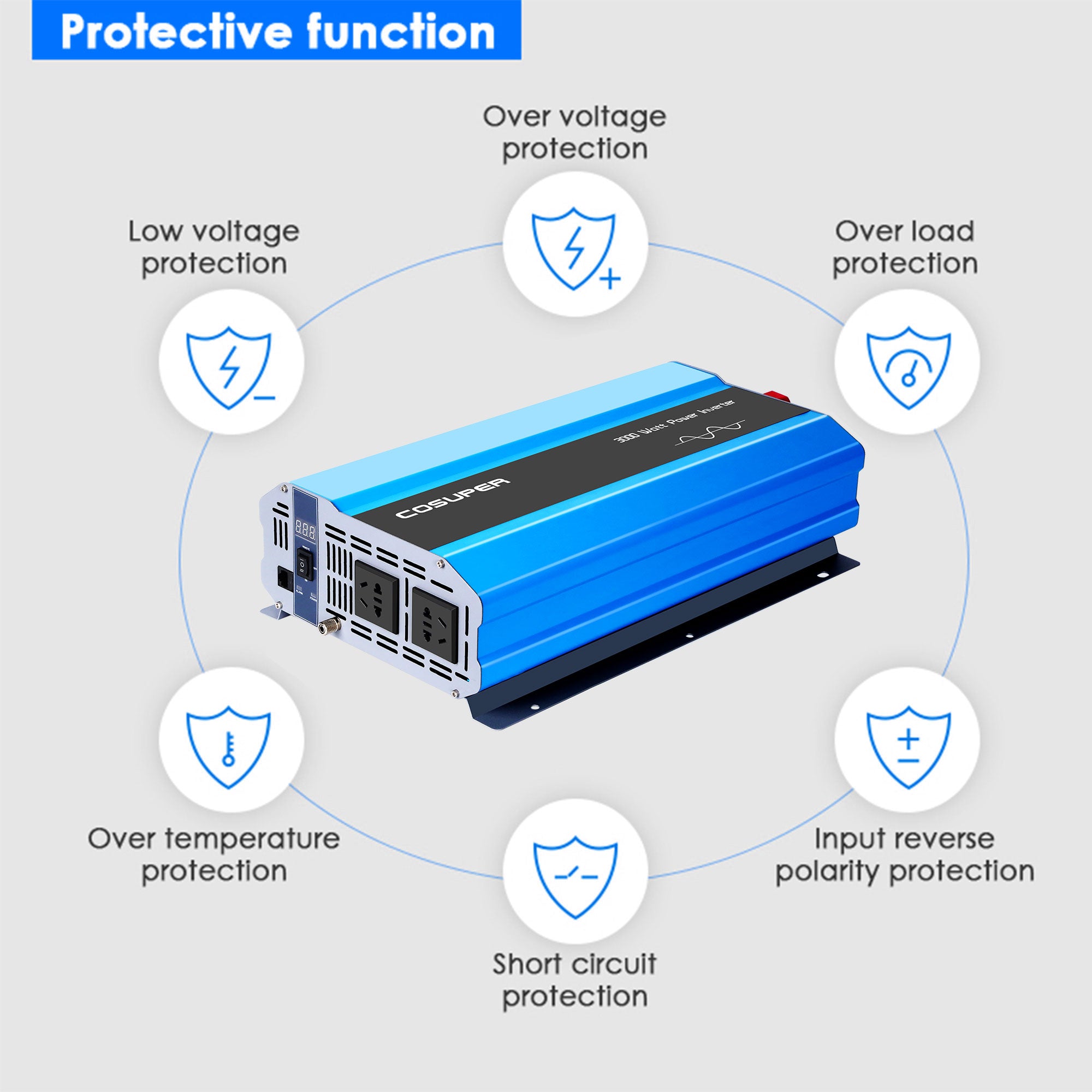

Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 7.79lb
Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

3000W Pure Sine Wave Inverter
Continuous output 3000W
Surge Power 6000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 12.1lb
Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

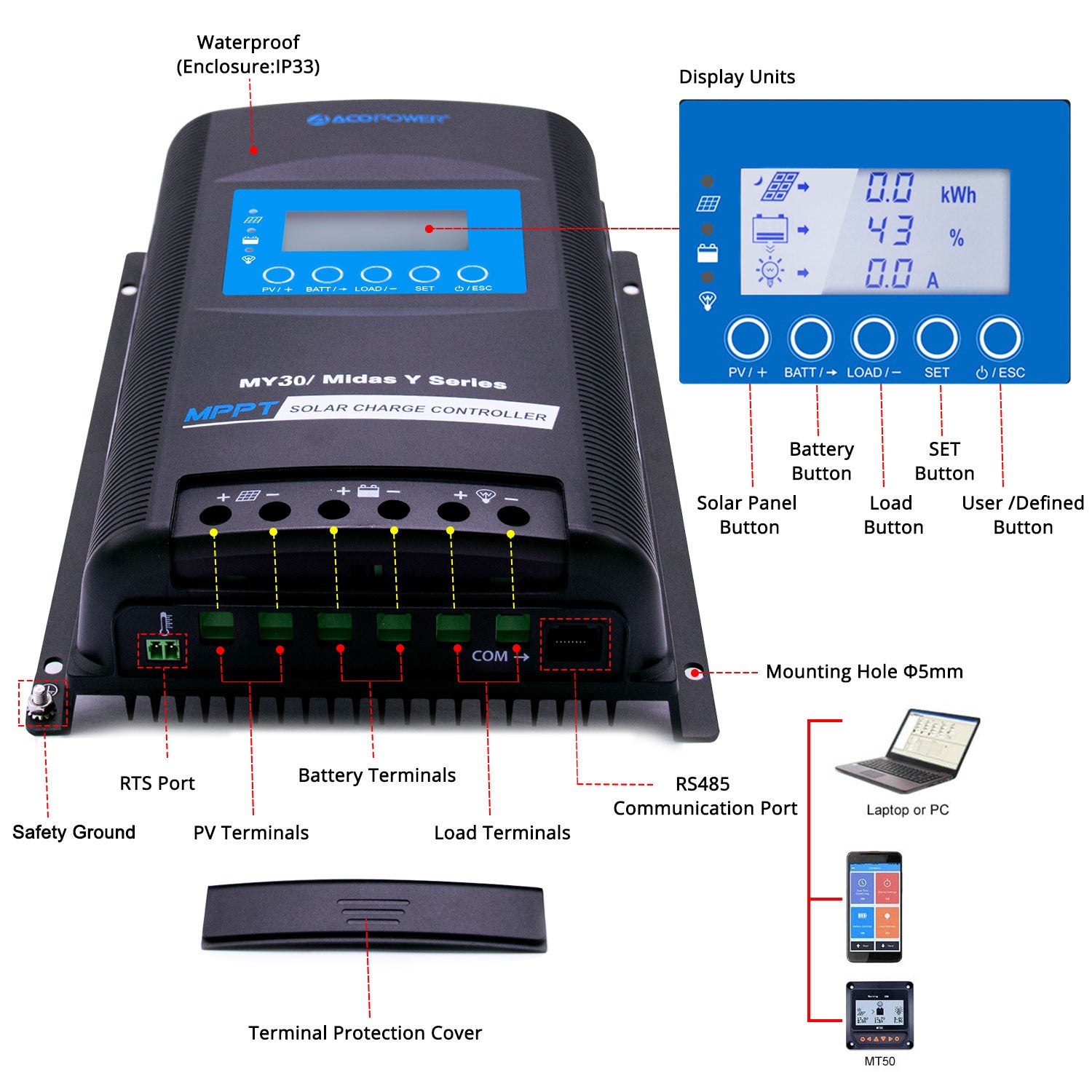

MPPT Solar Charge Controller 30A
Rated charge current: 30A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W,24V/780W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.


MPPT Solar Charge Controller 40A
Rated charge current: 40A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/520W,24V/1040W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

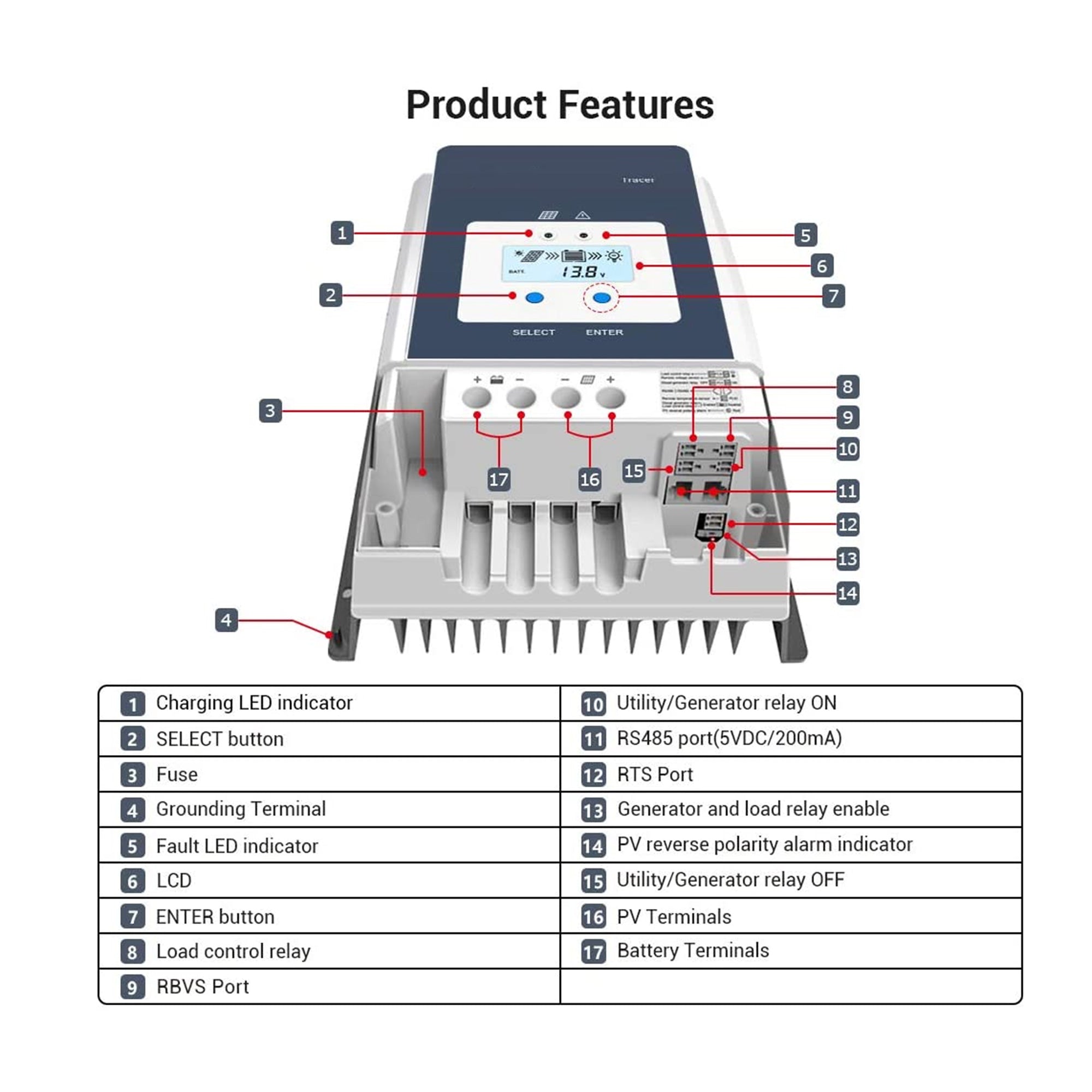

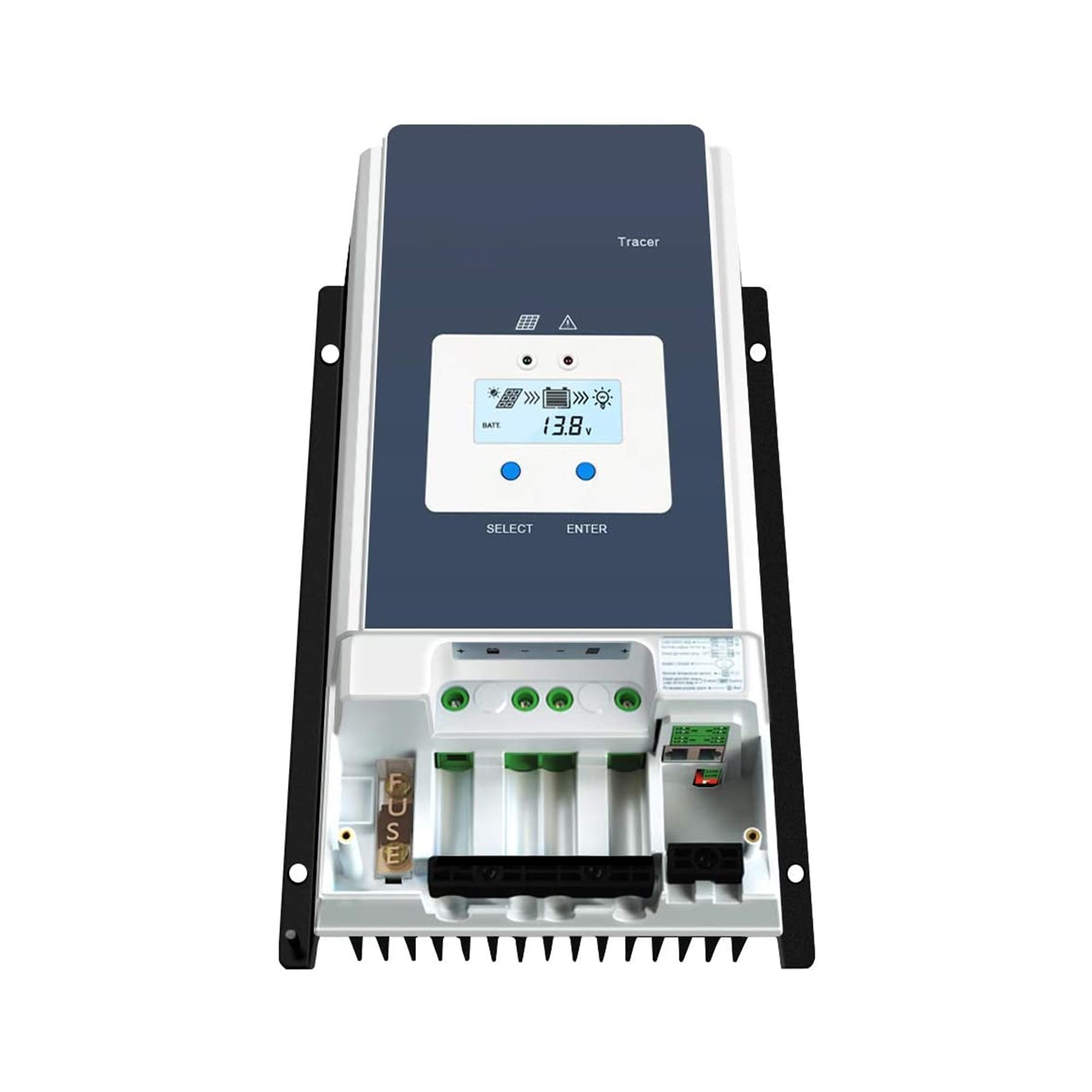

MPPT Solar Charge Controller 50A
Rated charge current: 50A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

MPPT Solar Charge Controller 60A
Rated charge current: 60A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
Compatible with Various Deep Cycle Battery options:Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

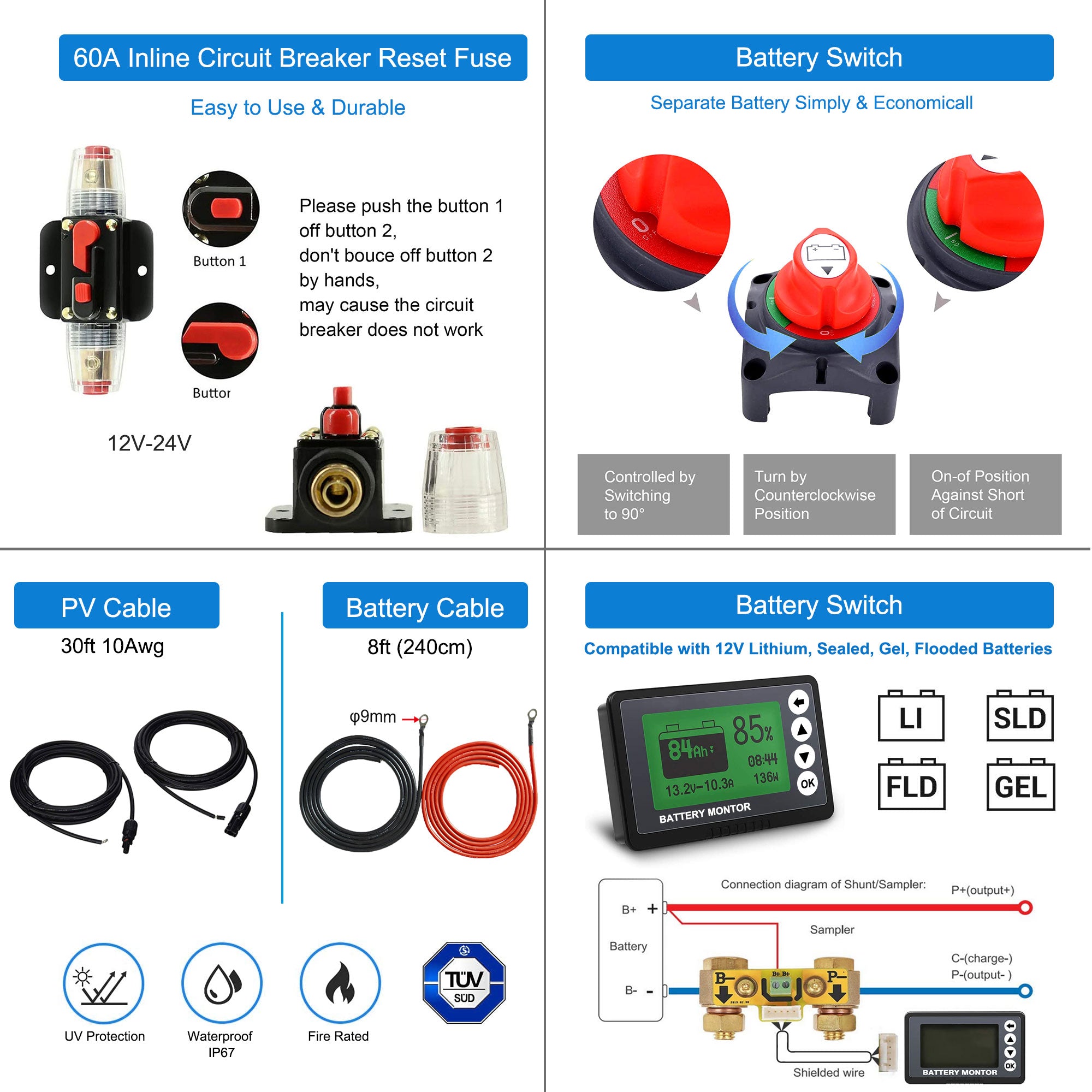

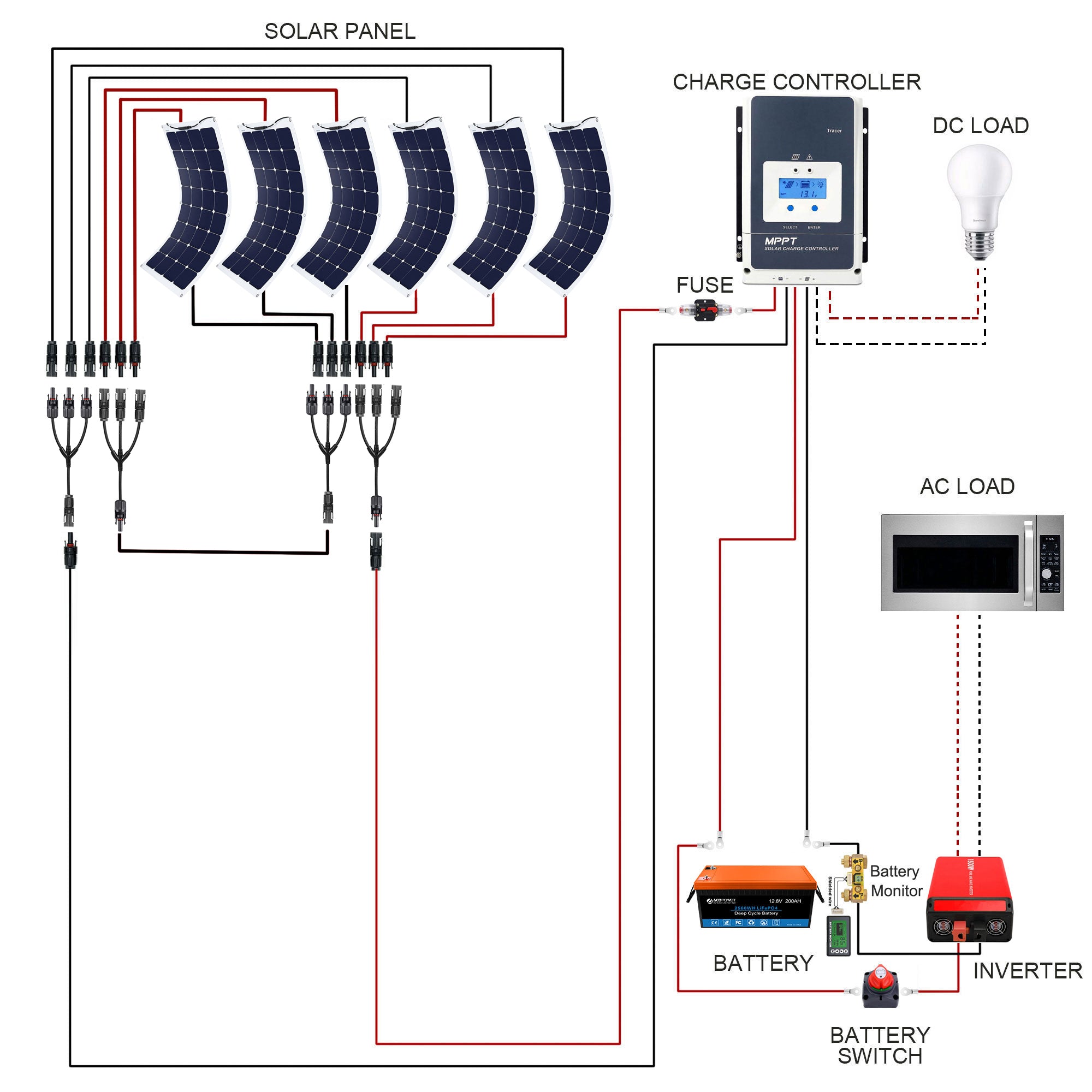

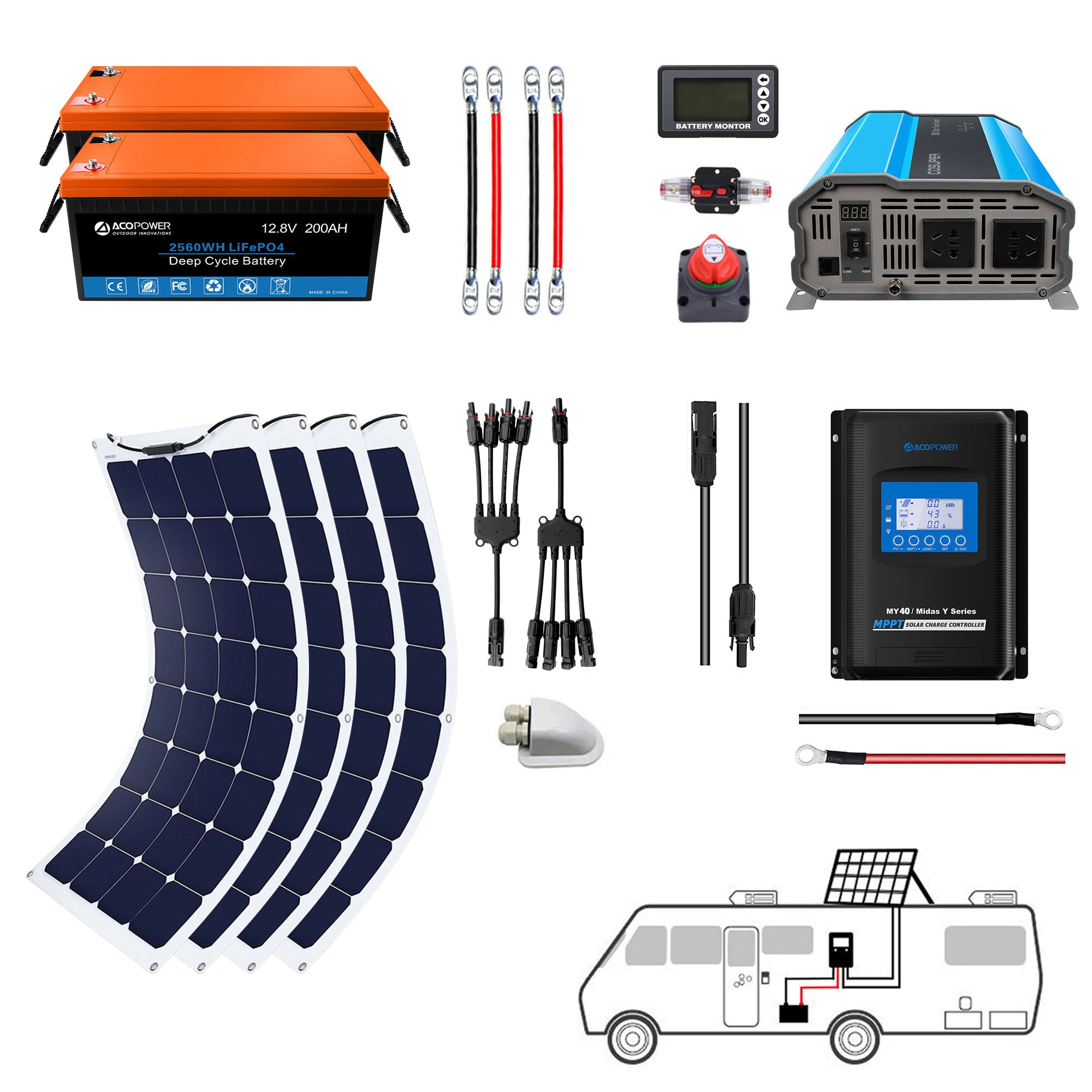

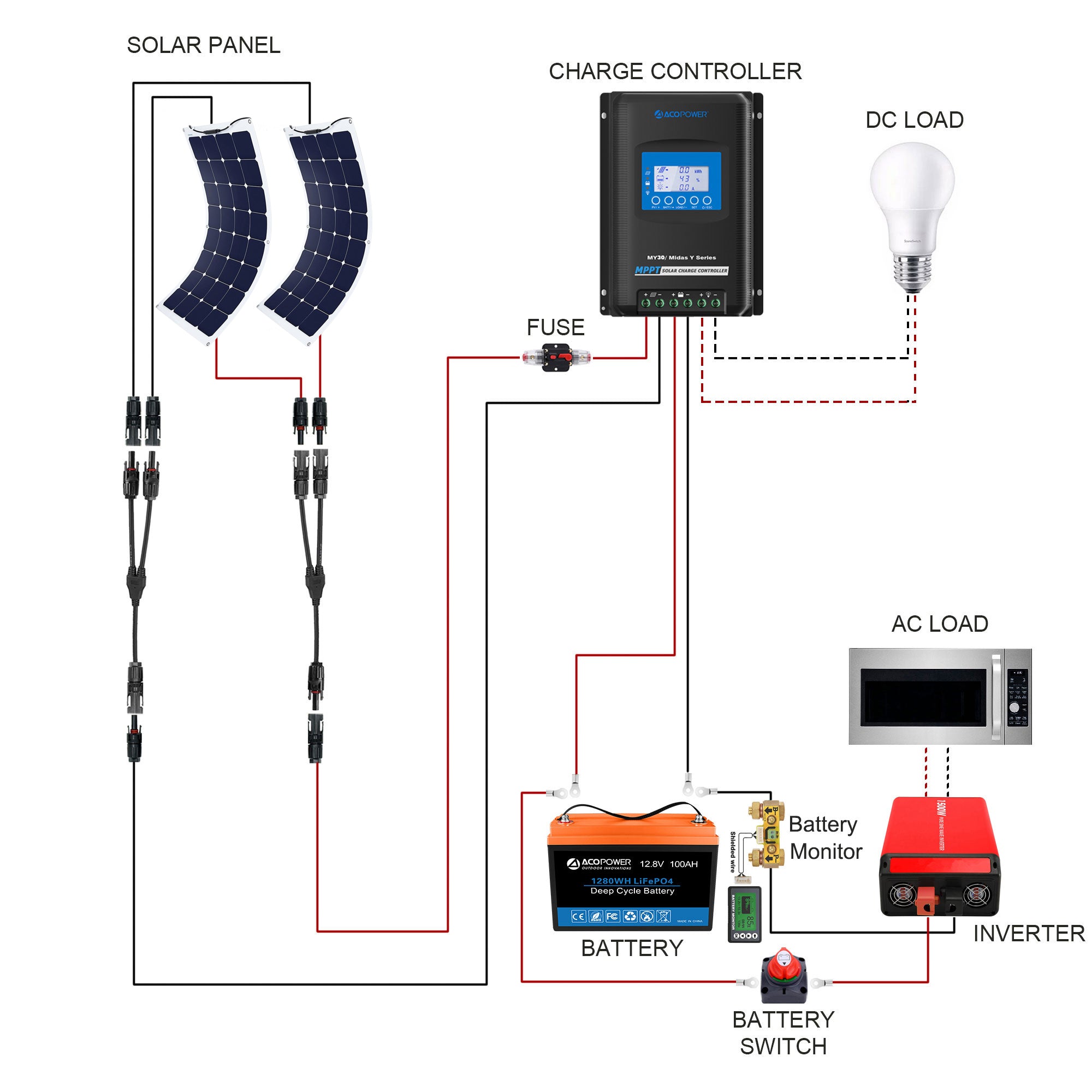

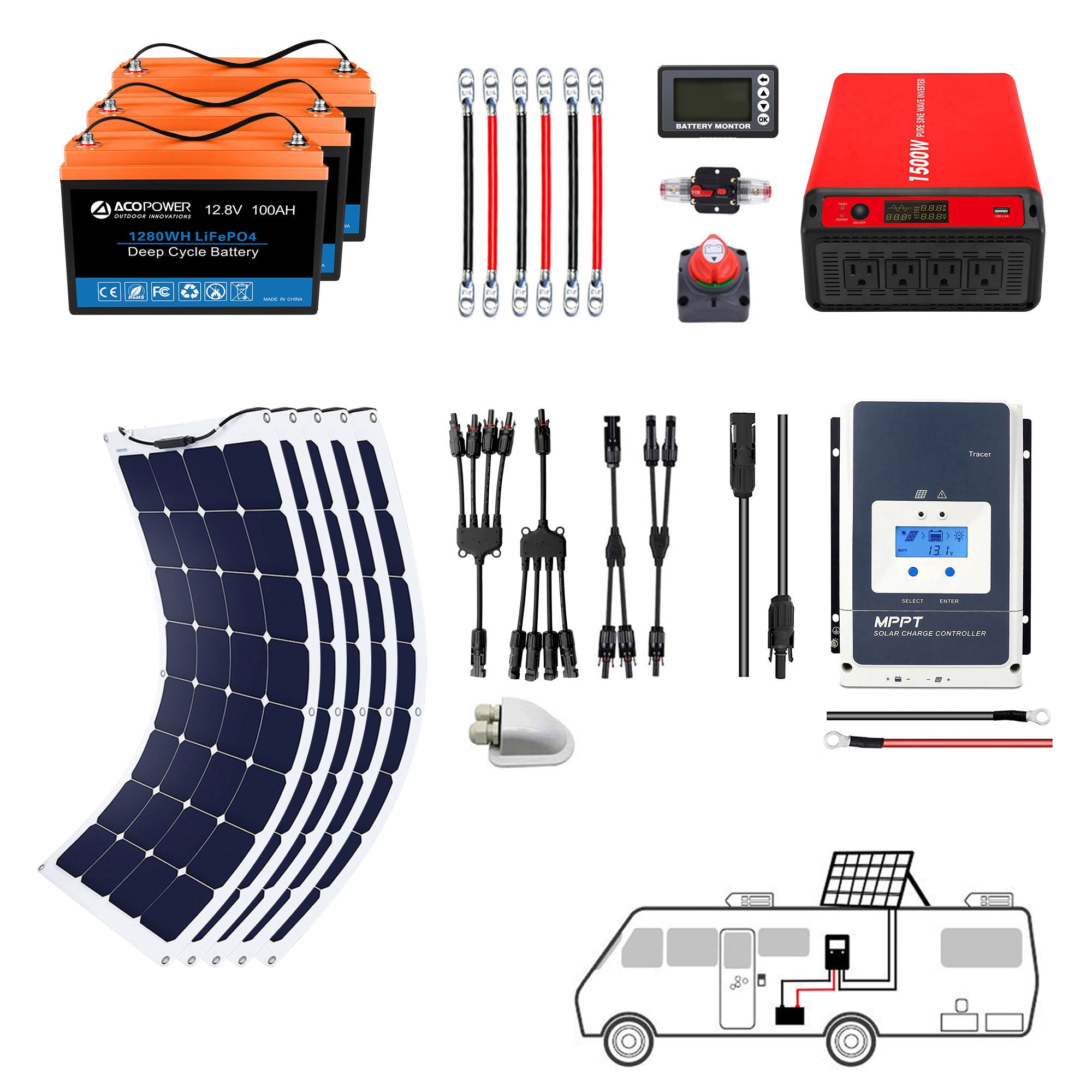

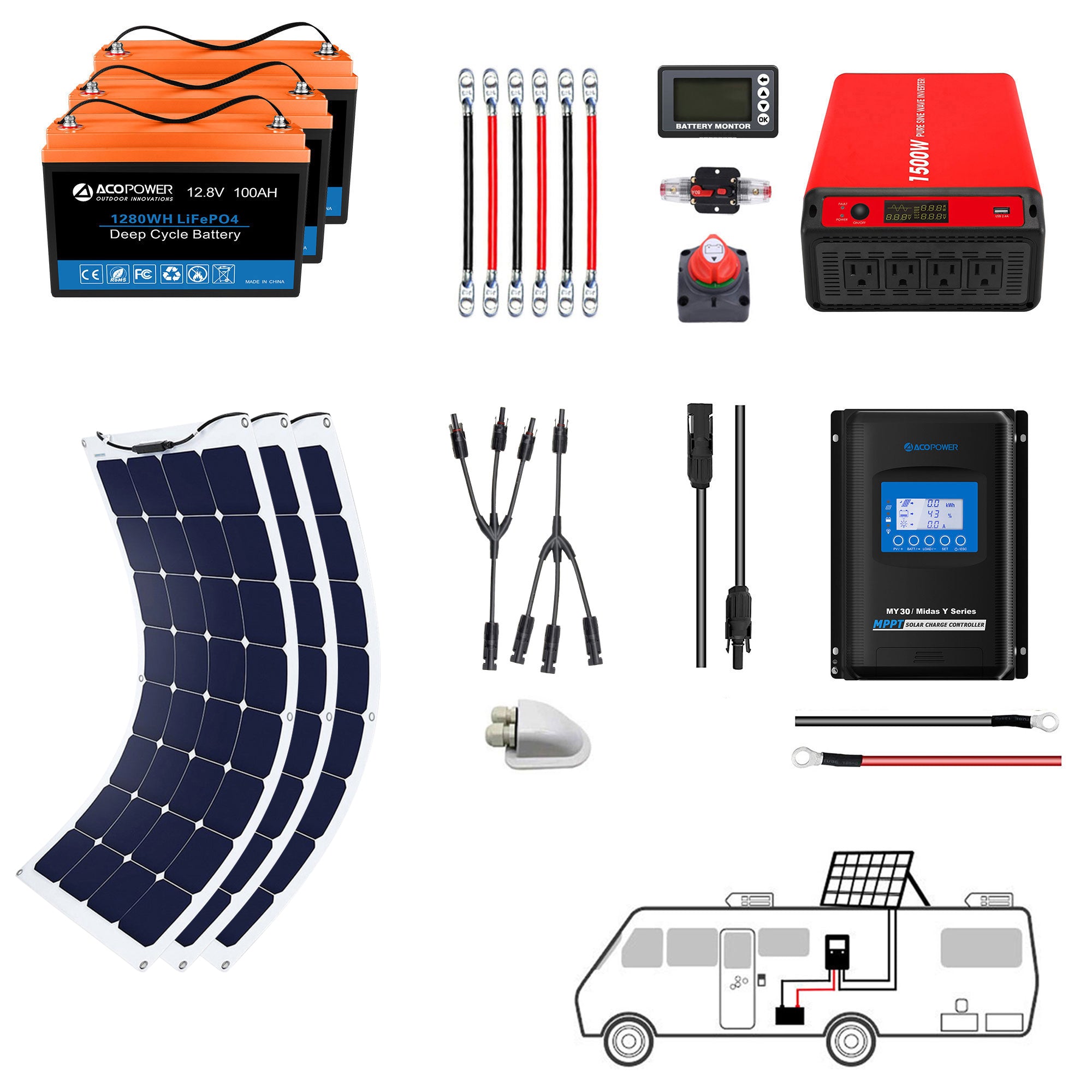

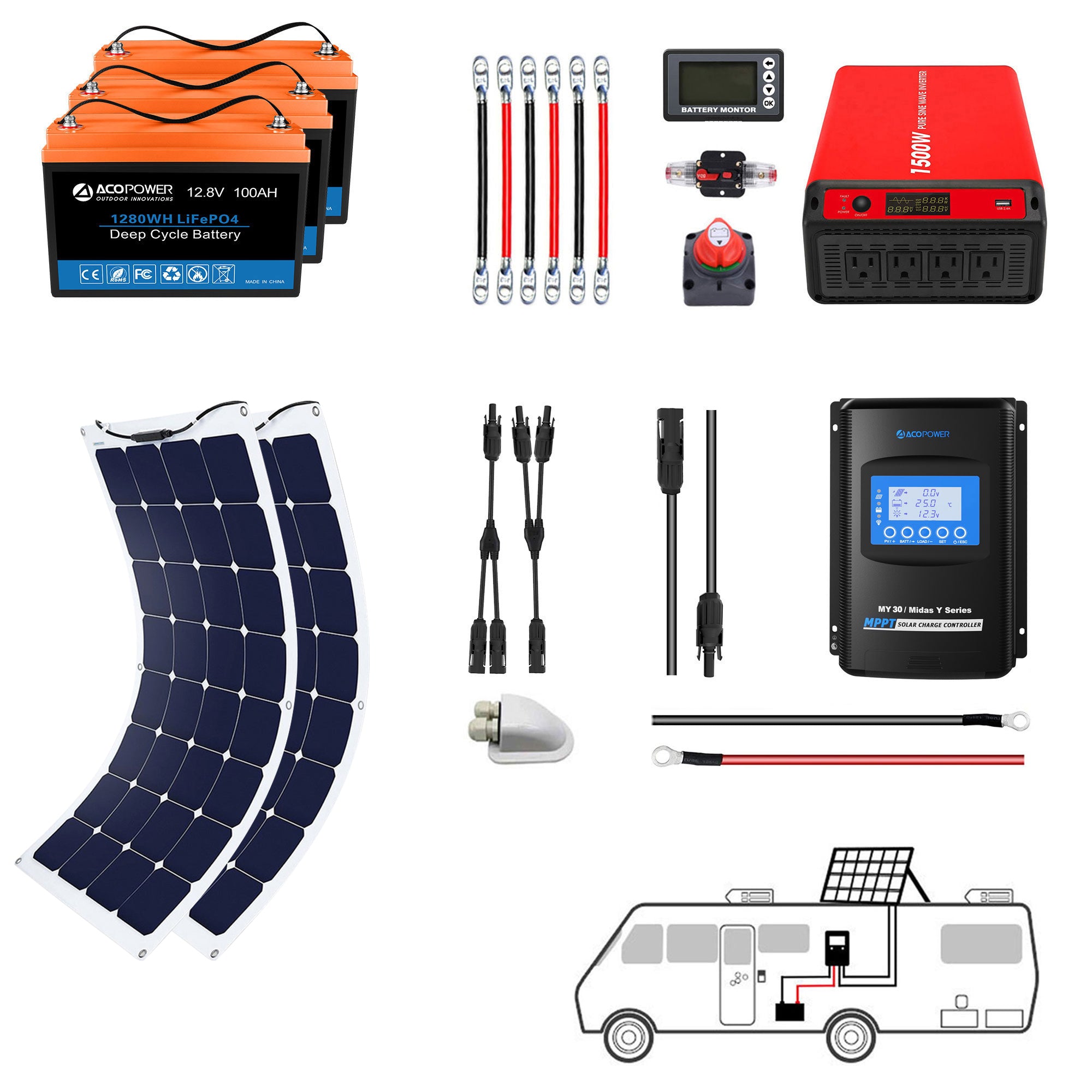

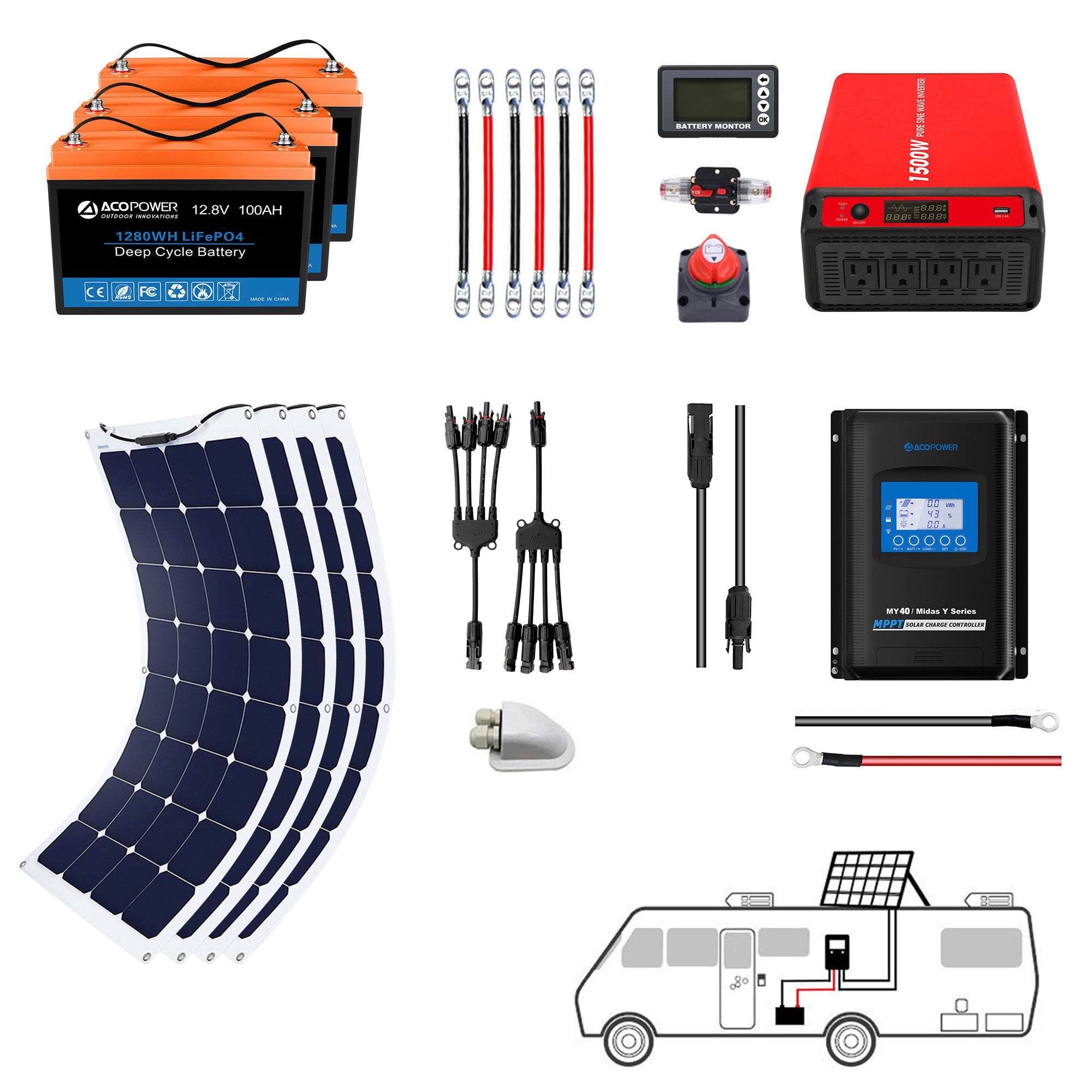

SKU Battery Solar Panel Inverter Charge Controller Monitor Switch Fuse Z Bracket Battery Cable All necessary Cables

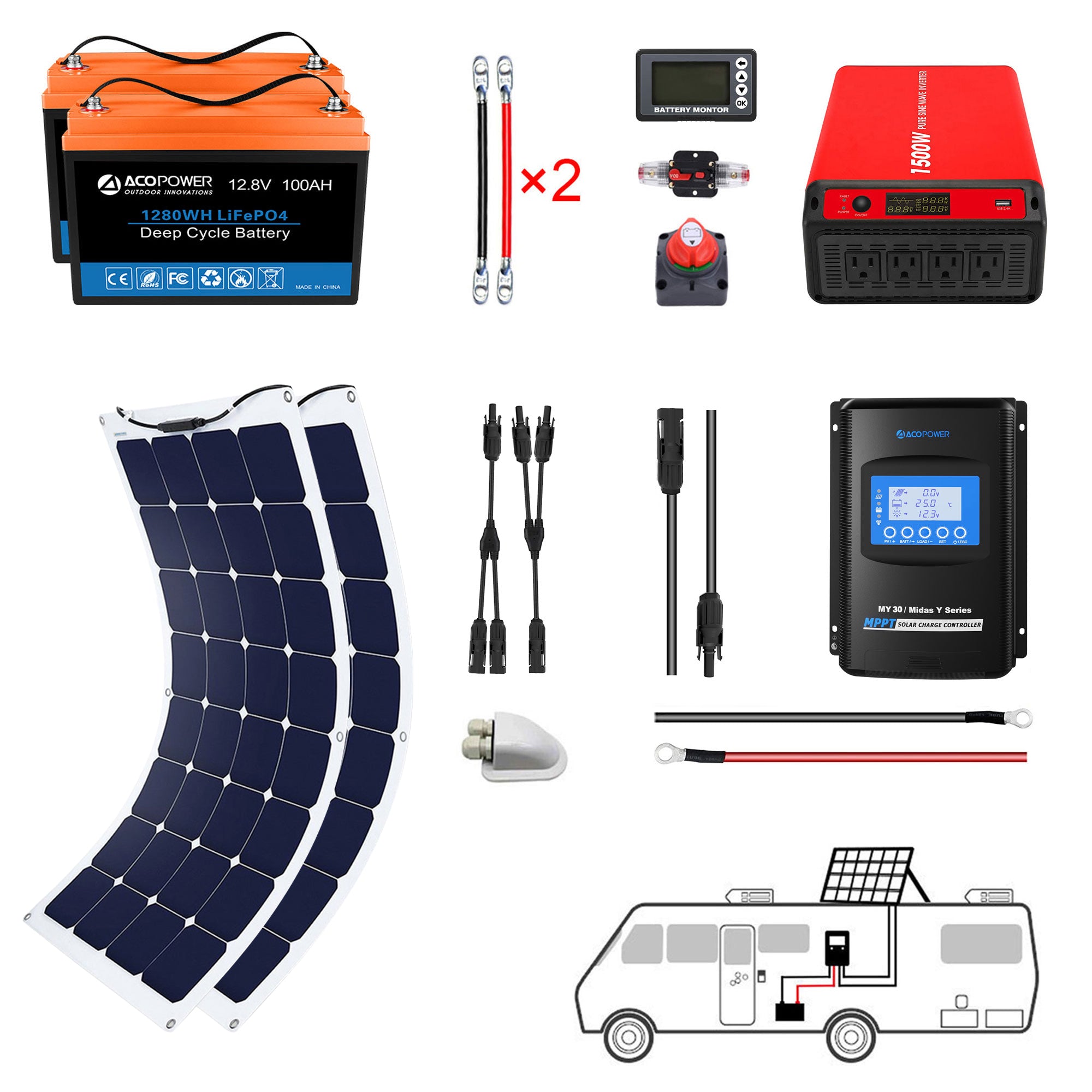

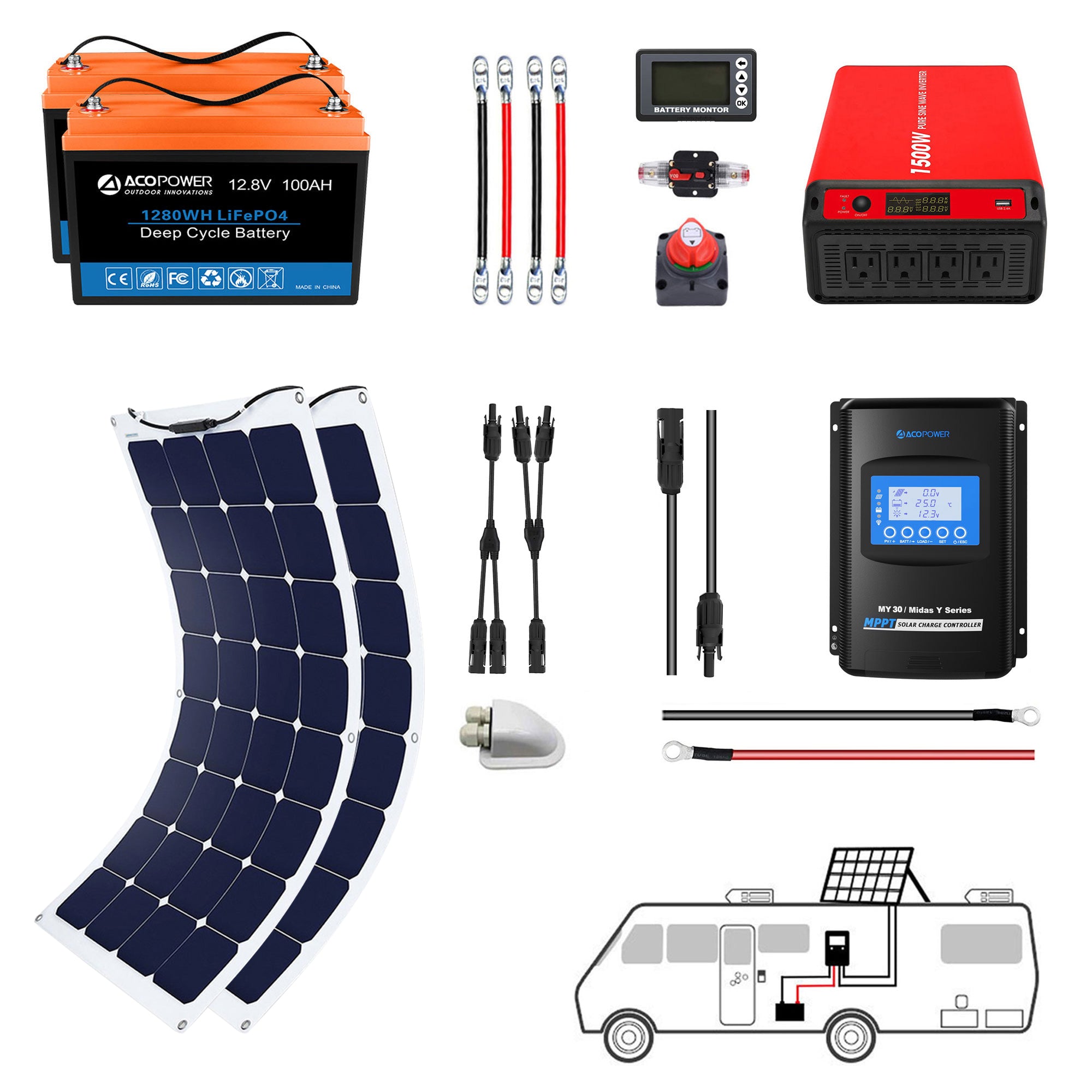

HYL200AH-F220W 2pcs 100Ah 2pcs 110W 1.5kw 30A 1pc 1pc 60A 2 sets 2 Pairs Y

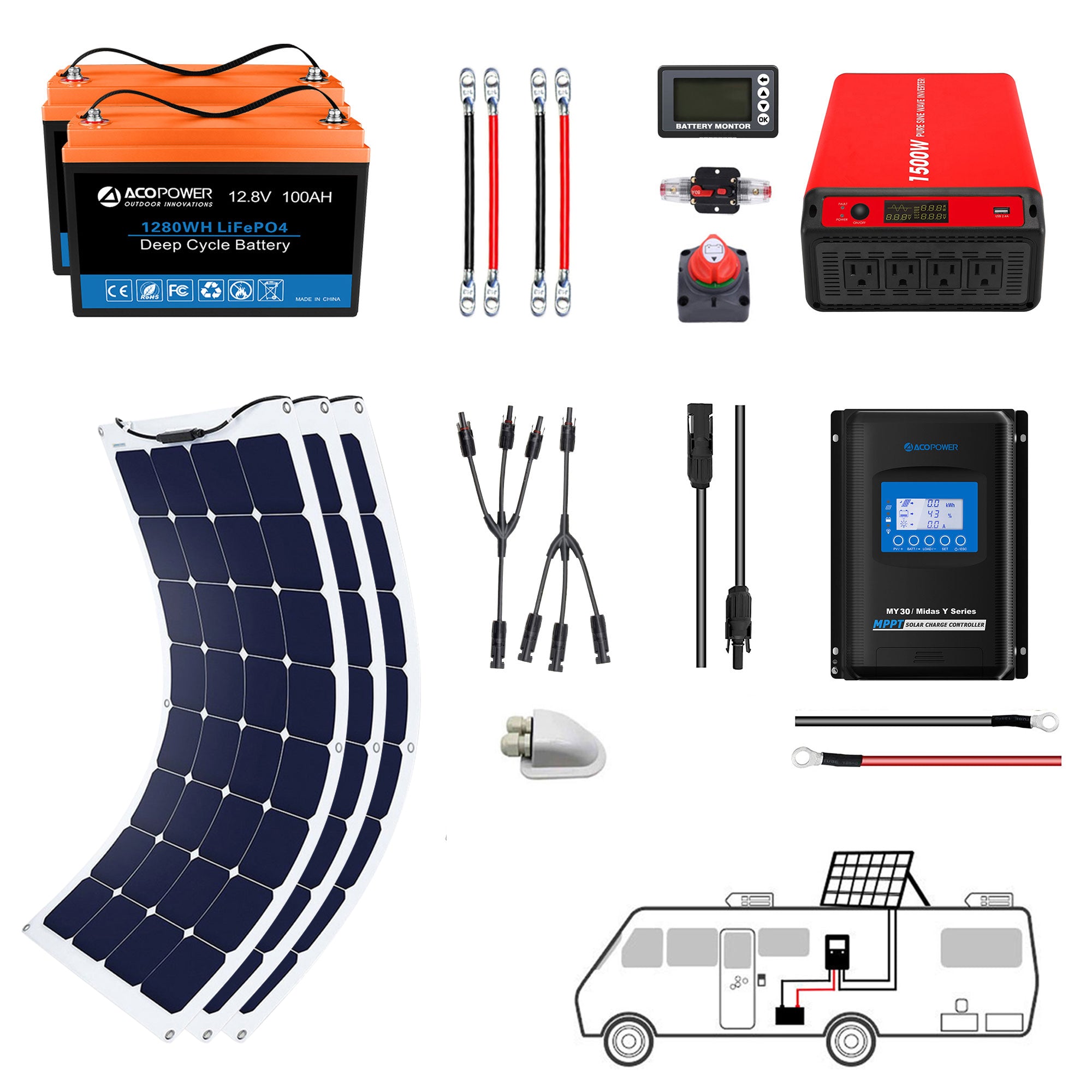

HYL200AH-F330W 2pcs 100Ah 3pcs 110W 1.5kw 30A 1pc 1pc 60A 3 sets 2 Pairs Y

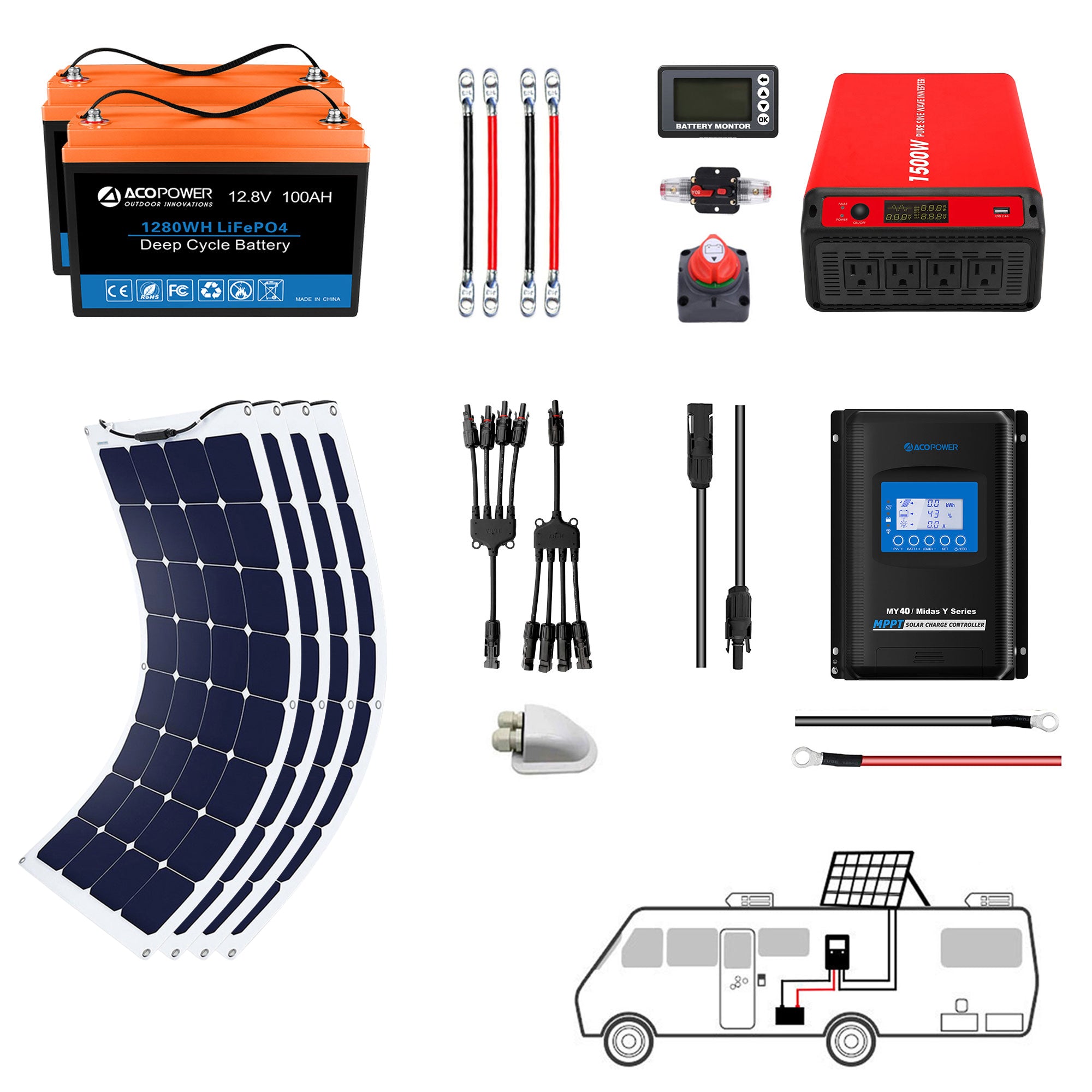

HYL200AH-F440W 2pcs 100Ah 4pcs 110W 1.5kw 40A 1pc 1pc 60A 4 sets 2 Pairs Y

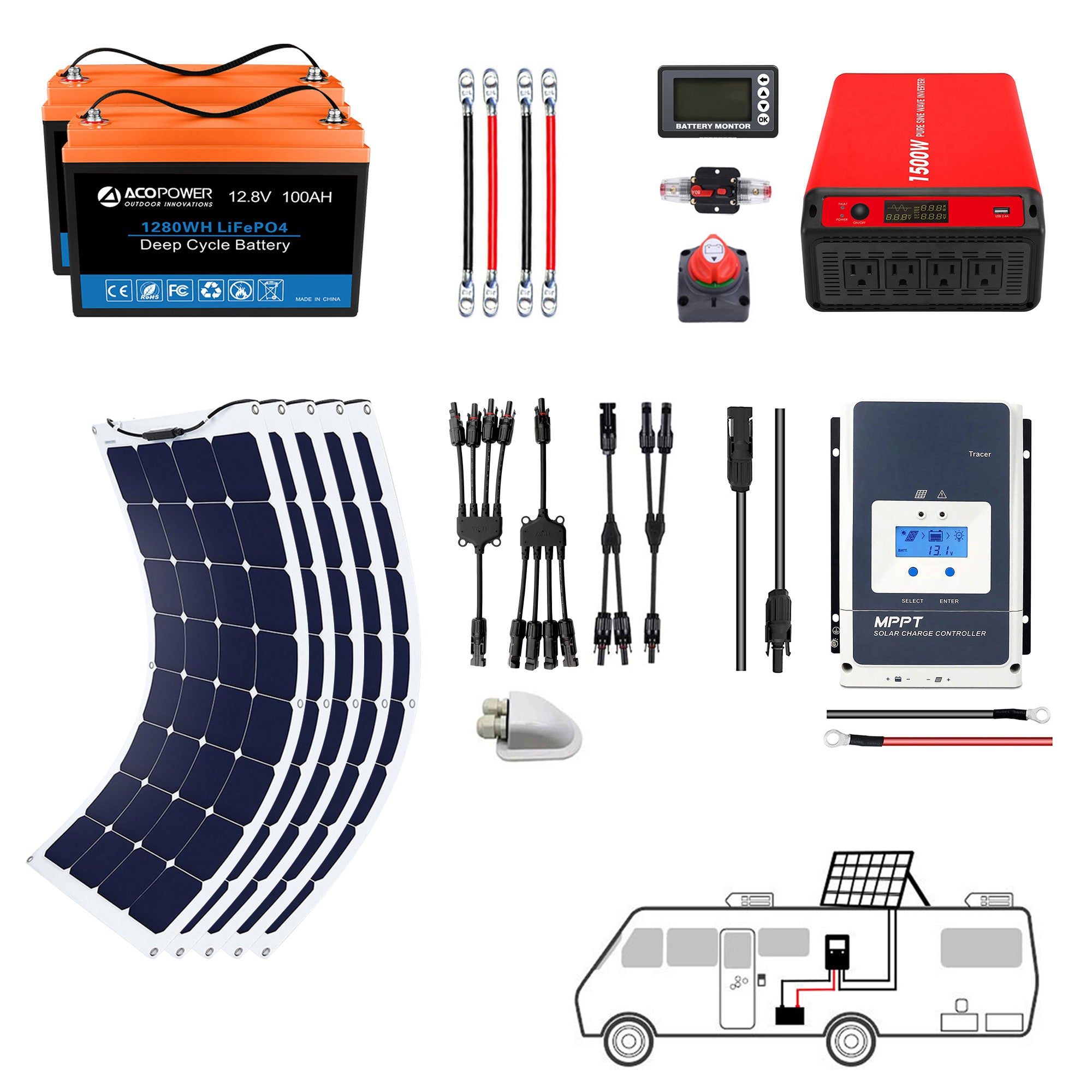

HYL200AH-F550W 2pcs 100Ah 5pcs 110W 1.5kw 40A 1pc 1pc 60A 5 sets 2 Pairs Y

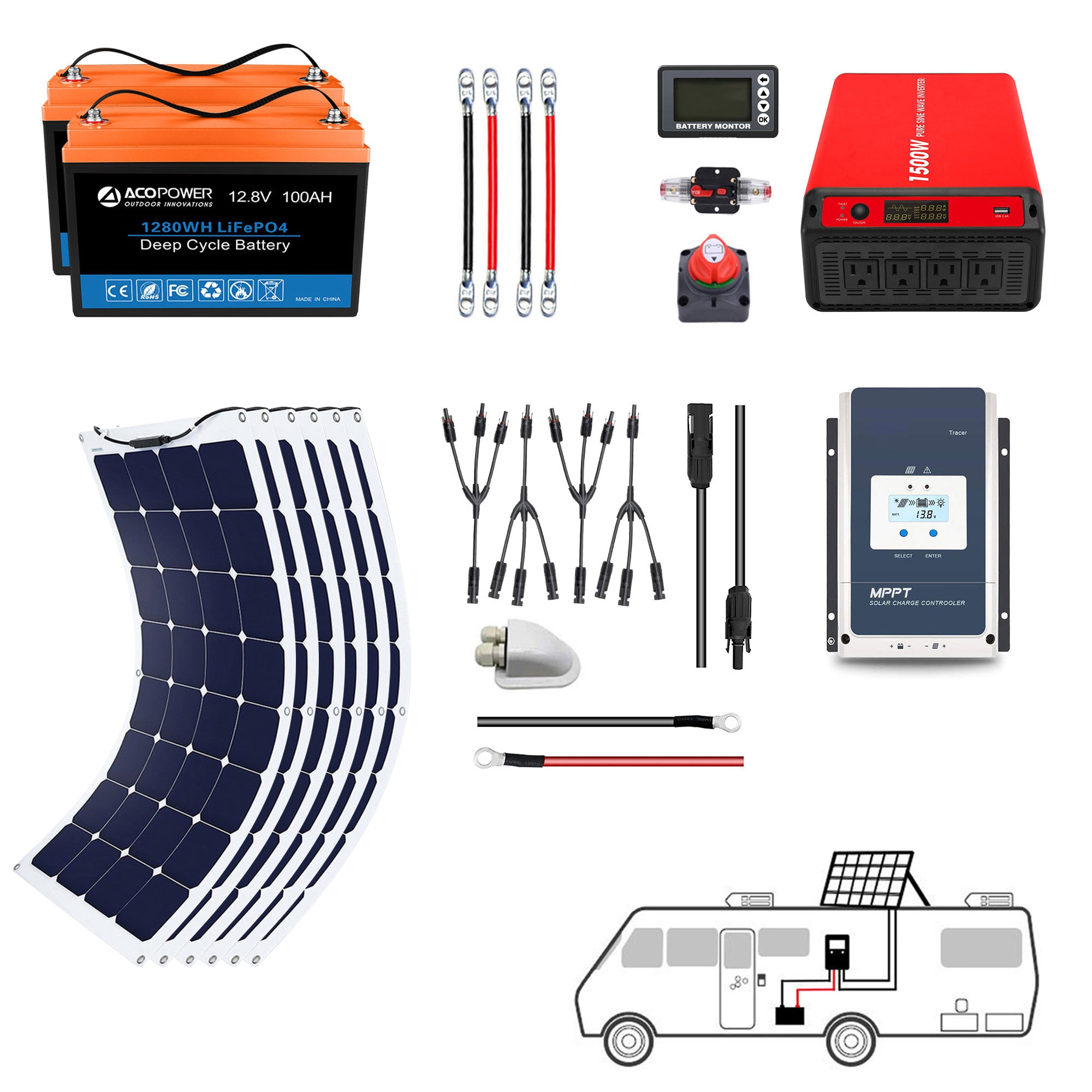

HYL200AH-F660W 2pcs 100Ah 6pcs 110W 1.5kw 50A 1pc 1pc 60A 6 sets 2 Pairs Y
HYL300AH-F220W 3pcs 100Ah 2pcs 110W 1.5kw 30A 1pc 1pc 60A 2 sets 3 Pairs Y
HYL300AH-F330W 3pcs 100Ah 3pcs 110W 1.5kw 30A 1pc 1pc 60A 3 sets 3 Pairs Y
HYL300AH-F440W 3pcs 100Ah 4pcs 110W 1.5kw 40A 1pc 1pc 60A 4 sets 3 Pairs Y
HYL300AH-F550W 3pcs 100Ah 5pcs 110W 1.5kw 40A 1pc 1pc 60A 5 sets 3 Pairs Y

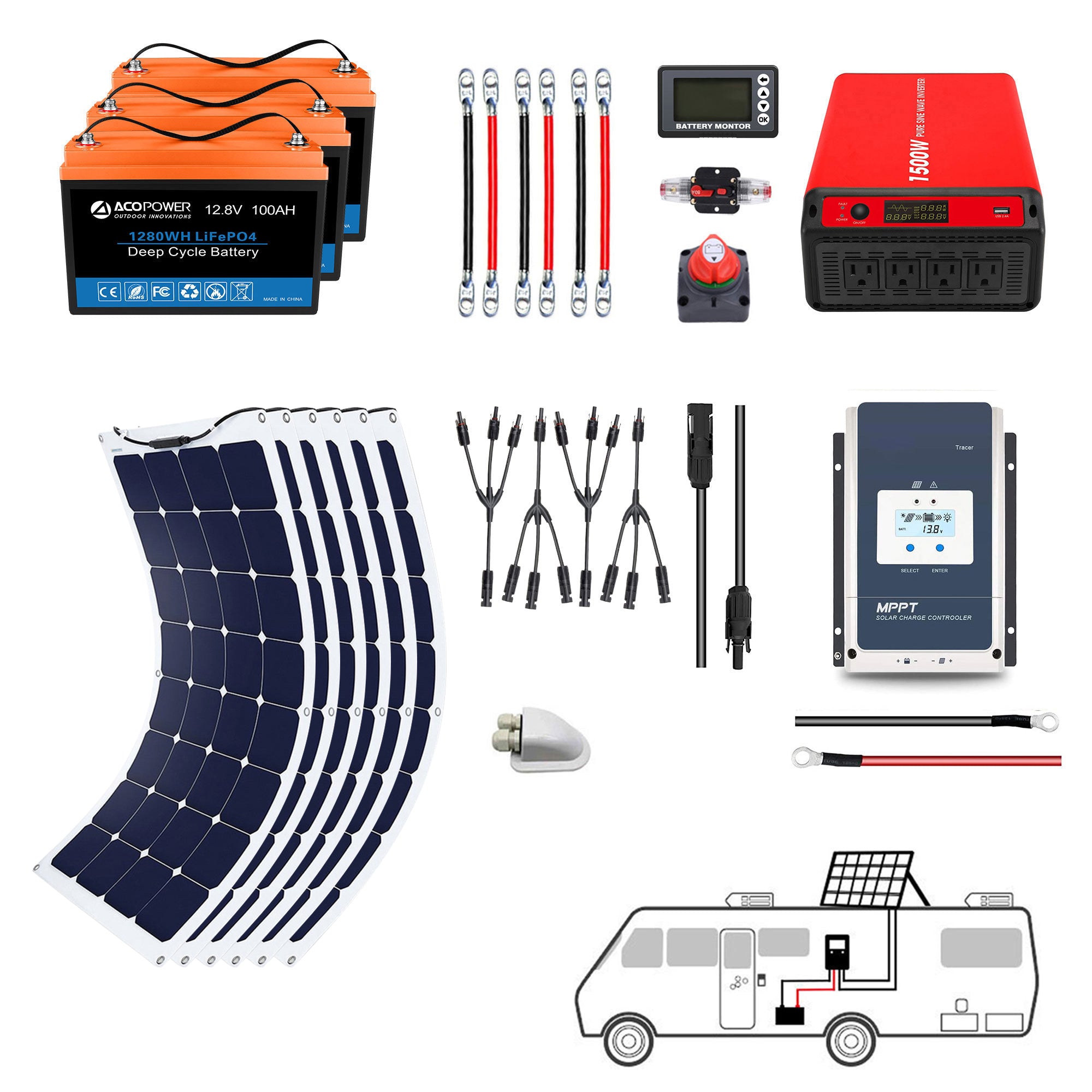

HYL300AH-F660W 3pcs 100Ah 6pcs 110W 1.5kw 50A 1pc 1pc 60A 6 sets 3 Pairs Y
HYL400AH-F440W 2pcs 200Ah 4pcs 110W 3kw 40A 1pc 1pc 60A 4 sets 2 Pairs Y

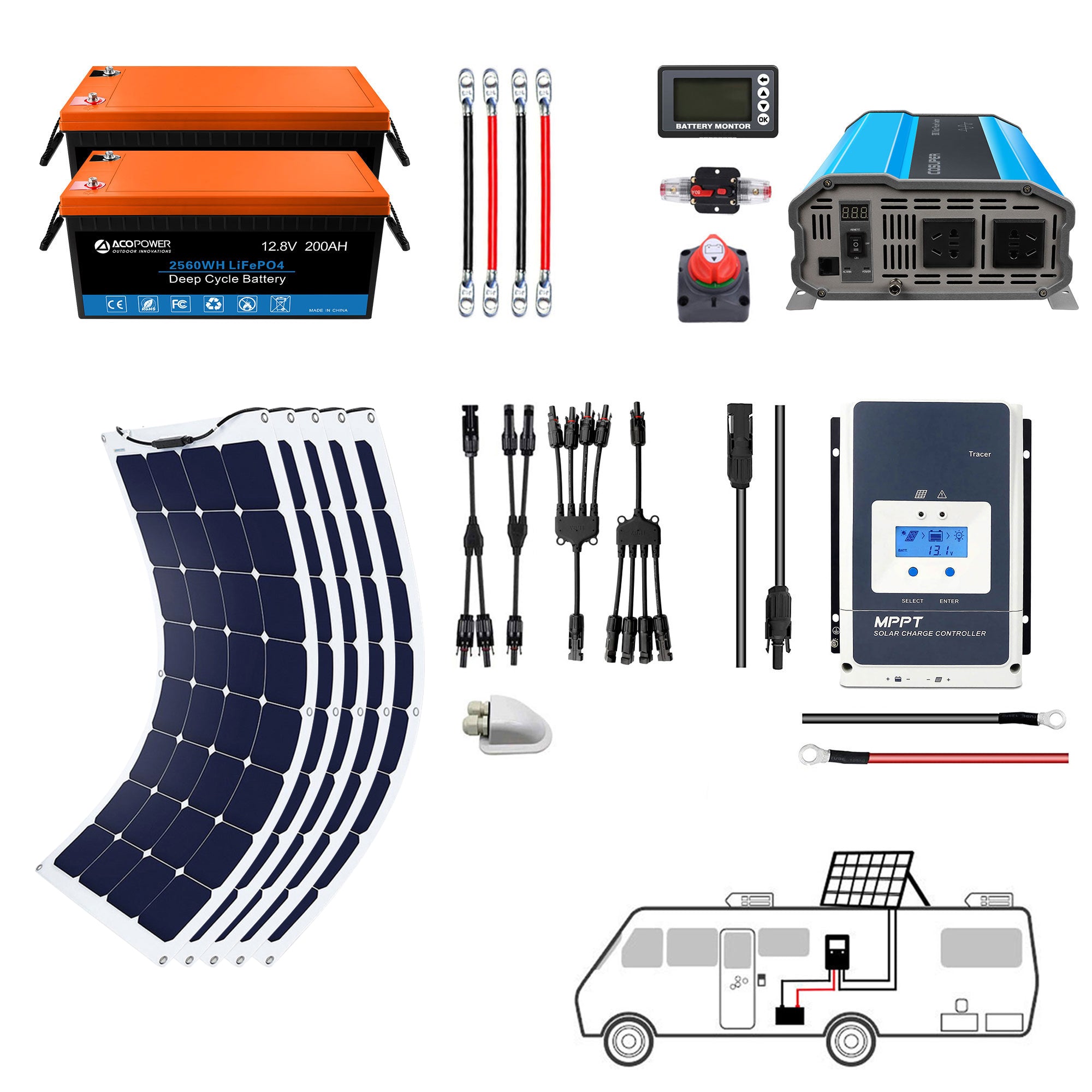

HYL400AH-F550W 2pcs 200Ah 5pcs 110W 3kw 40A 1pc 1pc 60A 5 sets 2 Pairs Y
HYL400AH-F660W 2pcs 200Ah 6pcs 110W 3kw 50A 1pc 1pc 60A 6 sets 2 Pairs Y

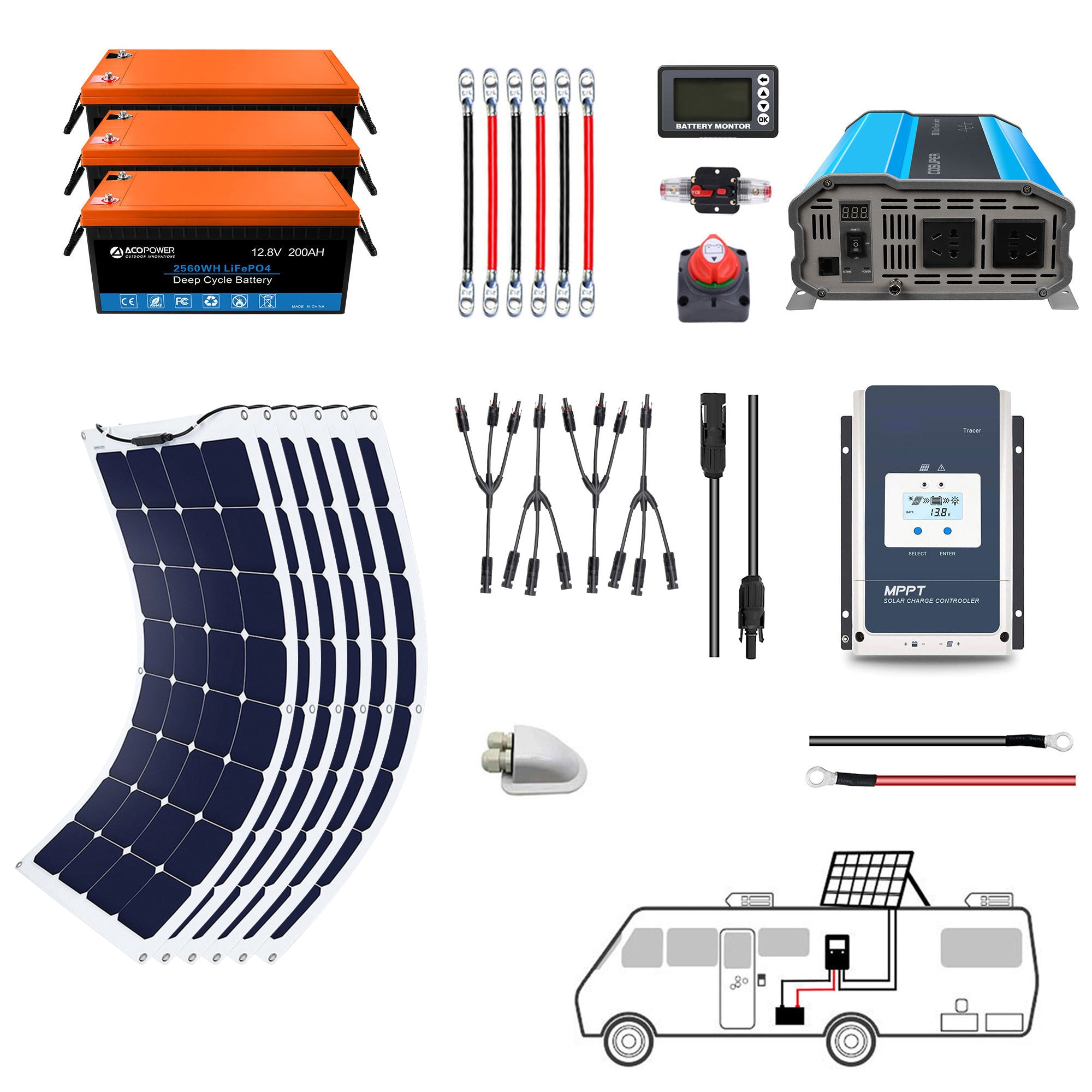

HYL600AH-F660W 3pcs 200Ah 6pcs 110W 3kw 50A 1 1 60A 6 sets 3 Pairs Y
