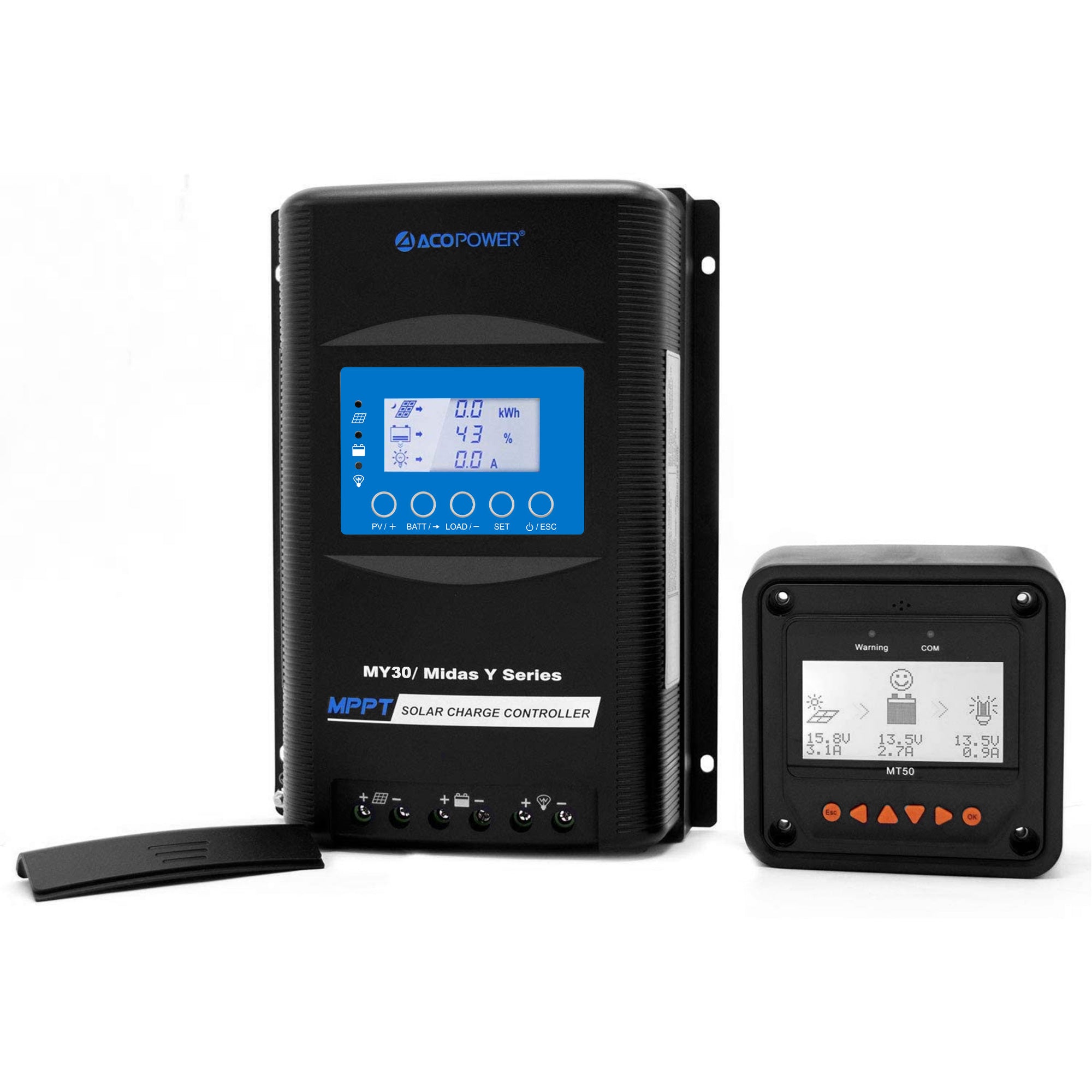

ACOPOWER 30A MPPT Solar Charge Controller with Remote Meter MT-50

SKU: HY-MY30+MT50N/A

$ 165.80


Advanced Charge Control Technology: Maximum Power Point Tracking (MPPT) with high tracking efficiency no less than 99.50%; peak conversion efficiency of 98%; Ultra-fast tracking speed; accurately recognizing and tracking of multiple power point; 3-stage charge with PWM output
Easy Monitor and Operate: Multi-function LCD displays system information intuitively; User programmable for battery types, load control etc, via PC software or remote meter MT-50
No Worries with Electronic Protections: PV reverse polarity protection; PV short circuit protection; PV over current alarm protection; Battery overcharge protection; Battery over discharge protection; Battery reverse polarity protection; Load short circuit protection; Load overload protection; Overheating protection
Build-up: with 12v /24v battery (Automatic system voltage recognition); charged by solar panels according to the system, recommend Acopower 100Watt ASIN: B01586LFJ0 or all black panels ASIN: B01G53TUIS
100% Money back for any reasons you are not satisfied. 18 Month Warranty. USA Based More than 9 Years Solar Industry Company provides you excellent customer service and technical support.


Out of stock

Description

The ACOPOWER 30A MPPT Solar Charge Controller boasts multiple advantages to other charge controllers in the market. From our 3 light LED indicator, multiple parameter display screen, 5 setting button interface, waterproof interface cover and included remote monitor system, you can be assured best in class performance and innovative features compared to others.

Key Features

30A Charge Controller

  • Automatically detect 12V or 24V DC system voltages using innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98% -  accurately recognizing and tracking of multiple power point; 3-stage charge with PWM output
  • Easy To Monitor and Operate - The Multi-function LCD screen displays system information intuitively; User programmable for battery types, load control etc, via PC software or remote meter MT-50
  • Battery voltage range: 8V~32V
  • Charging Power and Current Limitation Function
  • PV short circuit / PV reverse polarity /Battery over voltage /Battery over discharge / Battery reverse polarity / Load overload protection
  • 100V PV input allows more panels to be connected in a series
  • Works with Sealed(default), Flooded and Gel type Batteries

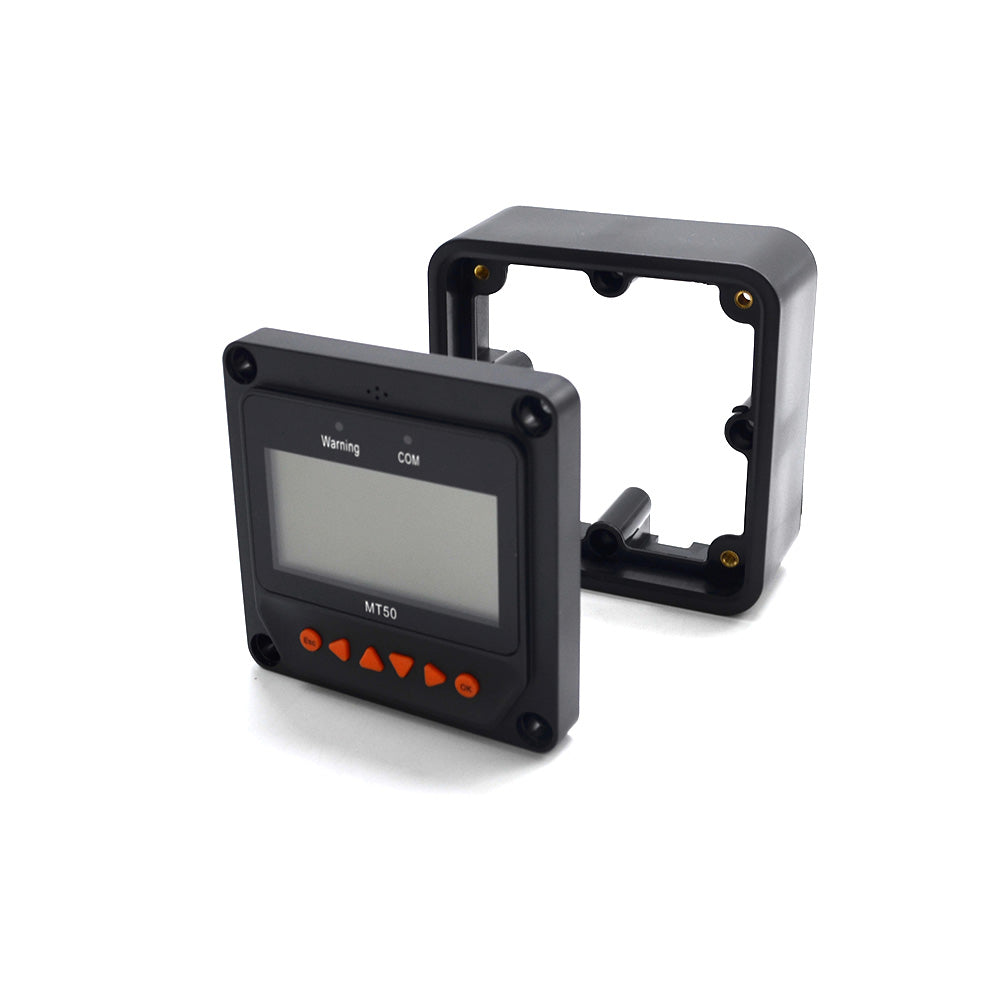

Remote Meter MT-50
  • With the included MT-50 Remote Meter, you will always know the status of your charge controller and easily trouble shoot via the digital display screen

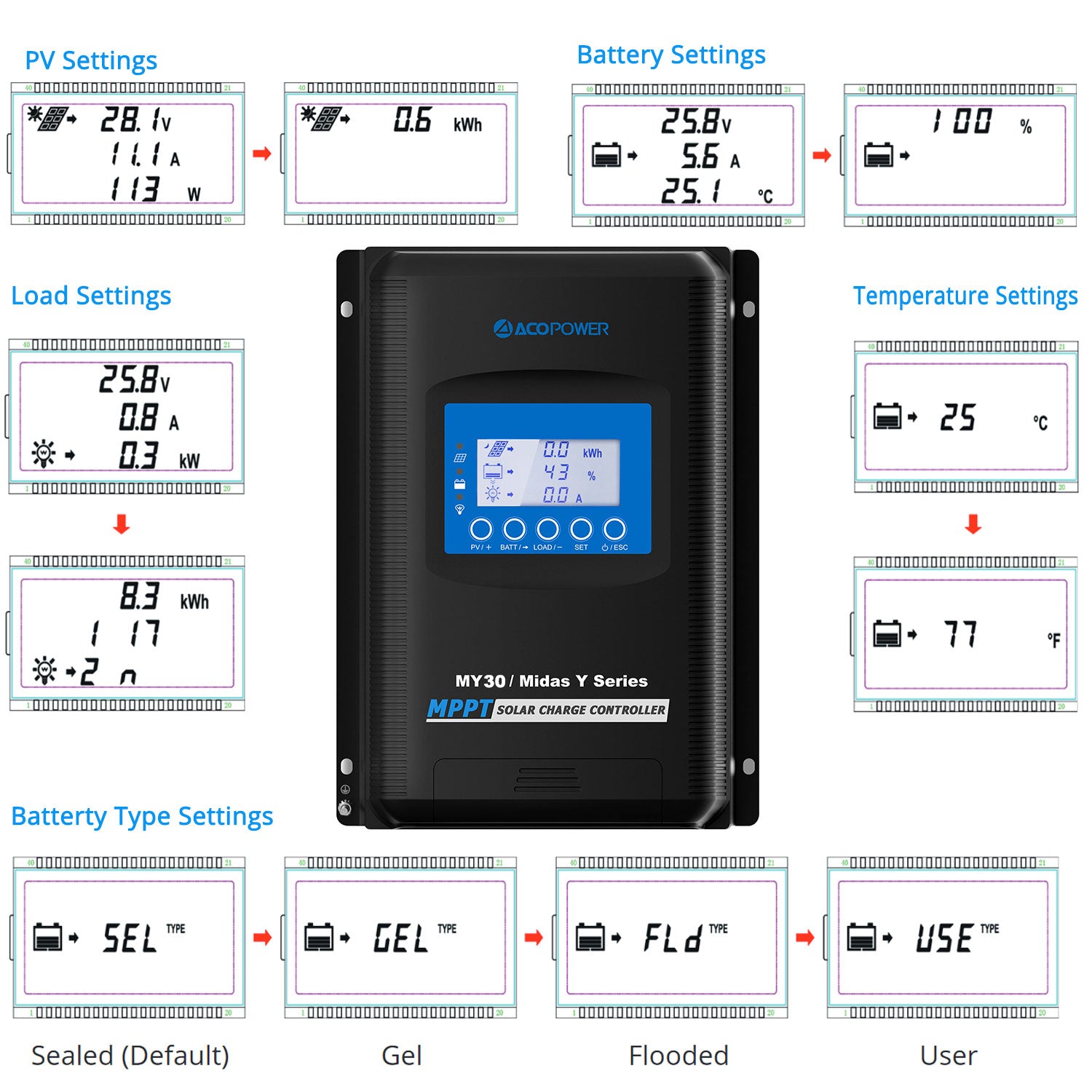

  • Large-screen multifunction LCD displays pertinent operational data and operational system status of your solar kit
  • Real-time energy statistics recording - Monitor your solar system in real-time

Package List

  • 1 x 30A MPPT Solar Charge Controller
  • 1 x MT-50 Remote Meter
  • 2 x User Manual

If you have any questions regarding this product, please call us at 1 (626) 838-5511 or email support@acopower.com.

Specification
Nominal system voltage: 12/24VDC AutoRated charge current: 30A
Battery input voltage range: 8V~32VMax.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W, 24V/780WMPP voltage range: V(BAT+2V)~72V
Working environment temperature: -25℃~+50℃Storage temperature range: -35℃~+80℃
Grounding: Common negativeCommunication: RS485(RJ45 interface)
Power Terminals: 6AWG(16mm2)Enclosure: IP30
Dimensions: 228x164x55mmWeight: 1.2kg
MT-50
Self-consumption: Backlight on<23mA, Backlight off <15mAConnector type: RJ45
Meter cable: 2mAmbient Temperature: -20°C -- +70°C/-4°F -- 158°F
Faceplate dimensions: 3.86x3.86 in / 98x98mmFrame dimensions:4.49x4.49 in / 114x114 mm
weight: 0.42lbs / 0.19kg
WARRANTY INFORMATION
Solar Charge Controllers: The controller itself comes with a 1-year warranty.
Accessories: The accessories come with a 6-months warranty
