- Solar Kit : Used High Modules Conversion Efficiency 20W Mono Solar Panel. Provides Up to 20W Designed specifically for customers new to solar. Easy and convenient to install with pre-drilled holes on panels
- Upgraded Charge Controller : It has been Upgraded to Positive Grounding Controller New 5A PWM Charge Controller . The 5A charge controller with USB output for 12V battery charge. You Can Expand Your System Up to a Maximum of 2. Positive Grounding Controller Ensures the Broader Off-Grid Applications and Safety.
- Best free & Clean Power Resource Used in Various Off-Grid Applications that Include 12 arrays, WaterPumping Systems, Signaling Systems and other Off-Grid

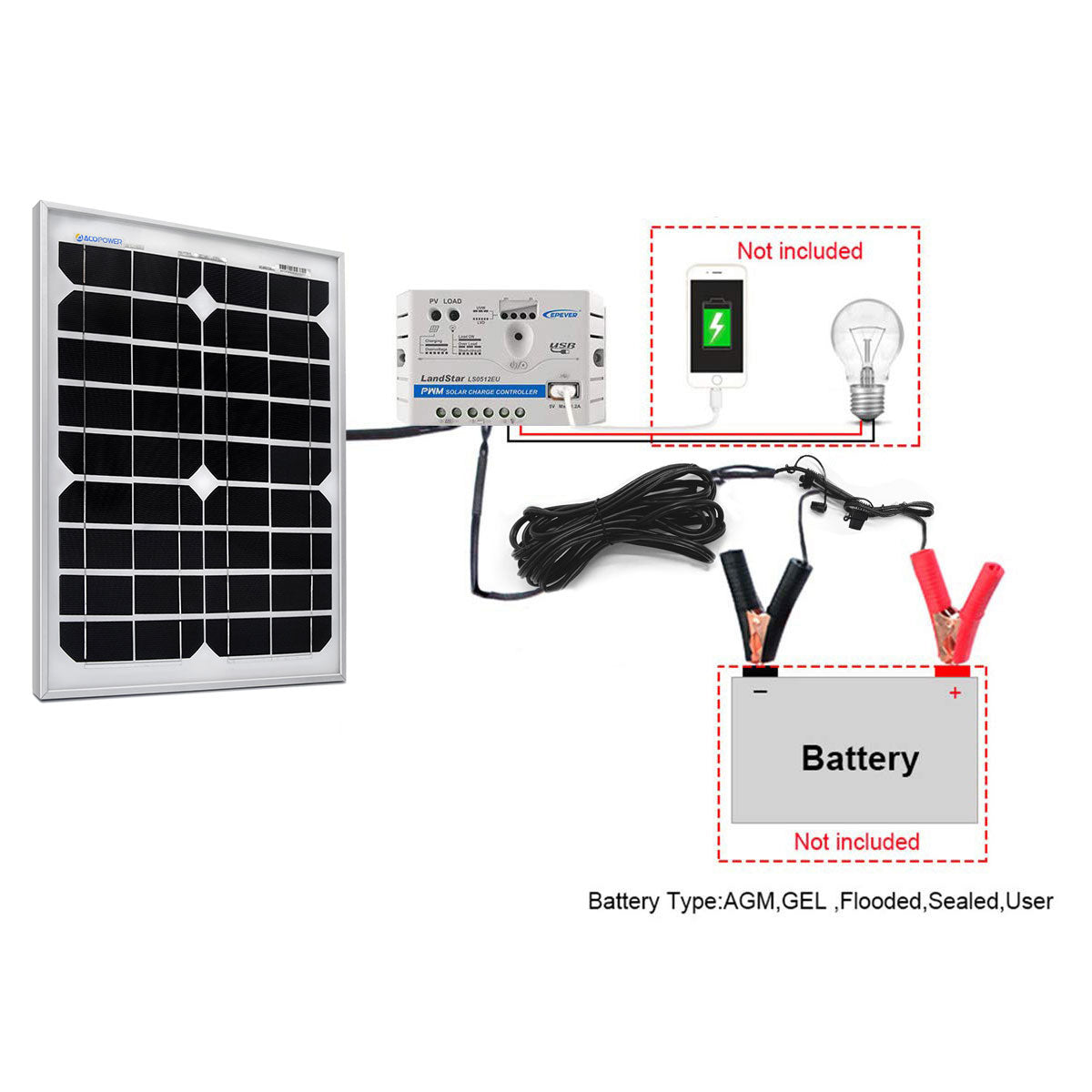

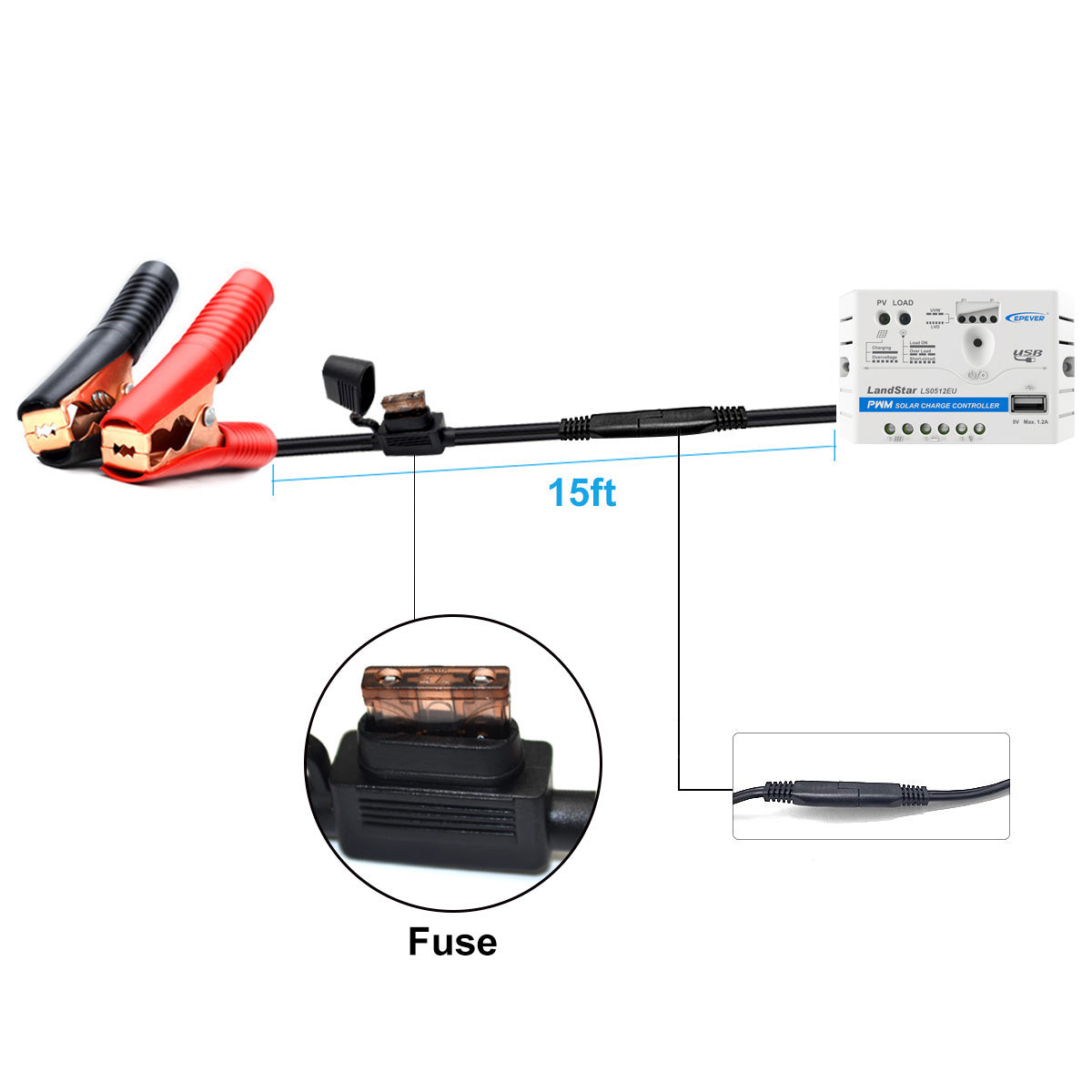

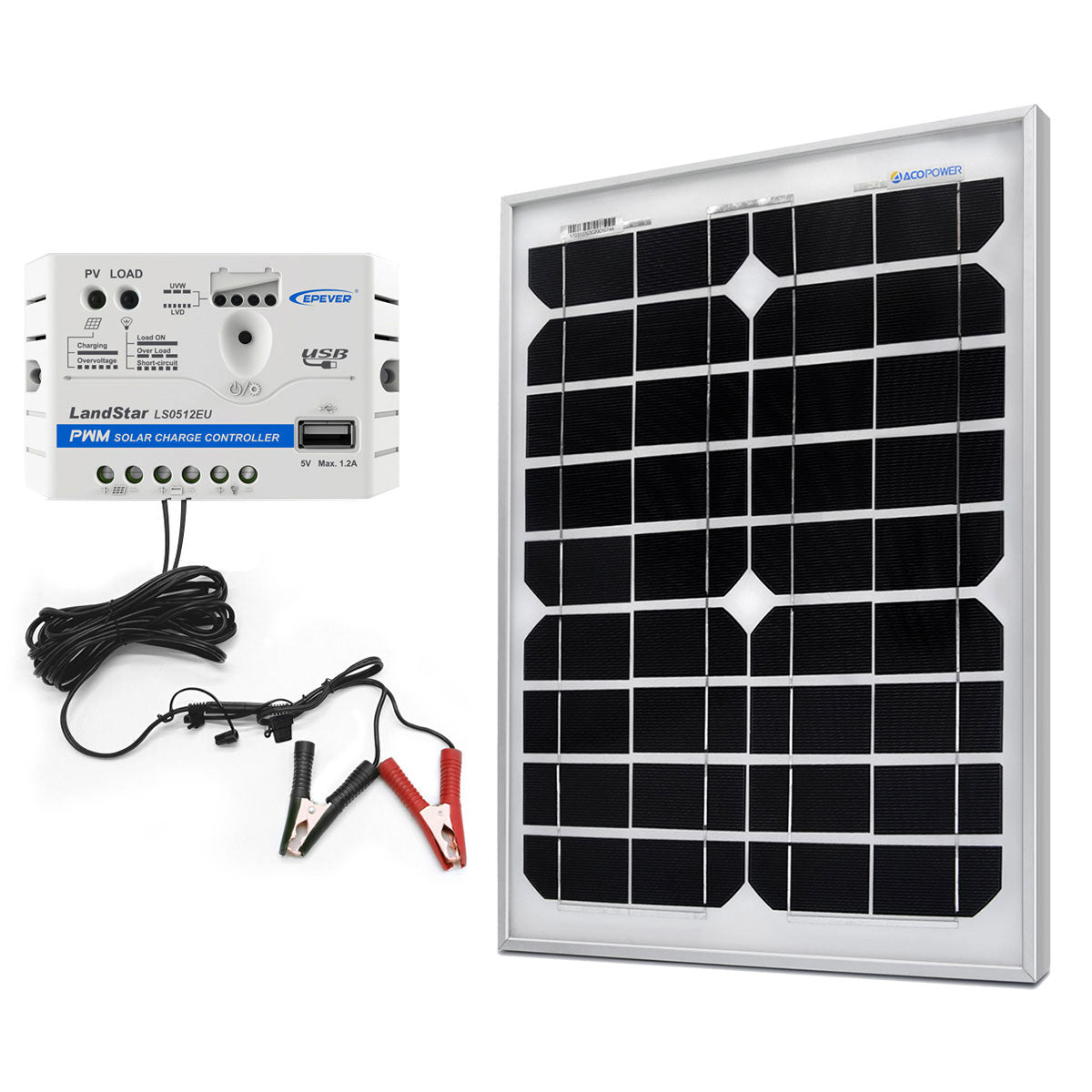

- Packing Detail: Comes with a 15W 12V polycrystalline solar panel, a 5A PWM Charge Controller with Alligator Clips . 15ft cable from charge controller to battery, 5A fuse and alligator clamps to clip to your battery in 10 seconds with protection
- Applications & Warranty: Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, and Cabins. Panels, 5 years material and workmanship warranty and 25 years power output warranty; Accessories, 1 year material & workmanship warranty.
- 1 x LS0512EU Solar Charging Controller with Alligator Clips
- 1 x HY010-12M Solar Panel
- 2 x User Manual
- Courtyard lighting.
- Small household lighting system.
- Street lighting.
- Portable solar power.
- Solar Pump
- All small power electrical devices & small PV systems.
|Maximum Power at STC (Pmax): 20W||Open-Circuit Voltage (Voc): 22V|
|Maximum Operating Voltage (Vmp): 17.5V||Short-Circuit Current (Isc): 1.23A|
|Maximum Operating Current (Imp): 1.14A||Operating Temperature: -40ºC to 85ºC|

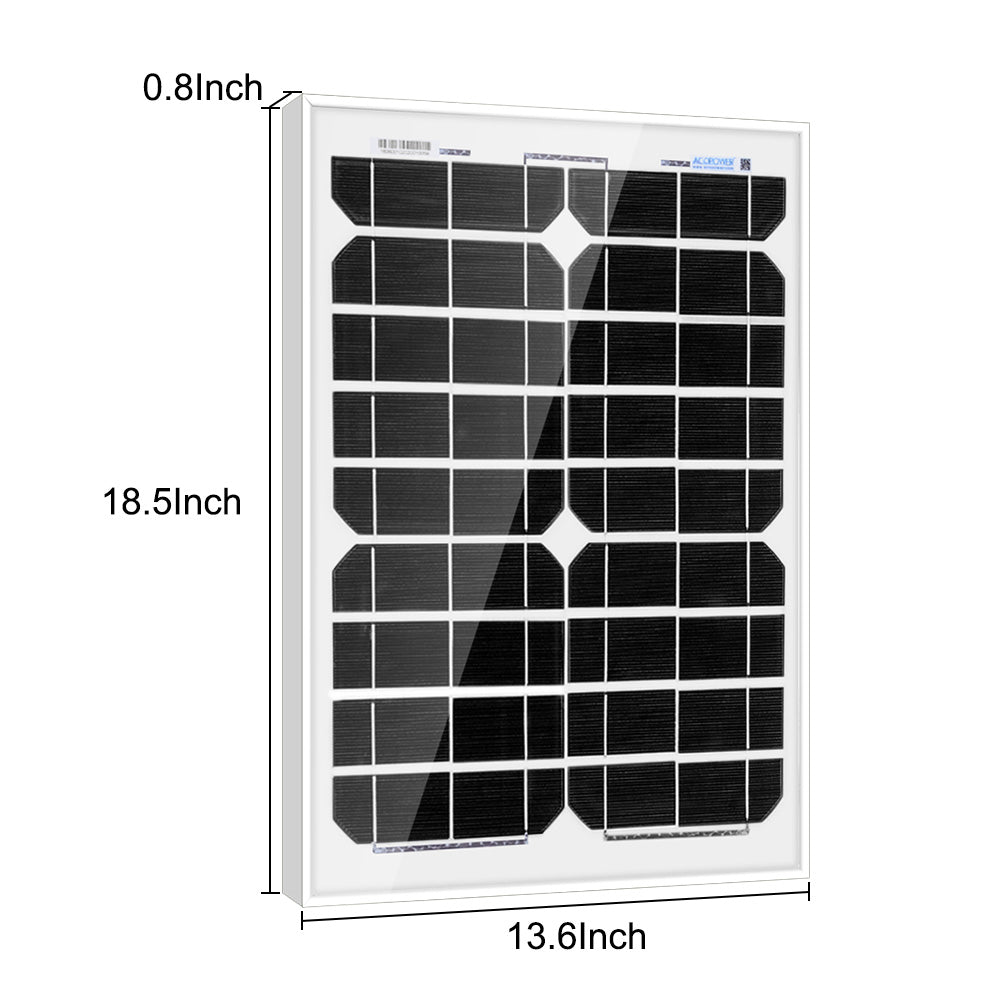

|Dimension: 345x470x20mm / 13.6x18.5x0.8 in||Weight: 2.8kg / 6.2 lbs|

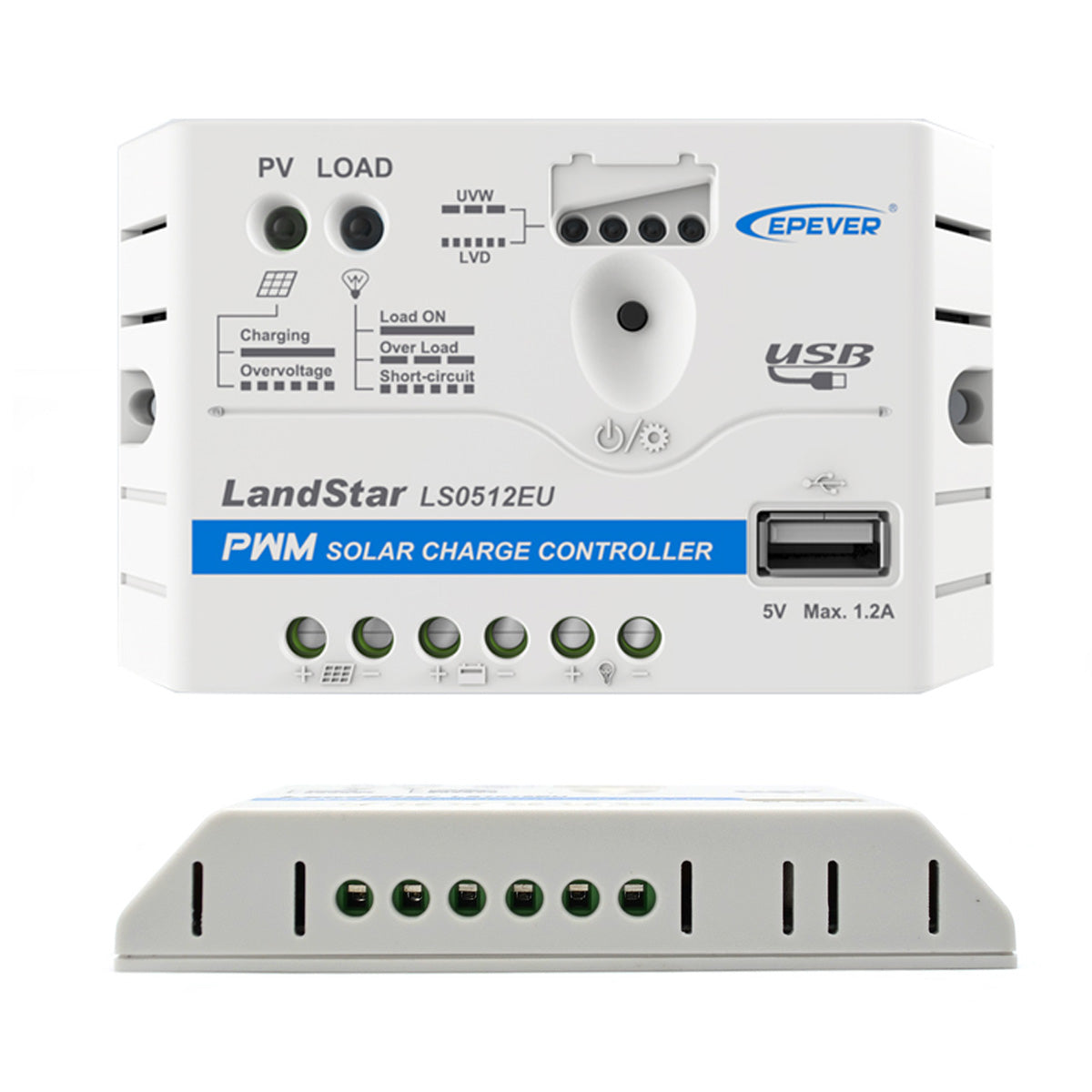

|5A PWM Charge Controller|
|Nominal system voltage: 12VDC||Rated charge/discharge current: 5A|
|Max. PV open circuit voltage: 30V||Battery input voltage range: 8～16V|
|Battery type: Sealed / Gel / Flooded||Grounding: Common positive|
|Working temperature: -35℃～+55℃||USB output: 5V/1.2A|
|Terminals: 14AWG/2.5mm||Enclosure: IP20|
|Dimensions: 109.2x65.5x20.8mm||Weight: 0.21 lbs /0.095kg|
|Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.|
|Accessories: 1-year material warranty|
