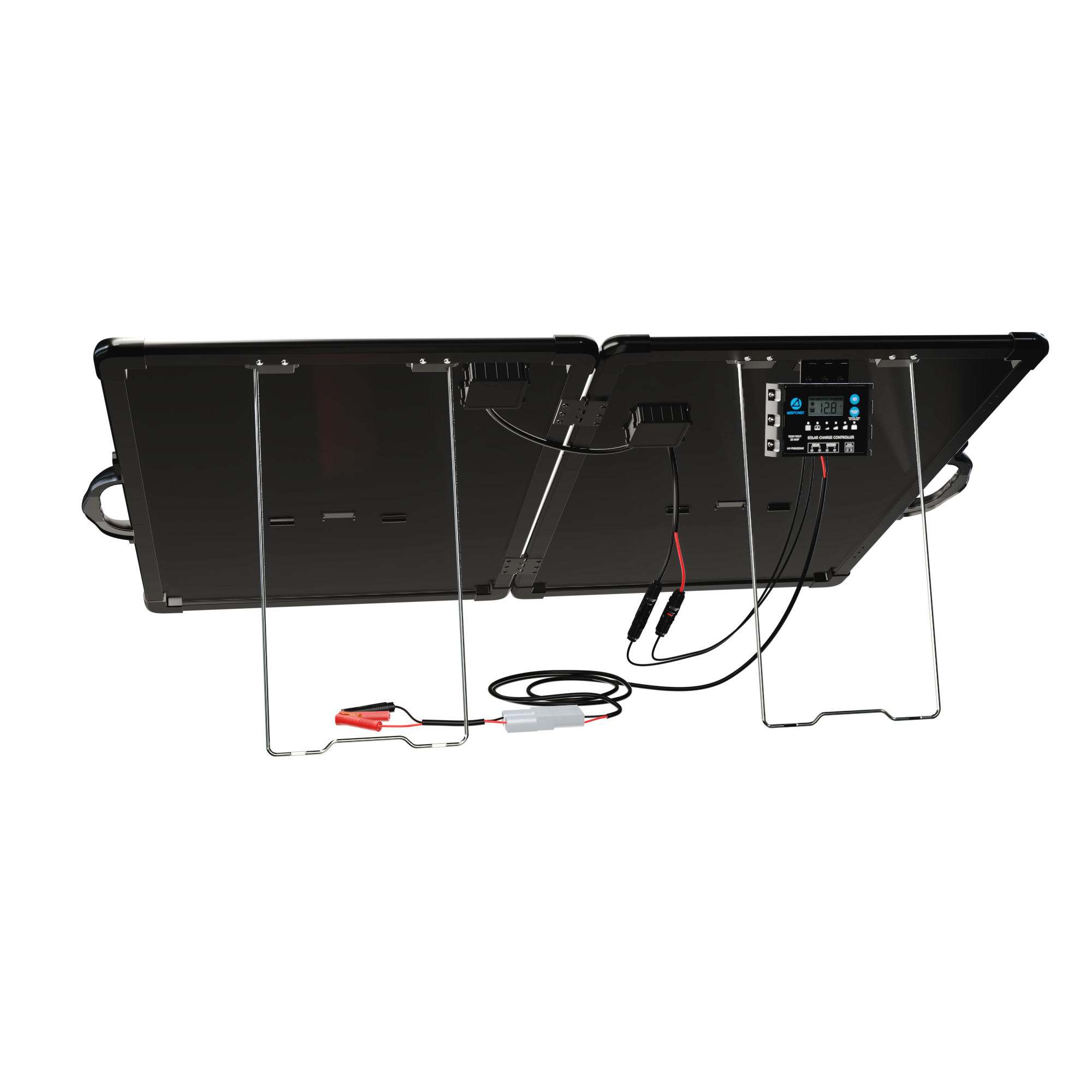

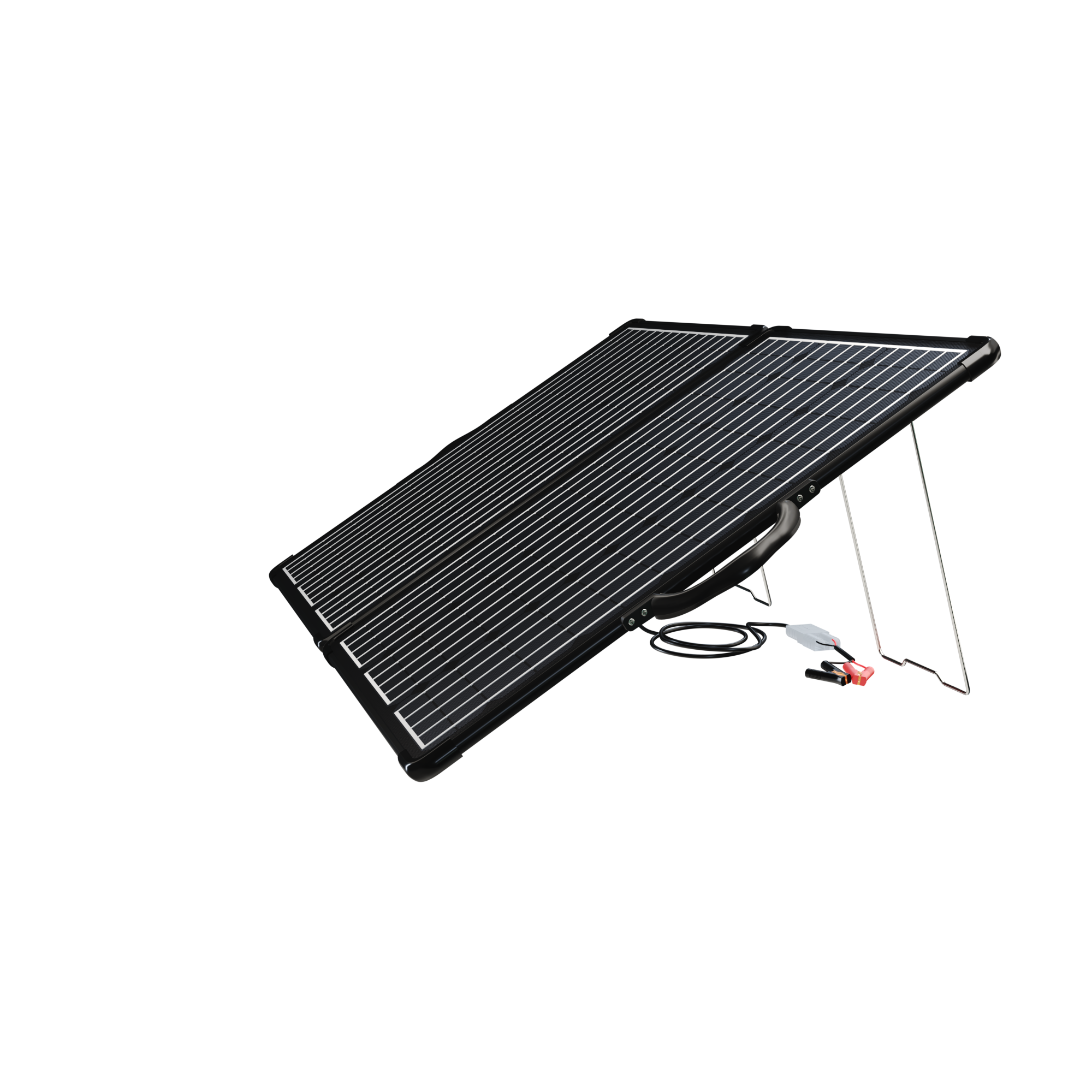

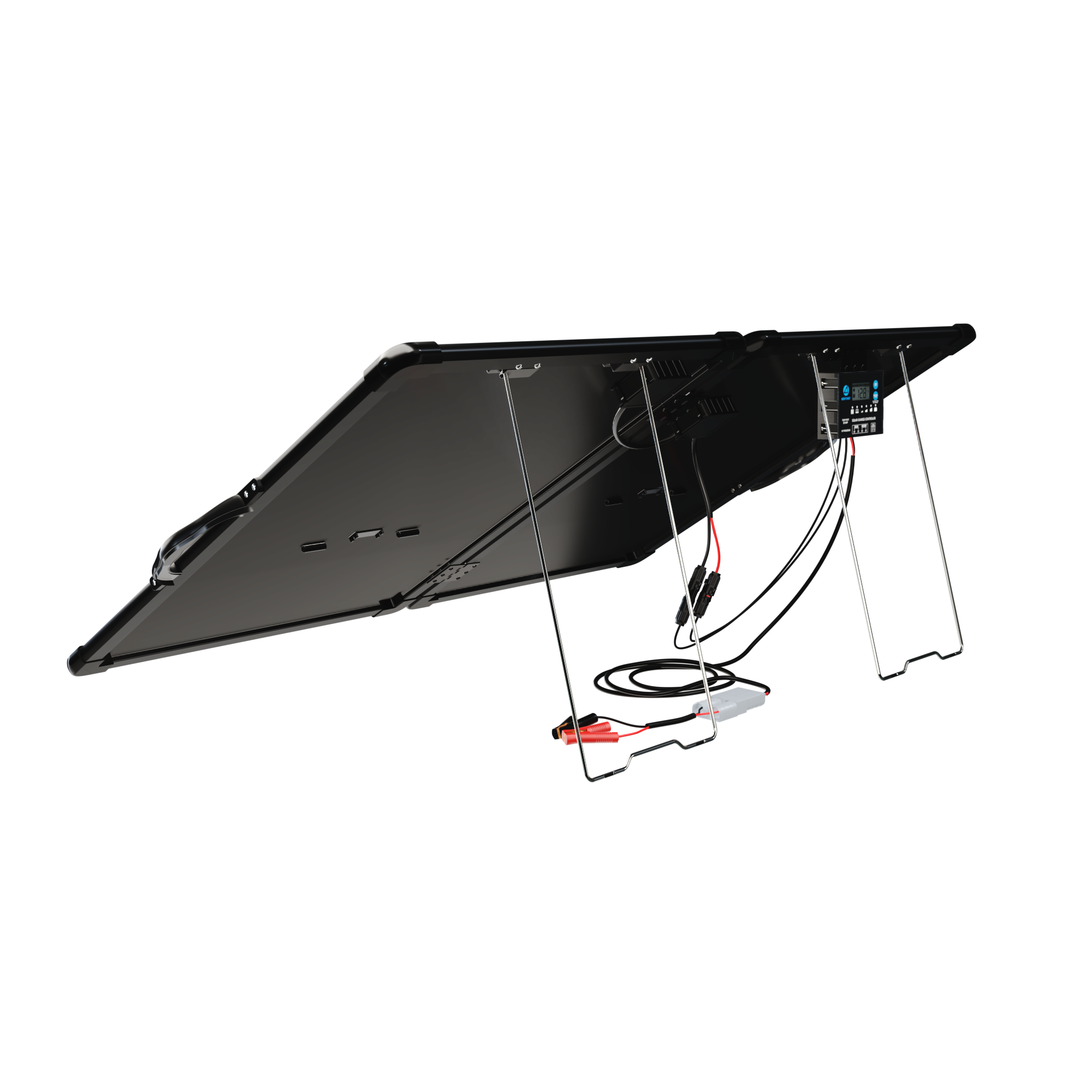

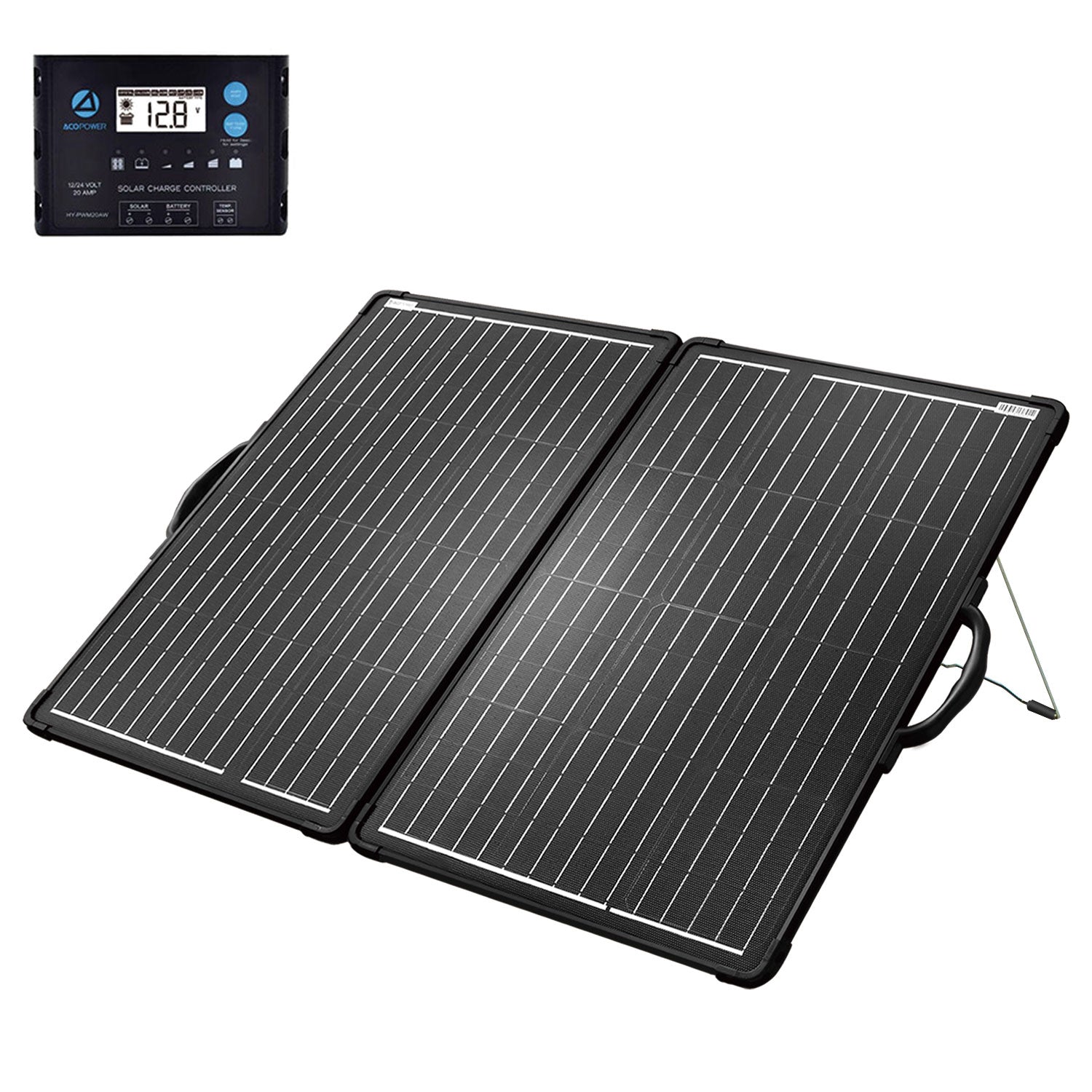

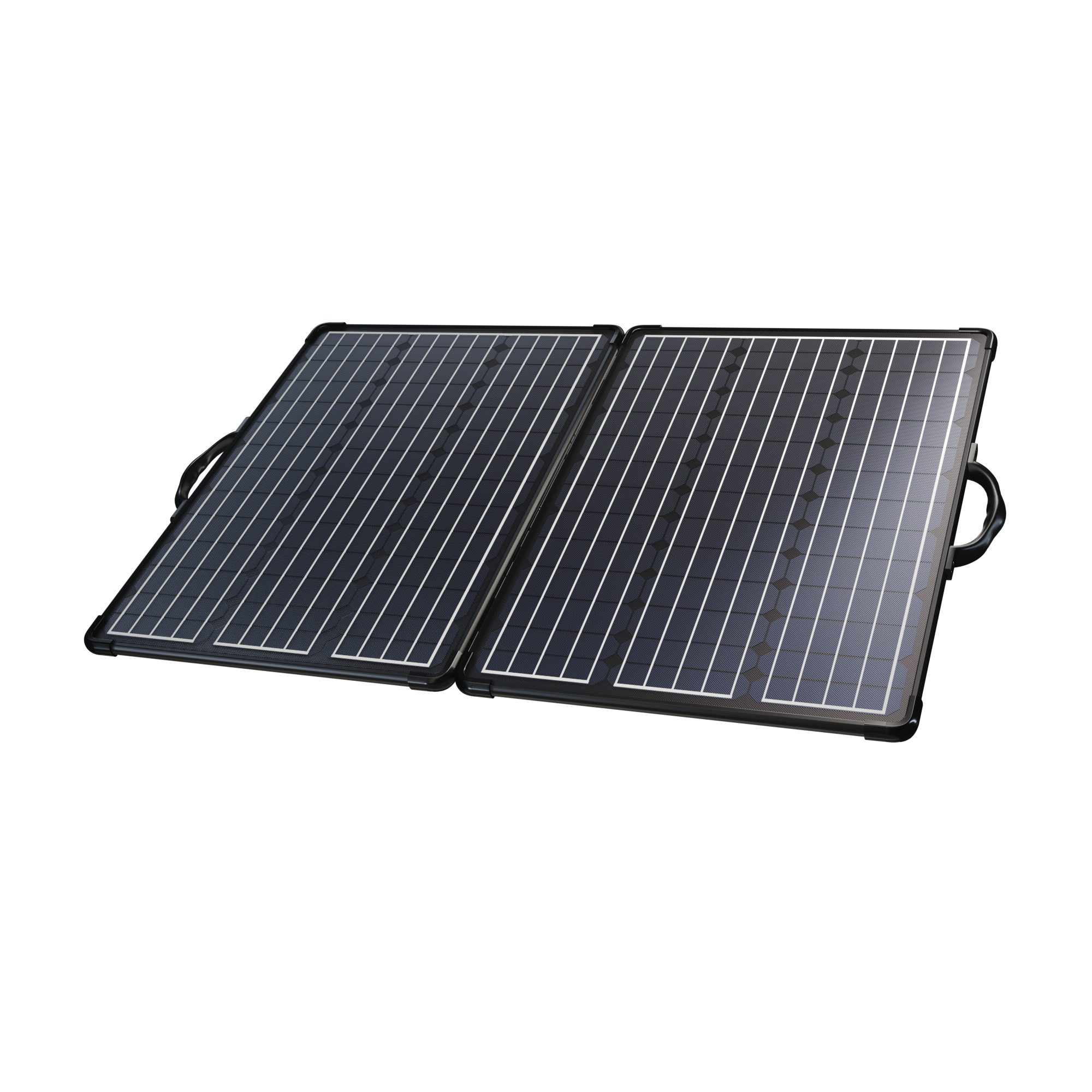

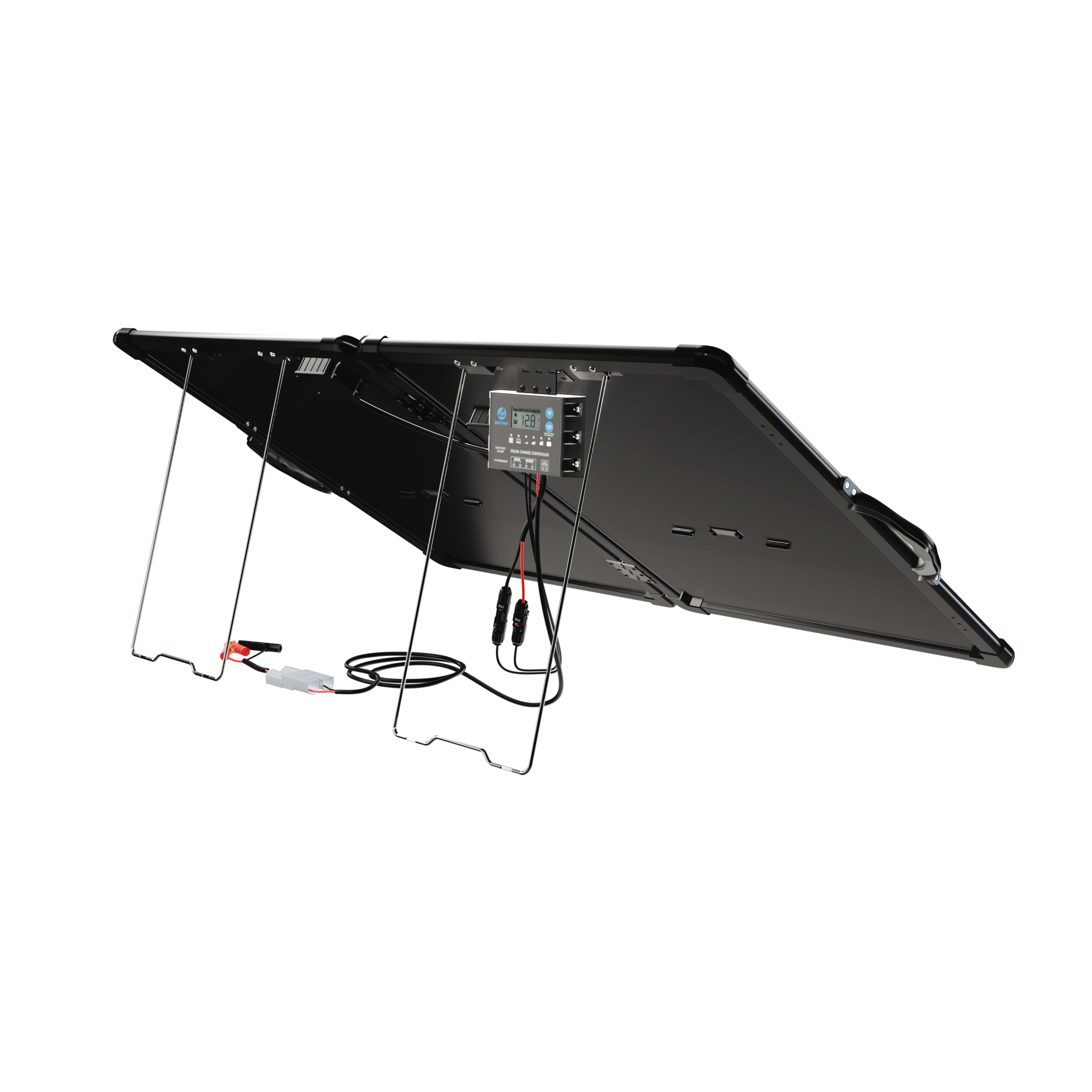

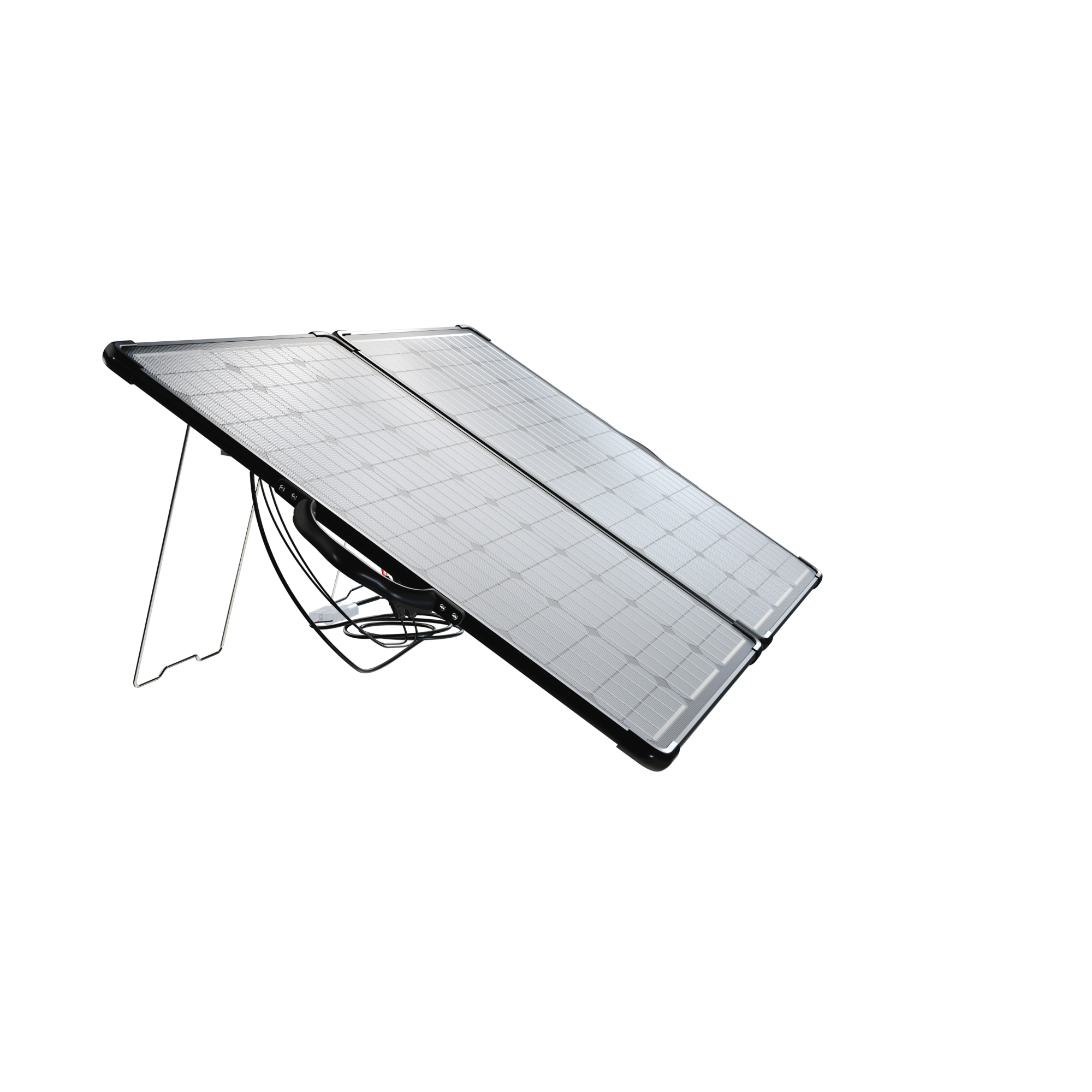

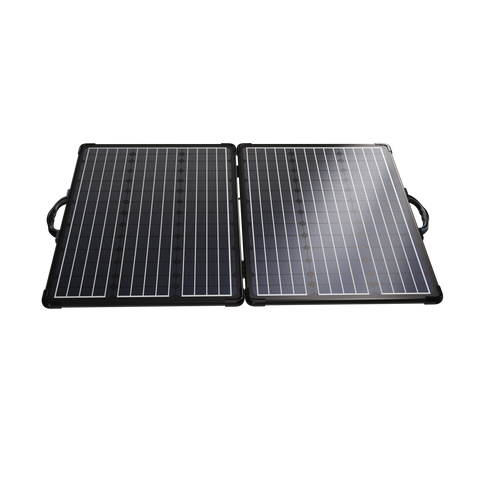

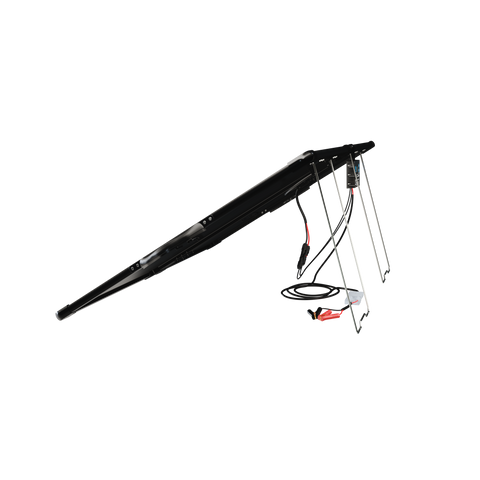

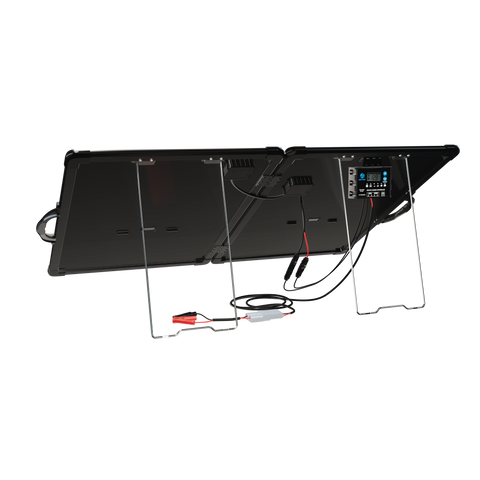

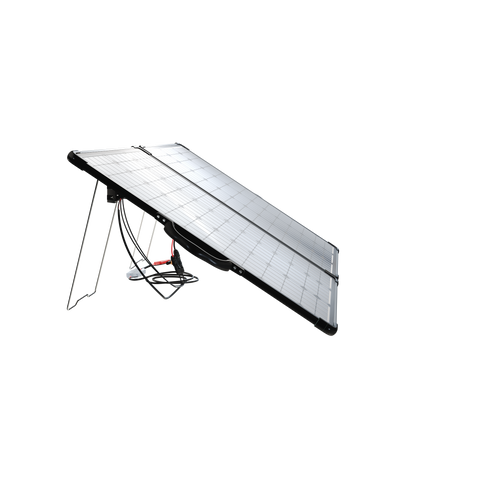

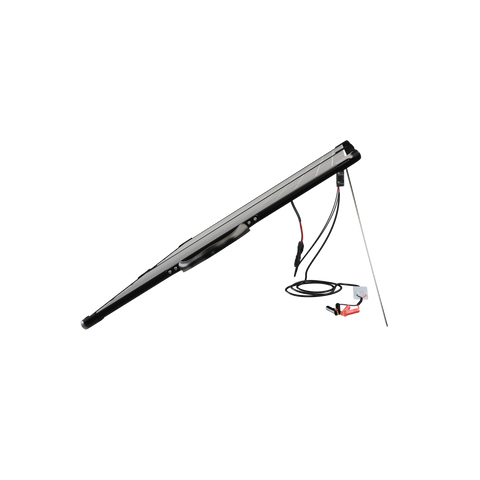

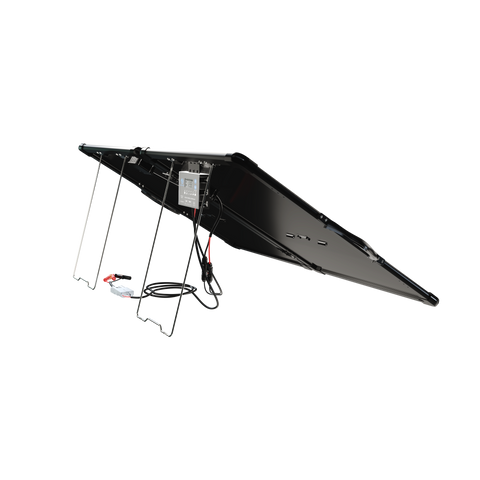

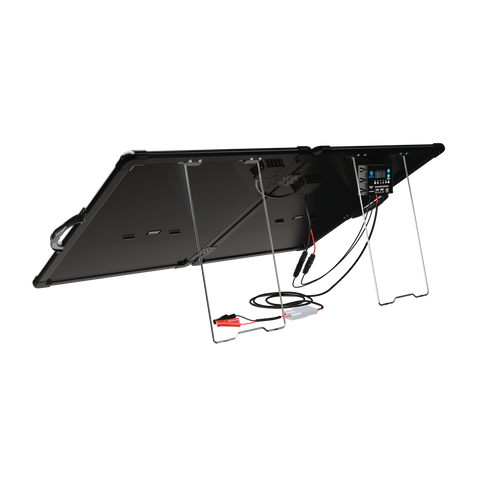

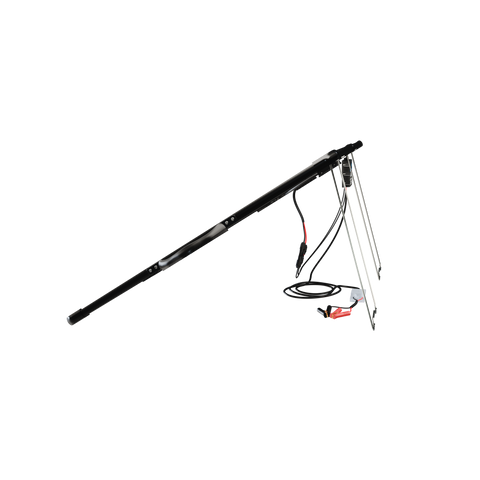

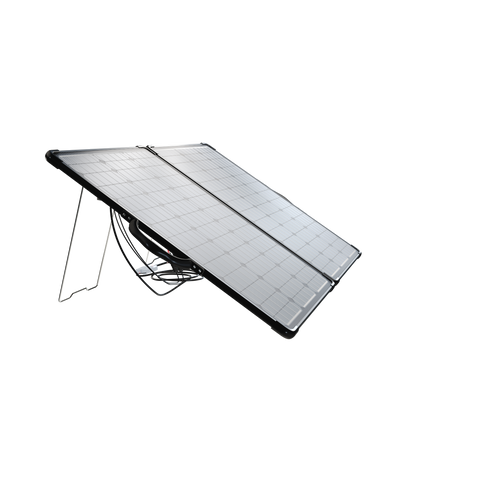

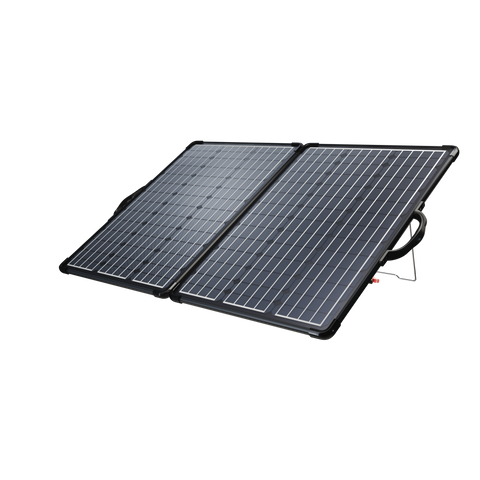

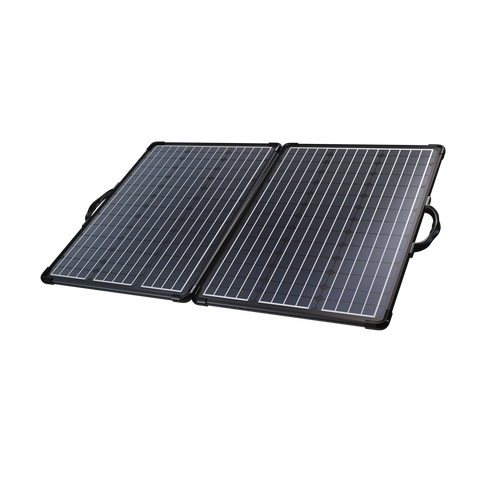

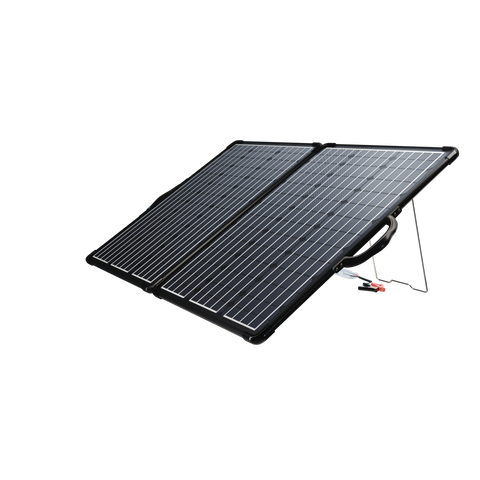

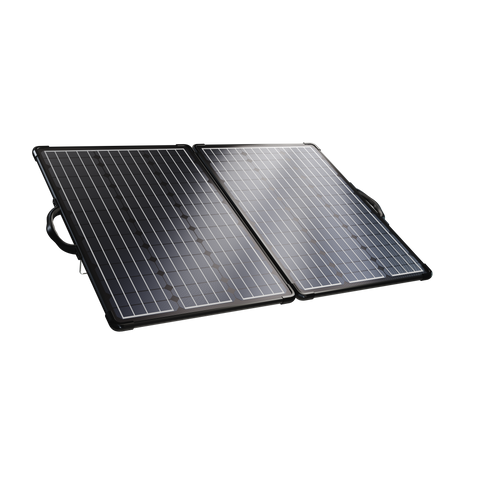

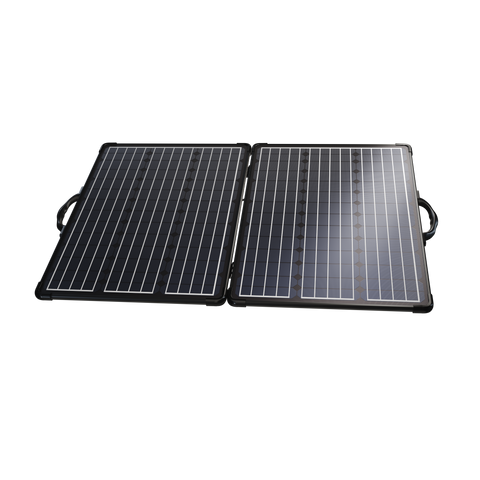

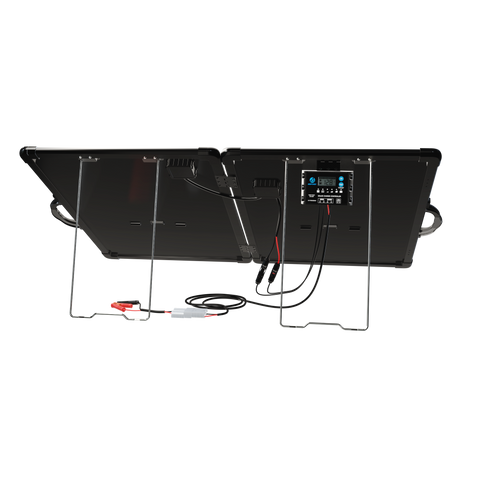

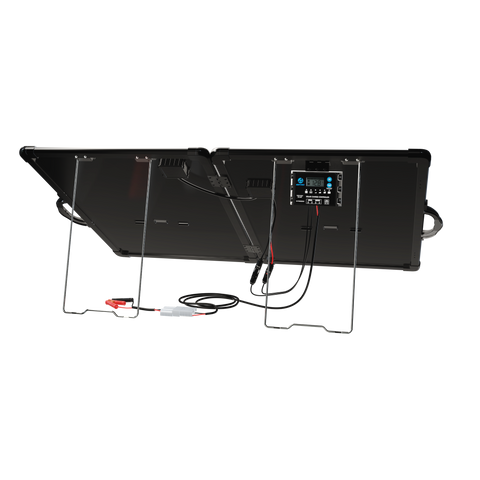

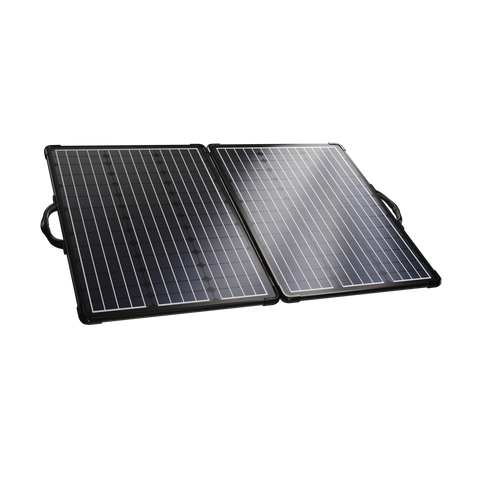

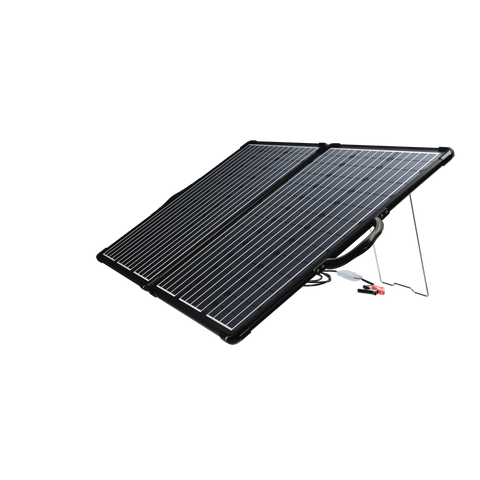

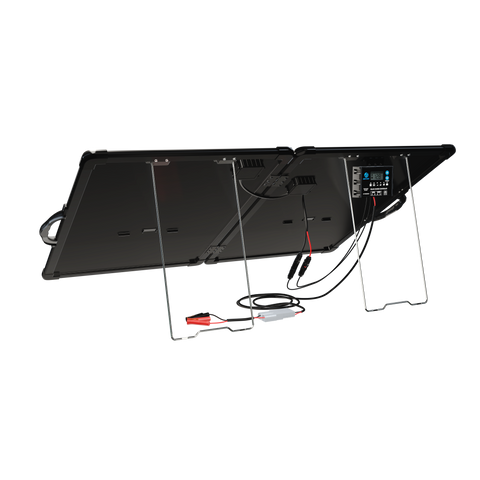

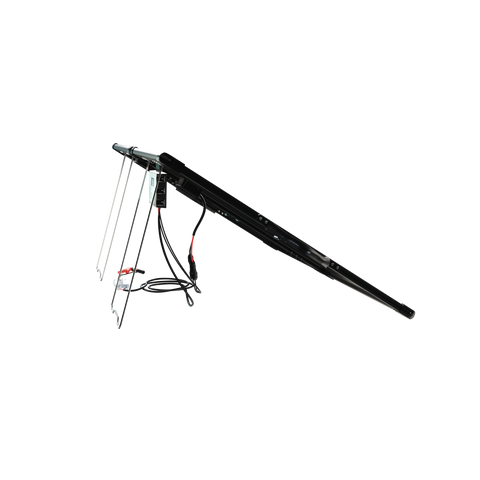

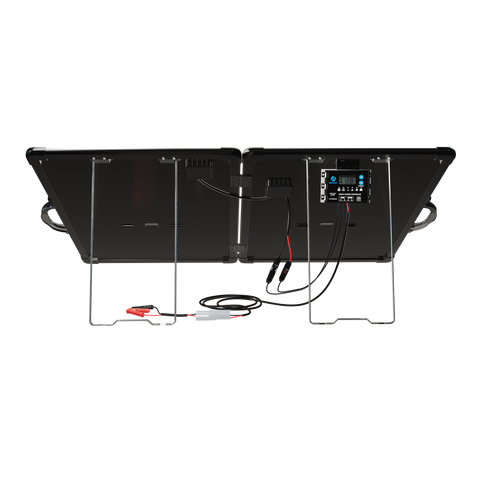

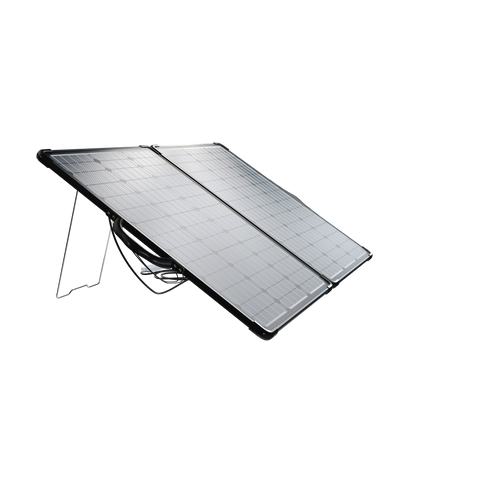

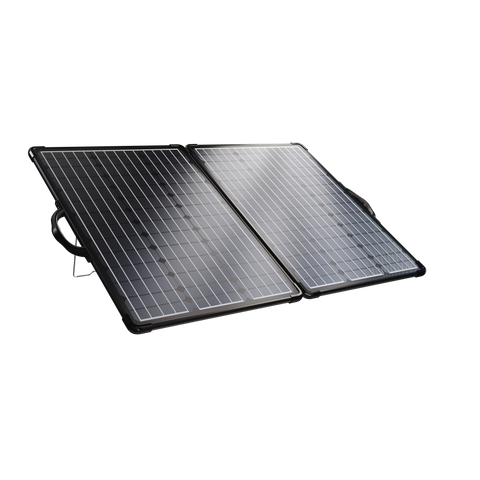

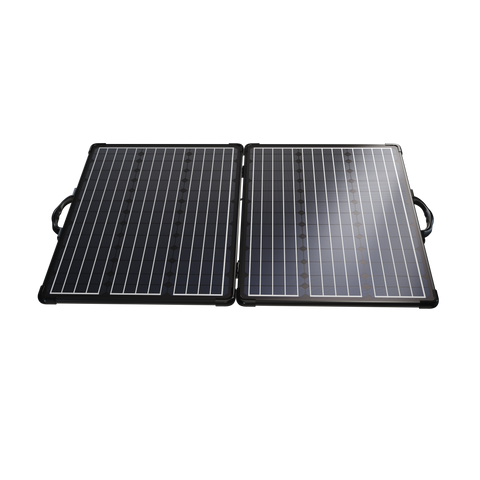

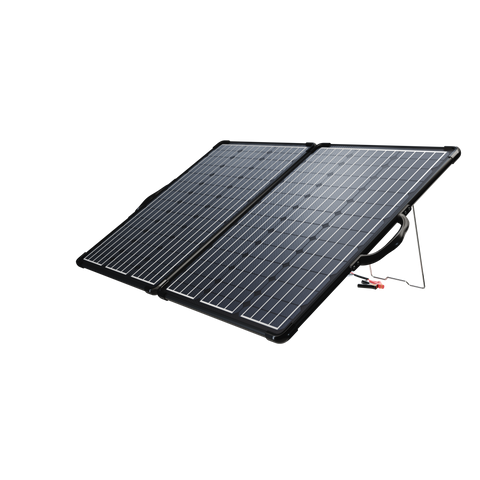

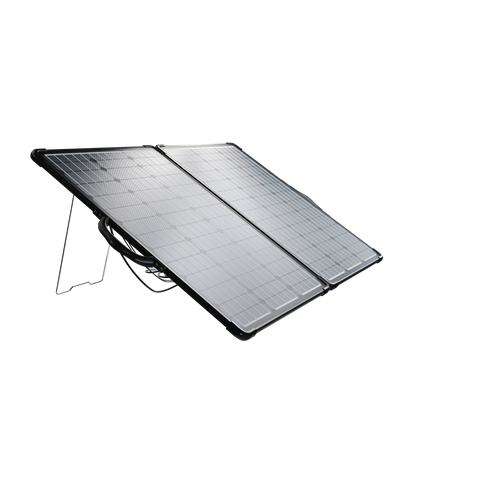

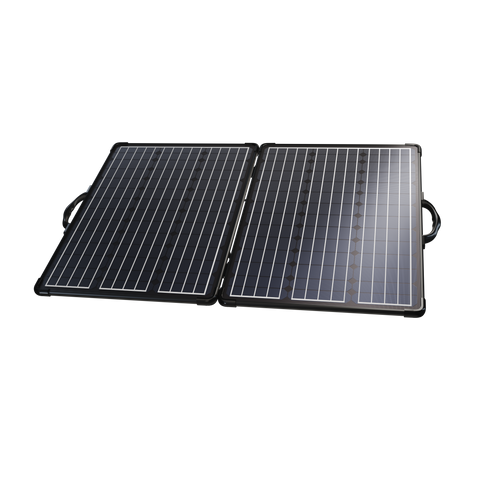

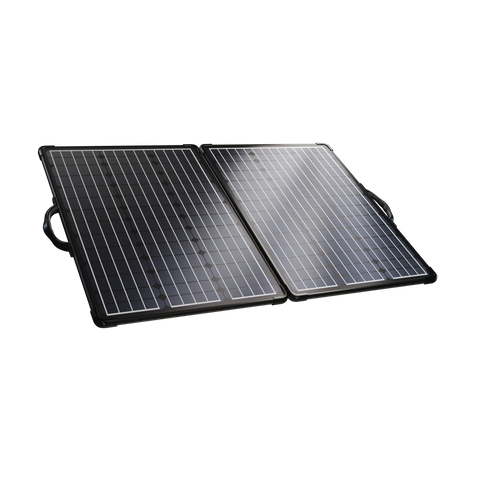

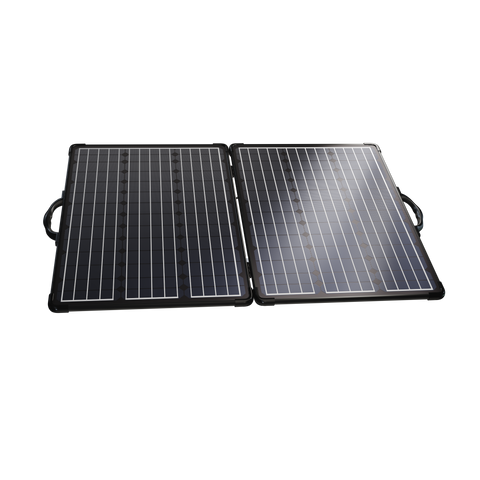

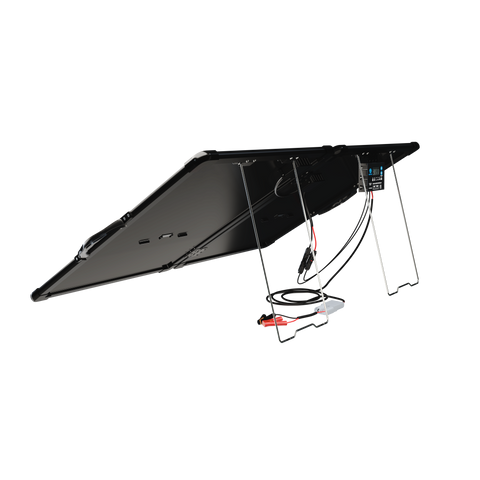

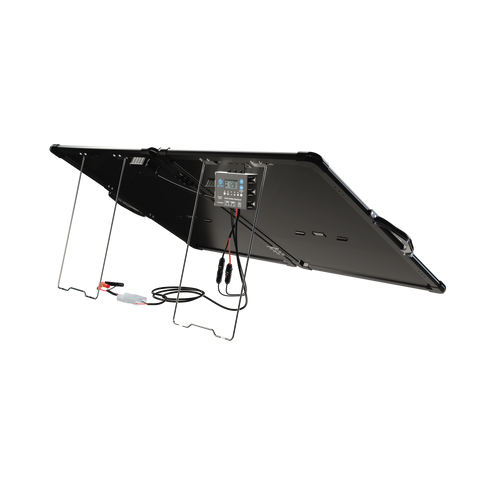

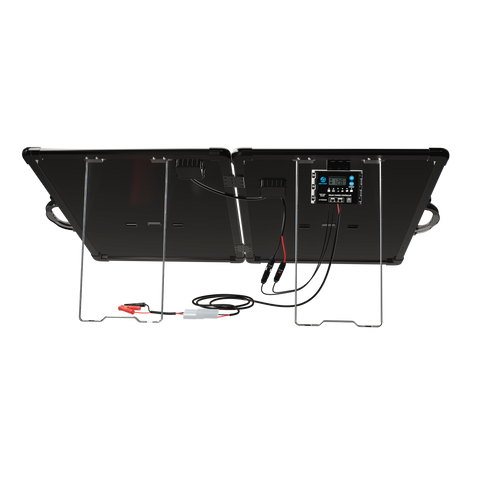

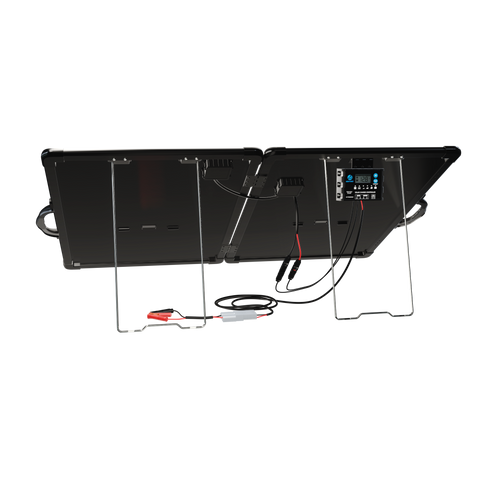

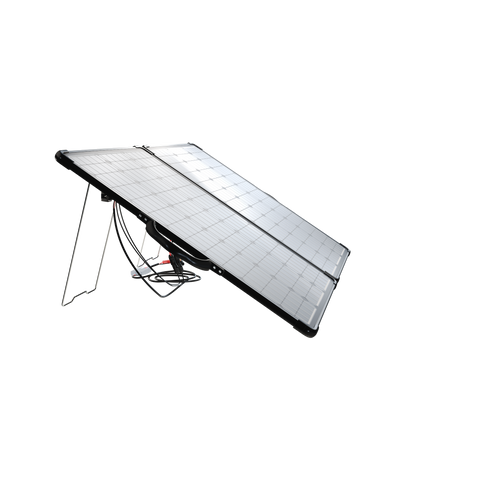

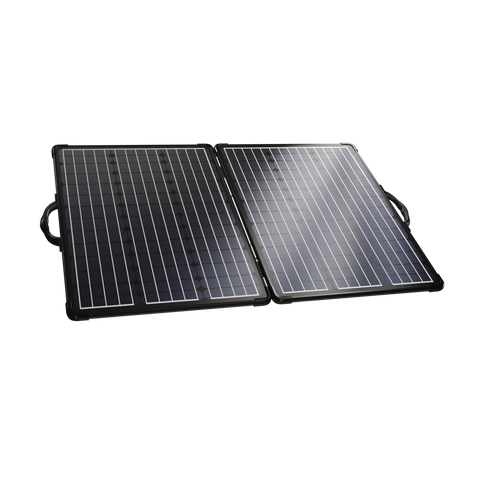

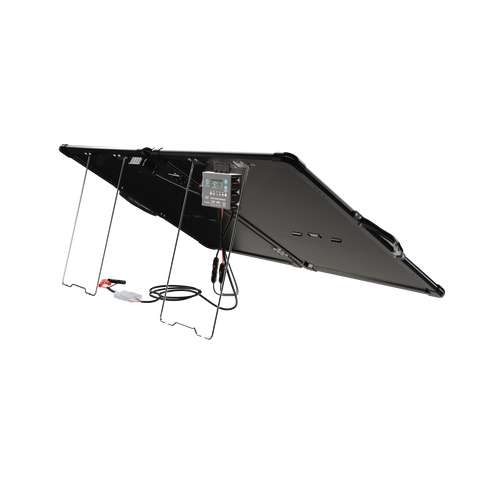

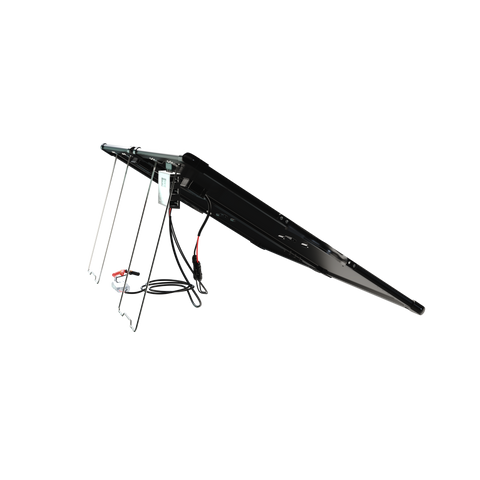

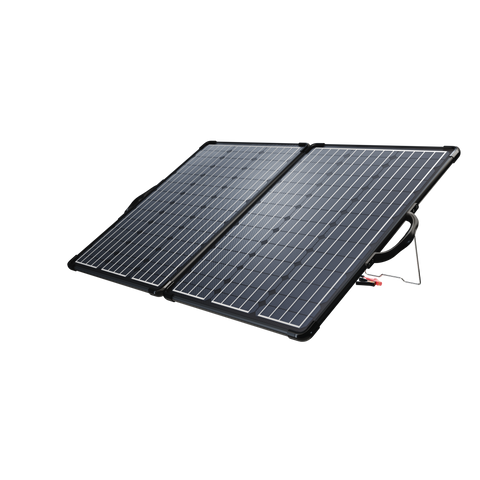

ACOPower Plk 120W Portable Solar Panel Kit, Lightweight Briefcase with 20A Charge Controller

SKU: HY-PLK-120WPX20AN/A

$ 379.99

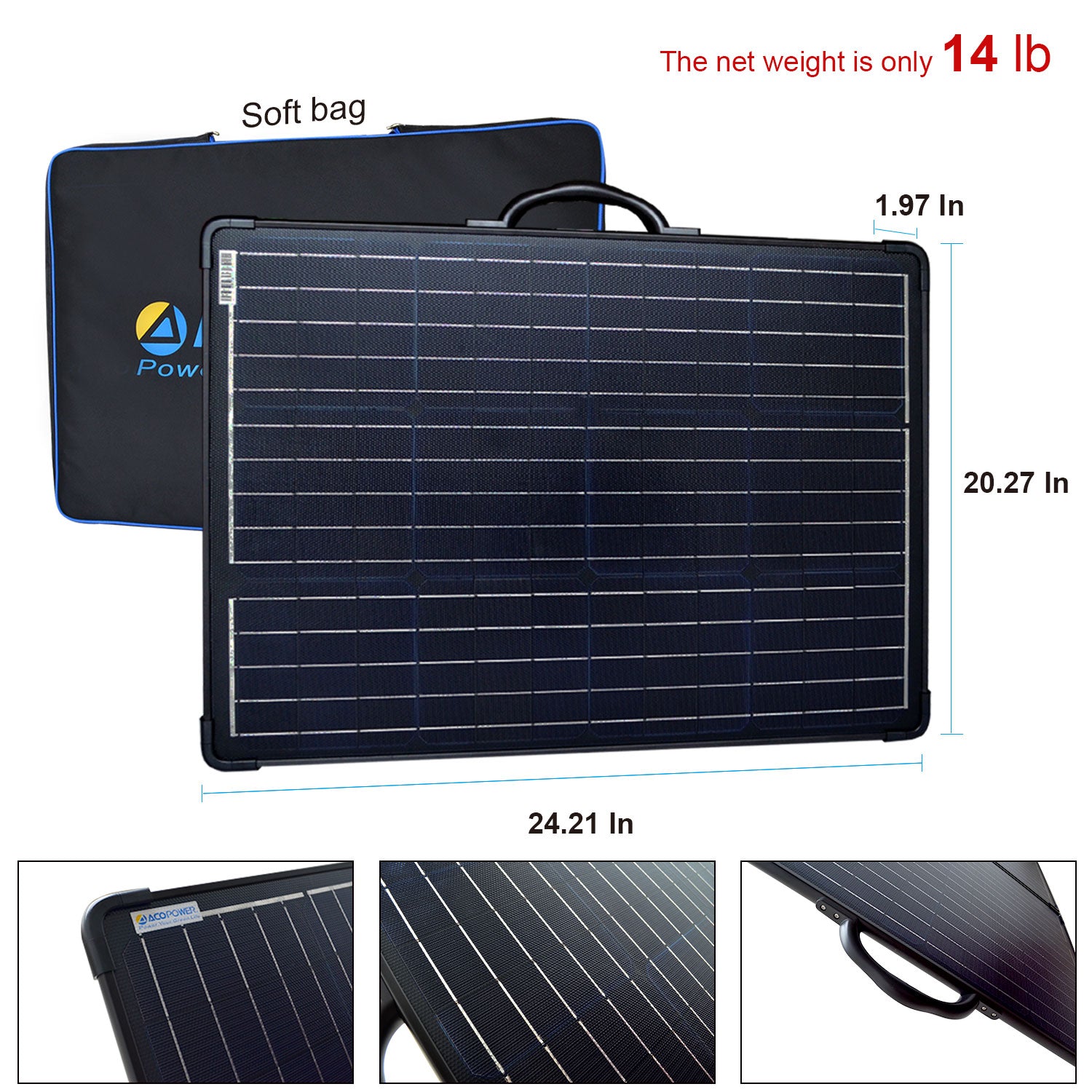

Light and portable: the net weight is only 14 lb; Folded size: 24.21 x 20.27 x 1.97 inches. Ideal output: 600 Watt hours per day (depends on sunlight availability)

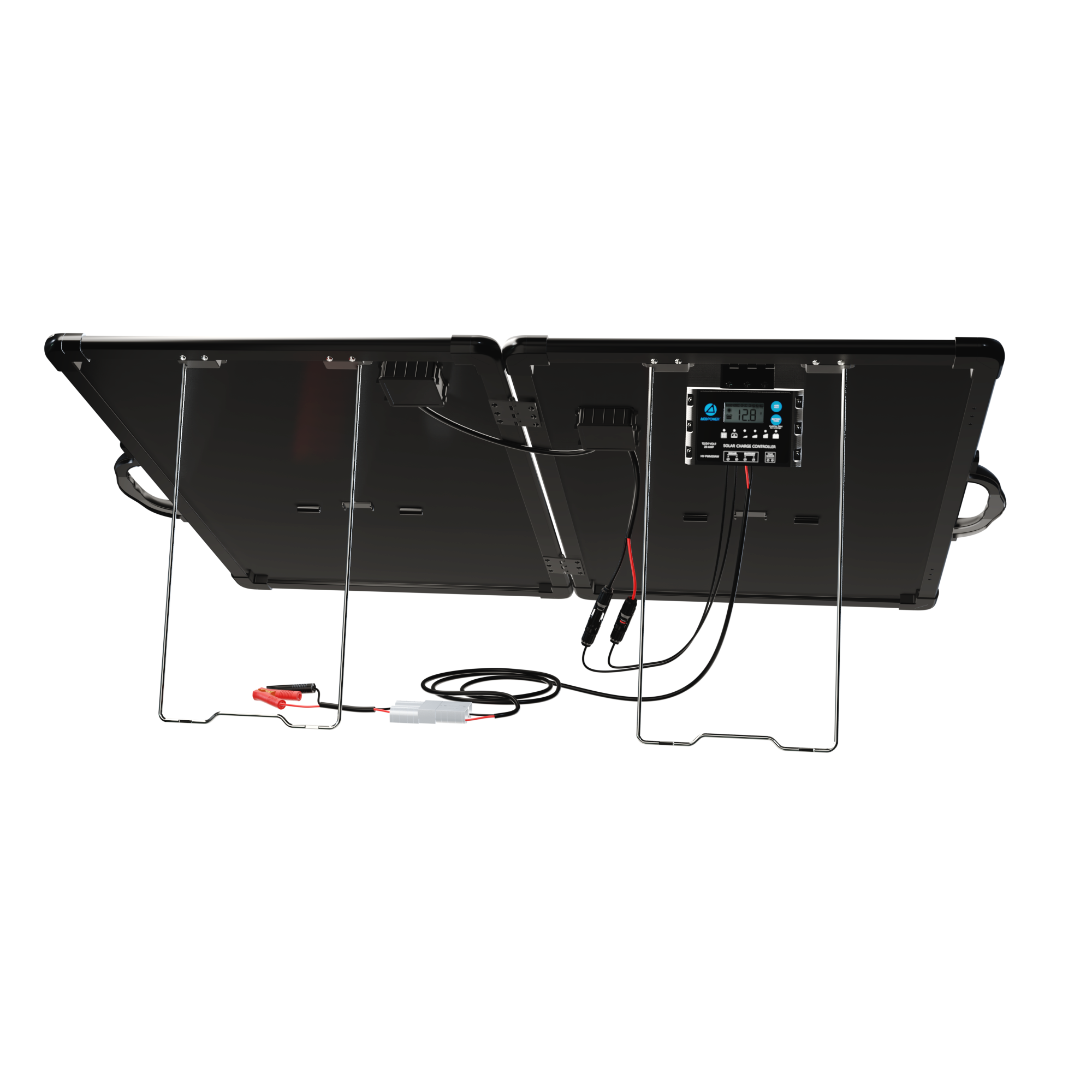

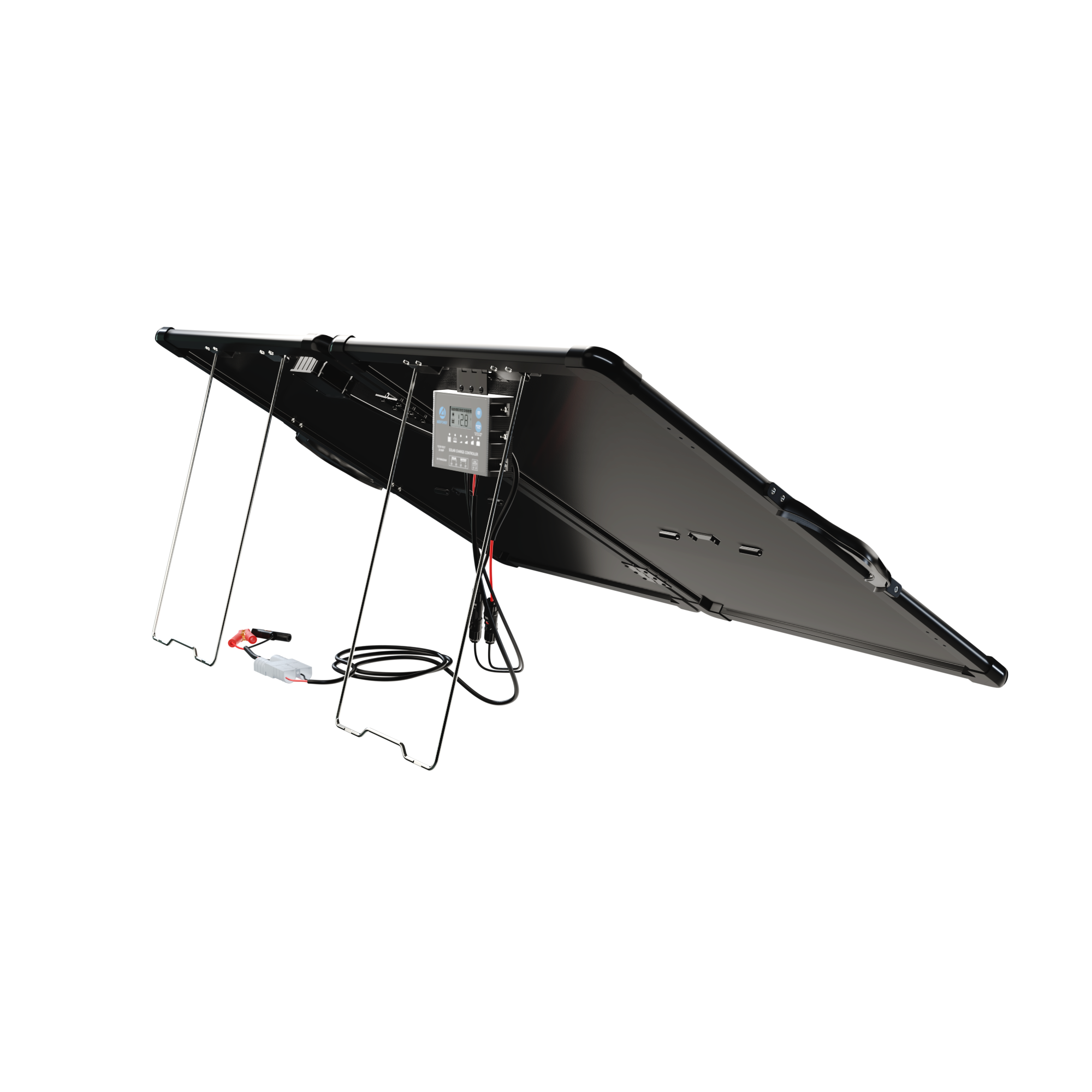

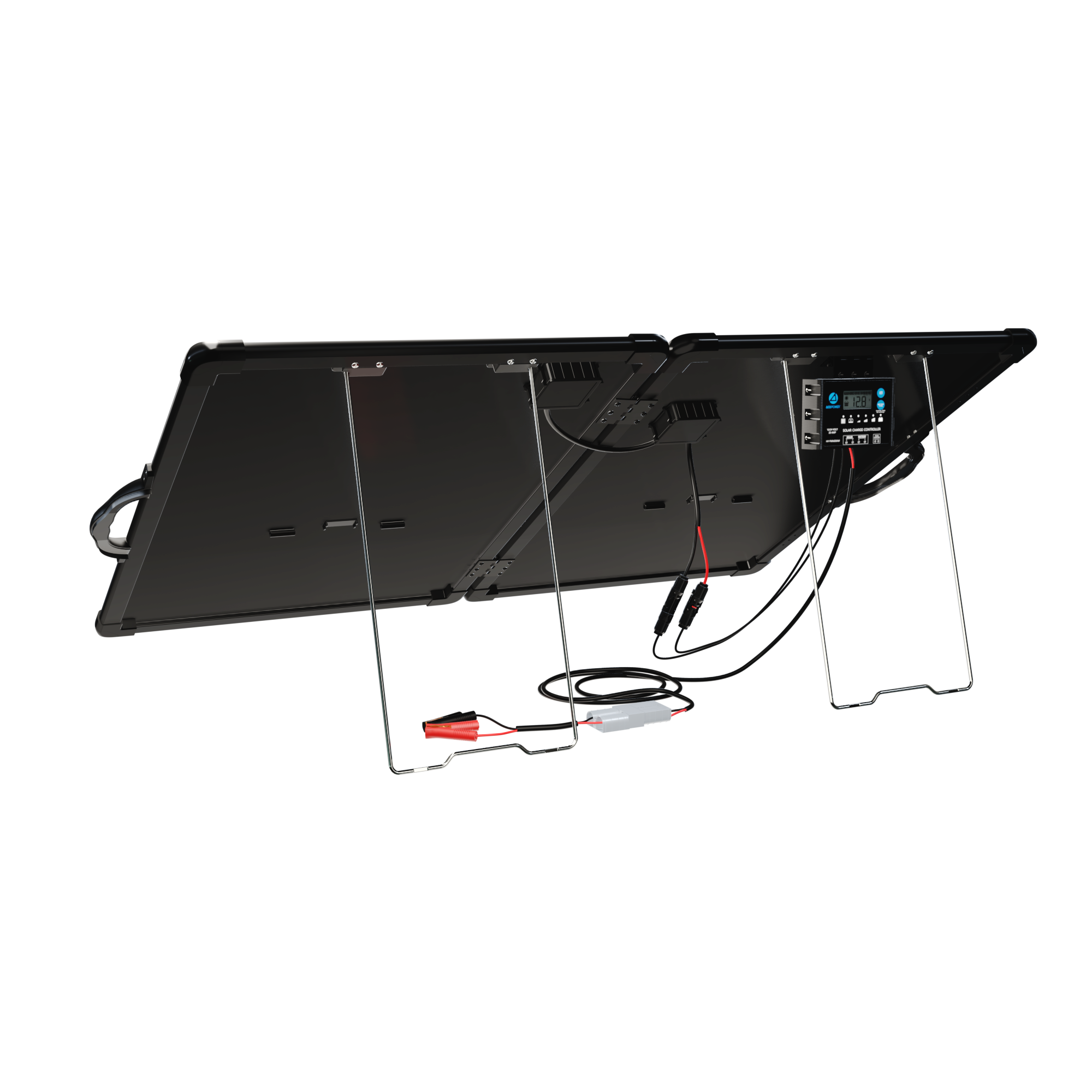

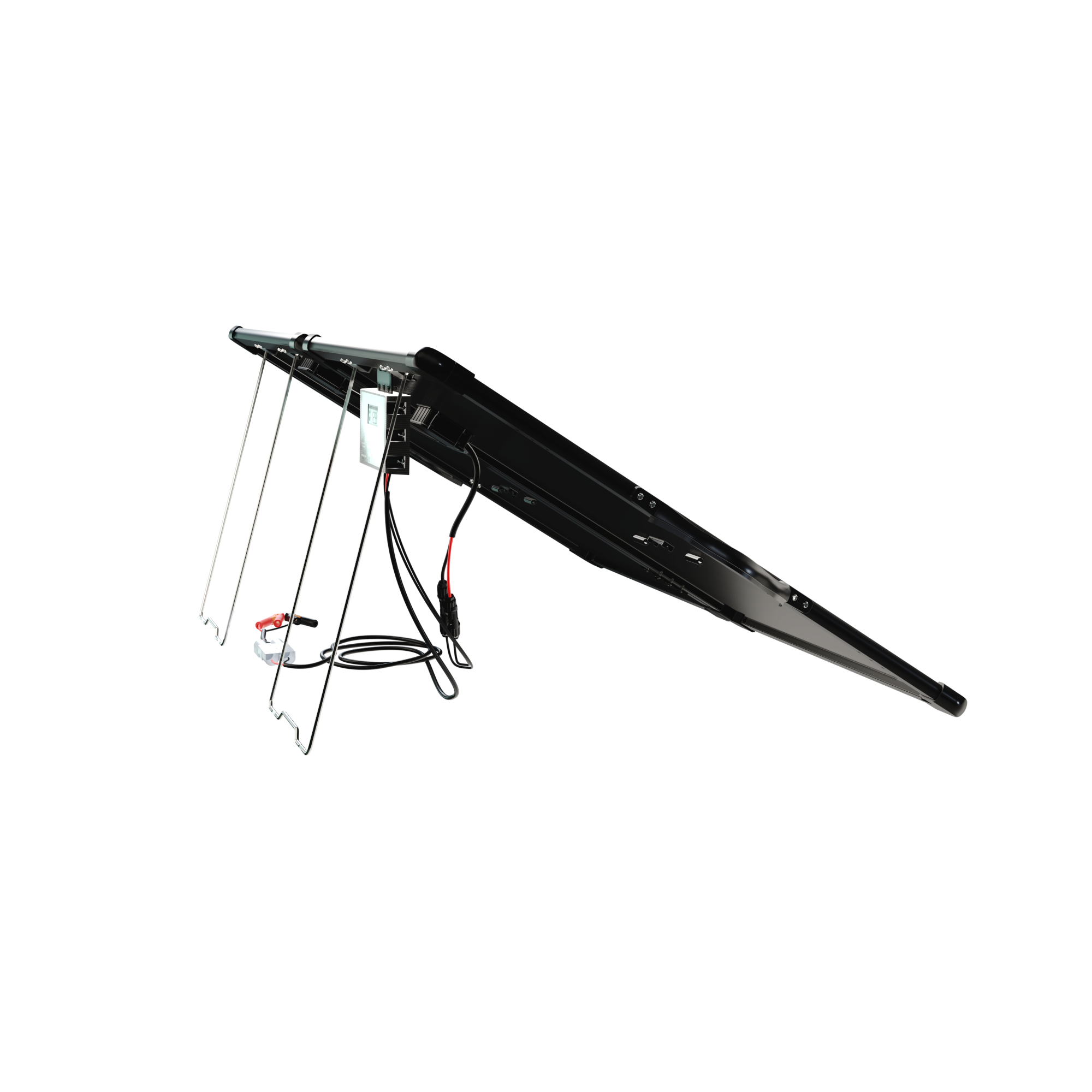

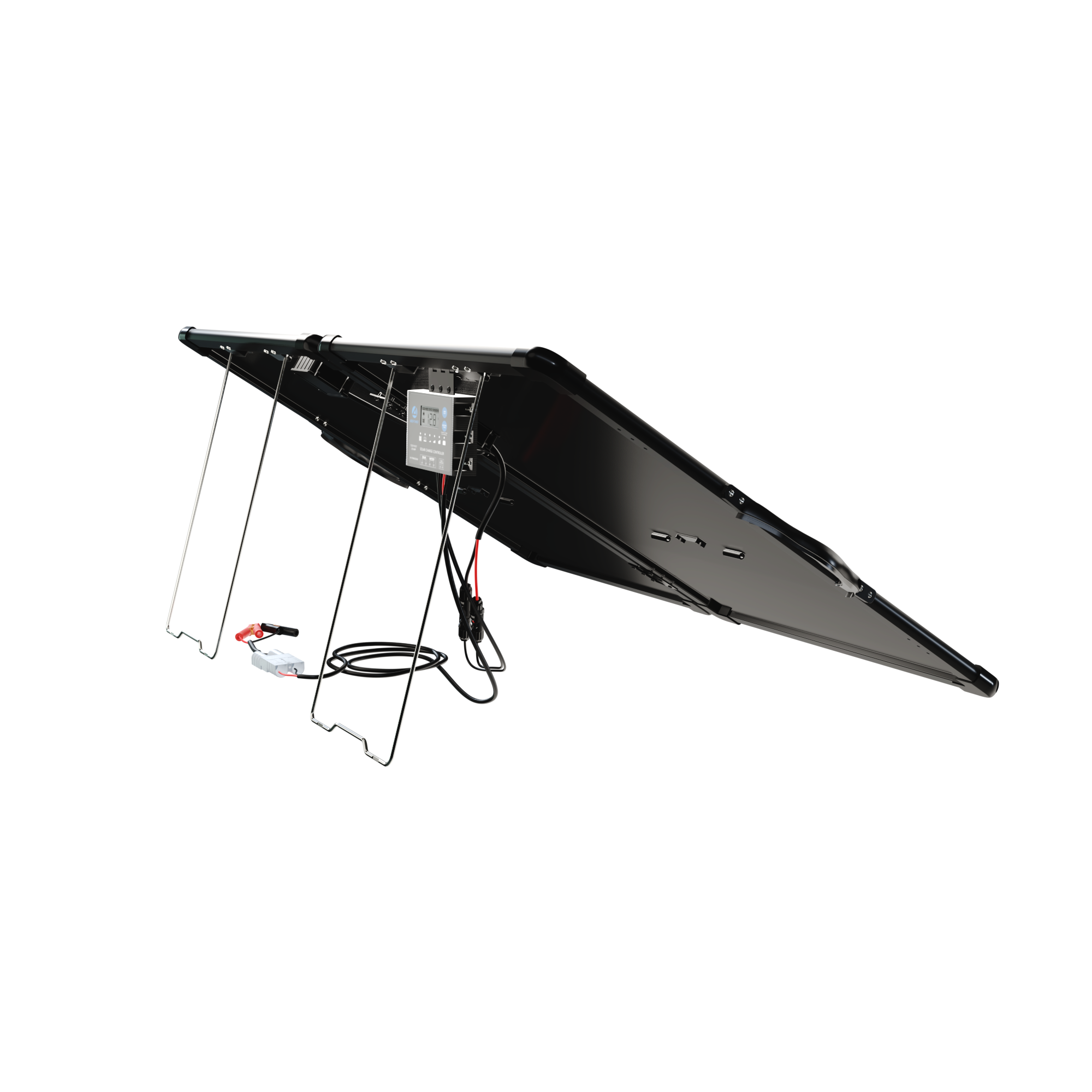

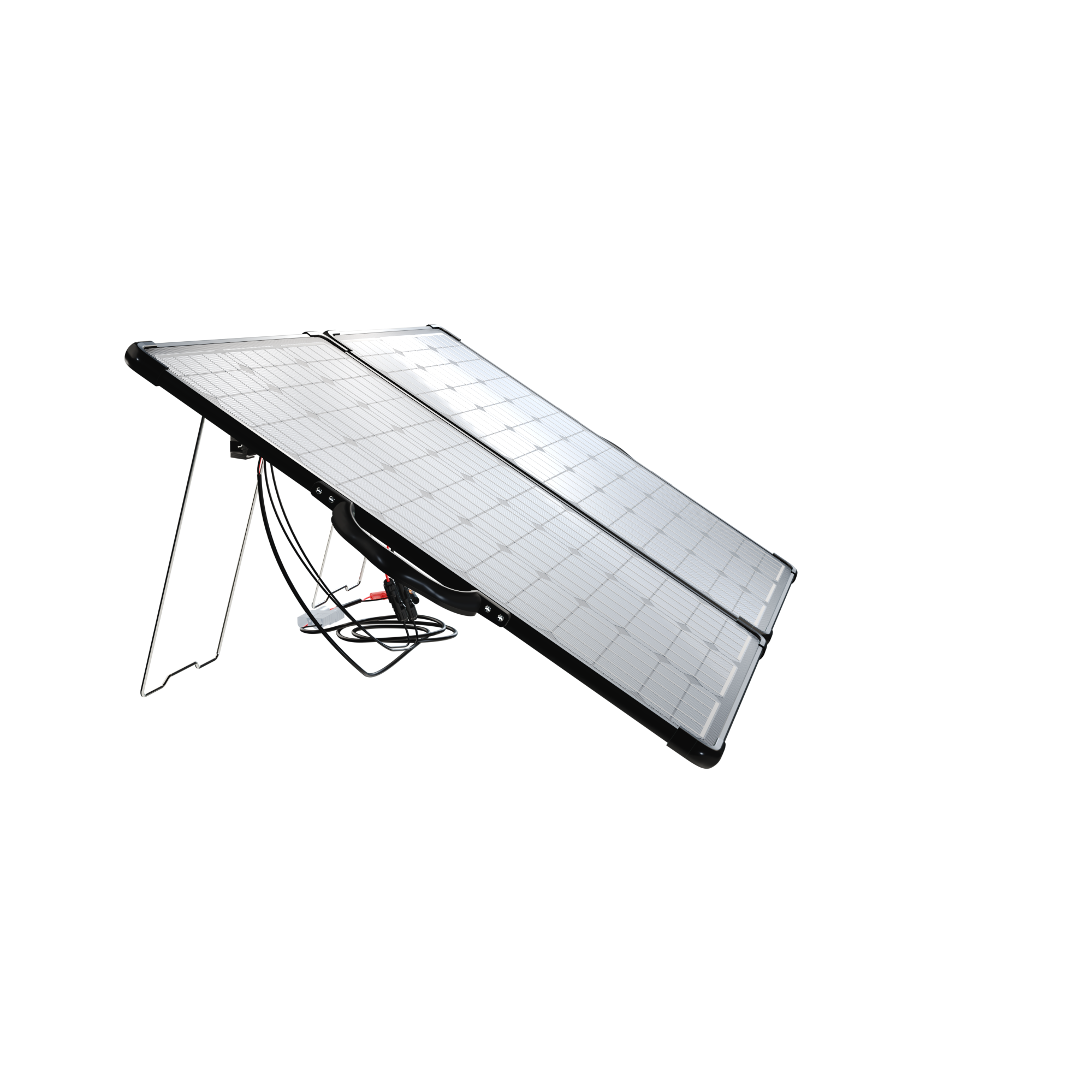

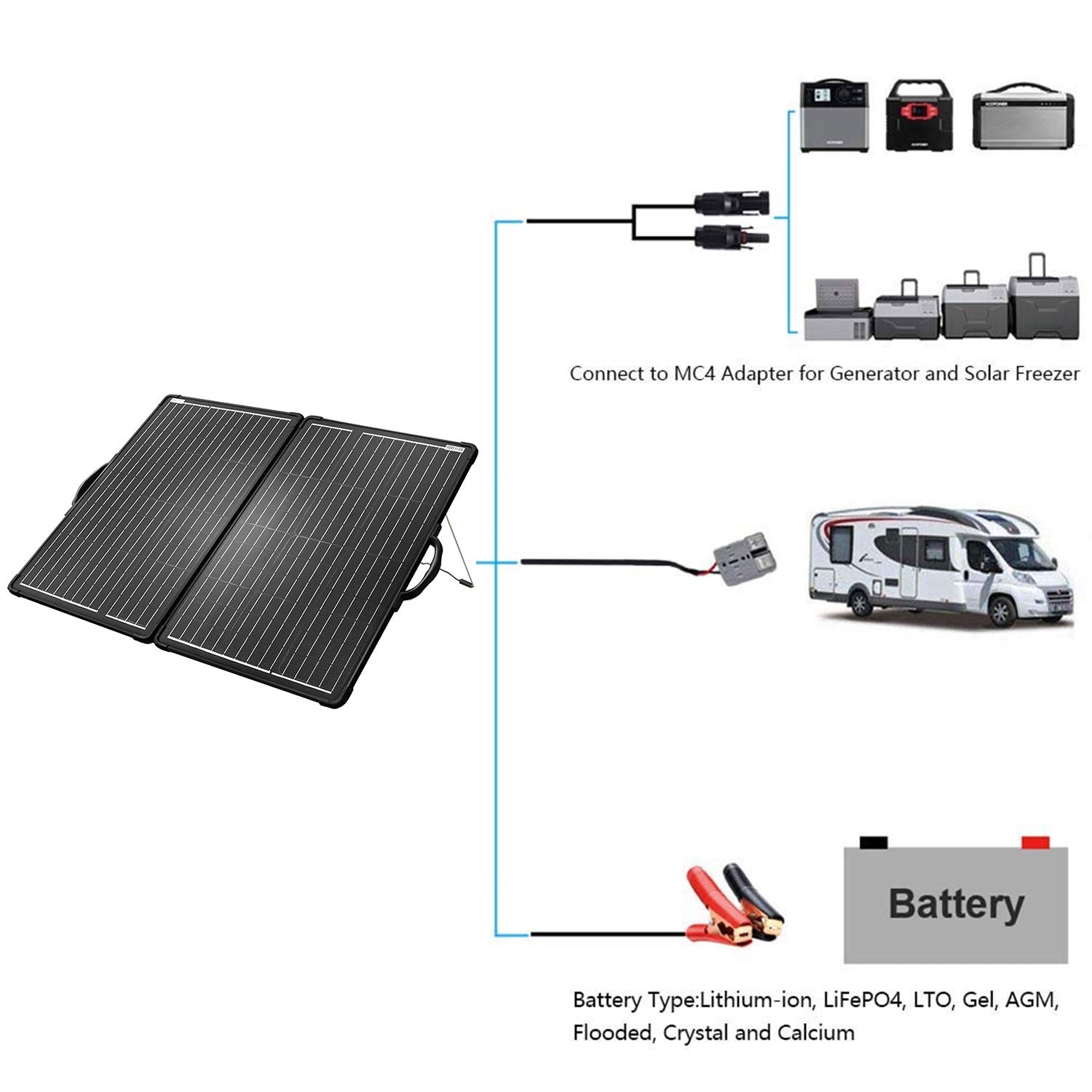

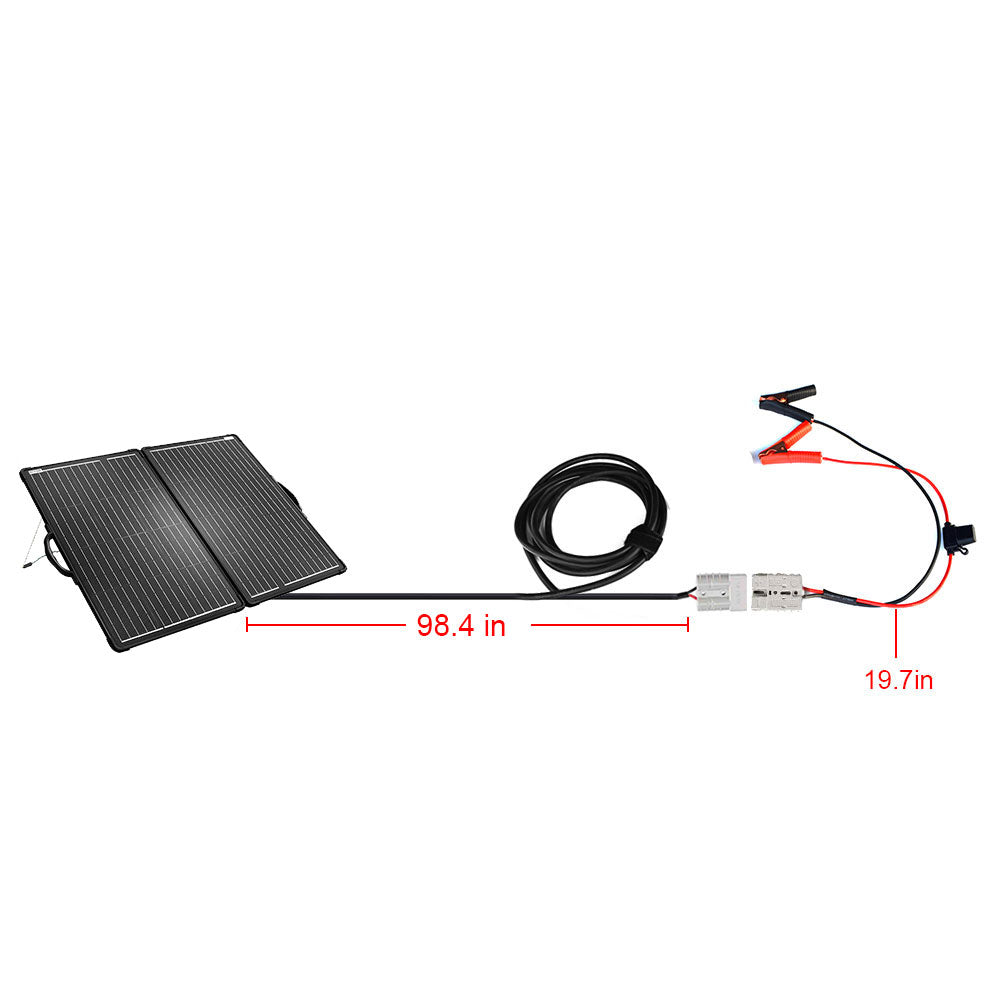

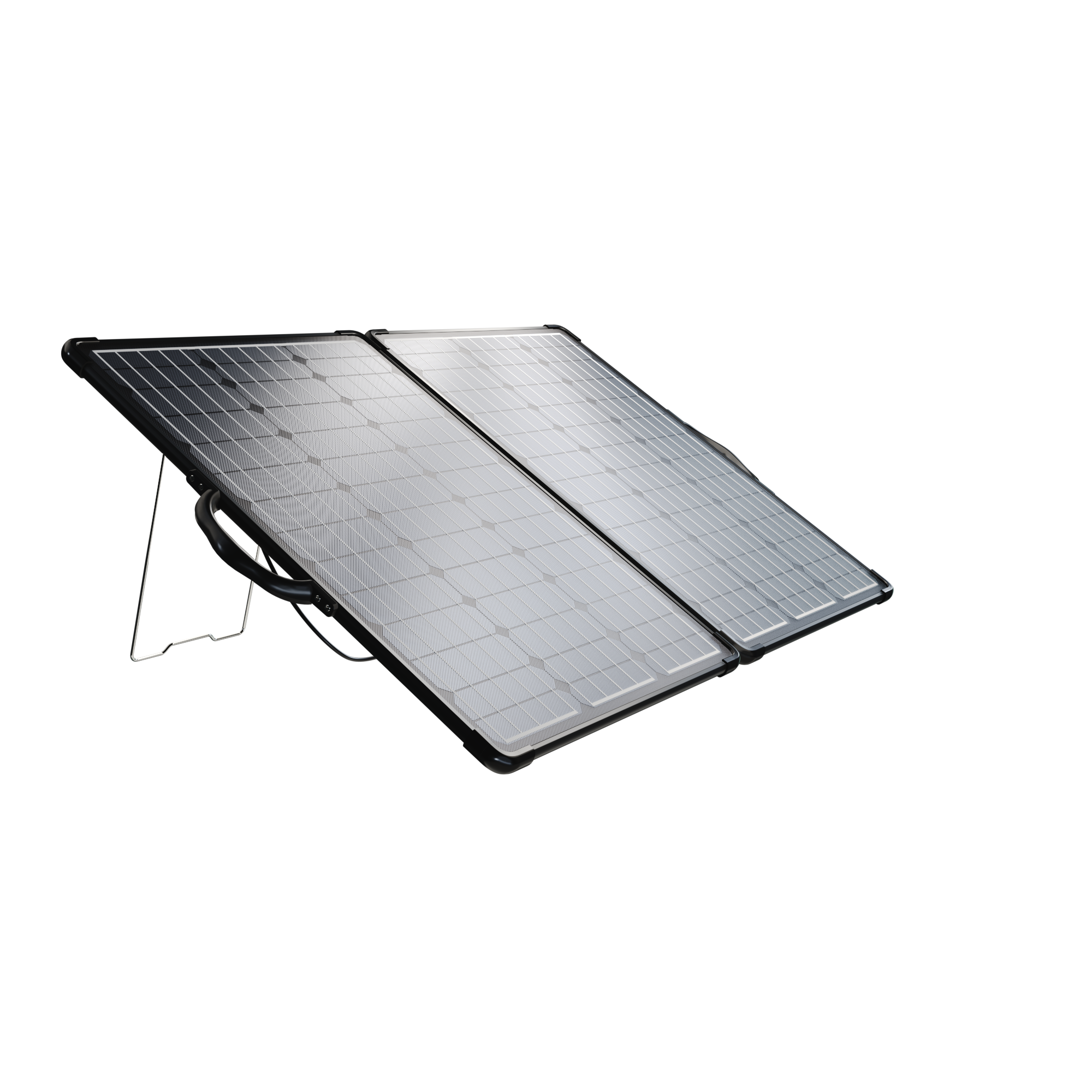

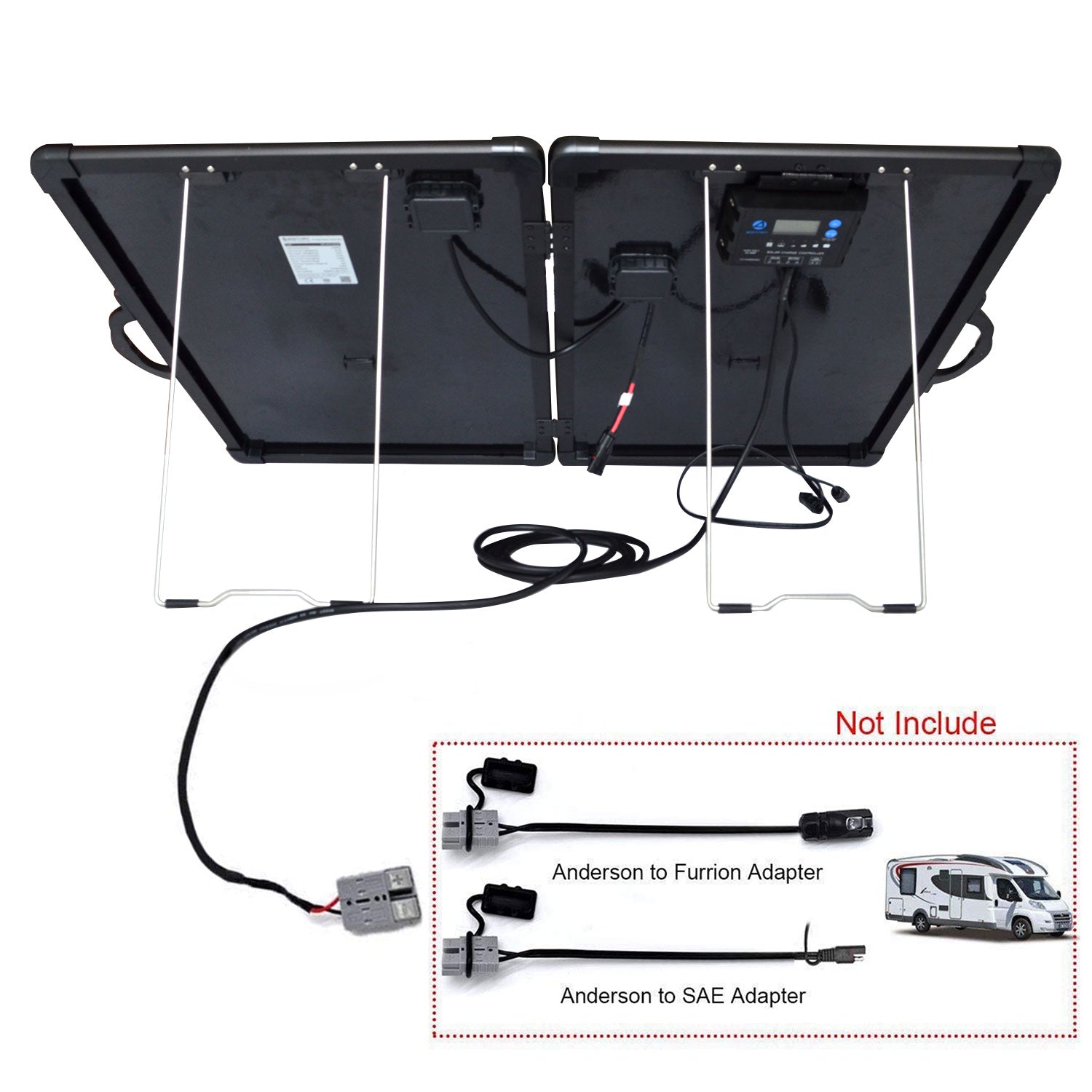

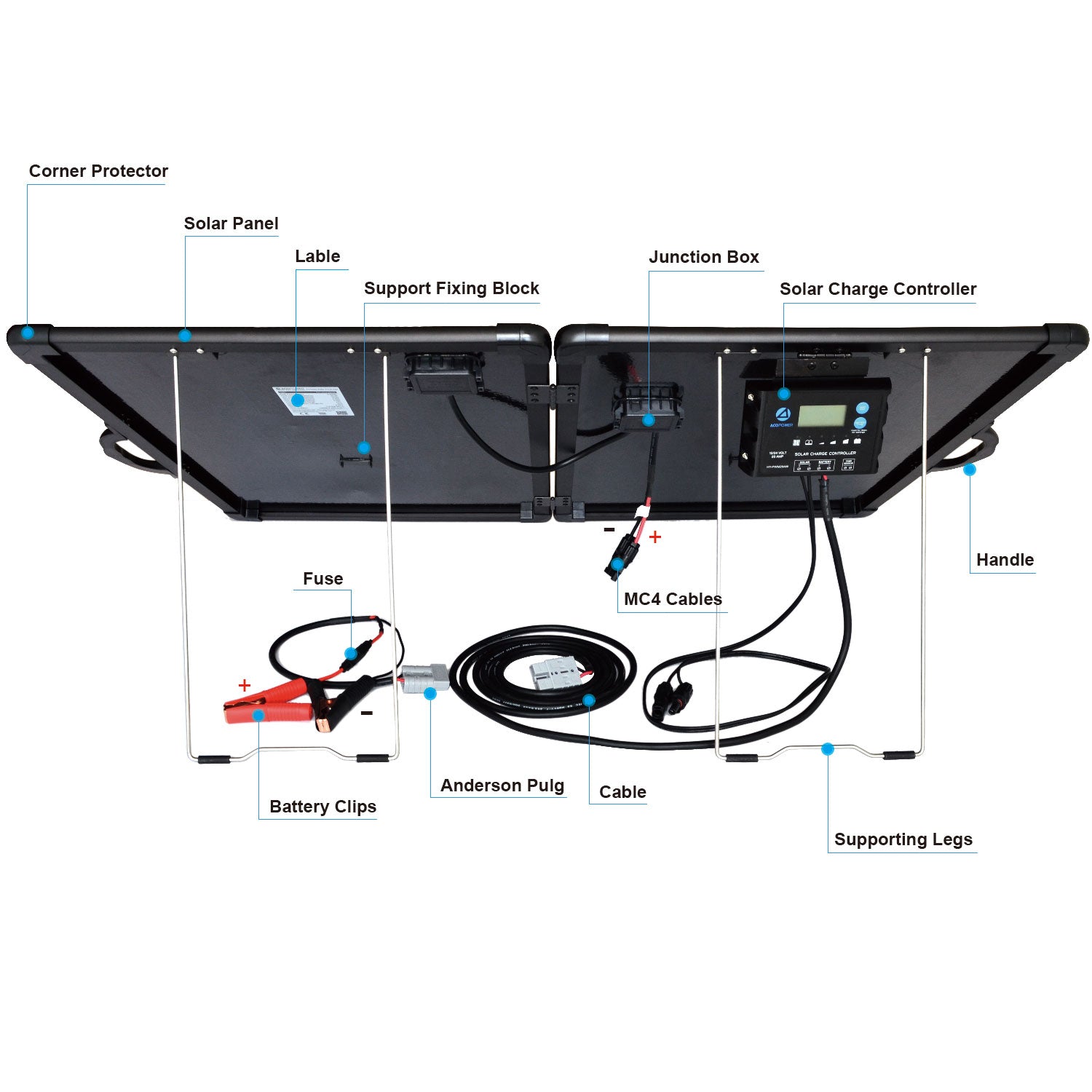

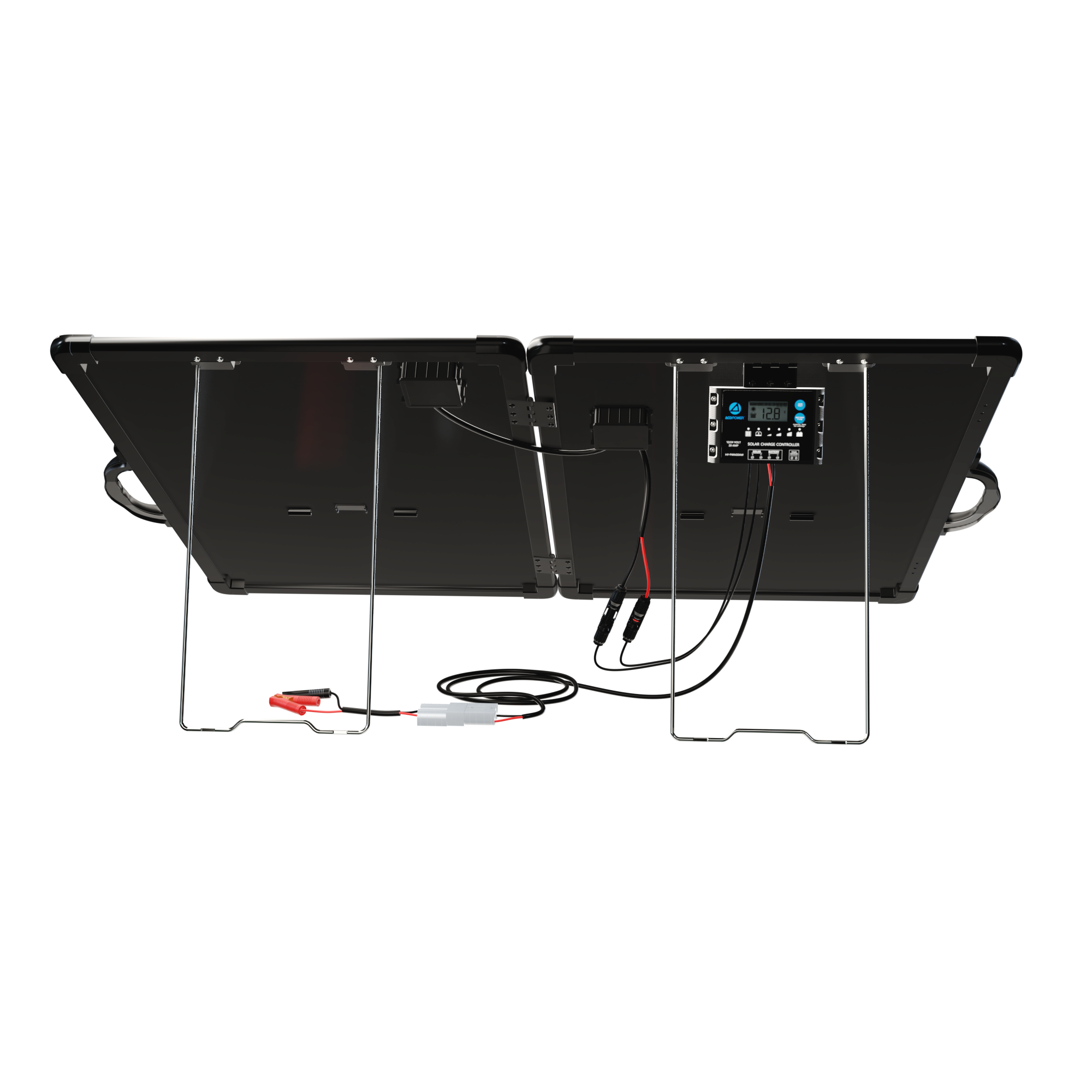

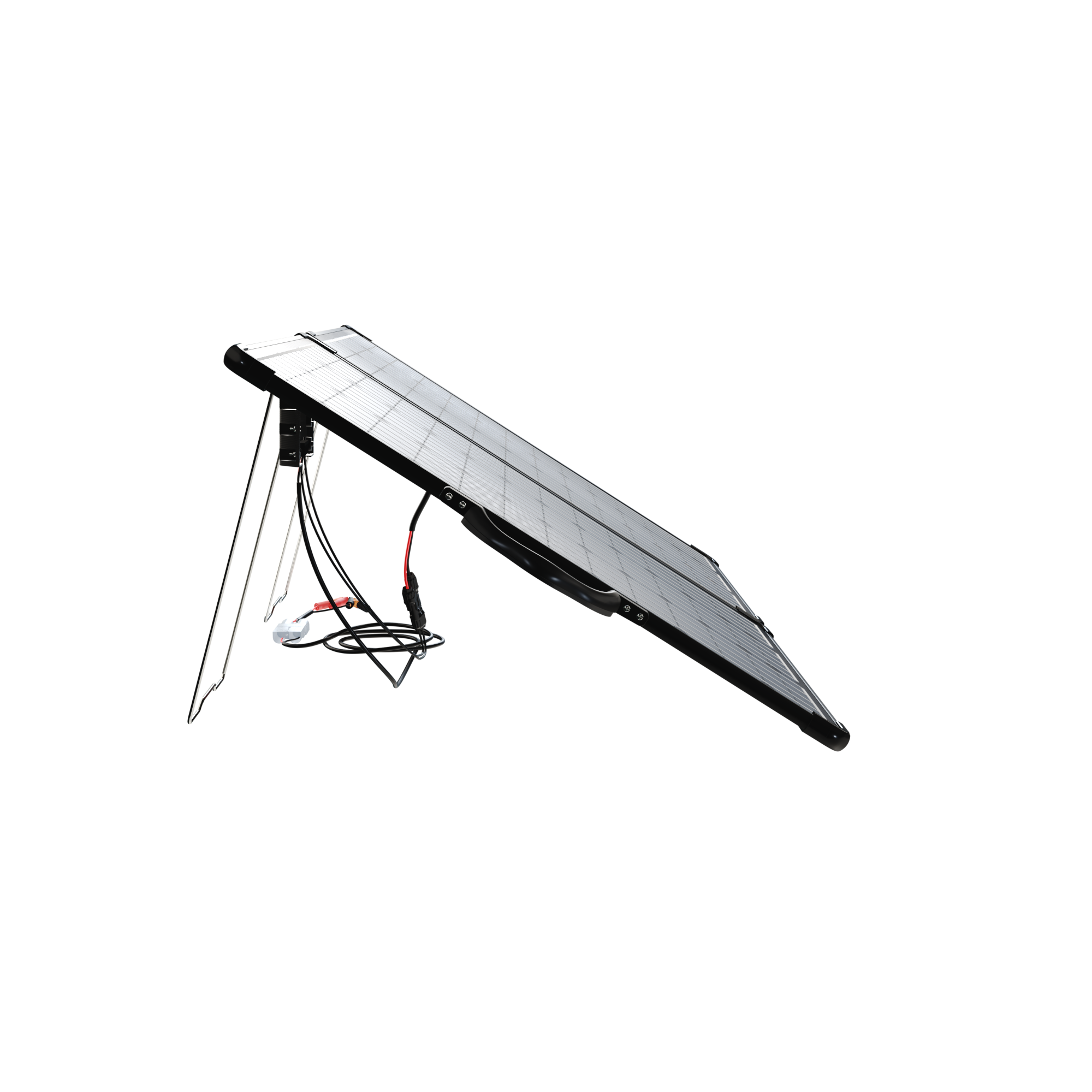

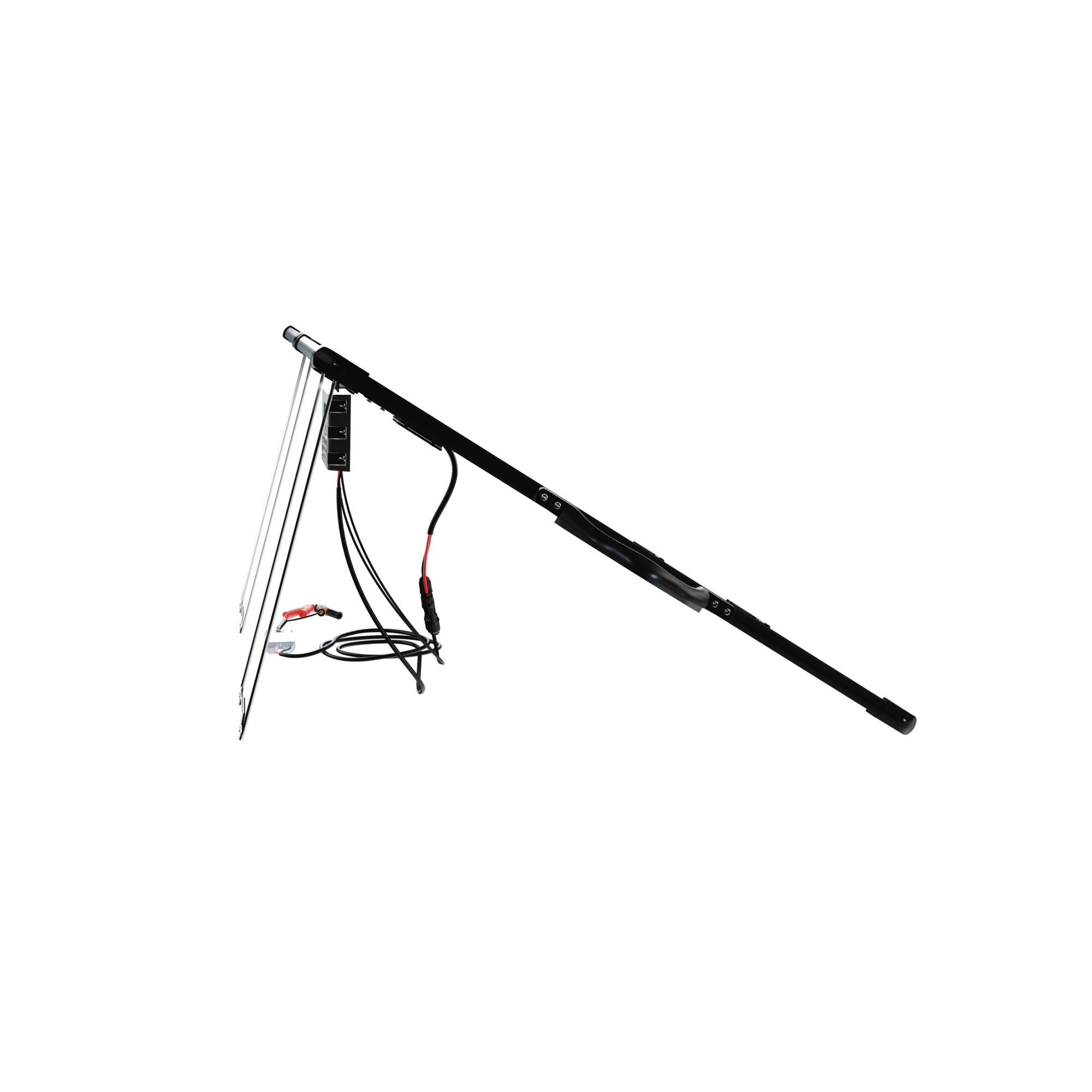

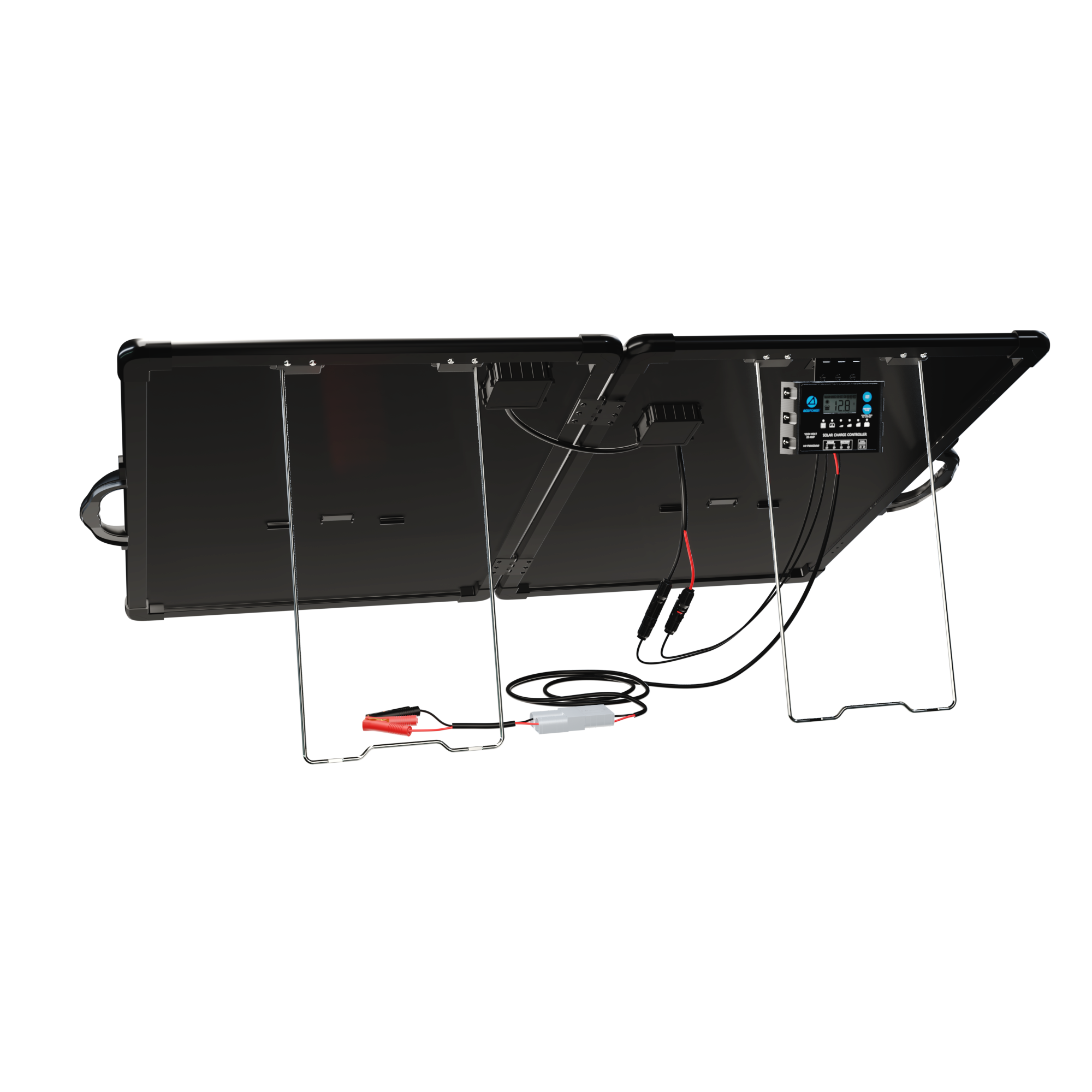

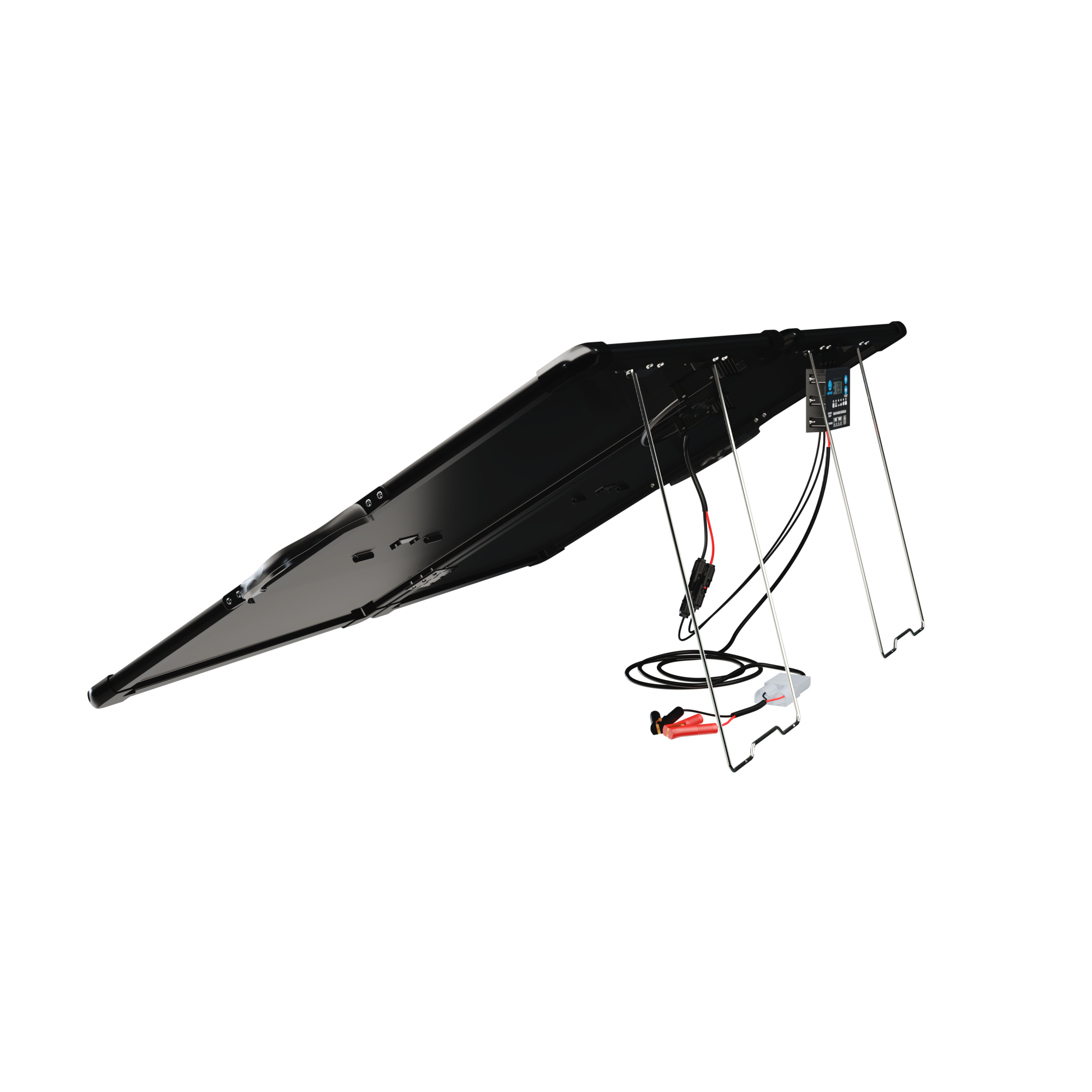

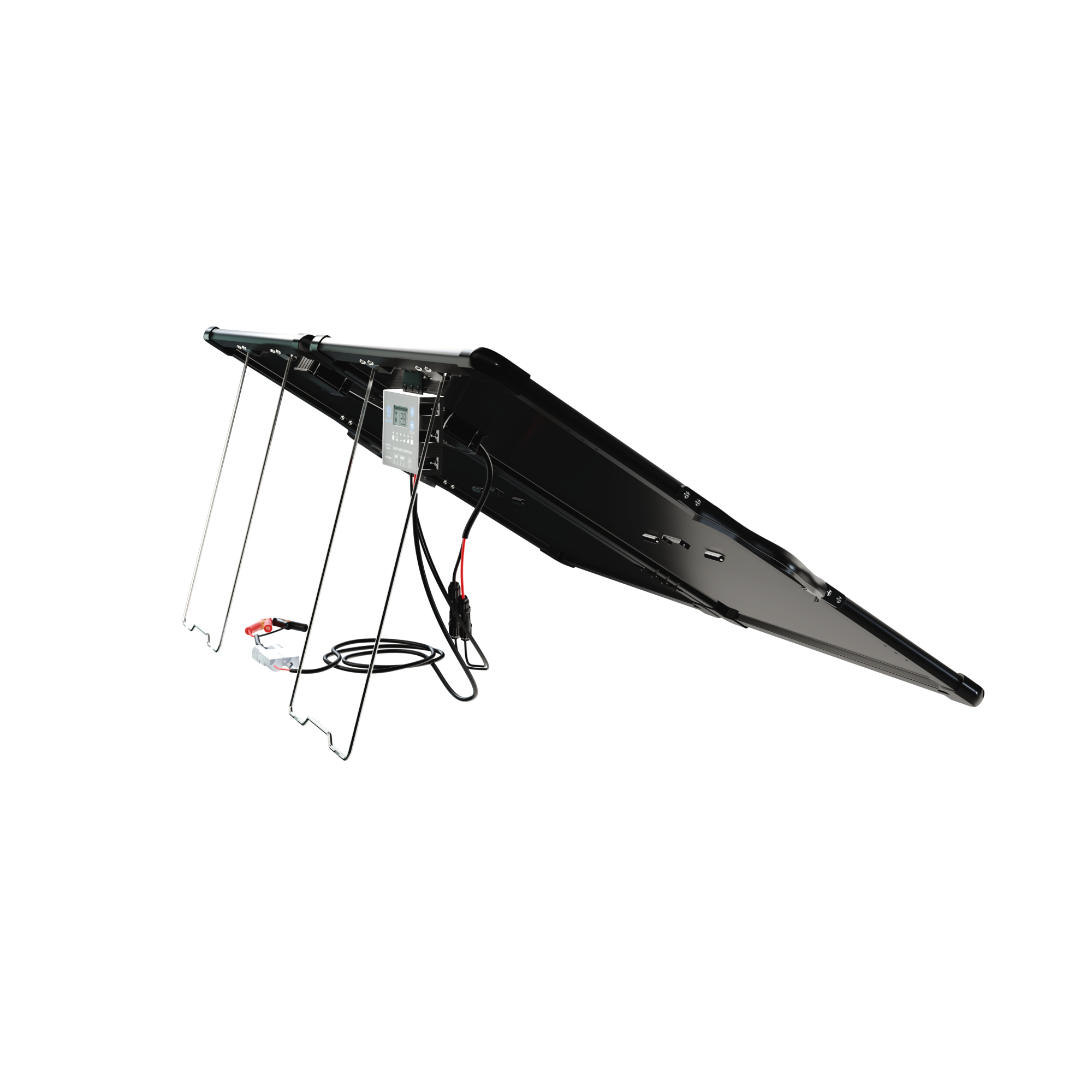

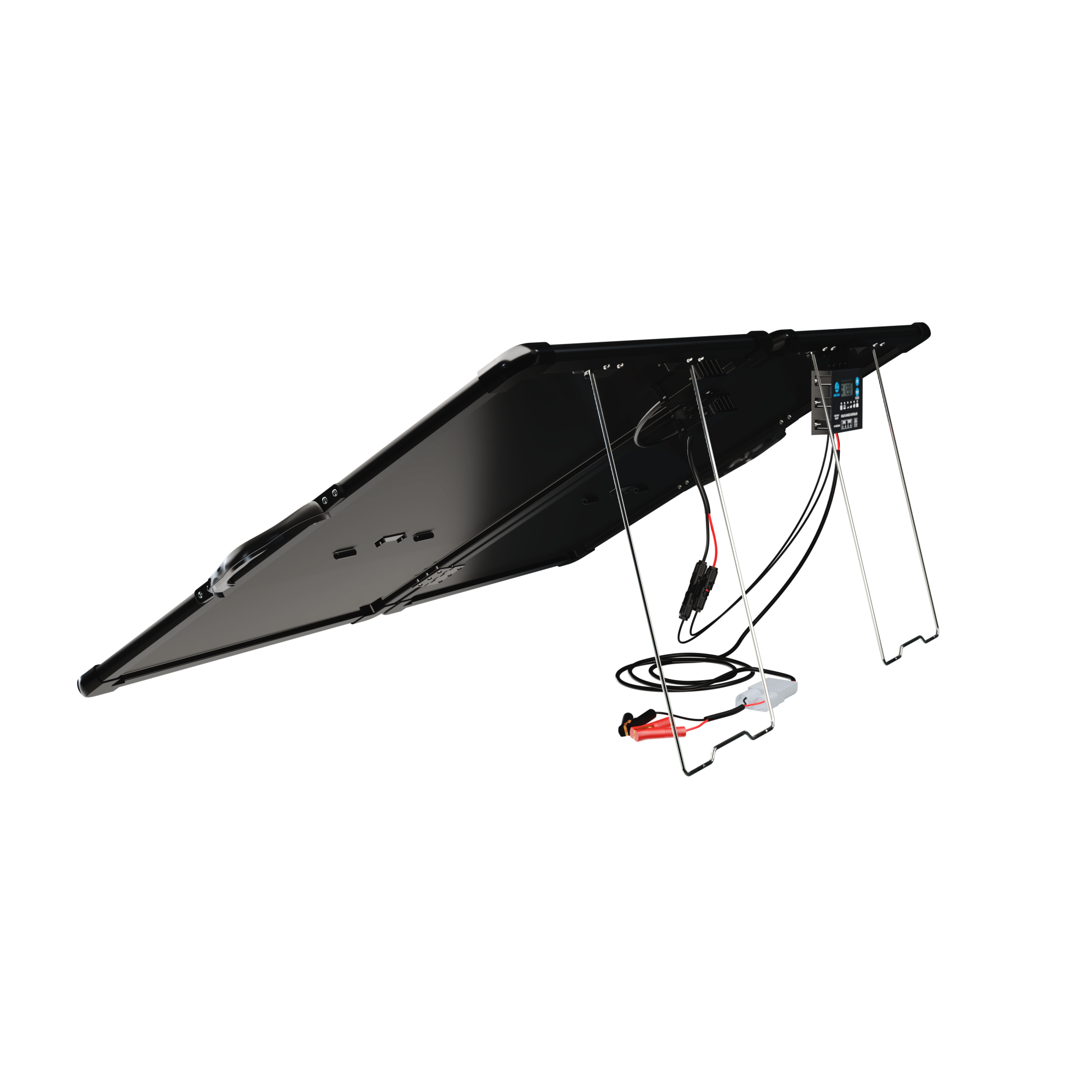

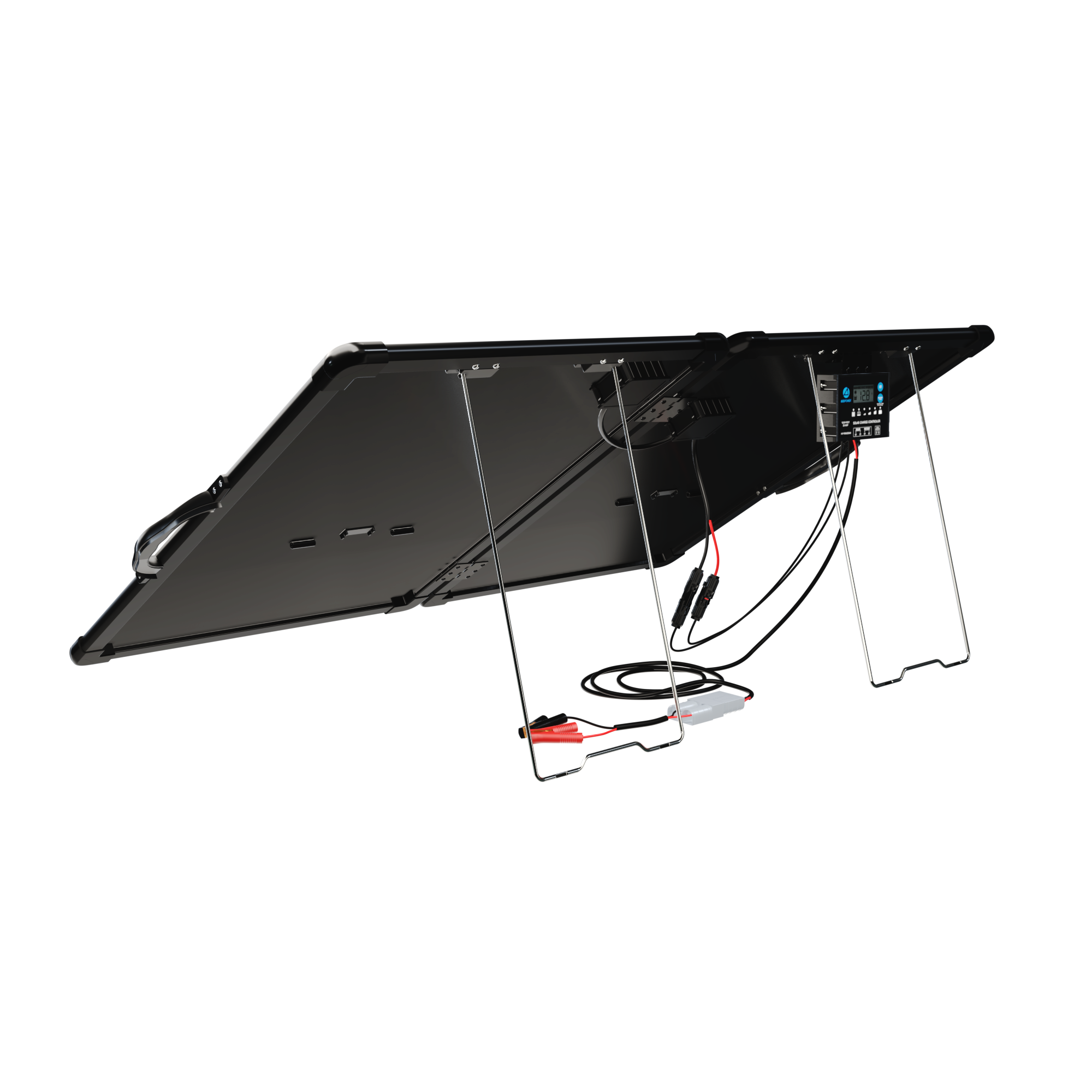

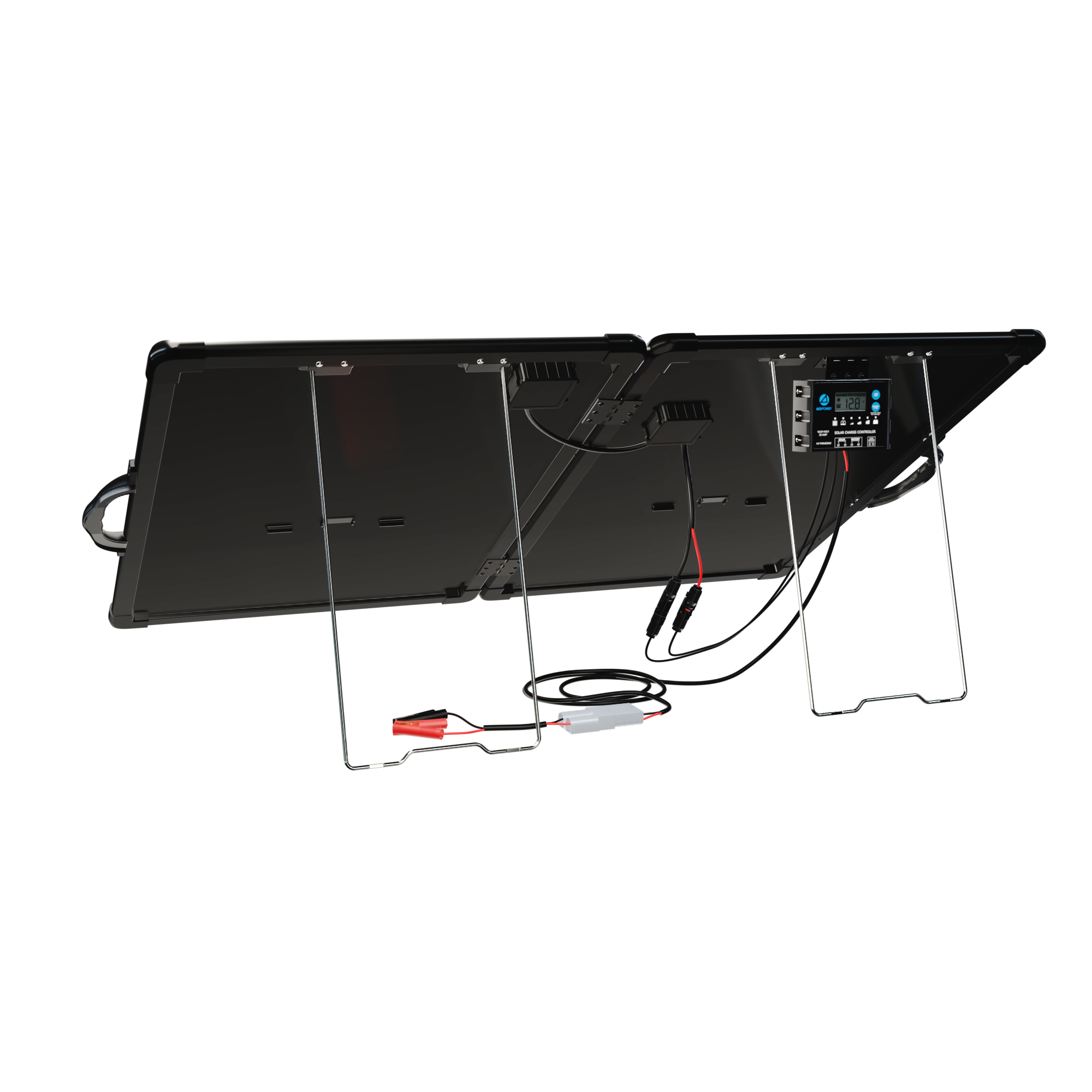

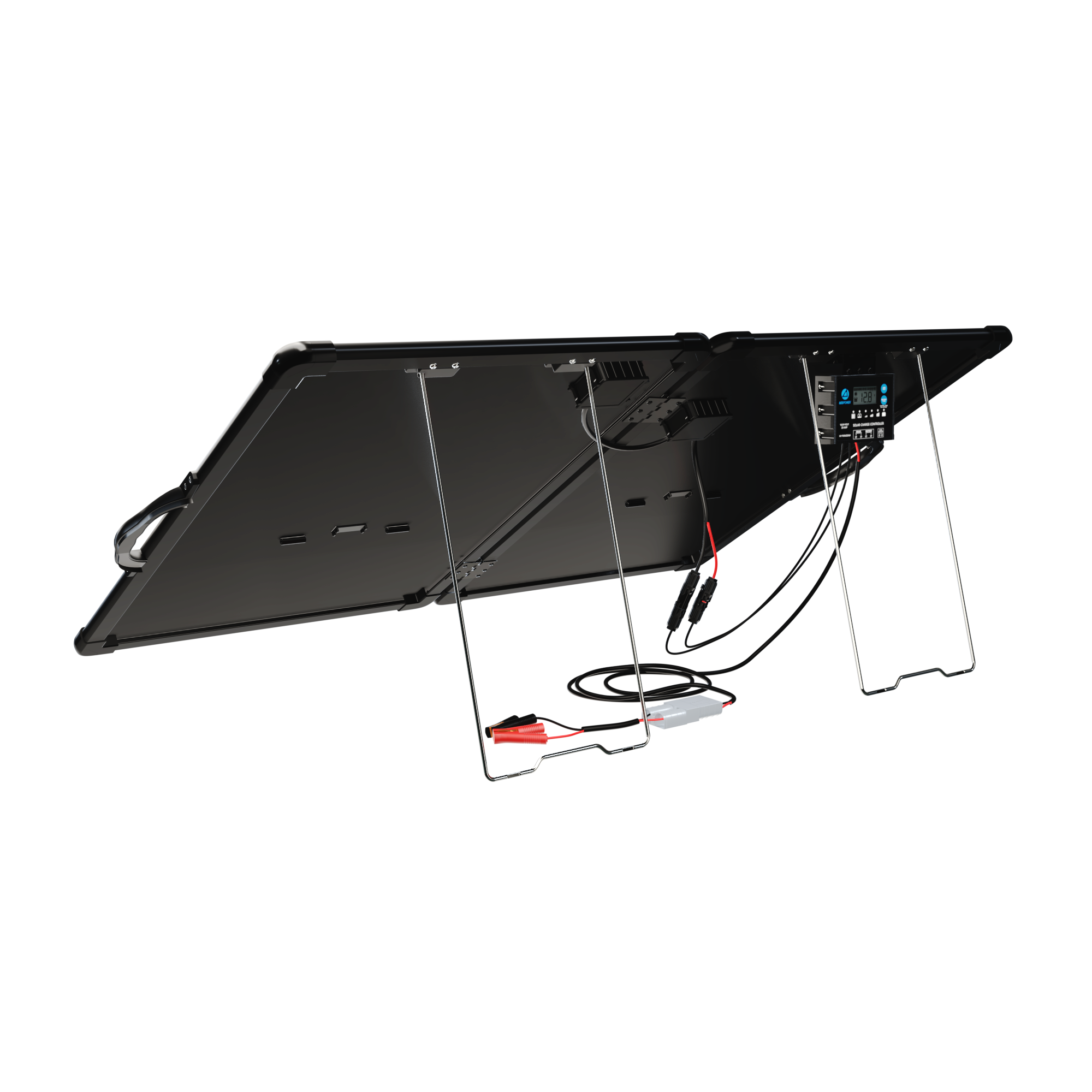

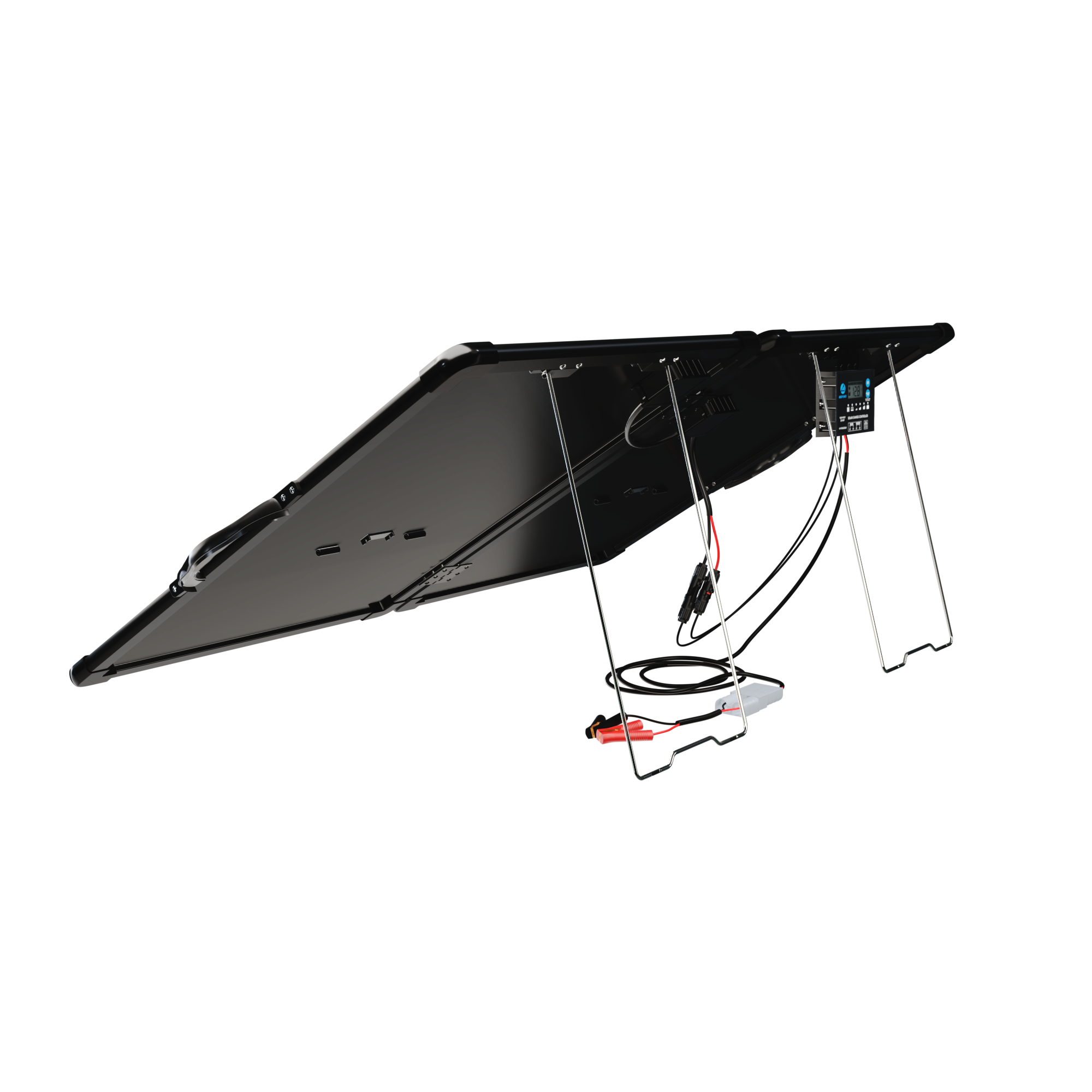

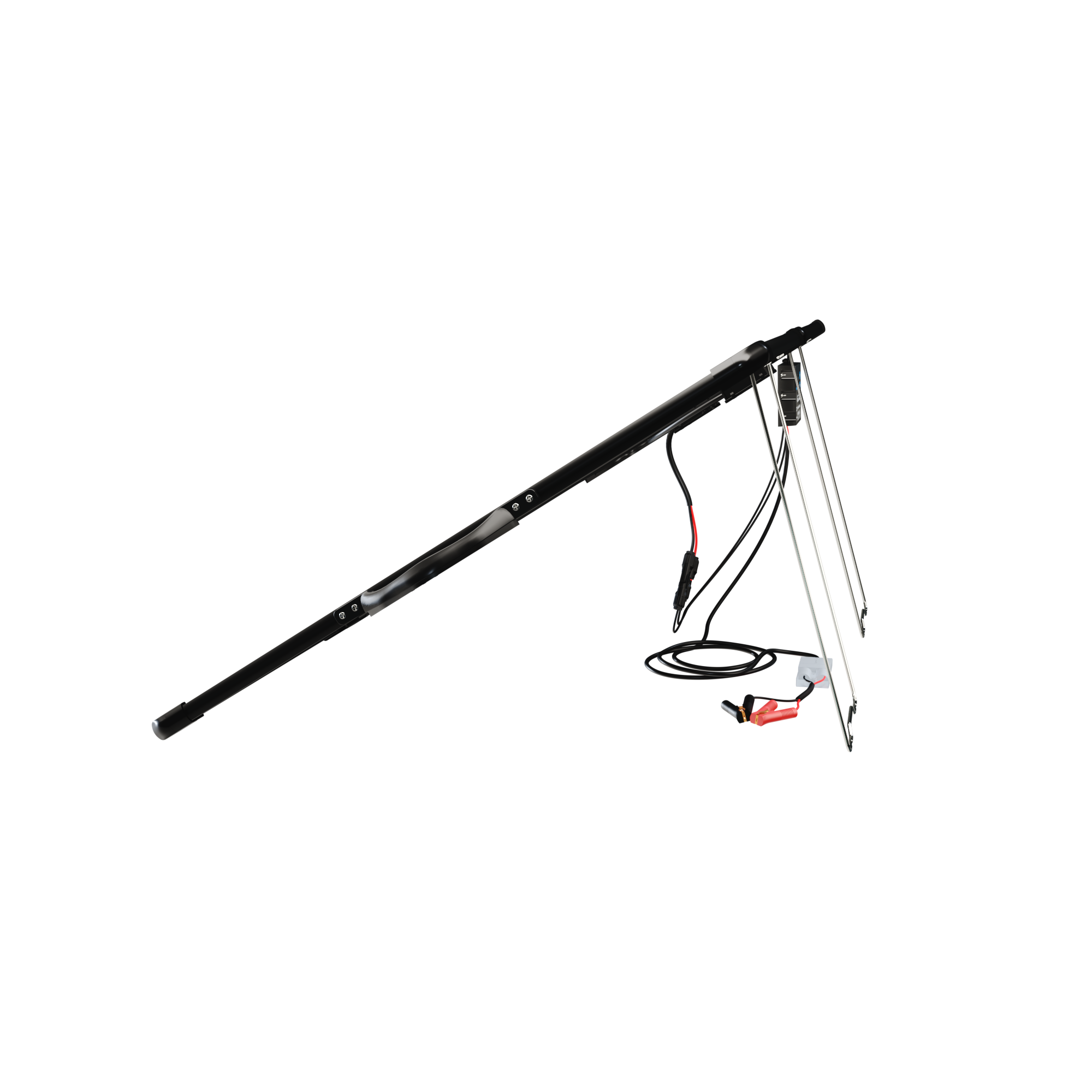

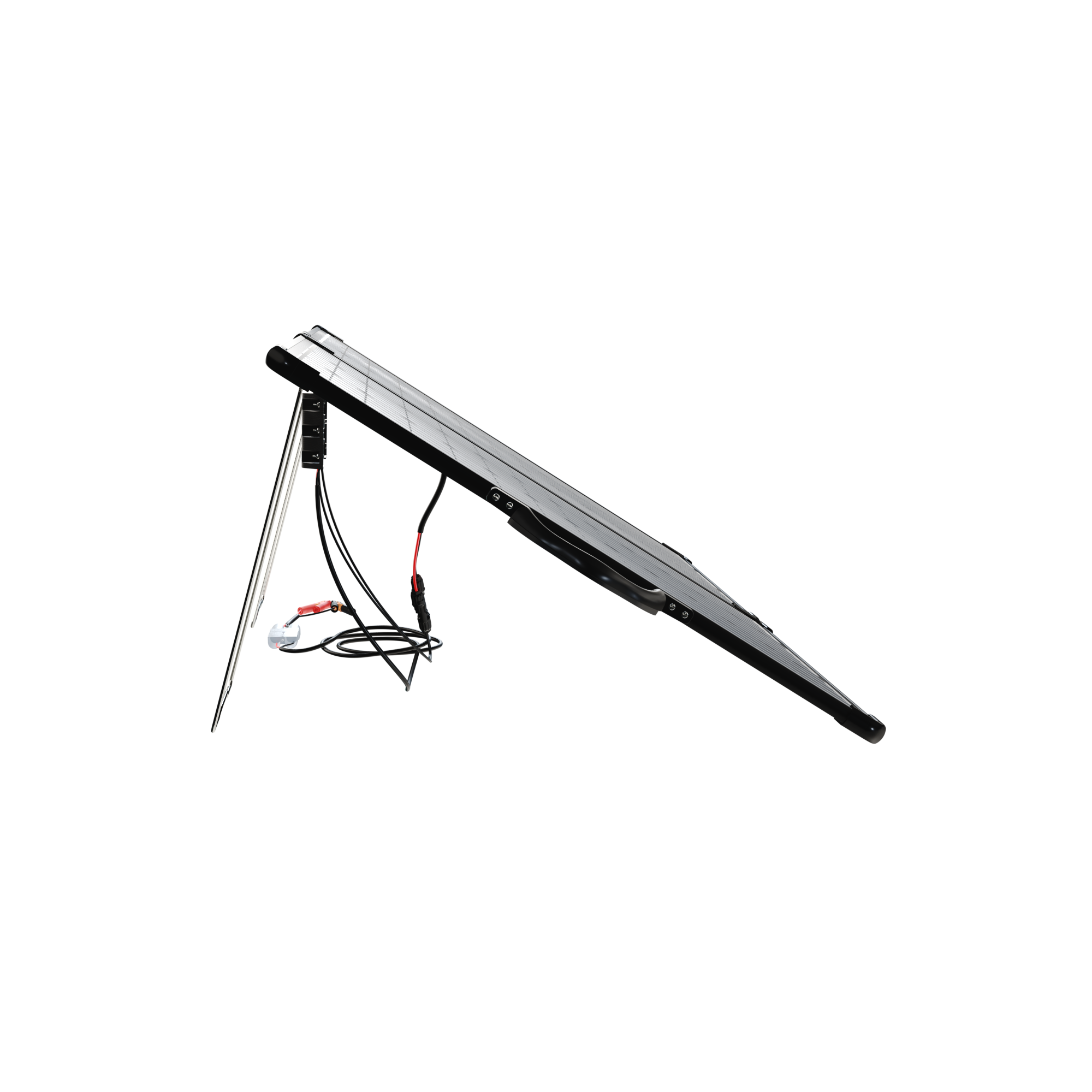

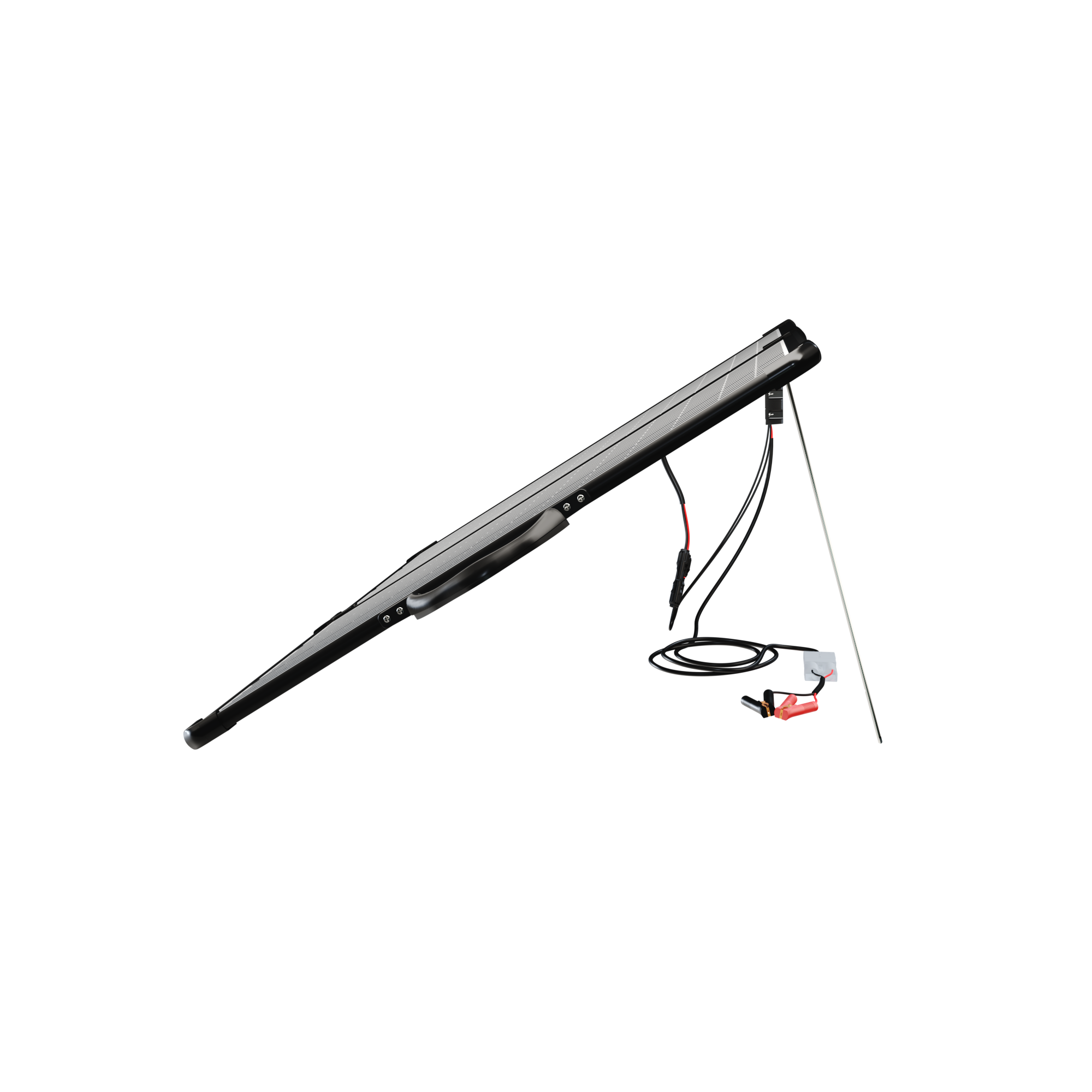

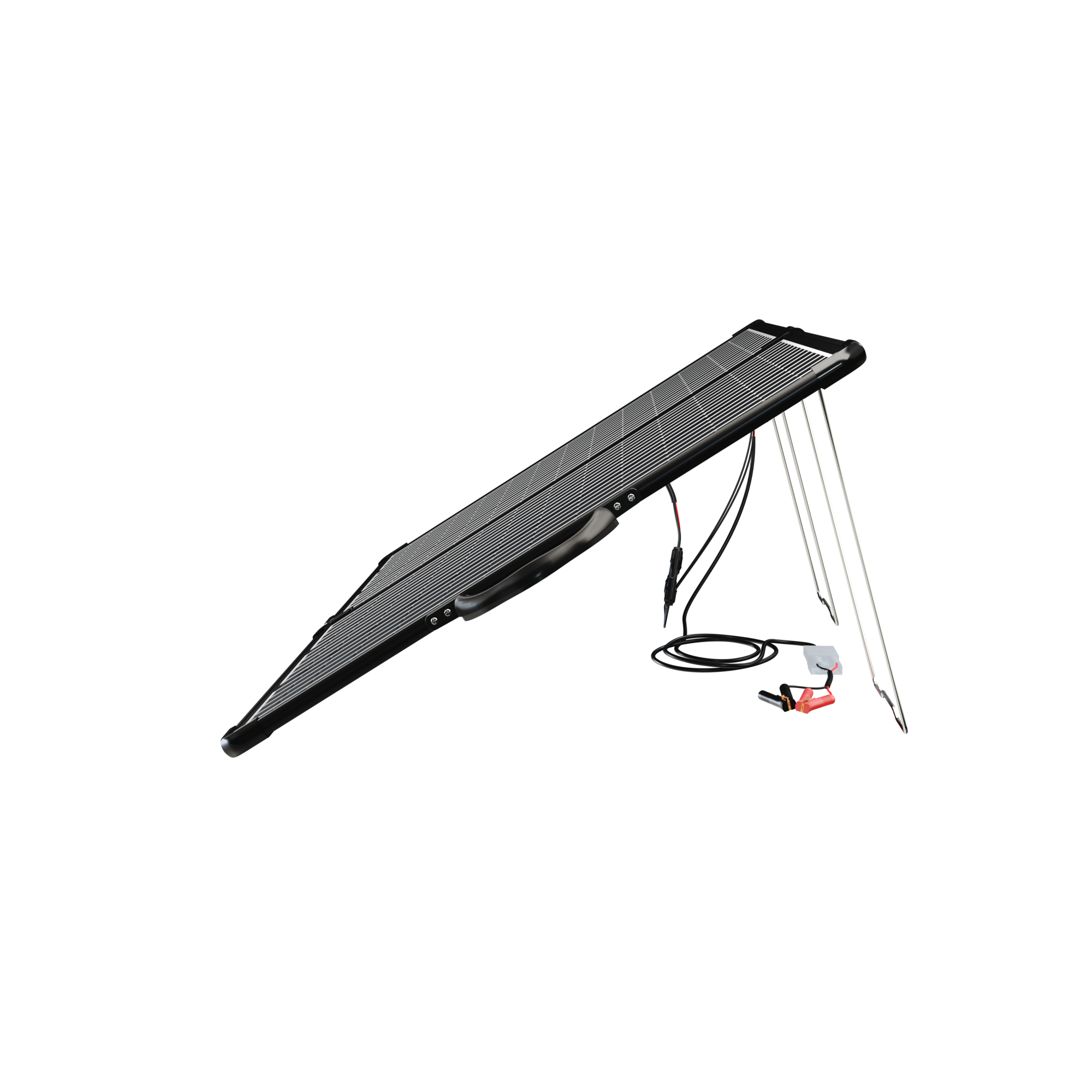

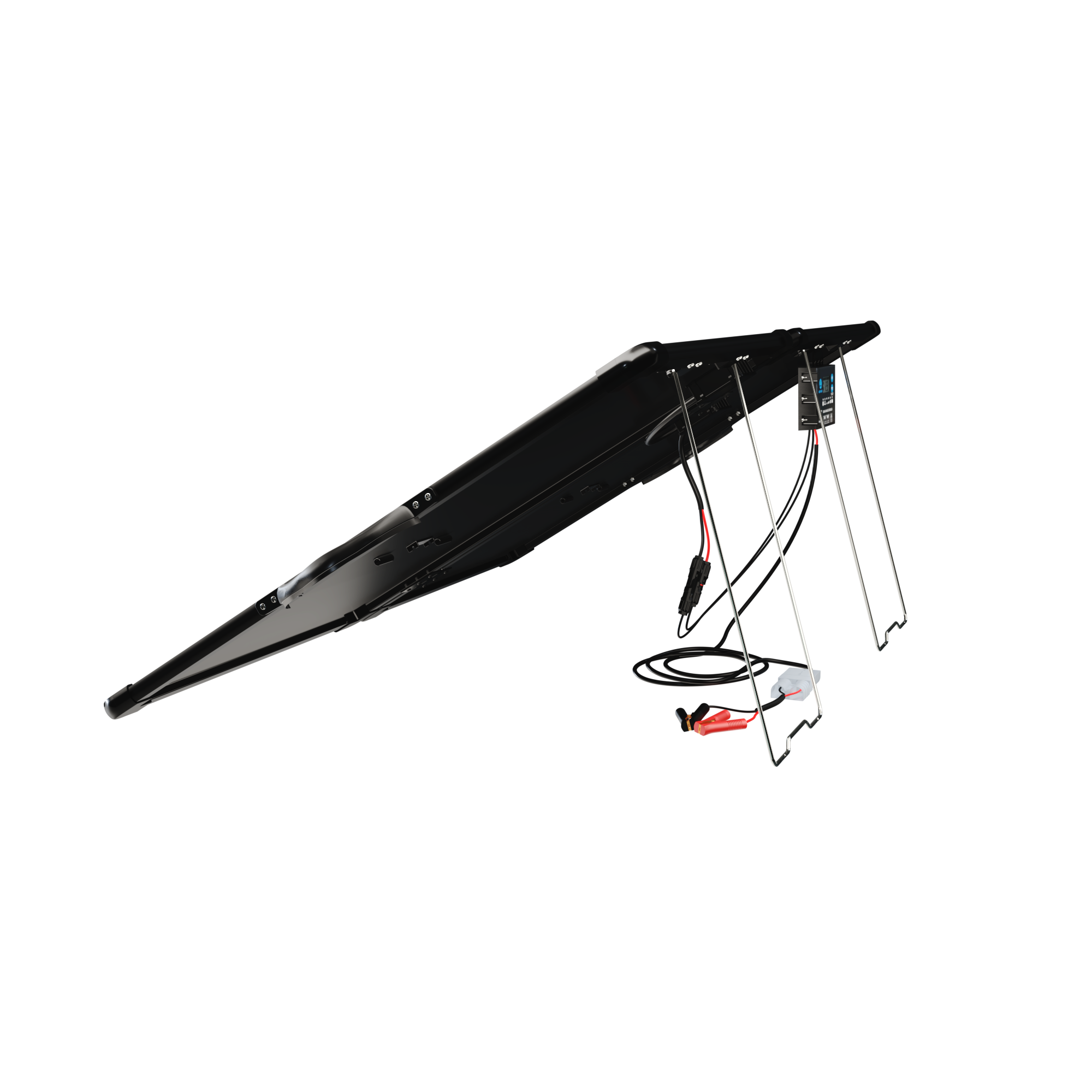

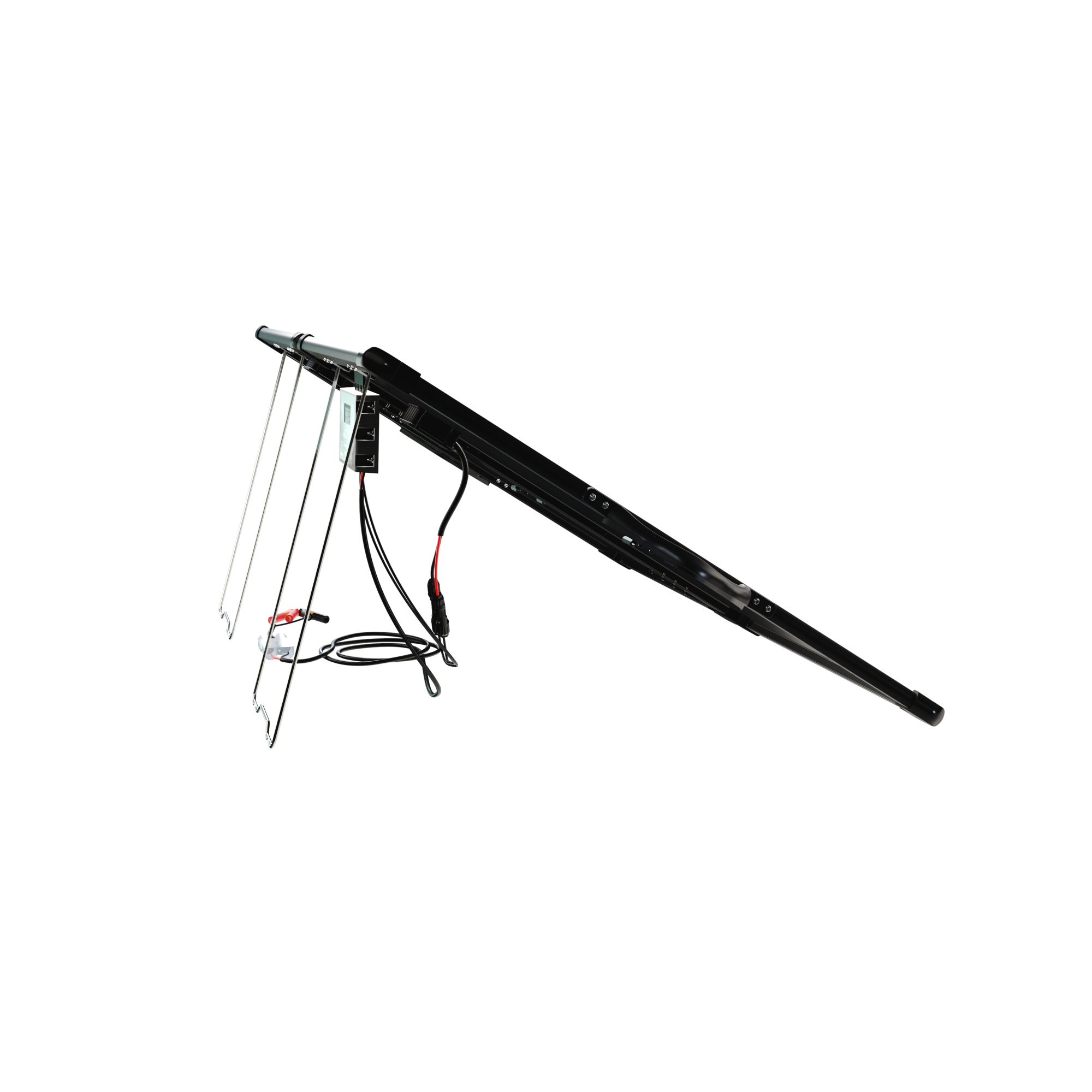

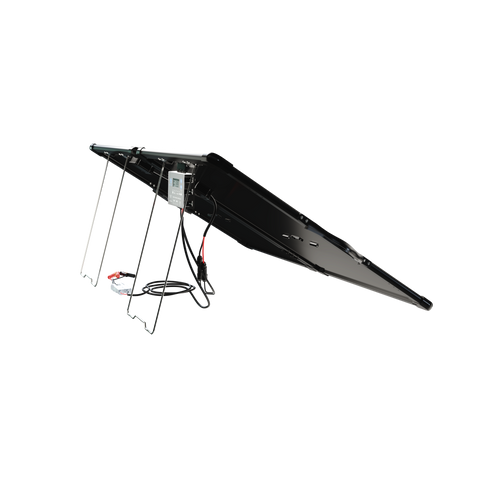

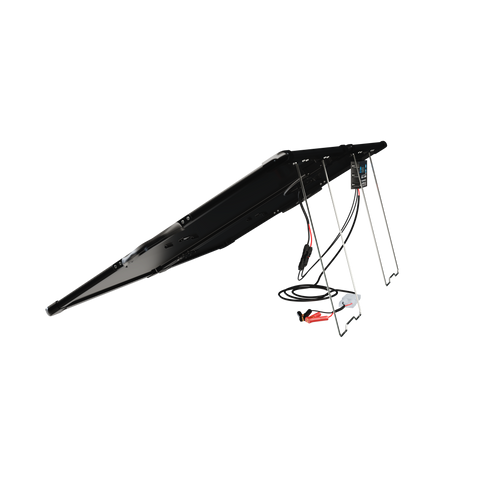

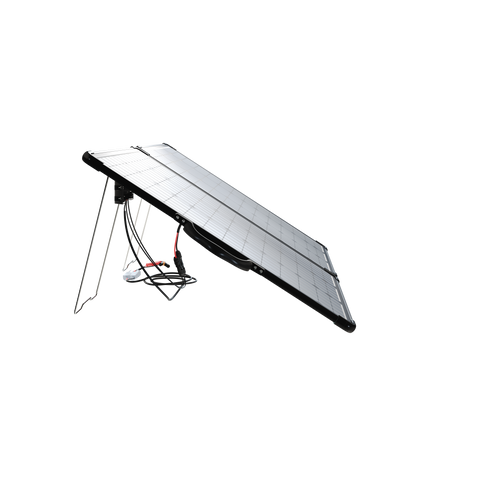

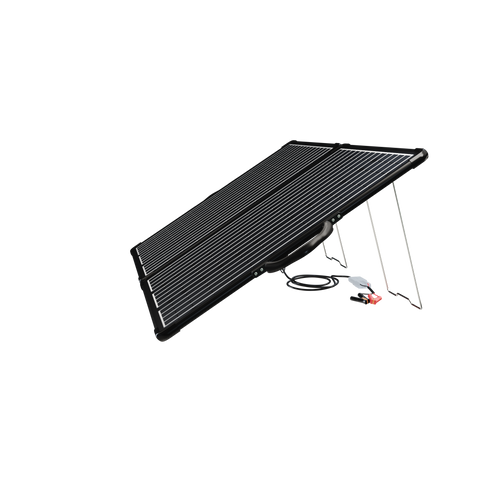

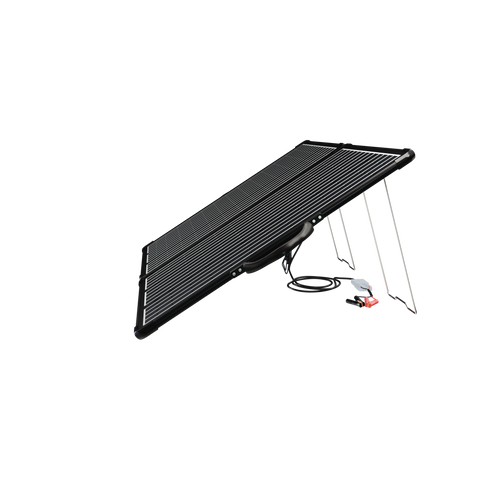

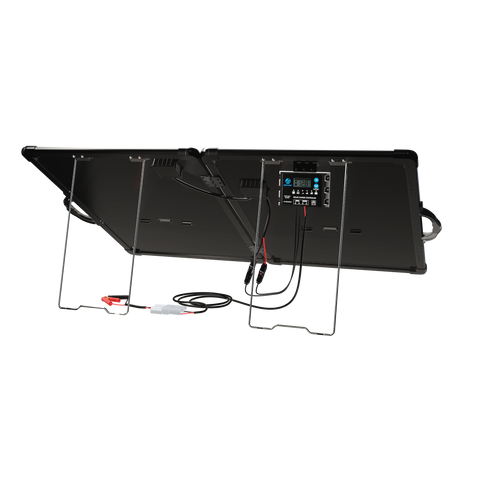

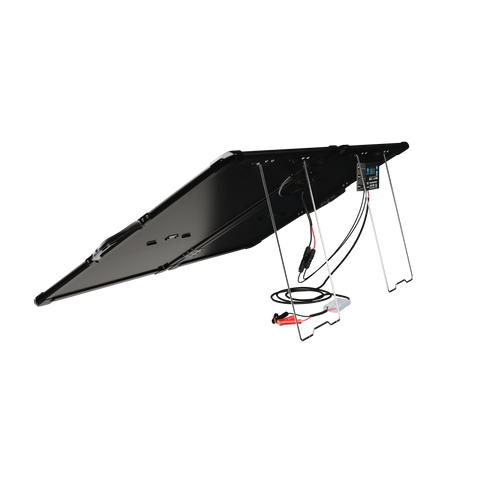

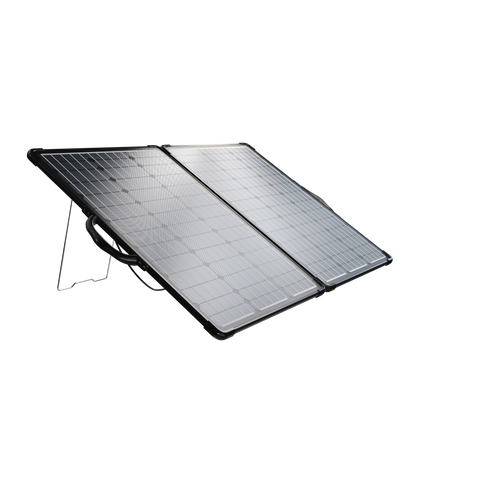

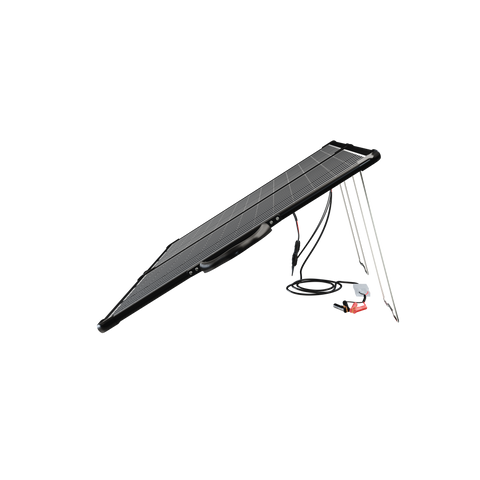

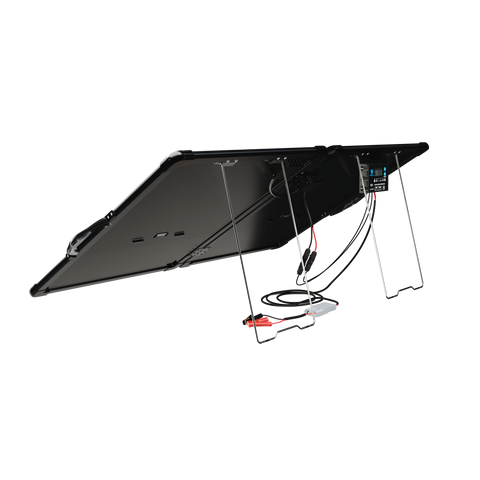

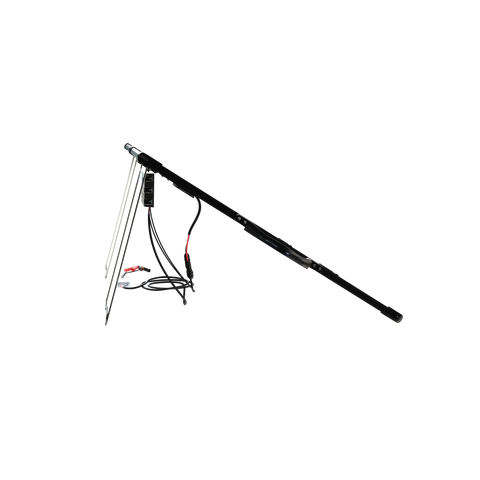

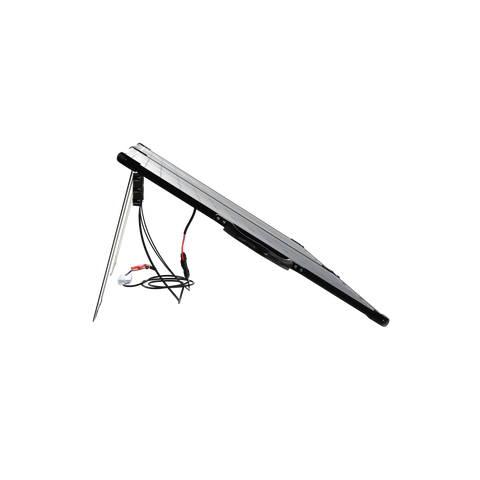

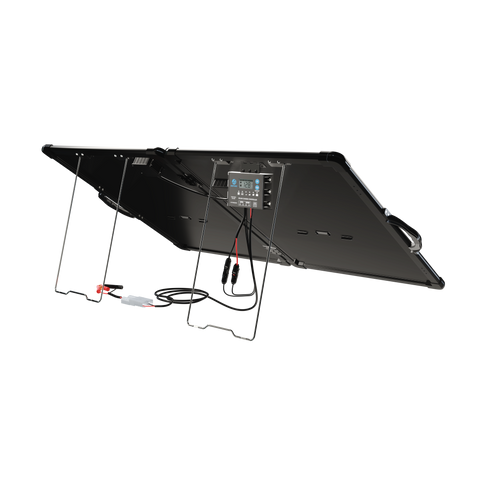

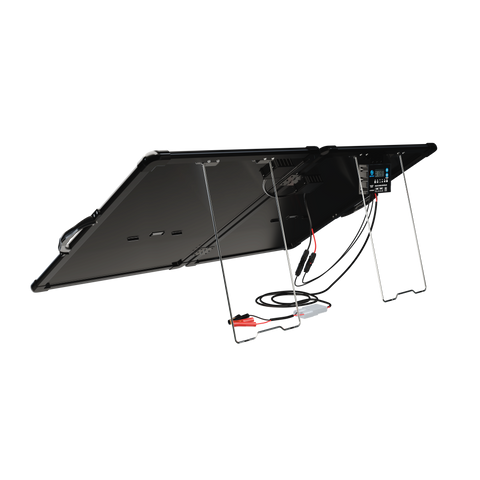

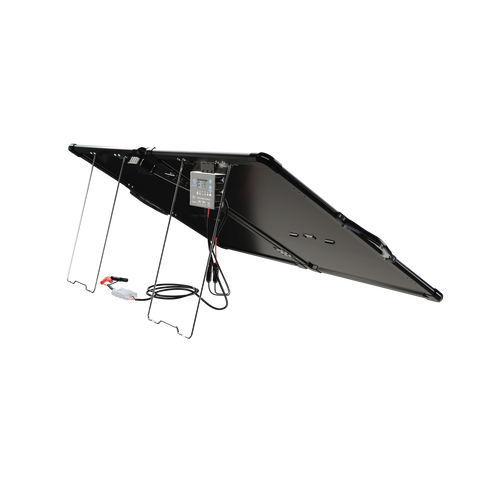

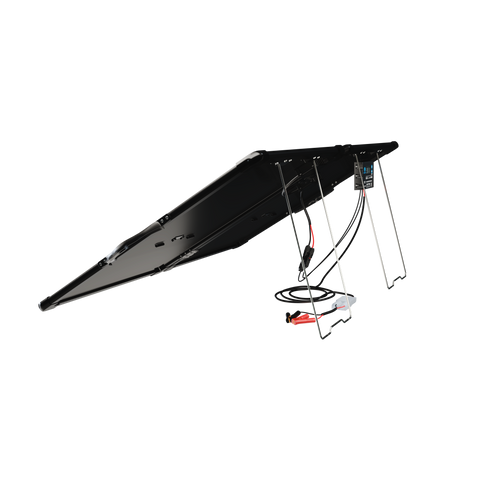

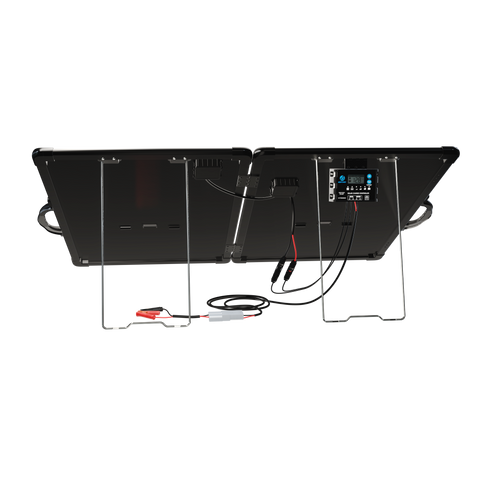

Easy Set-up: pre-installed stand allows for easy and quick set-up. MC-4 connectors or Anderson plug allow easy installation to RV / camper / trailer battery unit. For pre-wired RV or camper, please contact ACOPOWER for adapters – Furrion and SAE Zamp solar
8 Battery Type Compatible -Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium.

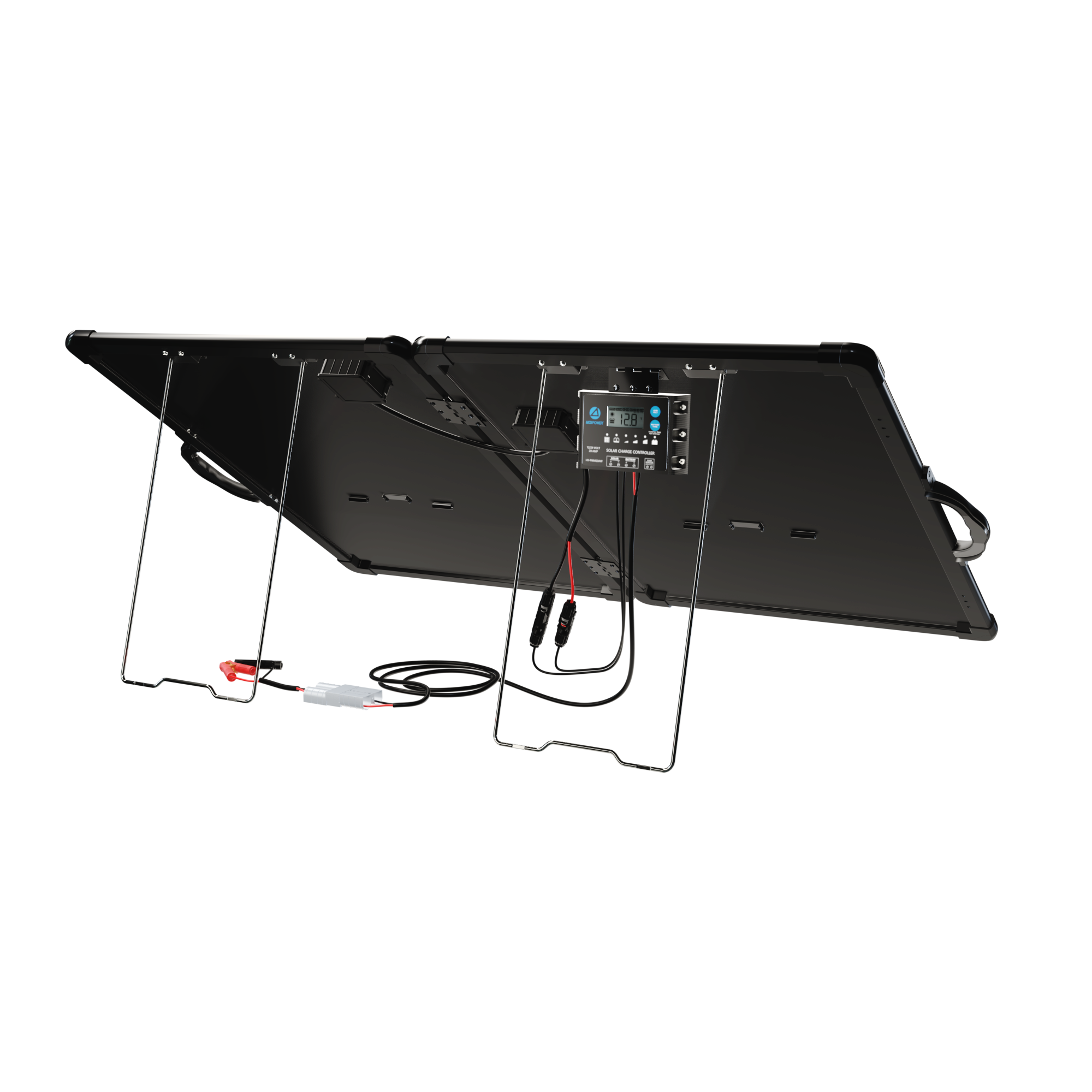

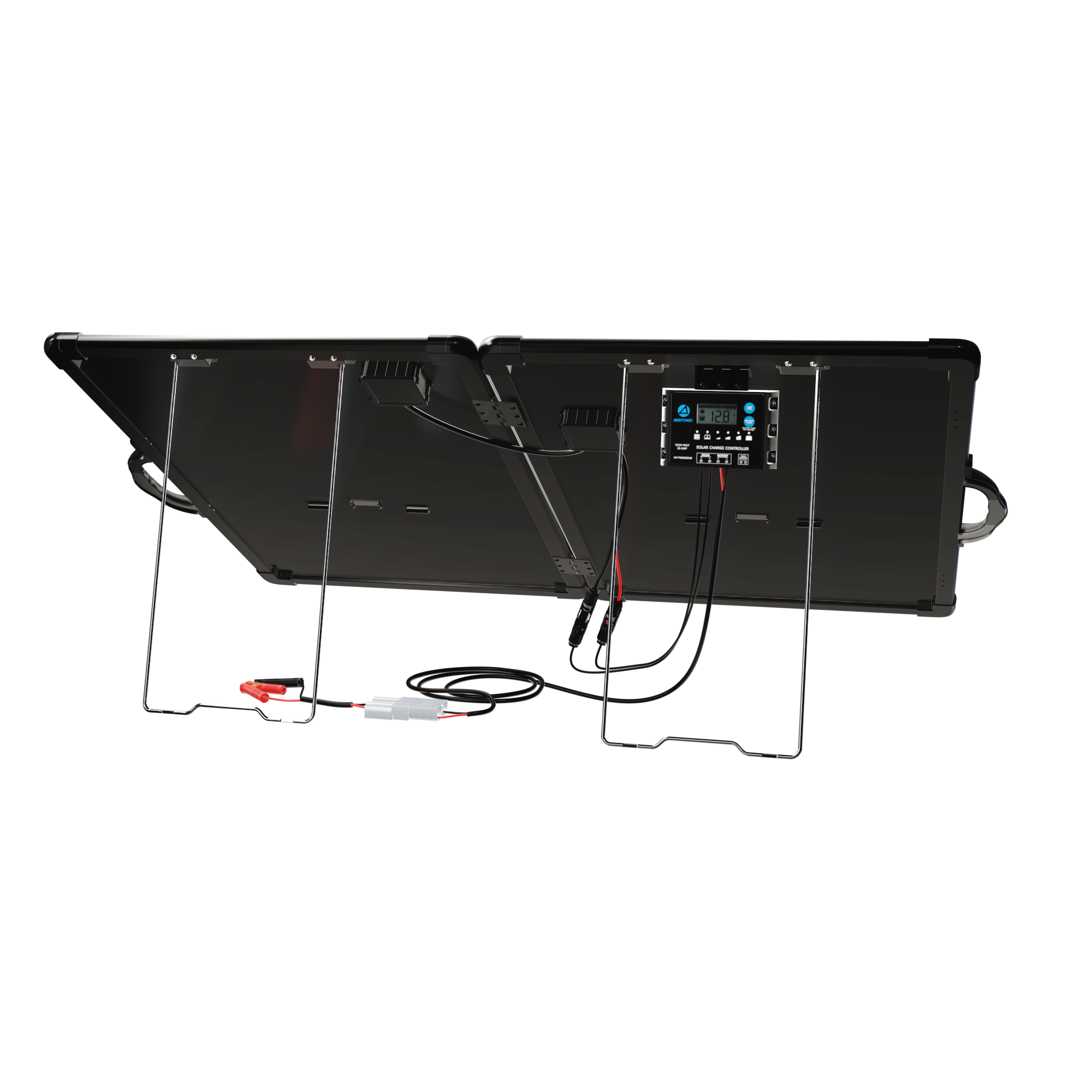

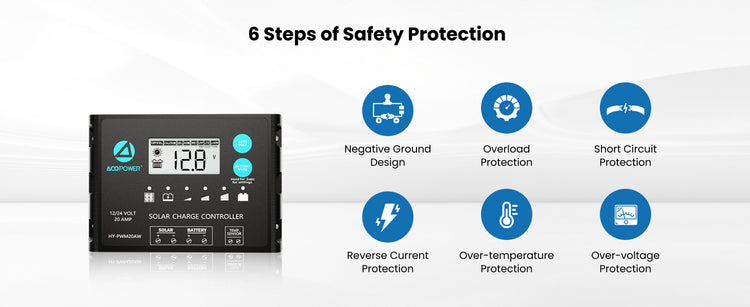

20A 12V/24V built-in 5-stage solar charge controller provides overcharge protection, reducing fire risk

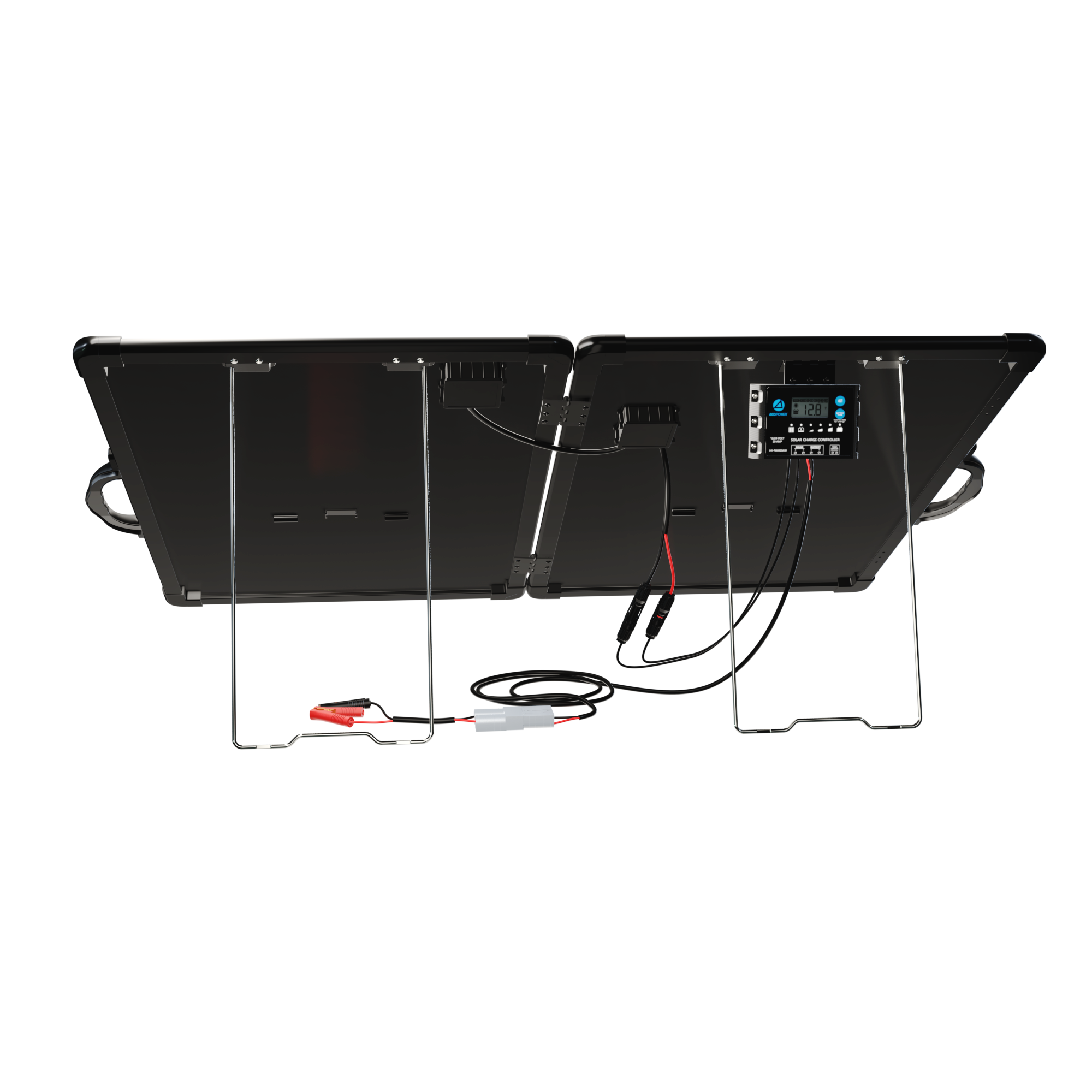

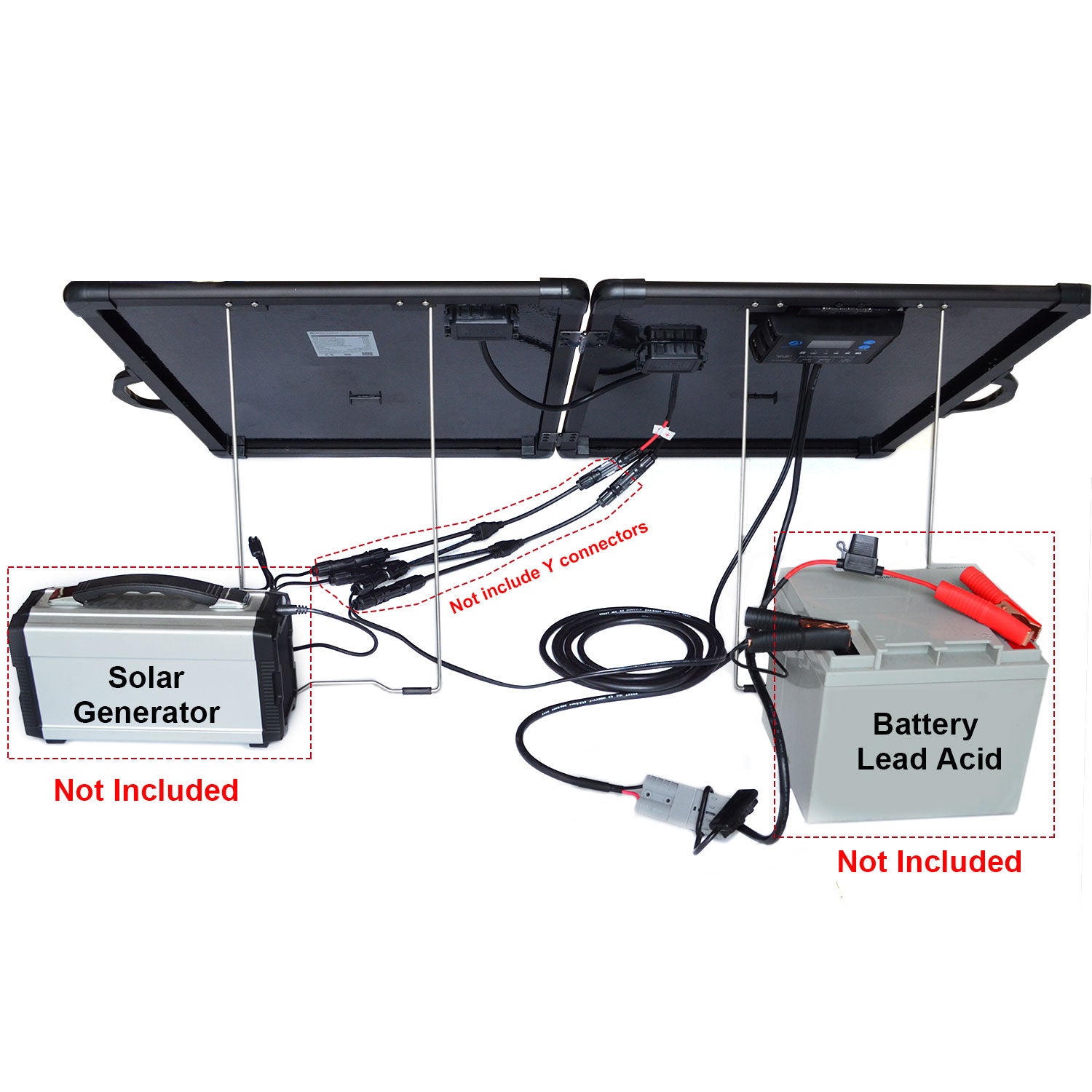

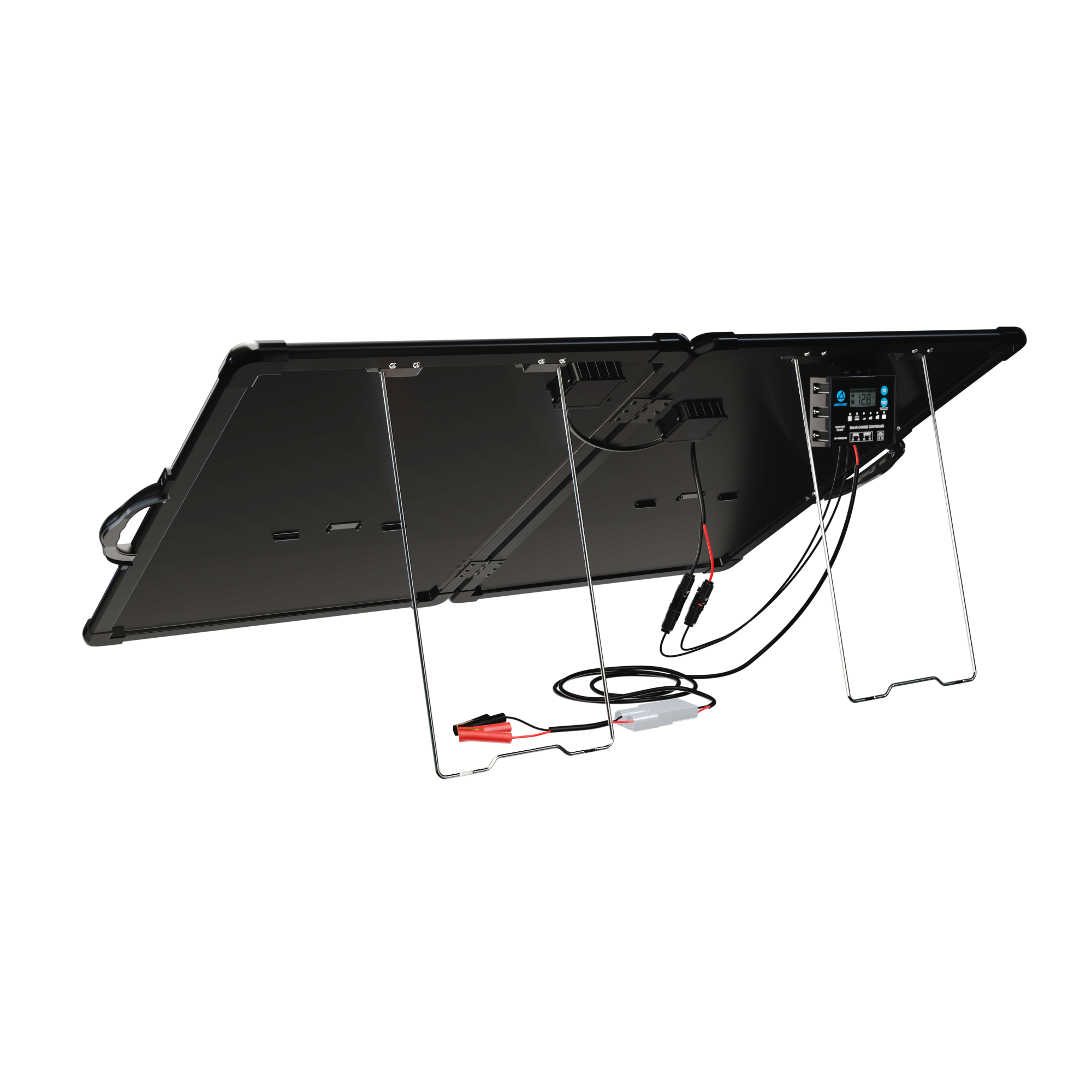

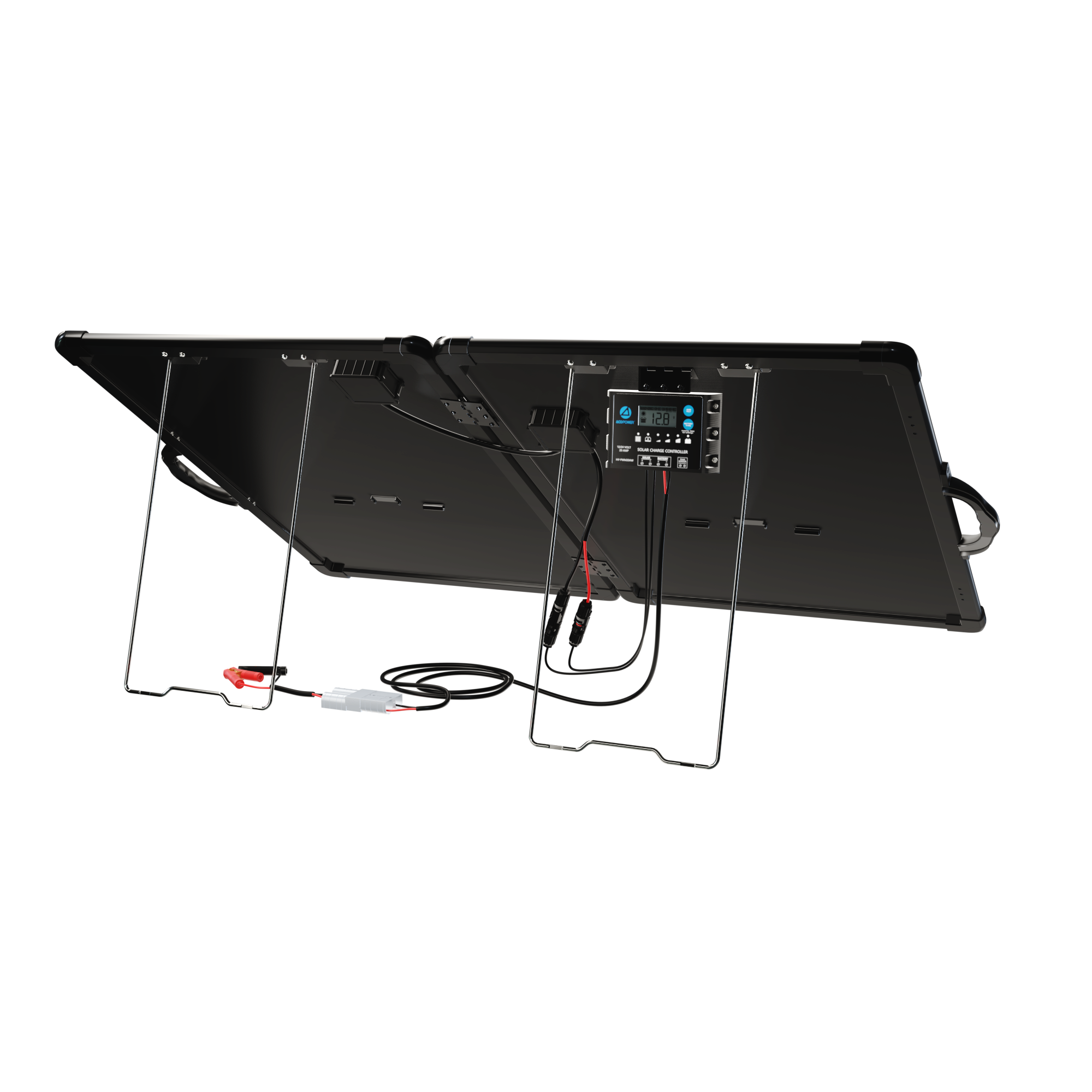

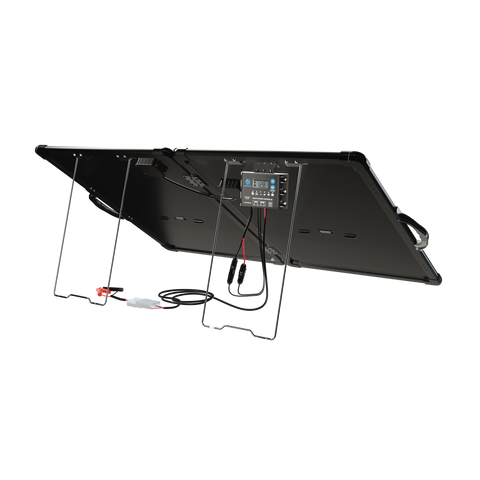

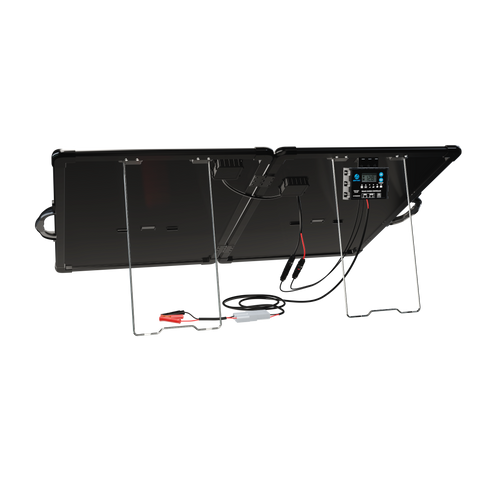

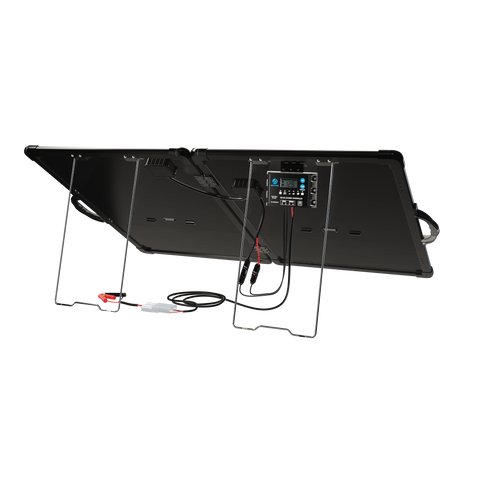

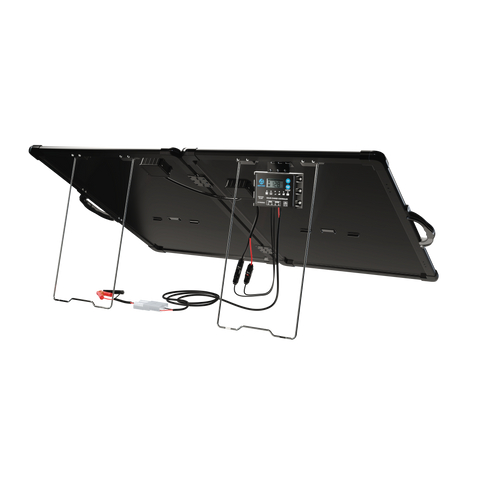

Expansible: 20A LCD waterproof charge controller pre-installed allows an expansion for totally 240W solar system. An adapter is needed for the expansion; Please refer to the manual;


Out of stock

Looking for the perfect off-grid renewable energy product? Well look no further! ACOPower is excited to bring you solar power and portability.

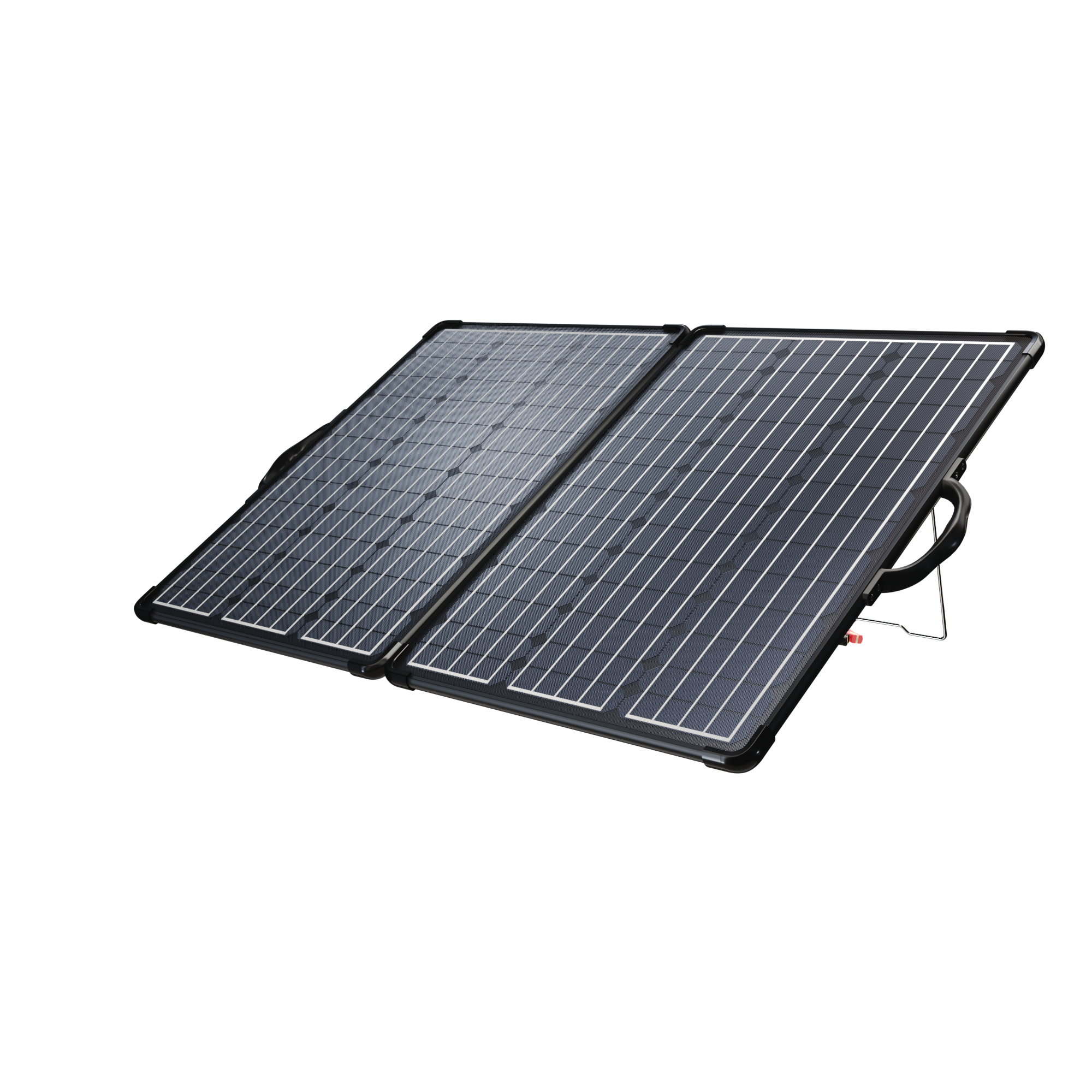

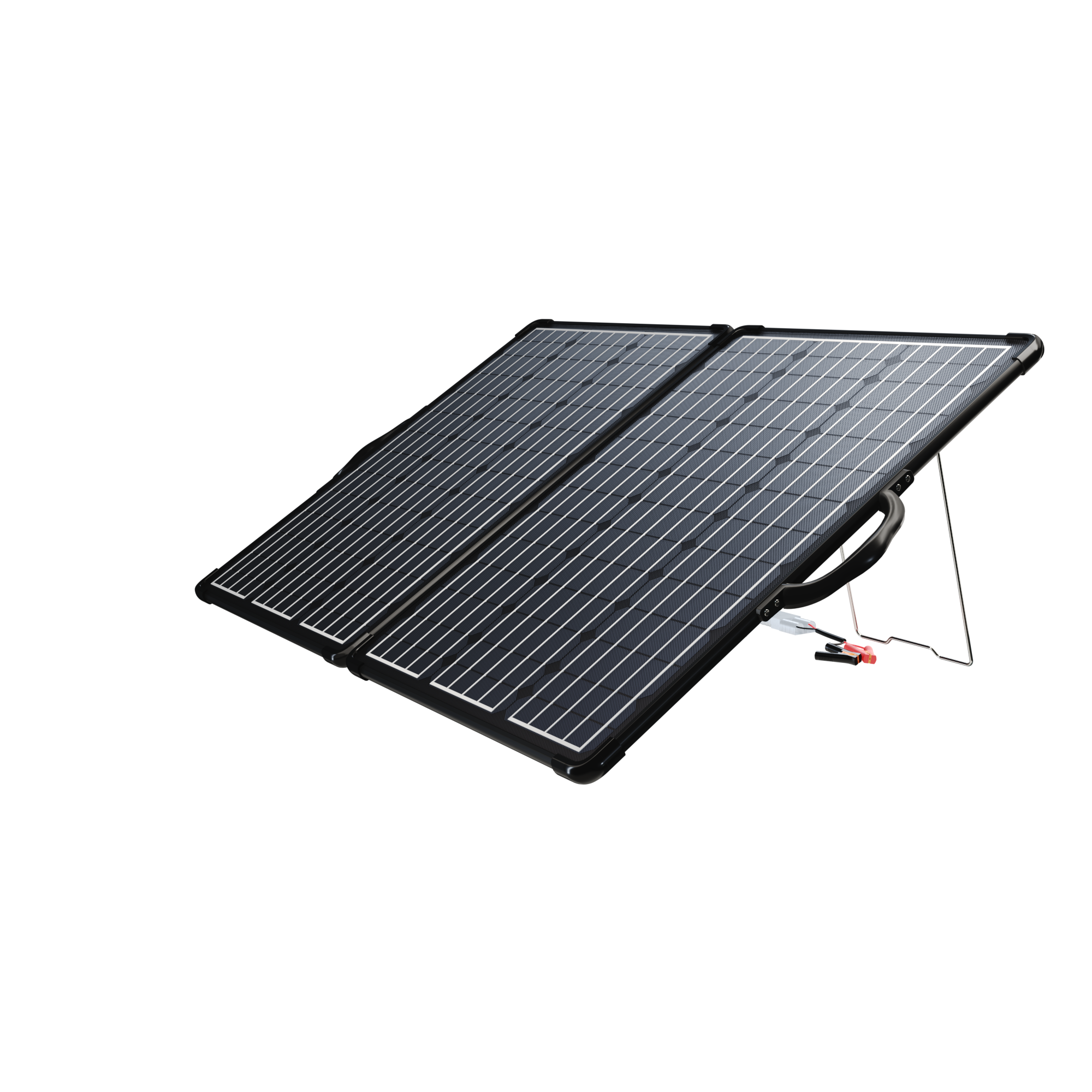

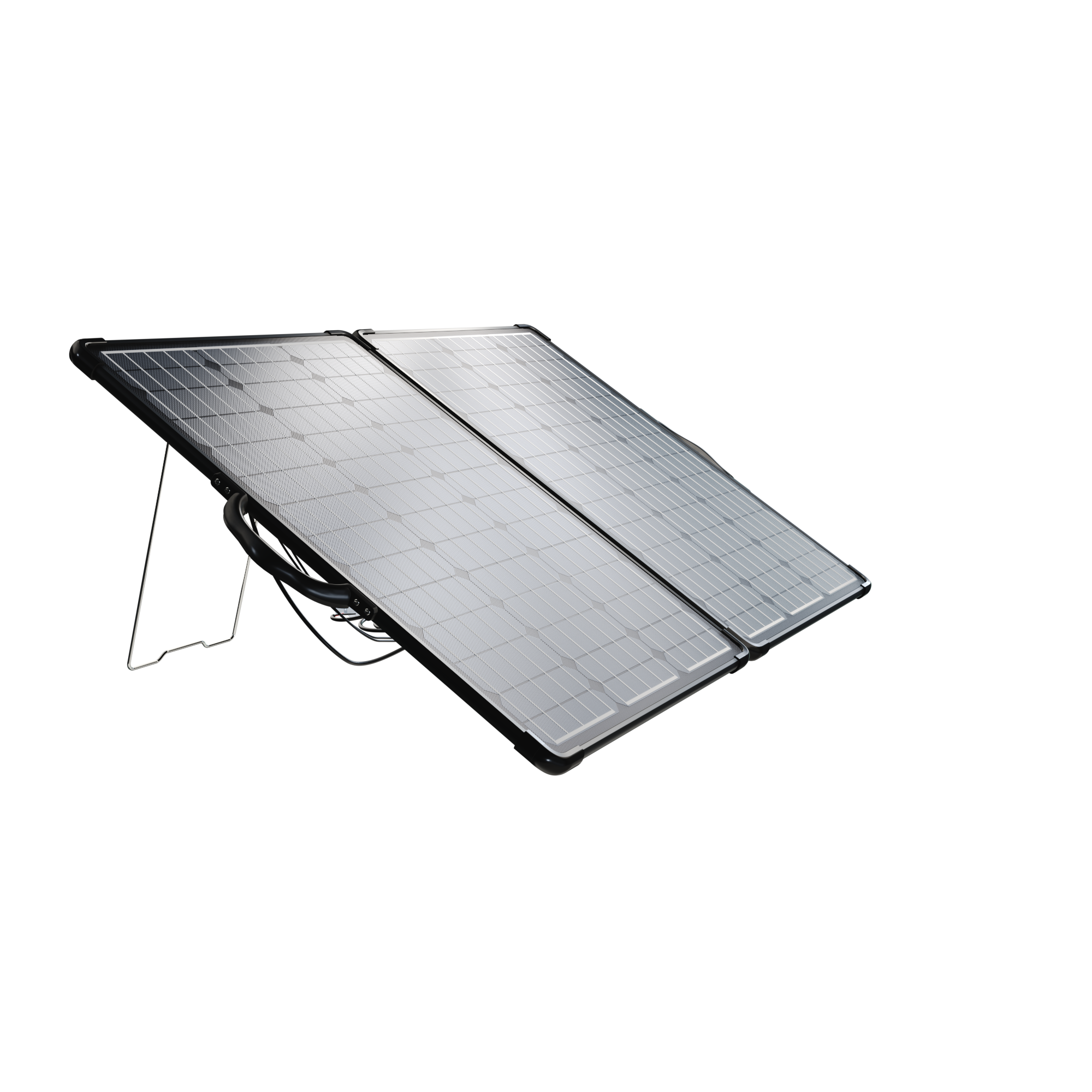

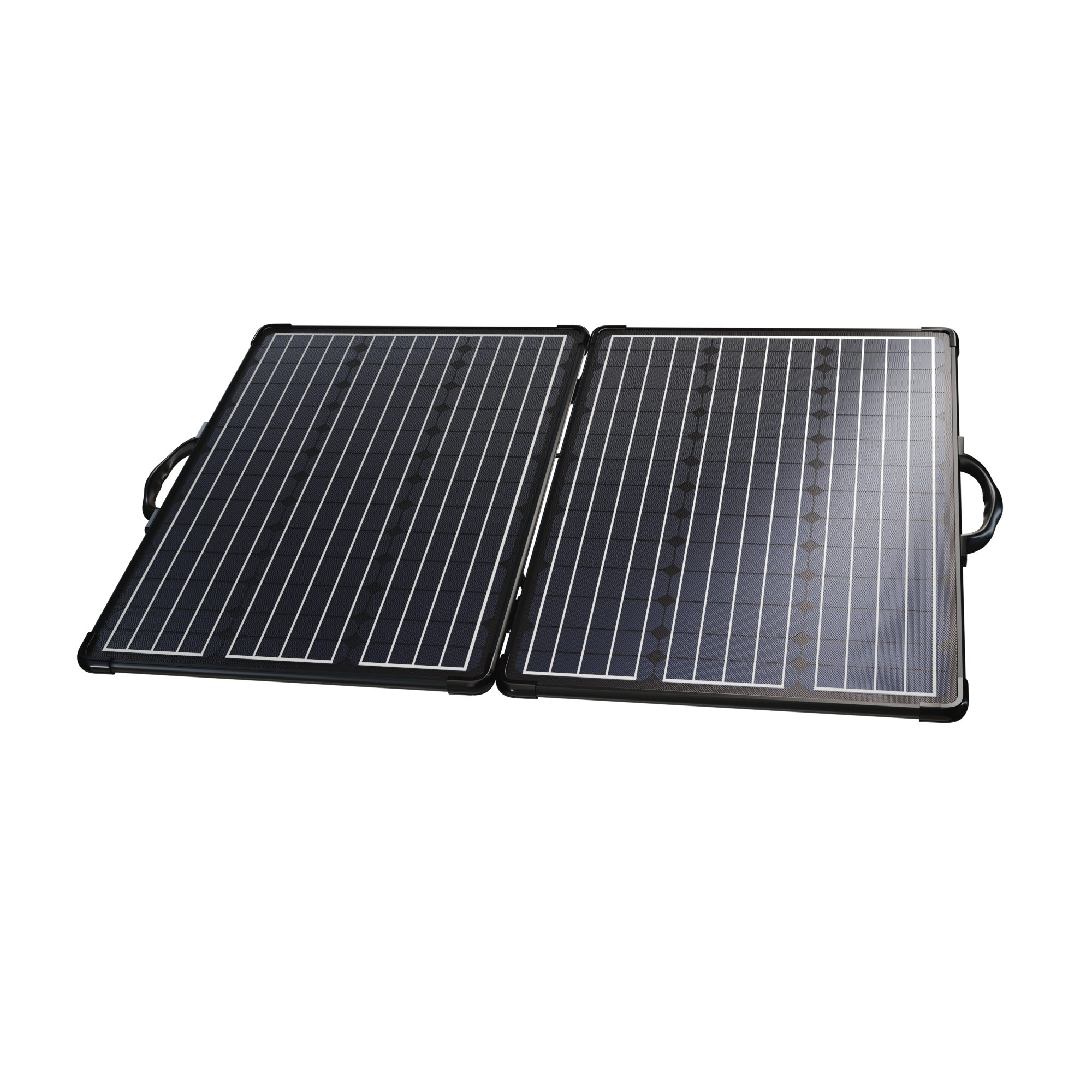

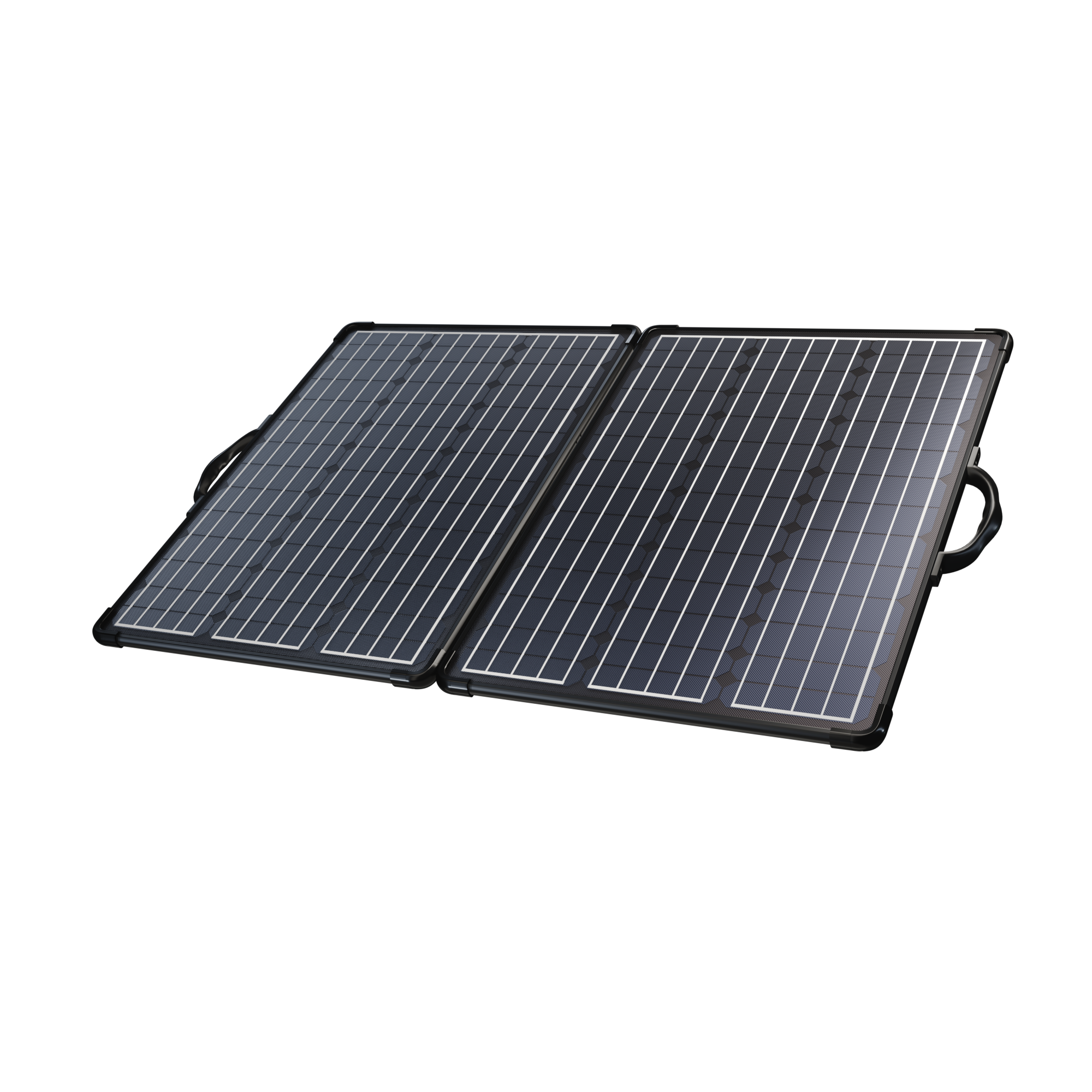

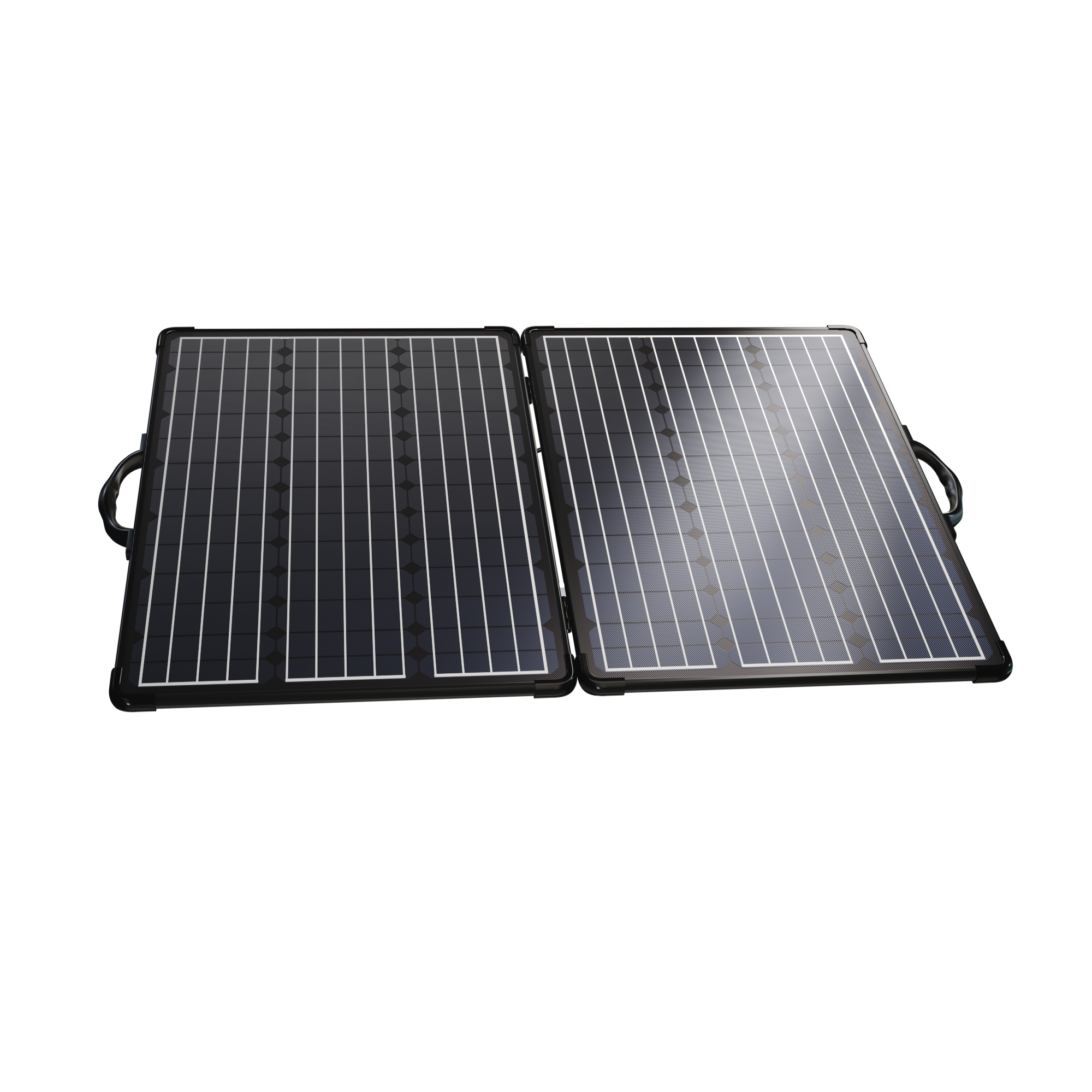

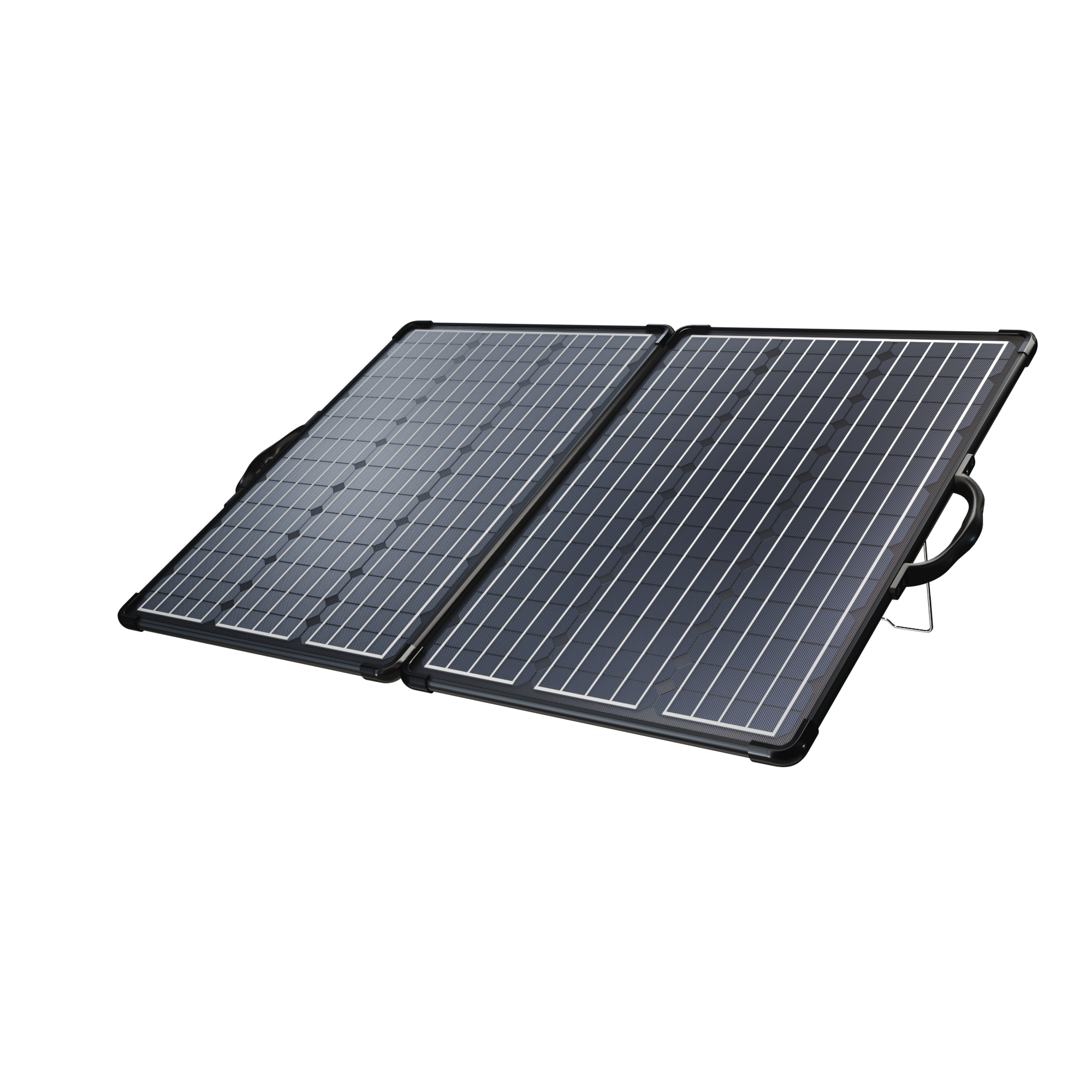

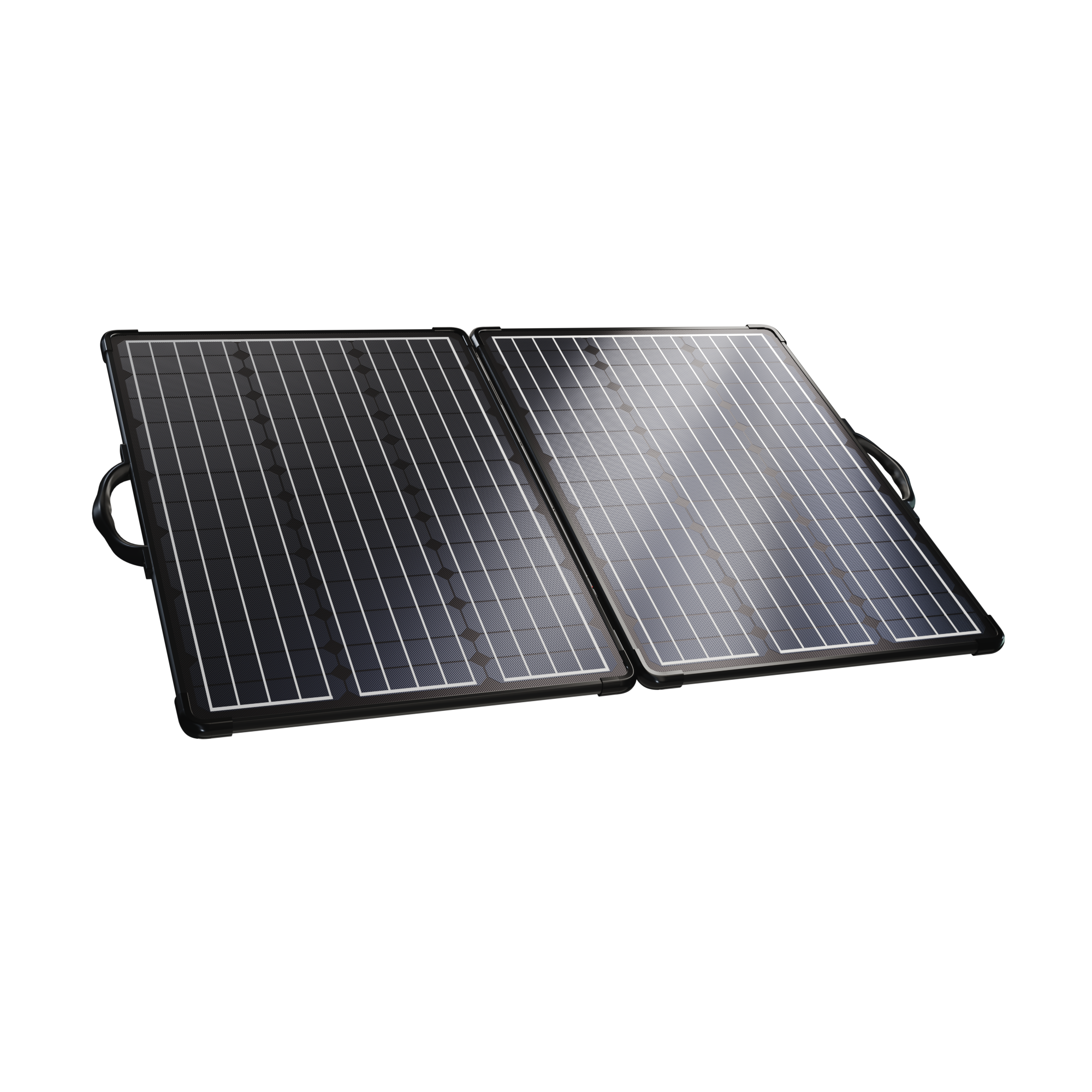

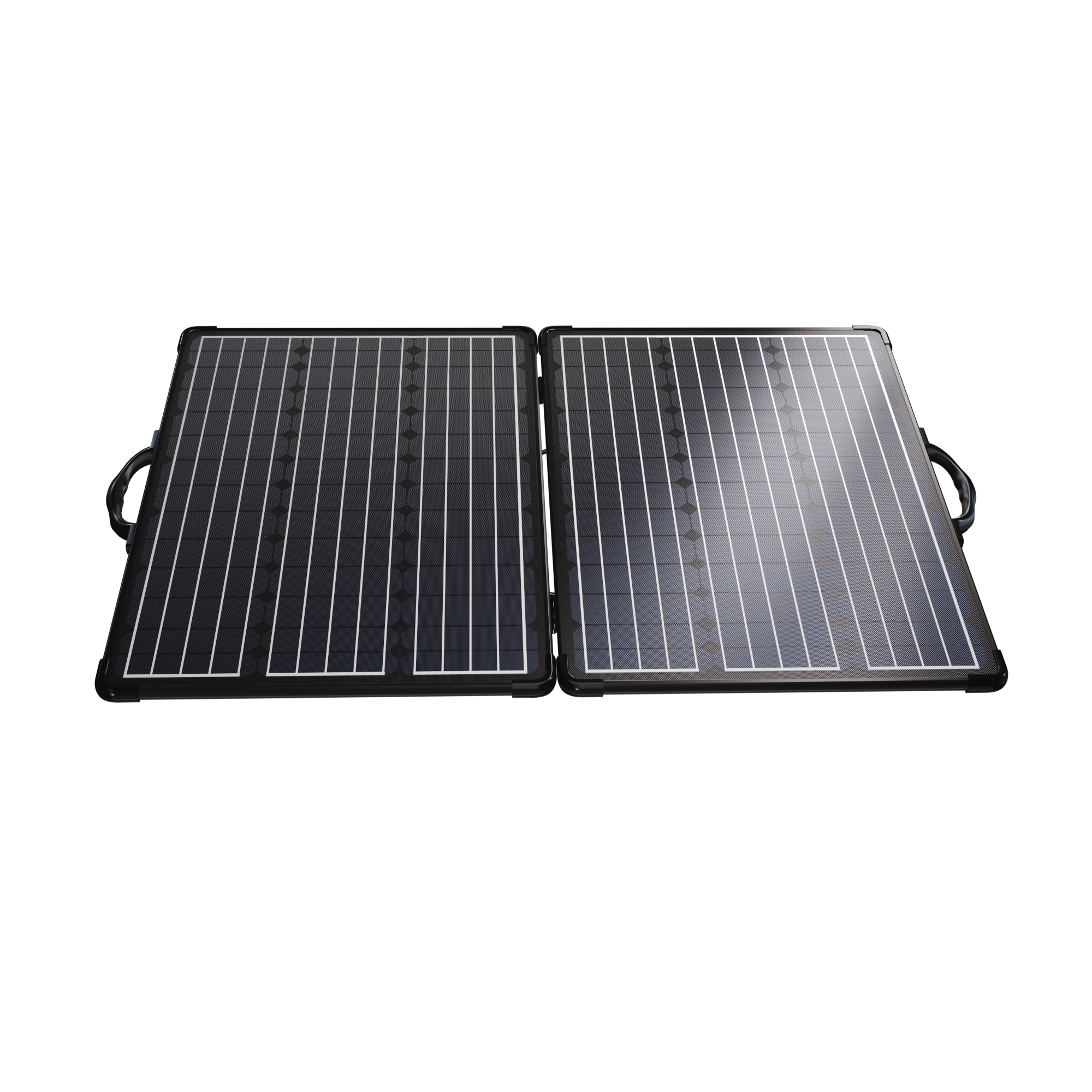

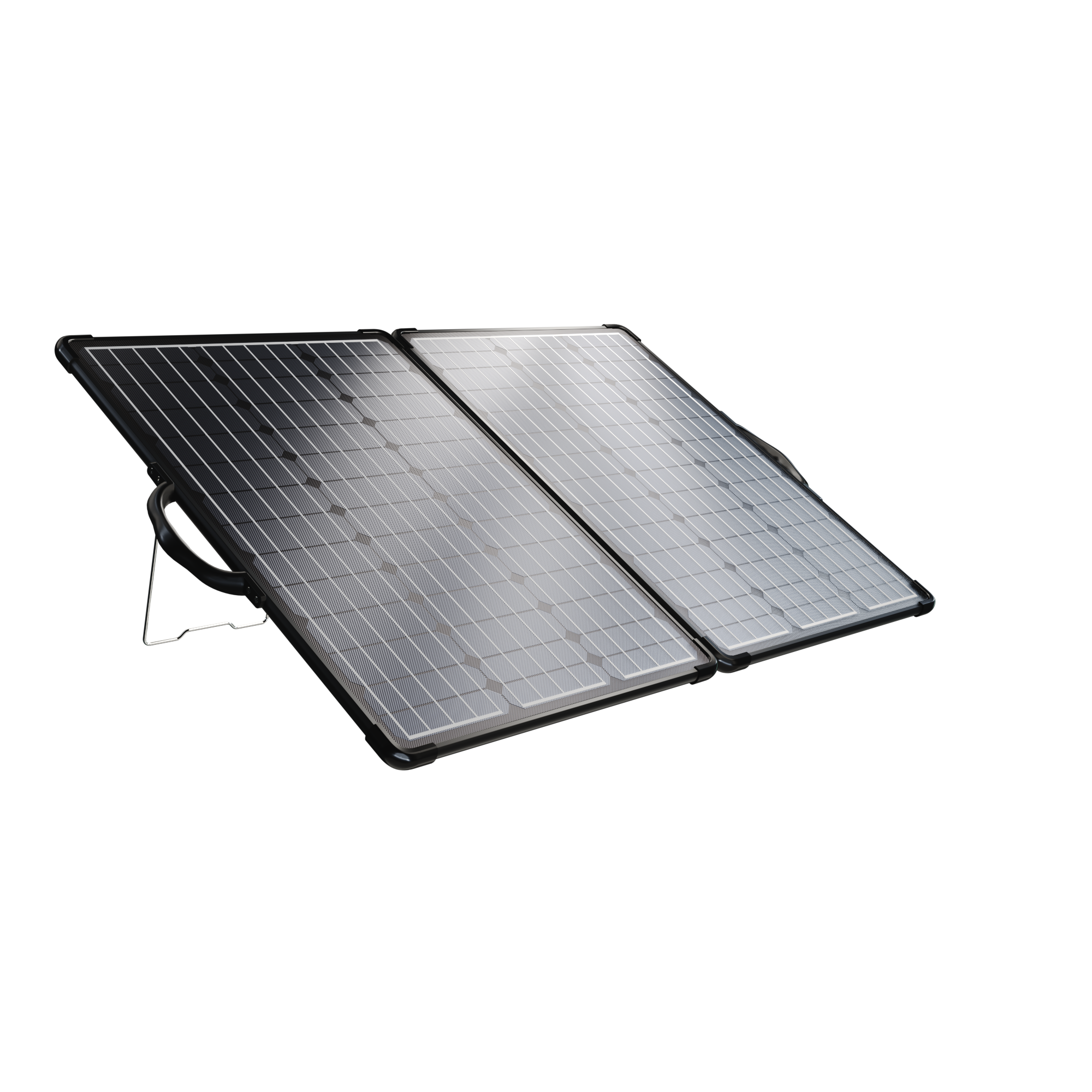

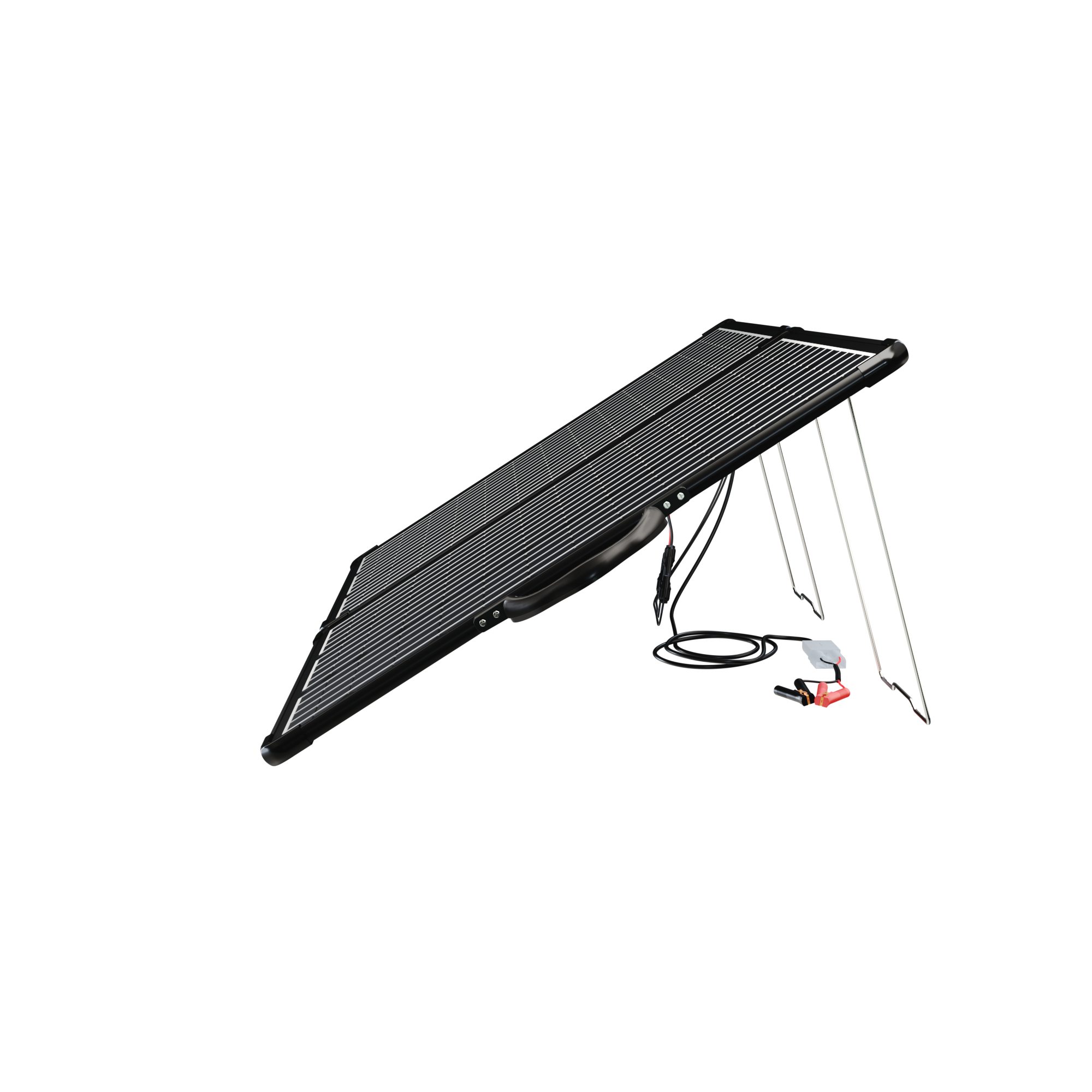

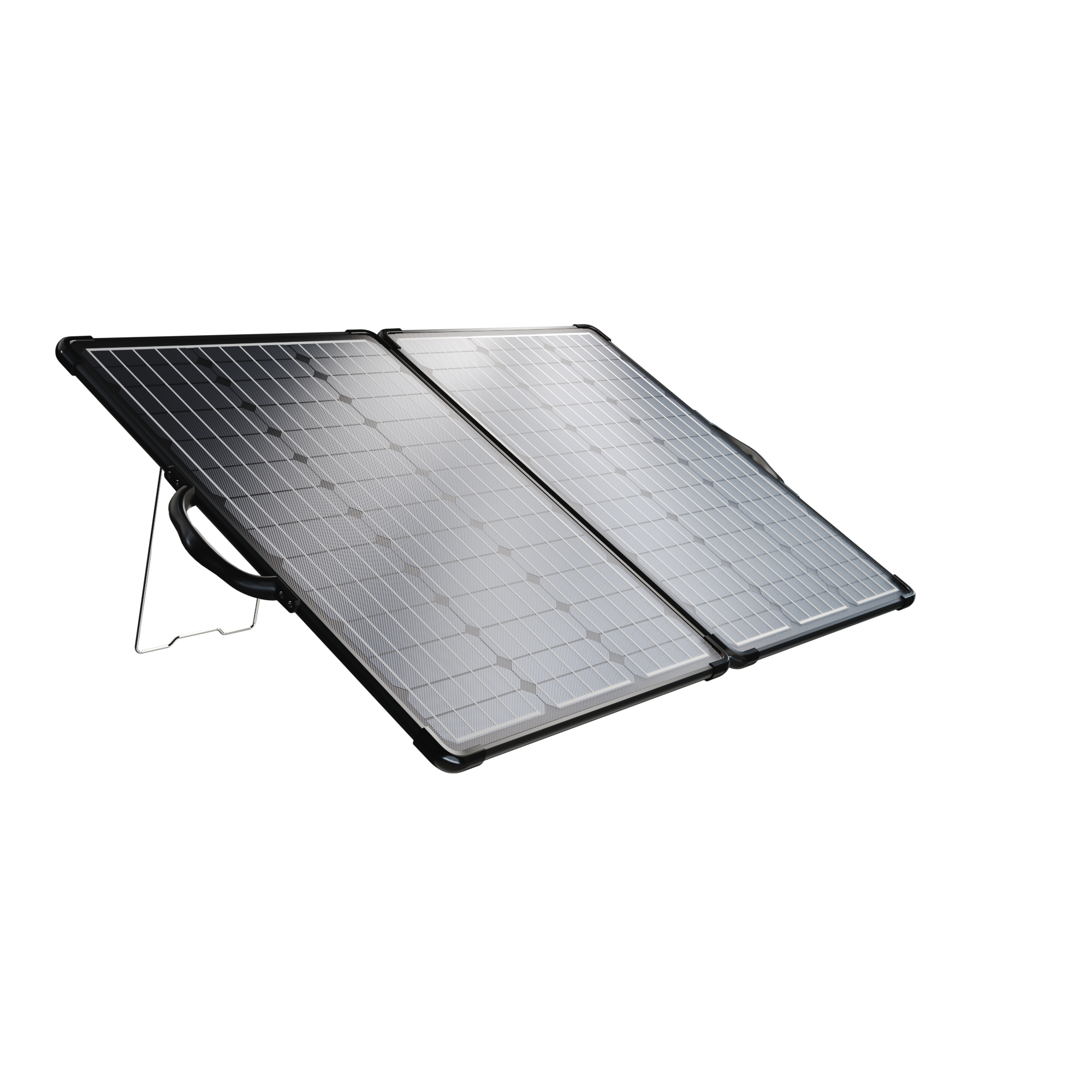

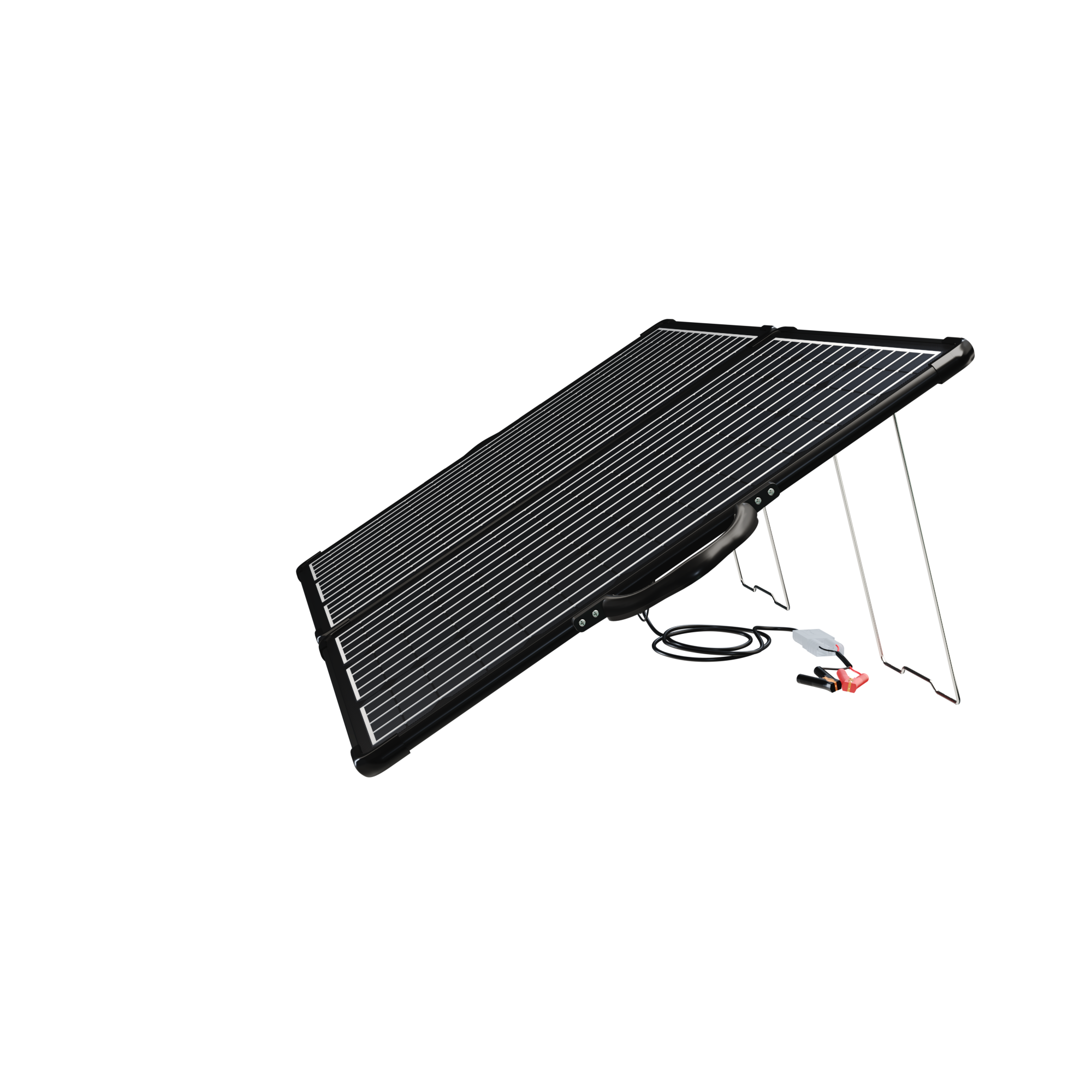

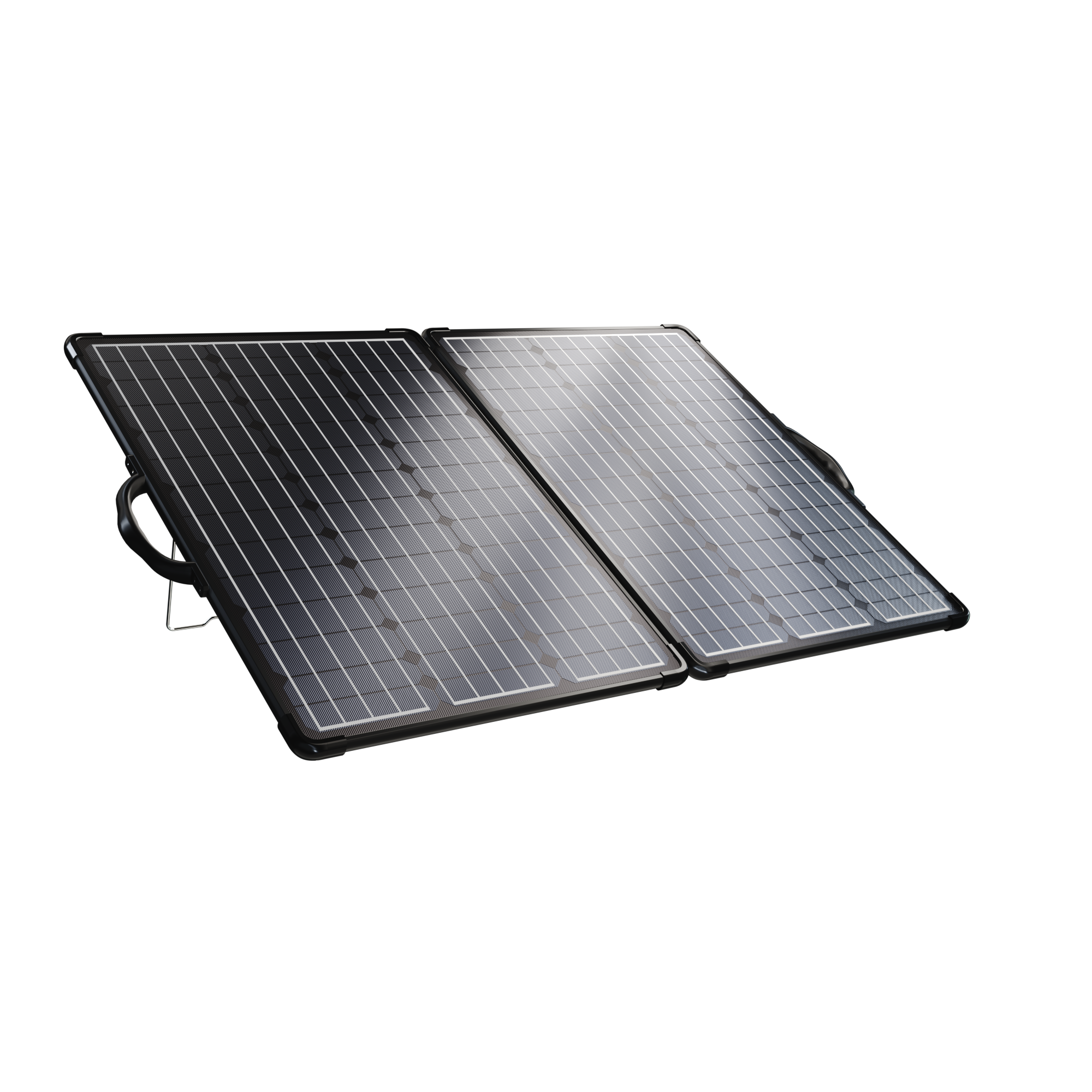

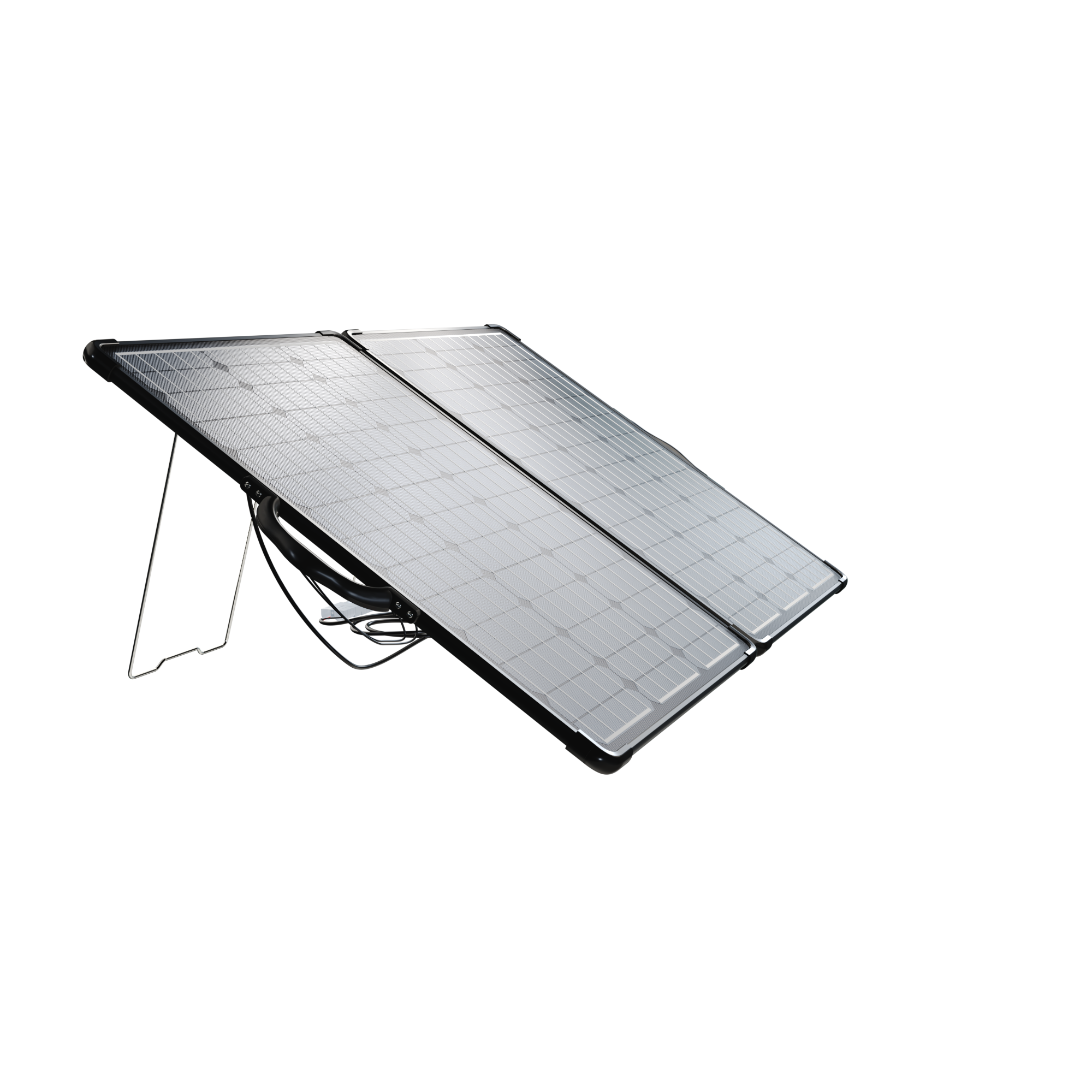

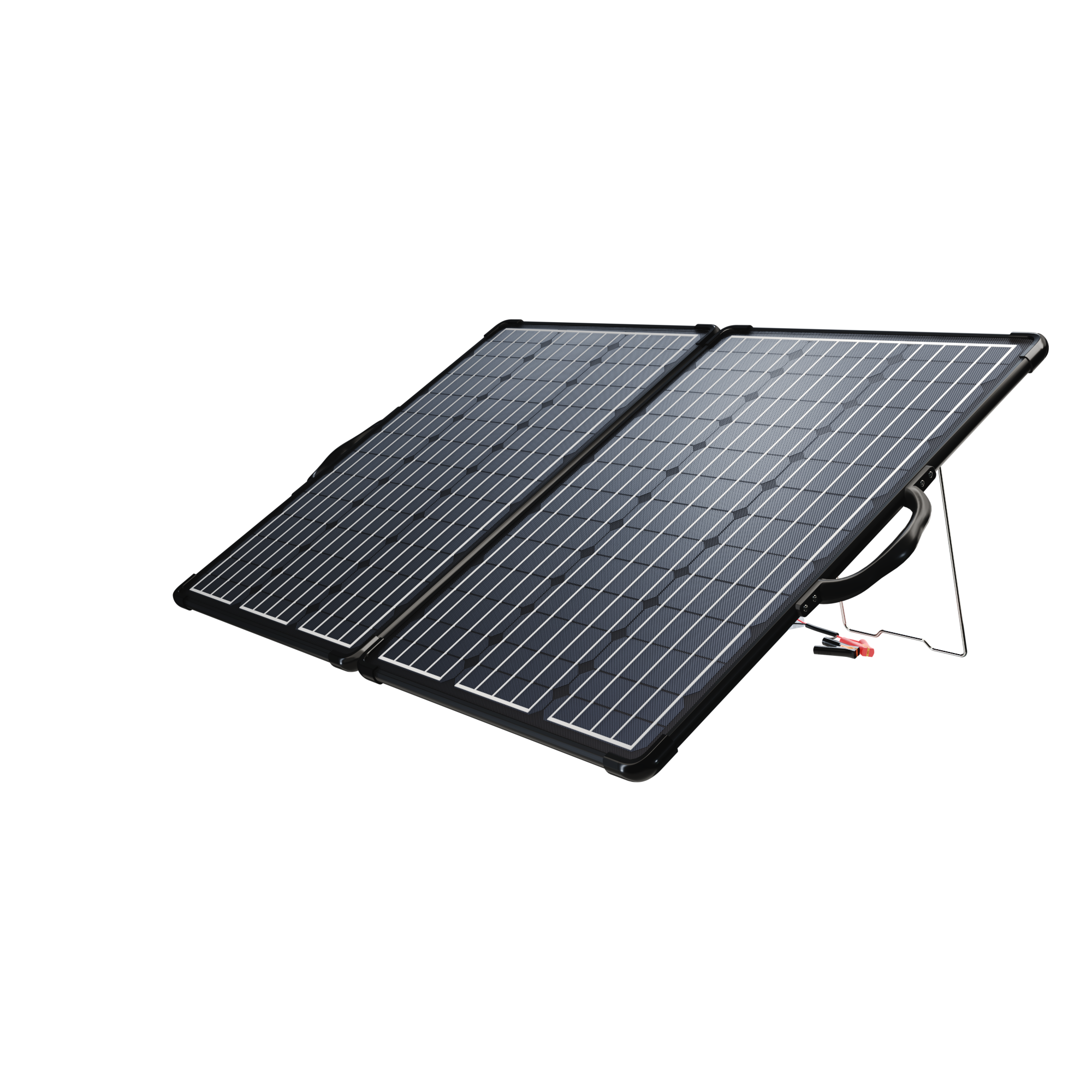

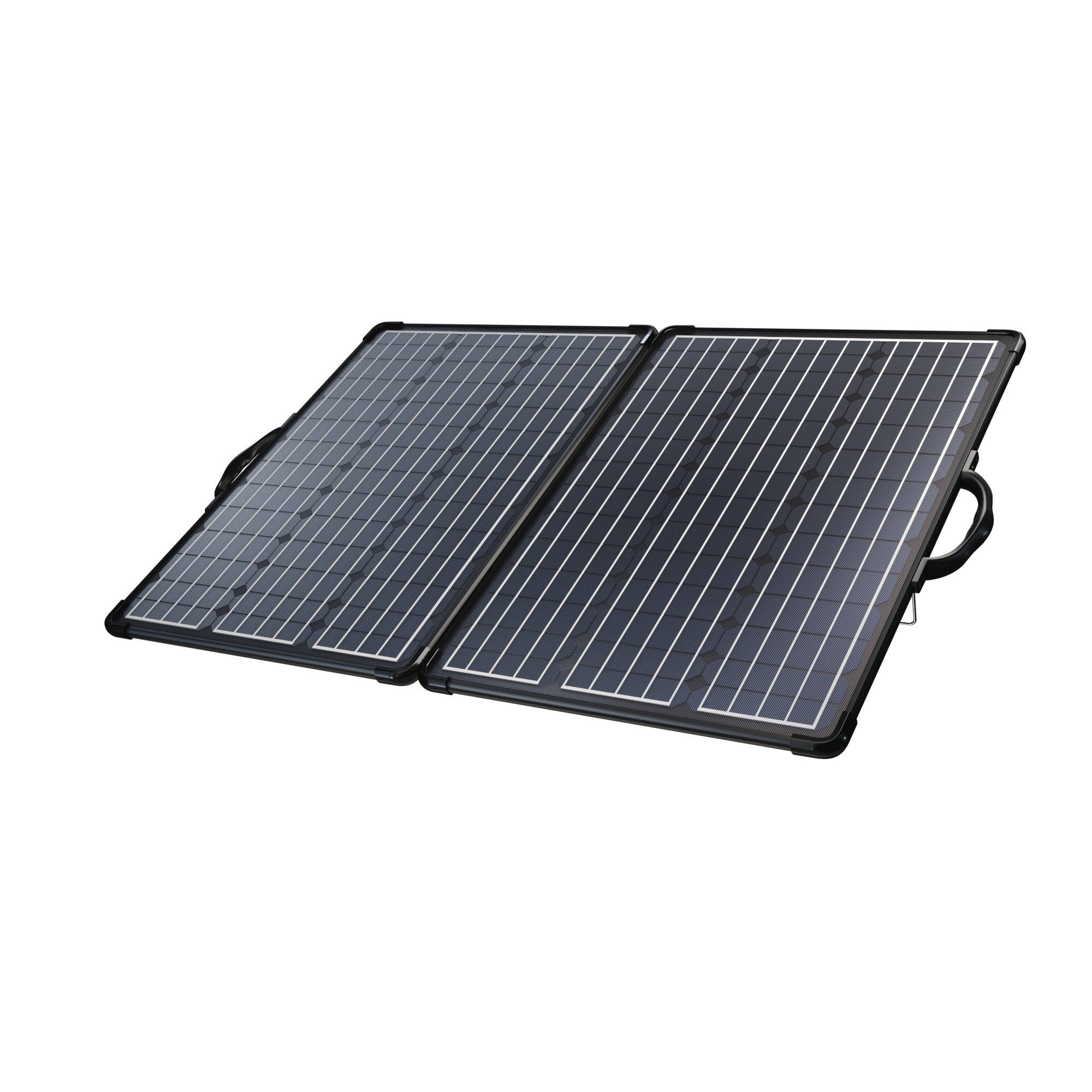

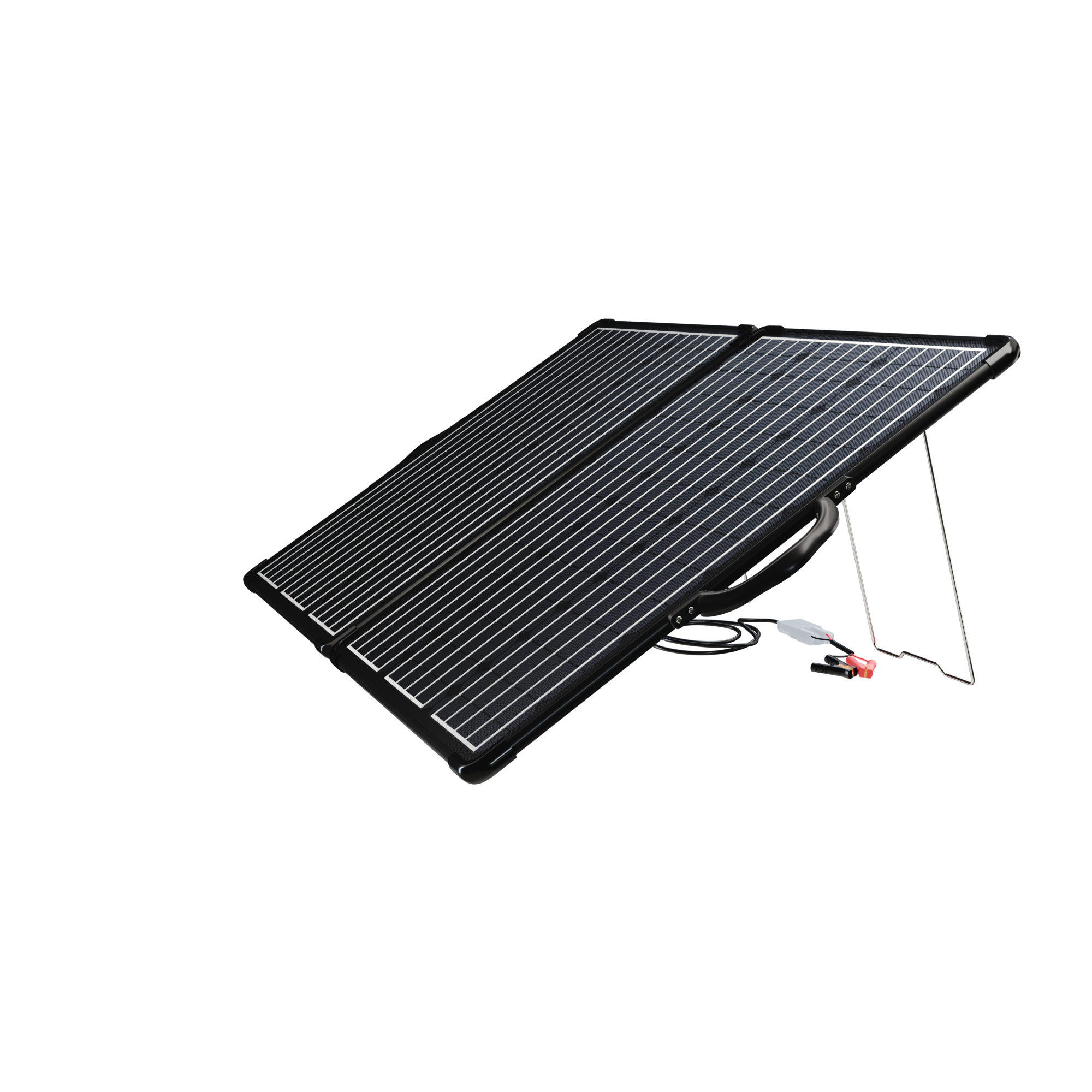

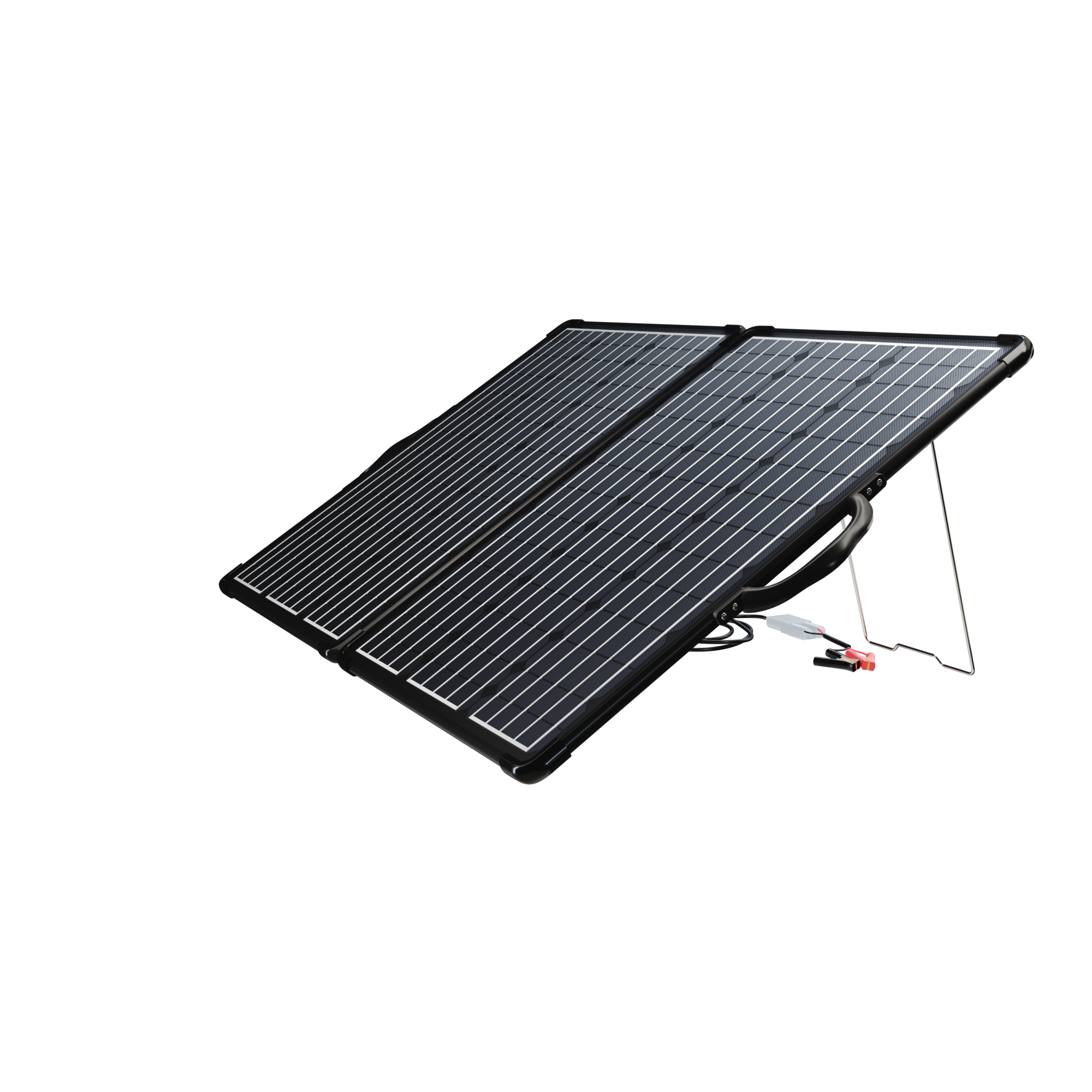

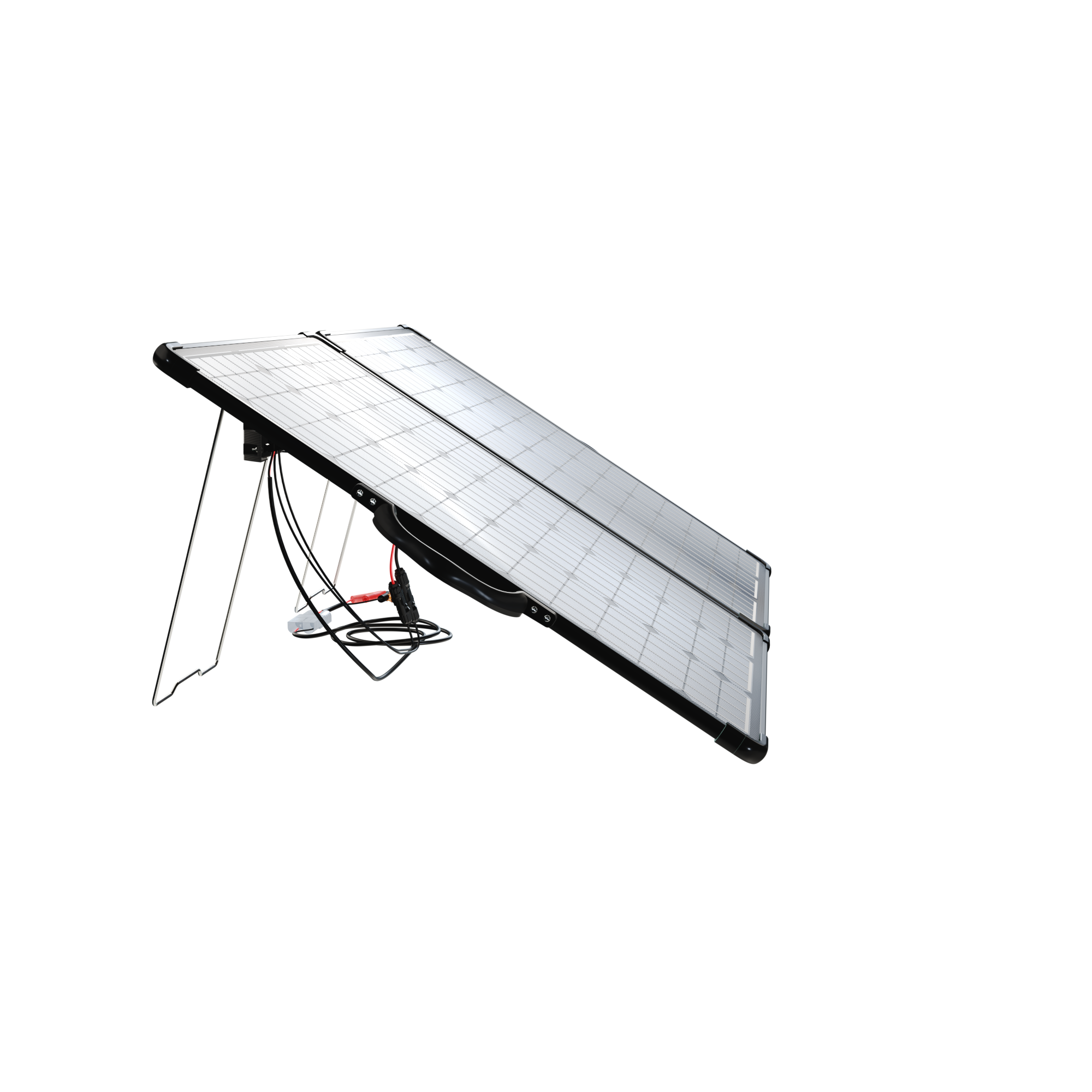

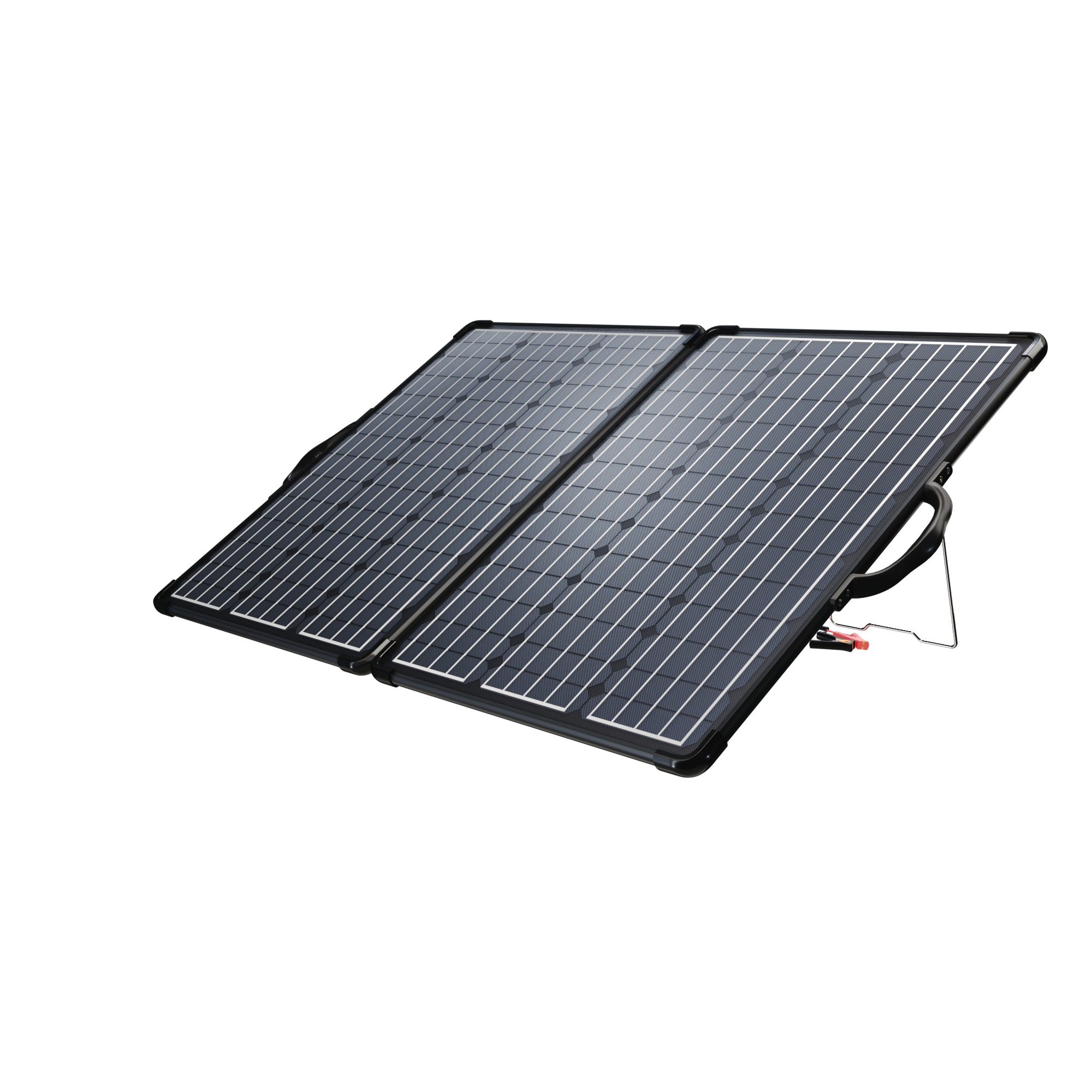

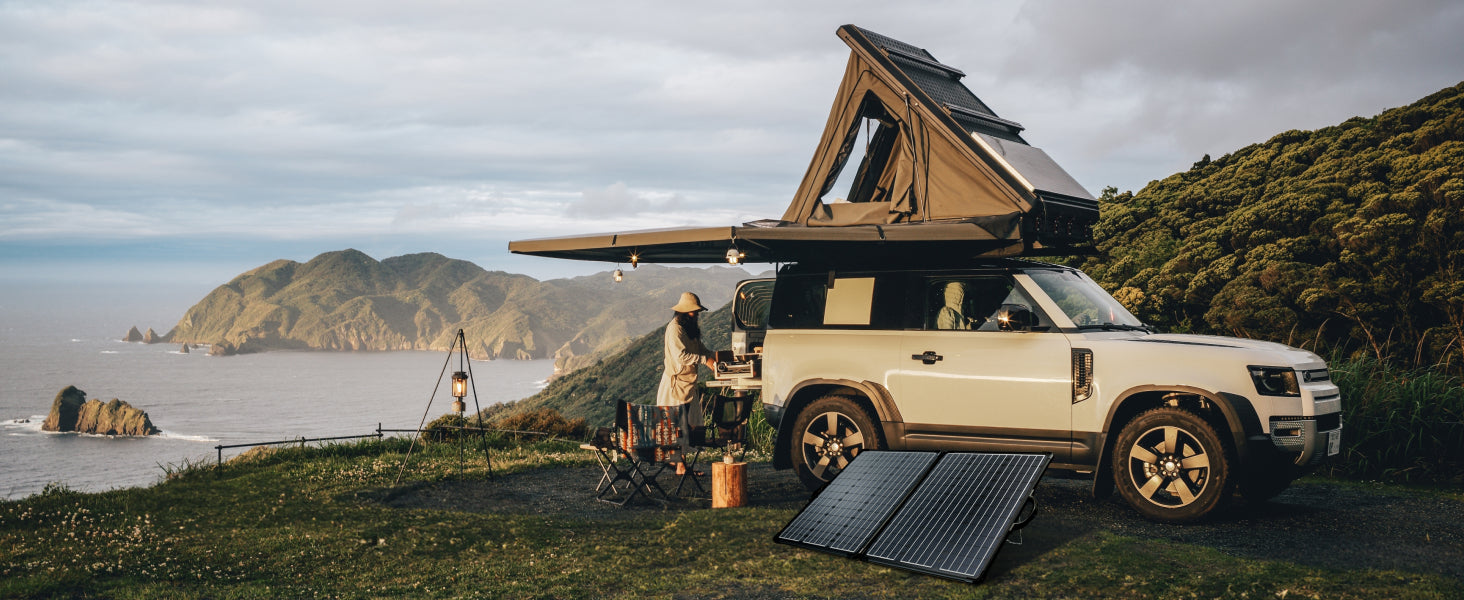

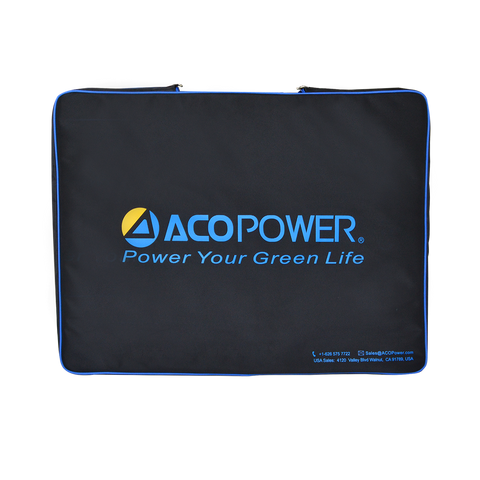

This portable solar panel is perfect for the adventurous traveler, providing both convenience and dependability when venturing off the grid. The ACOPower 100W Solar Suitcase comes with two 60W Monocrystalline Solar Panels, one set of wires with solar connectors, and one protective soft case for safe portability. Along with the adjustable aluminum stand, latches, and heavy duty handle, this 120W Solar Suitcase will change the way the world looks at portable power.

Higher Module Efficiency

The ACOPower solar panels use Grade A+ solar cells,multi-layered sheet laminations enhance cell performance and provide a long service life.

Small Size Easy for Carrying and Storage

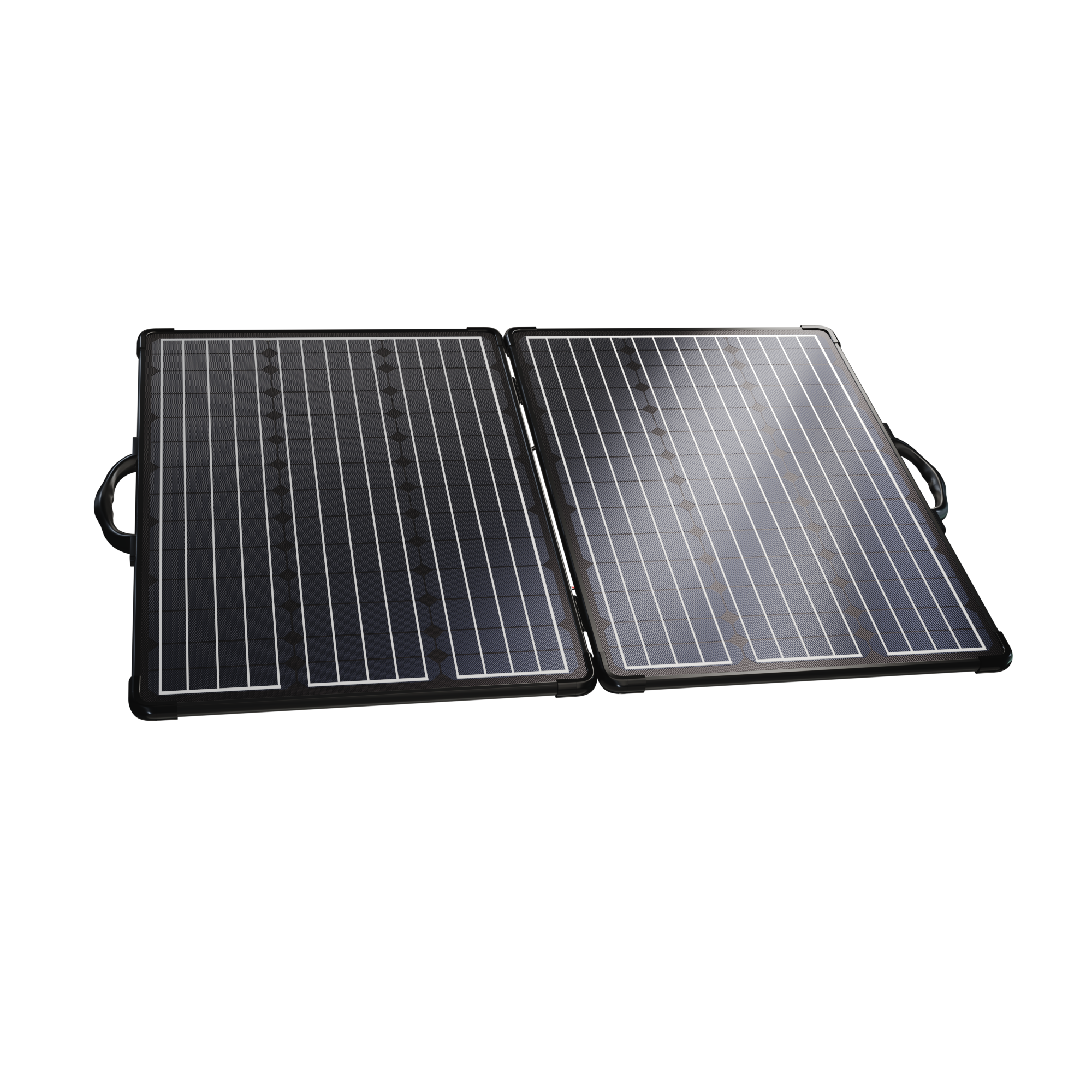

Folding design minimizes in size, allows the suitcase can be easy to carry around, or stored in any gap in your RV or van without taking much space.

Fully Waterproof Design Ideal for Outdoor Use

This suitcase includes two fully waterproof IP66 rated 60W monocrystalline solar panels. No worry about rainy days and applicable to a wider range of scenarios, such as marine, yacht, fishing, etc.

NOTE

  • If you have any questions regarding this product, please call us at 1 (626) 575-7722 or or submit a ticket for troubleshooting assistance.
  • More questions about your off-grid power system? Learn more from ACOPower Learning Center

ACOPower Plk 120W Portable Solar Panel Kit

1 x

20A ProteusX Waterproof PWM

1 x

ACOPOWER 120W Foldable Solar Panel
Module Type: 2×60WMaximum Power: 120W
Open-Circuit Voltage (Voc): 23.4VMaximum Operating Voltage (Vmp): 19.8V
Short-Circuit Current (Isc): 6.42AMaximum Operating Current (Imp): 6.06A
Folded size: 24.2x20.3x1.97 in / 615×515×50mmUnfolded size:
Weight: 13.9 lbs / 6.3kg
20A Solar Charge Controller
Nominal Voltage: 12V/24V DCRated Charge Current: 20A
Max. PV Input Voltage: 50VGrounding: Common Negative
Battery Start Charging Voltage: 3VTemperature Compensation Coefficient: -24mV/°C
Operating Temperature: -40°F to 140°FStorage Temperature: -40°F to 185°F
Terminals: Up to 10 AWGEnclosure: IP65
Dimensions: 5.59x 3.7x 1.06 inchesWeight: 1.1 lbs
WARRANTY INFORMATION
Panels: The solar panel itself comes with an 18-months workmanship warranty and a 25-year 85% output warranty.
Accessories: 1-year material warranty
