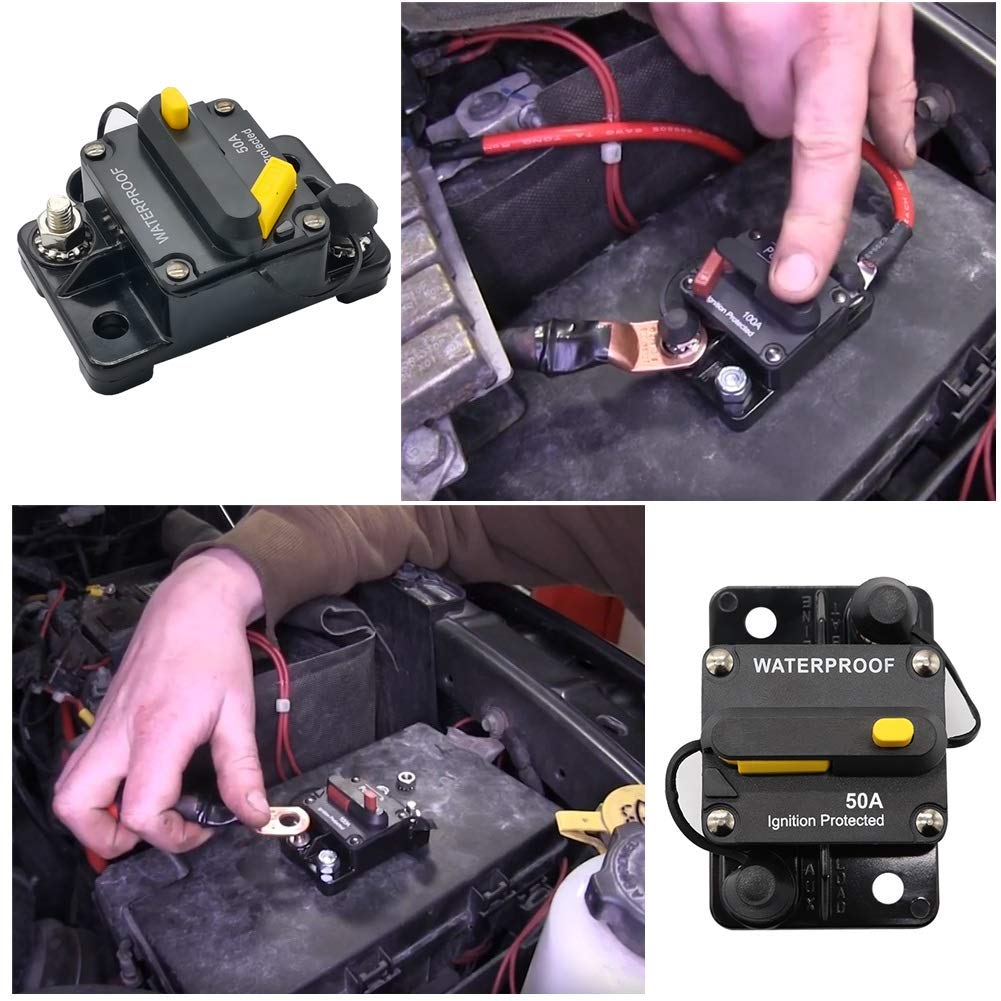

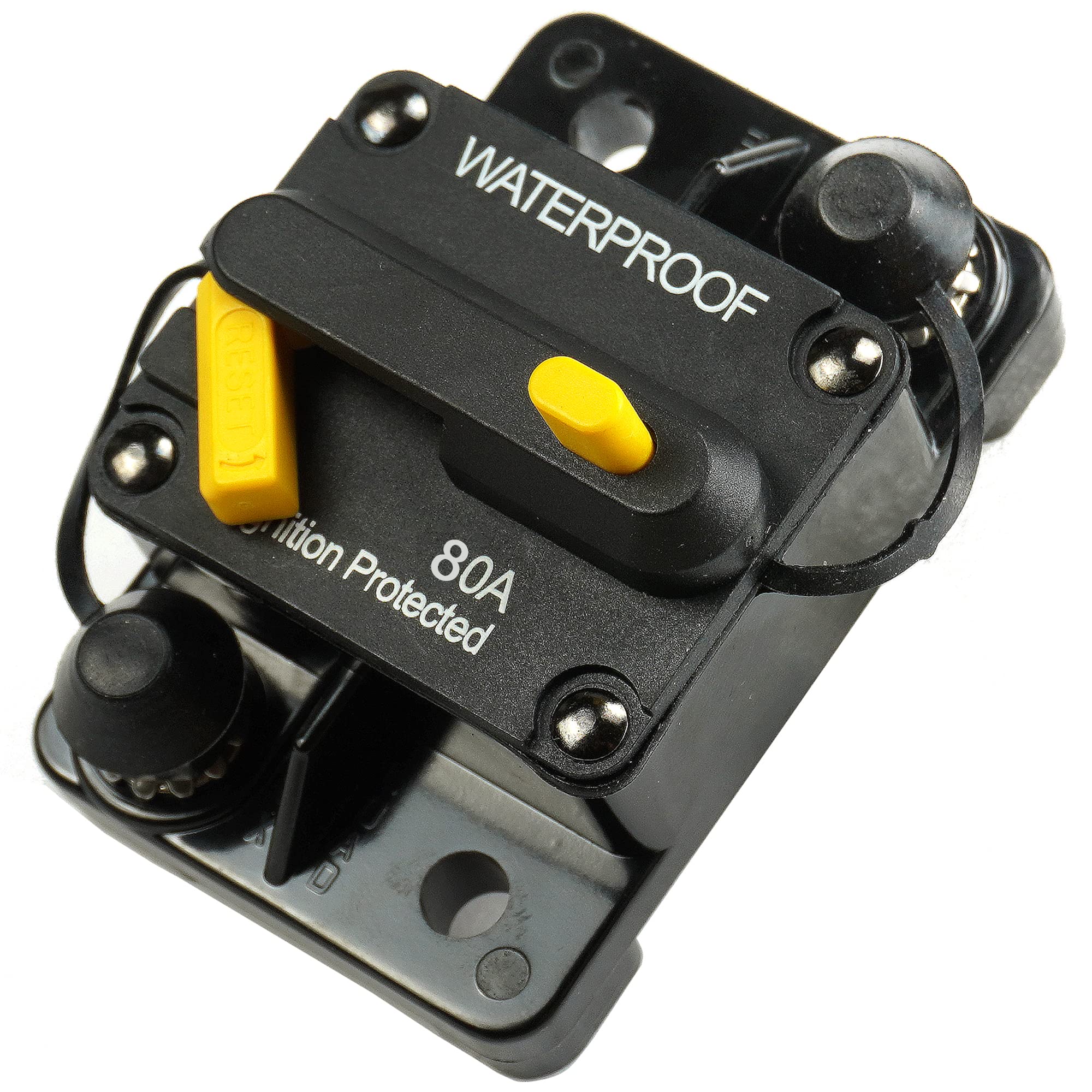

ACOPOWER 80 Amp Circuit Breaker

This is 12-48V DC, 50/80/100/150/200/250 Amp Circuit Breaker, has been designed to end the struggle of blowing fuses,
and hassle of having to install more. A Yellow arm will deploy when the circuit is tripped, then just simply reset the circuit

Rated current: 50/80/100/150/200/250 Amp

Rated voltage: 12-48VDC Maximum
2,500A @ 14Vdc (25-200A)
1,500A @ 48Vdc (25-200A)
1,500A @ 14Vdc (225A-300A)

Reset Type:T3, Manual

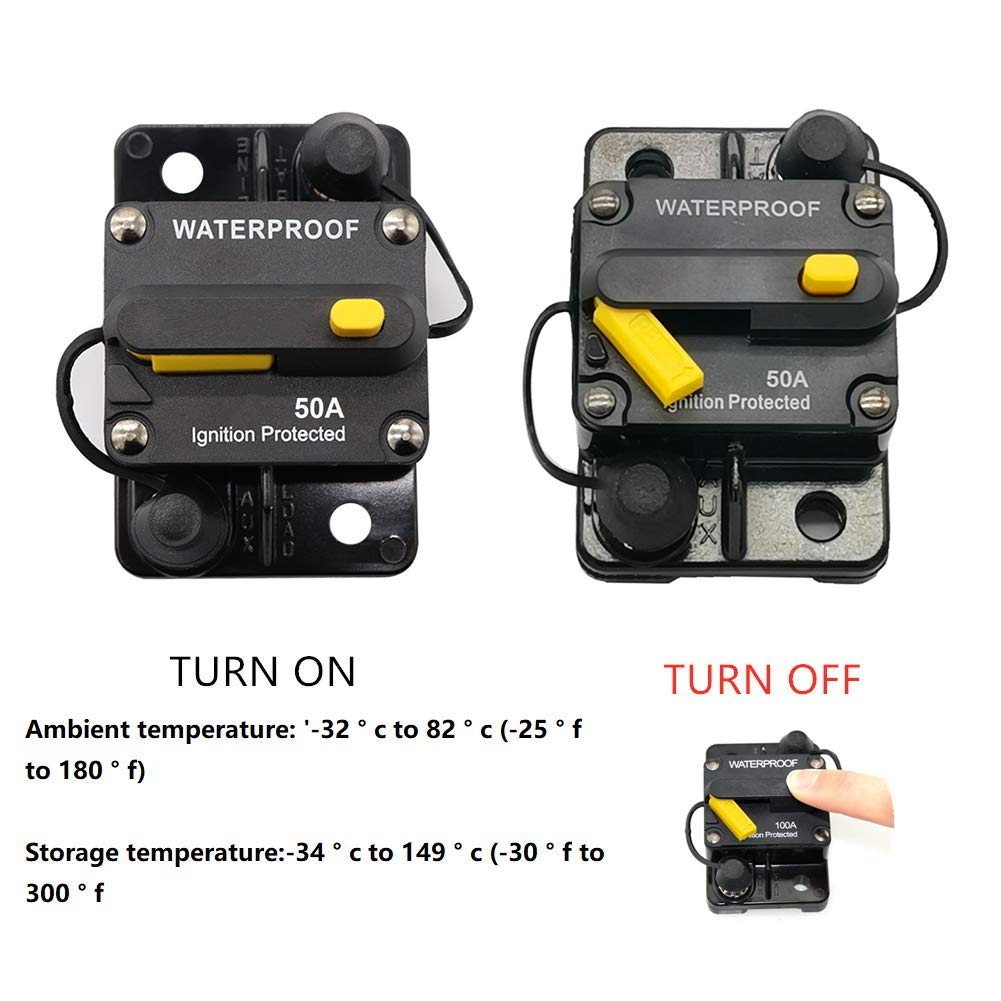

Operating Temperature:-32oC (-25oF) to 82oC (180oF)

Regulatory Sepcification:SAE J1625; SAE J1171; UL 1500; ABYC E-11; CE; IP67

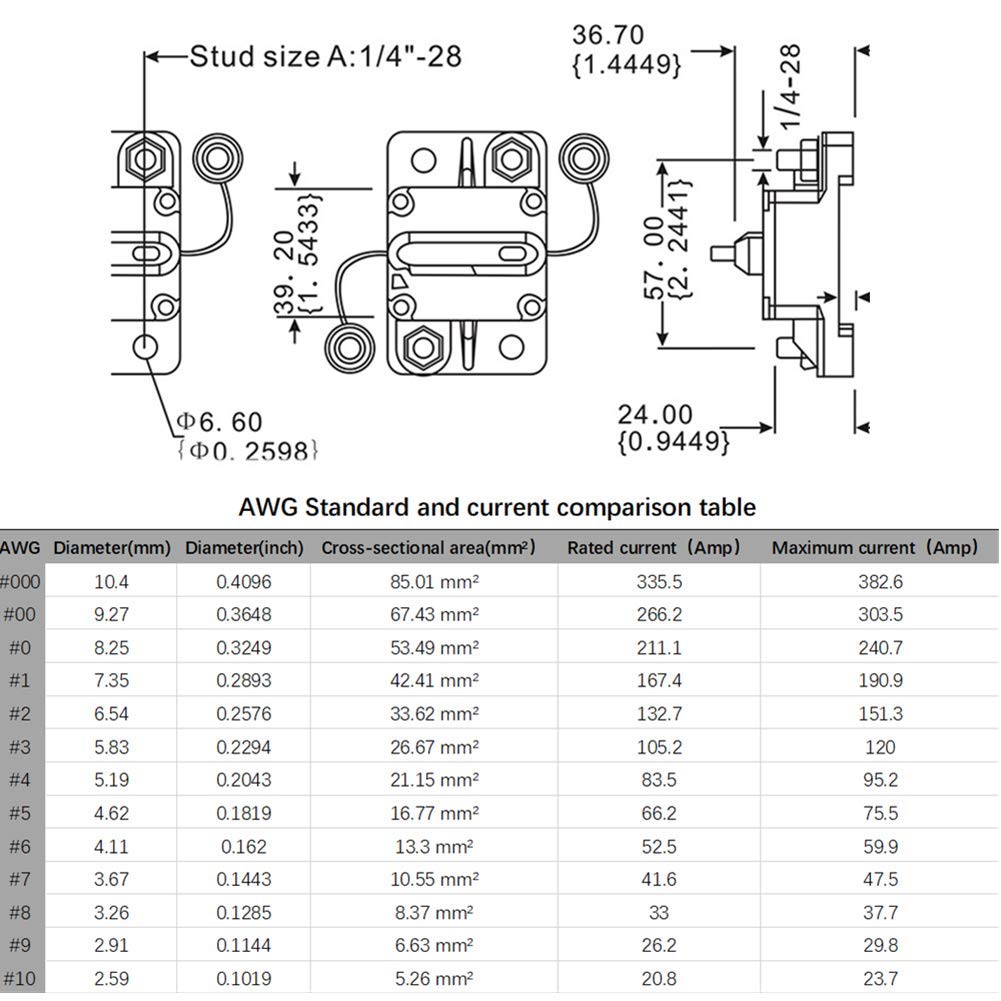

Termination:1/4" Stainless Steel Studs

Body:UL-rated 94V0 thermoset plastic

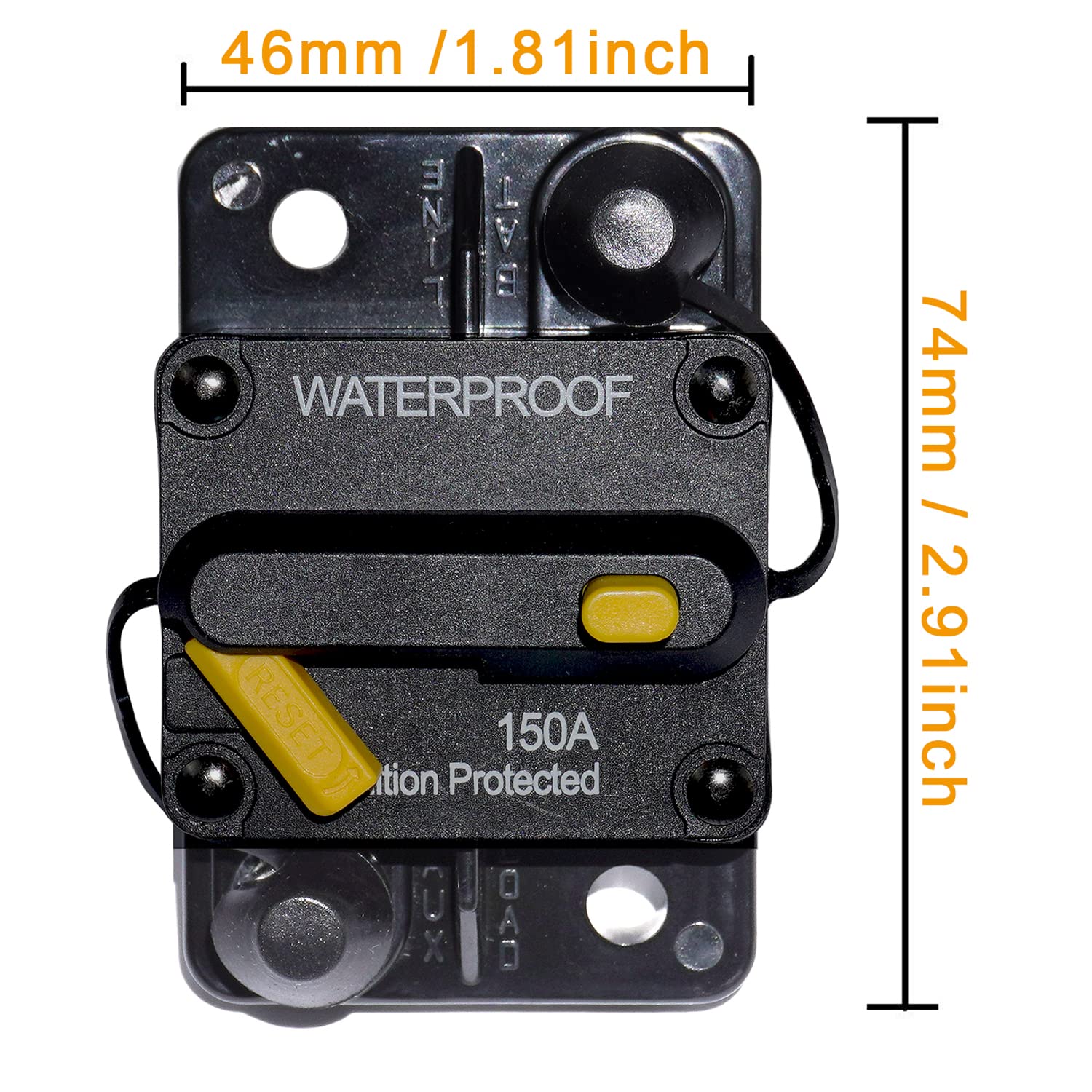

Size: 72*46*31mm

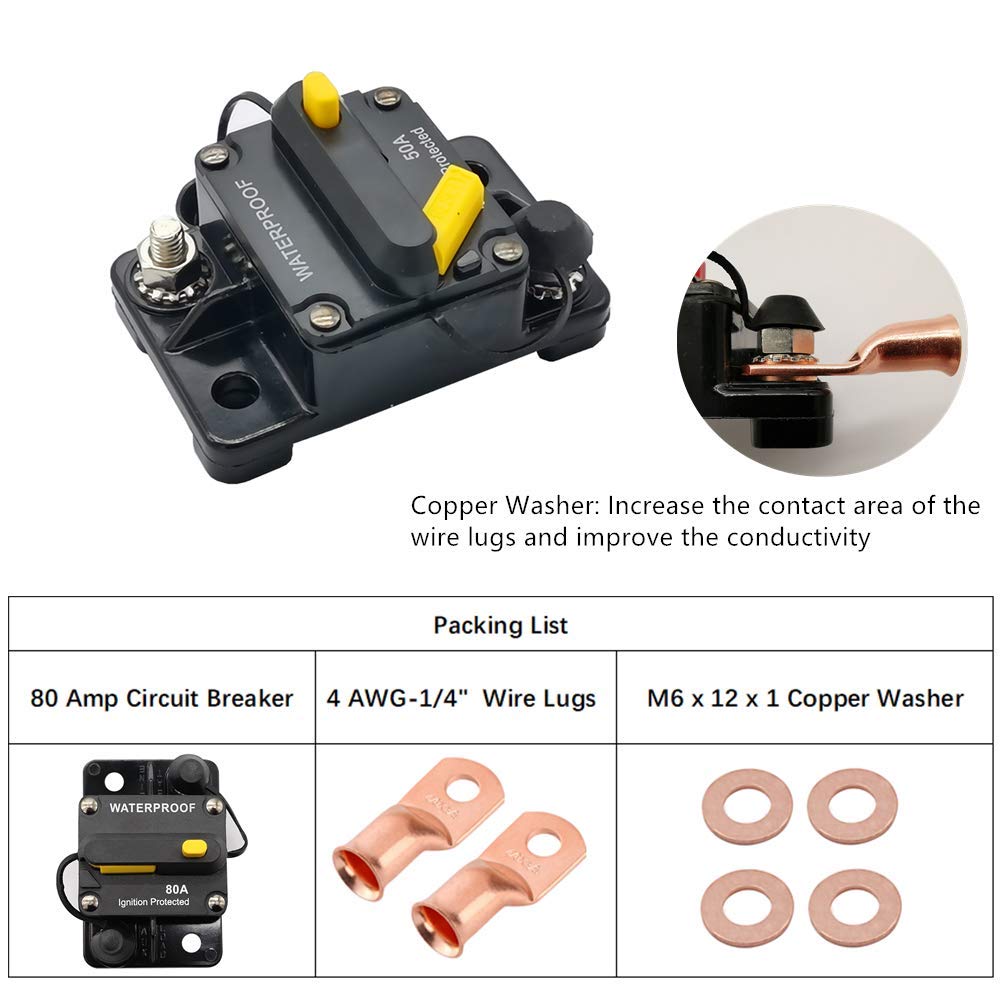

Packing list
Circuit Breaker x 1
Wire lugs x 2
Copper washer x 4
