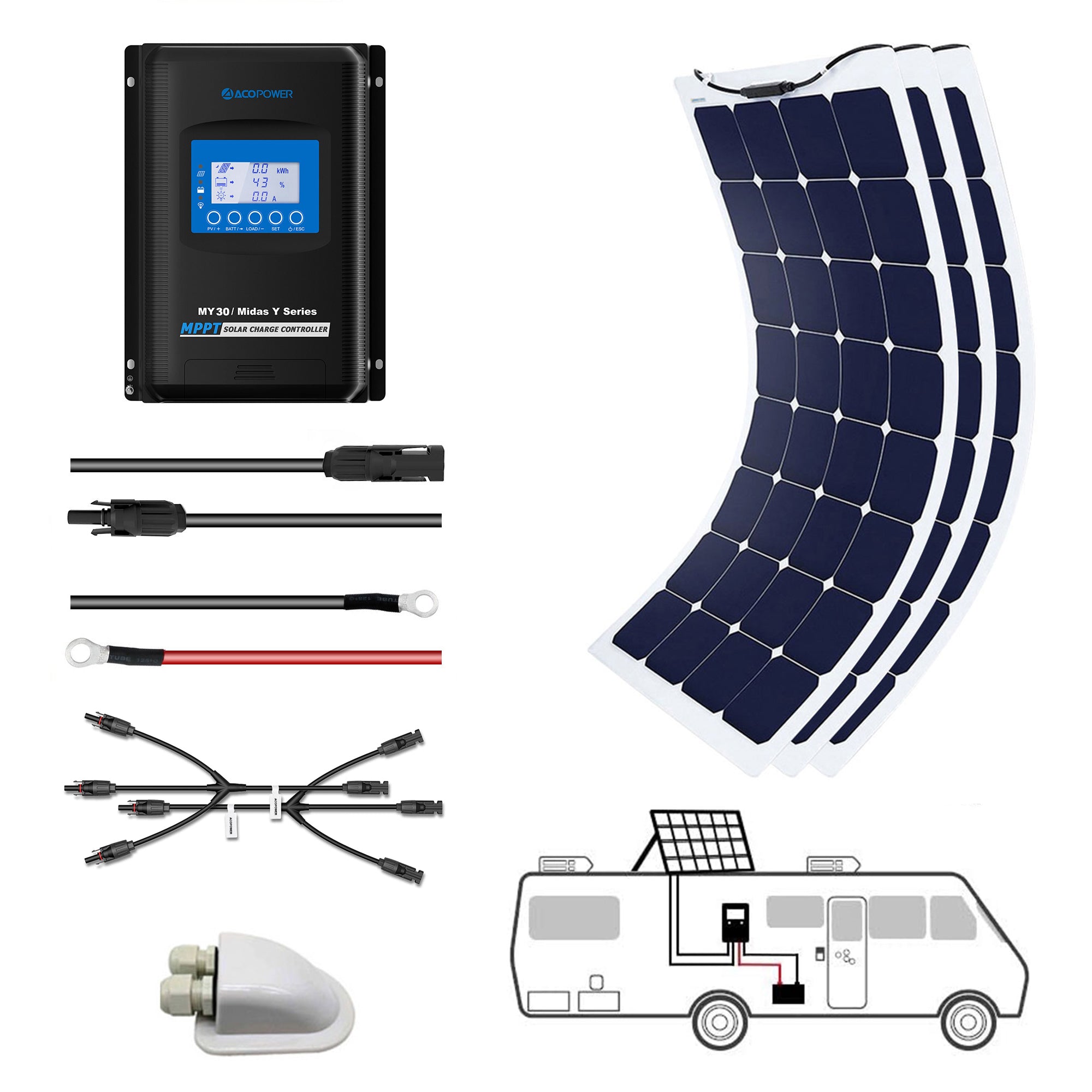

ACOPOWER 330Watts Flexible Solar RV Kit , 30A MPPT Charge Controller

Regular price $ 858.99
Sale price $ 858.99 Regular price
Shipping calculated at checkout.

Pickup available at Walnut USA

Usually ready in 24 hours

ACOPOWER 330Watts Flexible Solar RV Kit , 30A MPPT Charge Controller

  • Walnut USA

    Pickup available, usually ready in 24 hours

    4120 VALLEY BLVD
    Walnut CA 91789
    United States

    +16265757722

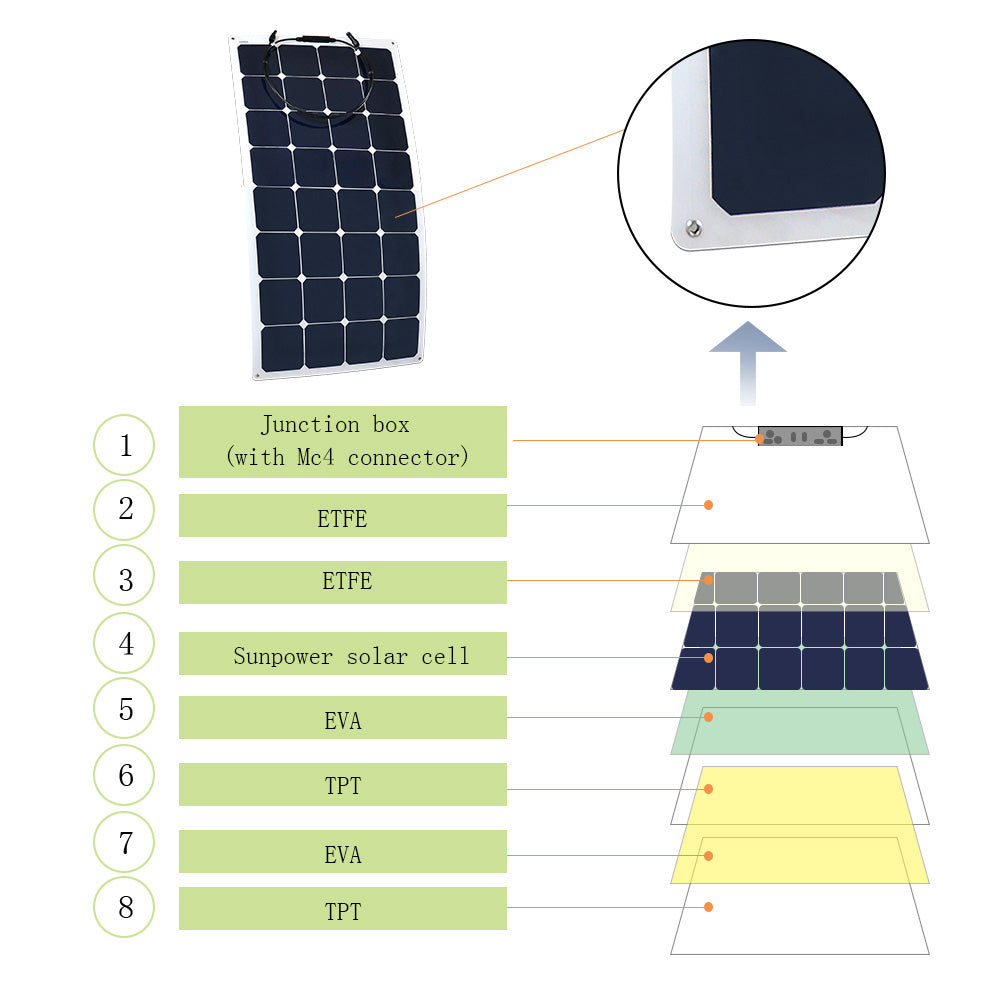

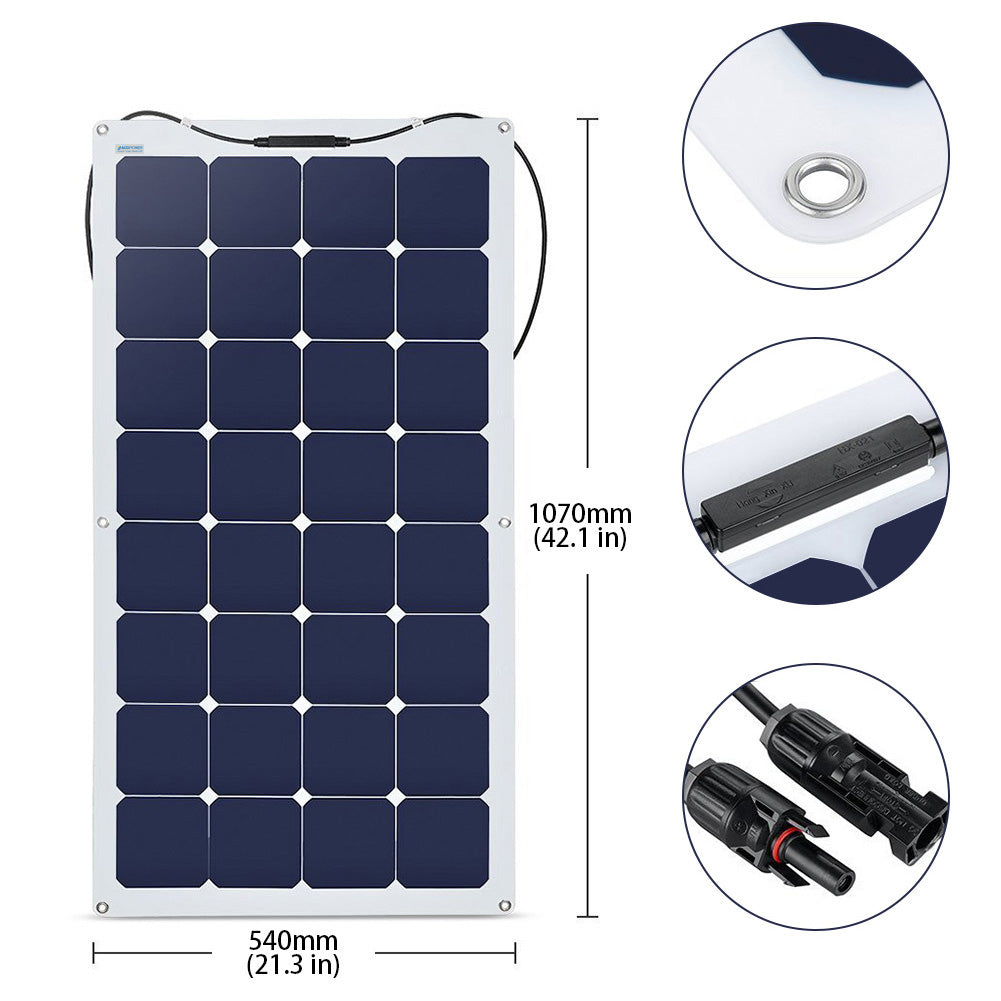

  • ACOPOWER 110W FLEXIBLE SOLAR PANEL
  • Maximum Power at STC (Pmax): 110W
  • Maximum Operating Voltage (Vmp): 17.6V
  • Maximum Operating Current (Imp): 6.25A
  • Dimension: 1070x540x3mm / 44.7x21.3x0.12 in
  • Open-Circuit Voltage (Voc): 20.8V
  • Short-Circuit Current (Isc): 6.9A
  • Operating Temperature: -20ºC to 65ºC
  • Weight: 2.2kg / 4.85 lbs
  • Maximum Power at STC (Pmax): 110W
  • Maximum Operating Voltage (Vmp): 17.6V
  • Maximum Operating Current (Imp): 6.25A
  • Dimension: 1070x540x3mm / 44.7x21.3x0.12 in
  • Open-Circuit Voltage (Voc): 20.8V
  • Short-Circuit Current (Isc): 6.9A
  • Operating Temperature: -20ºC to 65ºC
  • Weight: 2.2kg / 4.85 lbs
  • Open-Circuit Voltage (Voc): 22V
  • Short-Circuit Current (Isc): 6.21A
  • Operating Temperature: -40ºC to 85ºC
  • Weight: 9.5kg / 20.6 lbs

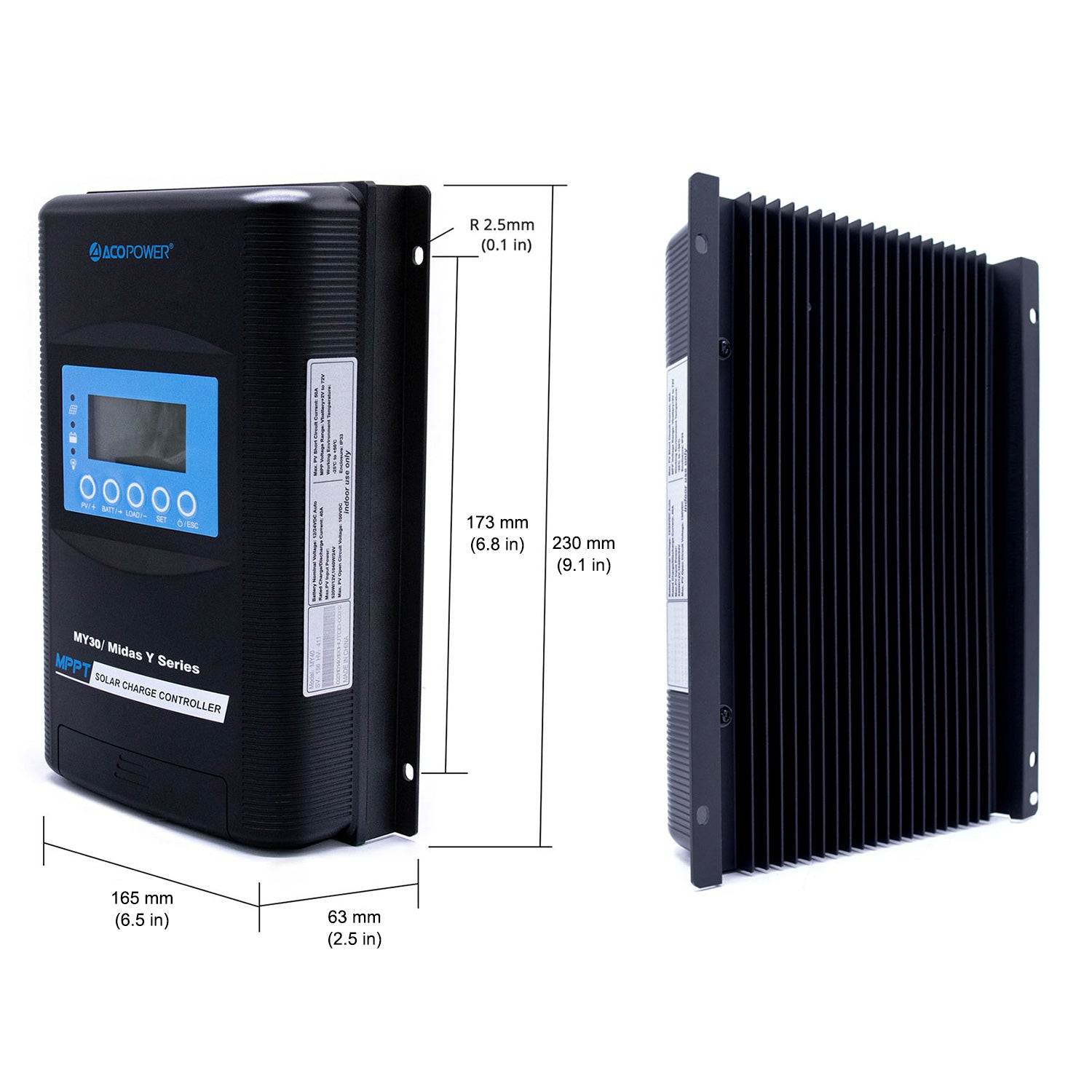

  • ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER
  • Nominal system voltage: 12/24VDC Auto
  • Battery input voltage range: 8V~32V
  • Max.PV input power: 12V/390W, 24V/780W
  • Working environment temperature: -25℃~+50℃
  • Grounding: Common negative
  • Power Terminals: 6AWG(16mm2)
  • Dimensions: 228x164x55mm
  • Rated charge current: 30A
  • Max.PV open circuit voltage: 100VDC
  • MPP voltage range: V(BAT+2V)~72V
  • Storage temperature range: -35℃~+80℃
  • Communication: RS485
  • Enclosure: IP30
  • Weight: 1.2kg
  • Nominal system voltage: 12/24VDC Auto
  • Battery input voltage range: 8V~32V
  • Max.PV input power: 12V/390W, 24V/780W
  • Working environment temperature: -25℃~+50℃
  • Grounding: Common negative
  • Power Terminals: 6AWG(16mm2)
  • Dimensions: 228x164x55mm
  • Rated charge current: 30A
  • Max.PV open circuit voltage: 100VDC
  • MPP voltage range: V(BAT+2V)~72V
  • Storage temperature range: -35℃~+80℃
  • Communication: RS485
  • Enclosure: IP30
  • Weight: 1.2kg
  • WARRANTY INFORMATION
  • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
  • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
  • Accessories: 1-year material warranty
  • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
  • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
  • Accessories: 1-year material warranty
  • USER MANUAL
