ACOPower Ltk 120W Foldable Solar Panel Kit With Included ProteusX 20A Charge Controller

SKU: HY-LTK-3x40WPX20AN/A

$ 372.00


MADE for SOLAR GENERATORS: ACOPOWER portable solar panels for rv camping compatible with the most solar generators on the market. With our included different sizes of connectors(8mm DC Adapter for Jackery, 5.5*2.1mm,5.5*2.5mm and 3.5*1.35mmfor ACOPOWER 154Wh/220Wh/462Wh ), and 5V USB devices, including smartphones and tablets.
HIGH SOLAR CONVERSION: The Monocrystalline photovoltaic of our backpack solar panels are from the highest conversion efficiency module provider in the world, which increases conversion efficiency up to 25%, which is much higher than the typical solar panel generator/charger.
DURABLE & SPLASH-PROOF: ACOPOWER 120W folding Solar Panel made of advanced laminated technology and long-lasting ETFE material on the surface, making it more durable, better light transmittance,scratch-resistant, and easy to clean by wet cloth. It is IP65 water-resistant that will protect from water splashing (Do not place it under the rain, or to soak in water).
EXCELLENT SAFETY: The USB solar panel built-in smart IC chip intelligently identifies your device, and maximizes its charging speed while protecting your devices from overcharging and overloading. The charging current of USB ports (up to 2.4A max 5V DC per port, 6A max overall) is monitored and automatically adjusted according to the sunlight level
HIGHLY PORTABLE: Light and portable handle design, three 40W solar panels fold in a suitcase to be 120W folding solar panels, set up in one minute! This camping solar panel is ultra-lightweight of 11.24 lb, ultra-compact of folding size 22.05x17.32x0.79 inch with 56.7x22 inch inch unfolding film surface, two adjustable stands are included in the suitcase. Perfect Charging Pack to Bring Quick Charger Anywhere there is Sun


Out of stock


Description

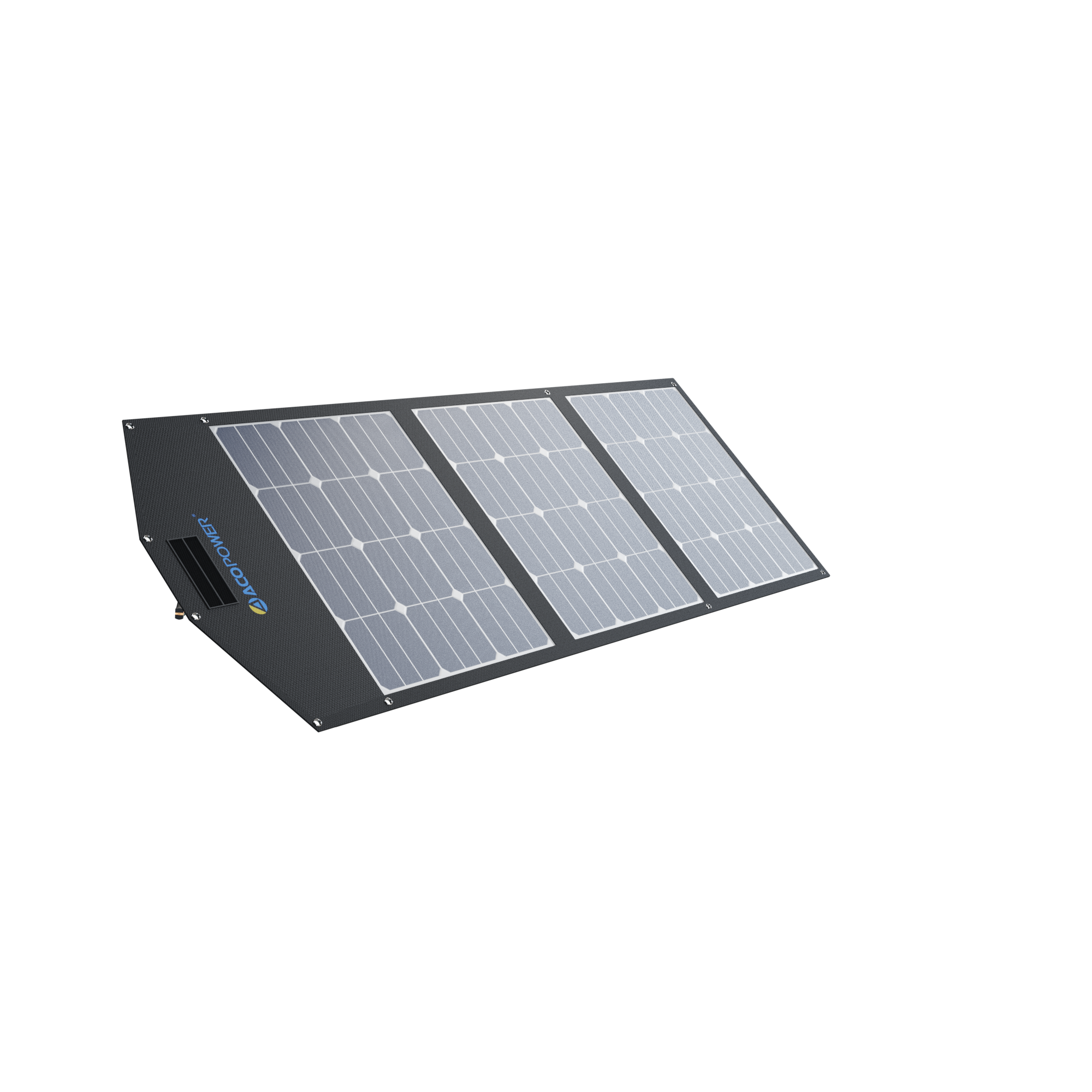

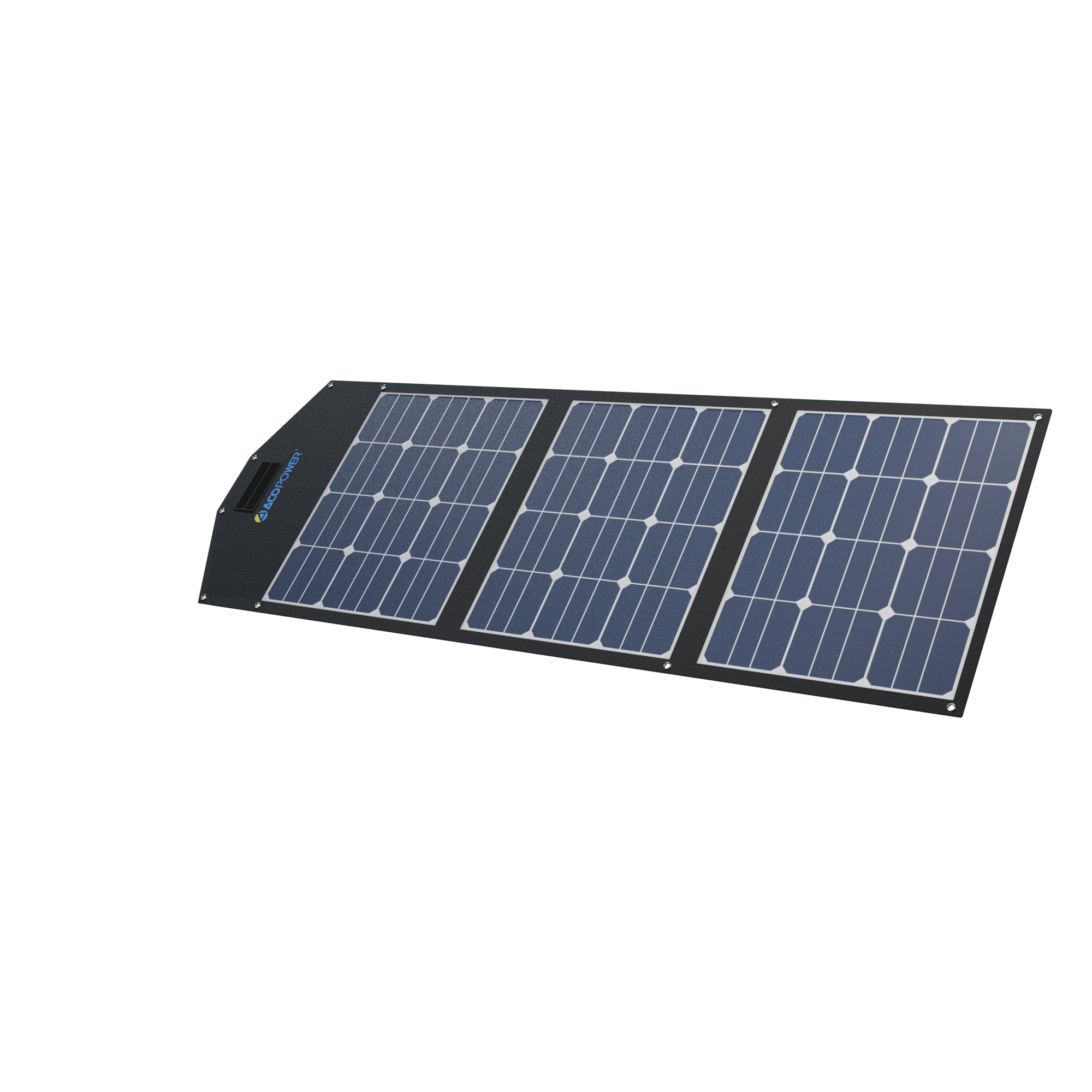

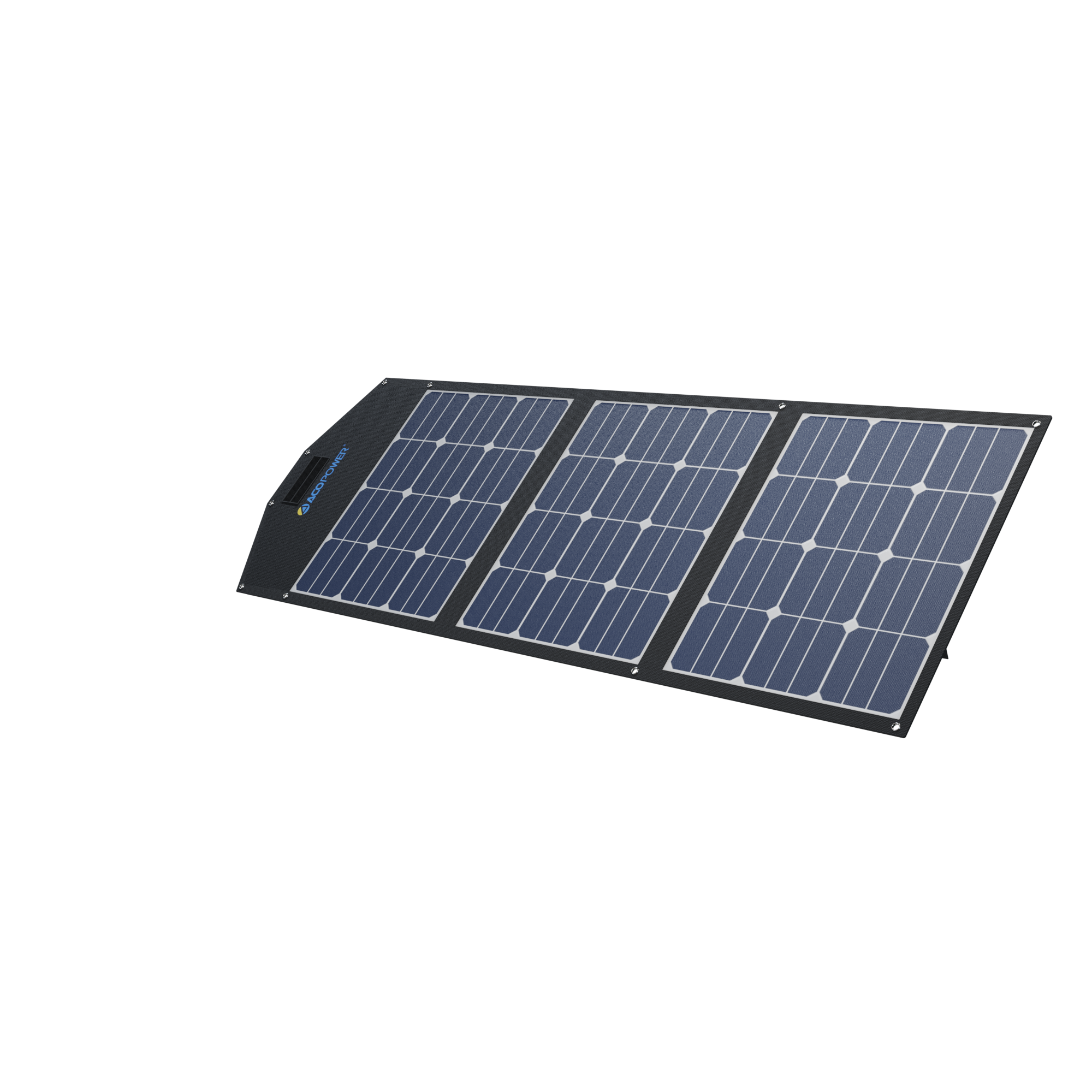

The ACOPOWER 120 Watt Monocrystalline Portable Solar Panel is designed for those that live life on the go and need continuous power while doing so. Featuring high efficiency solar panels, the 120W Solar Panel is your new best friend when you're far from home. Travel with ease using the charger's bungee loops which attach to your backpack. Unfold the device and expose the 120 watt high performance solar panel,. No matter where you go, keep your most important electronic devices powered up and connected to the world.

Key Features

120 Watt Portable Solar Panel

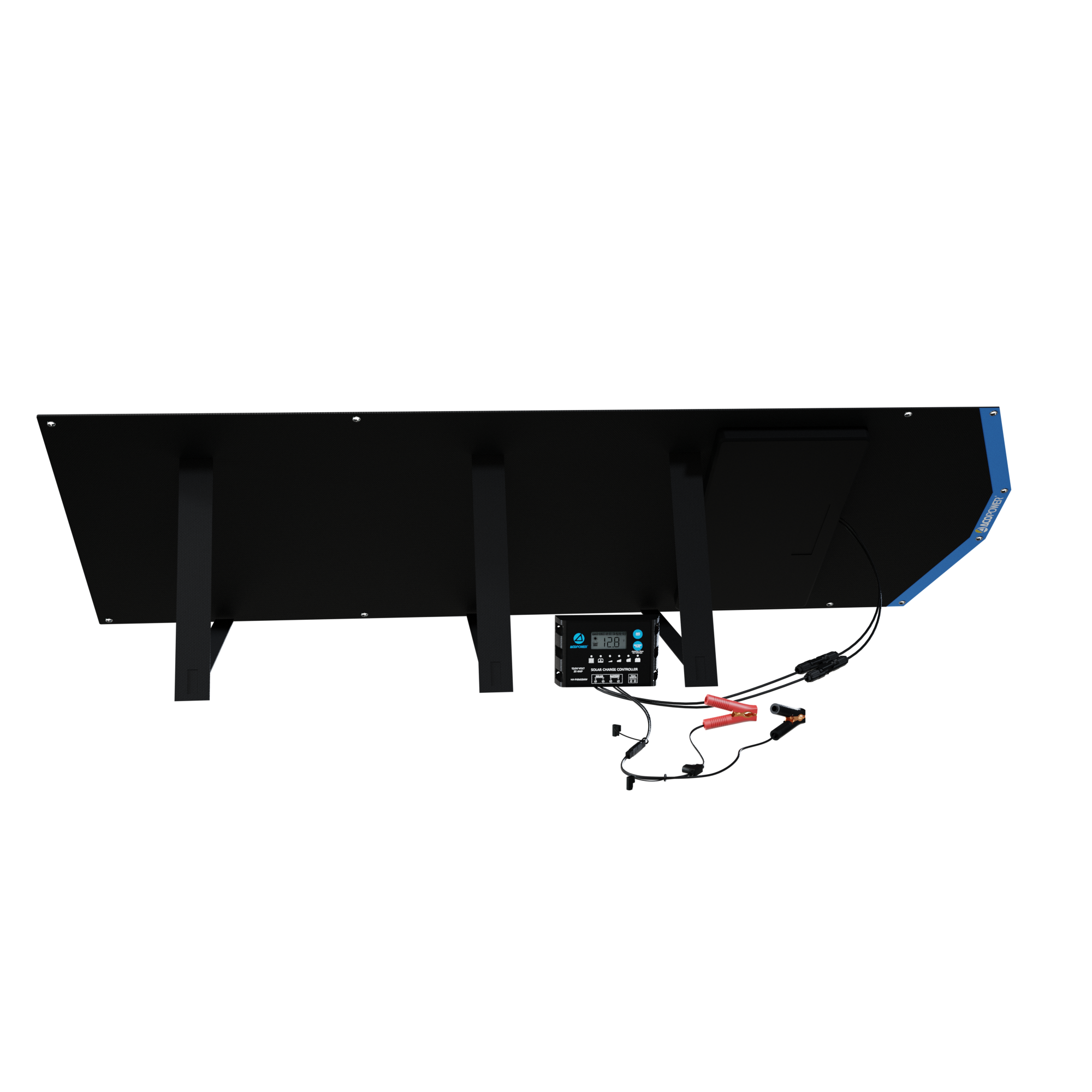

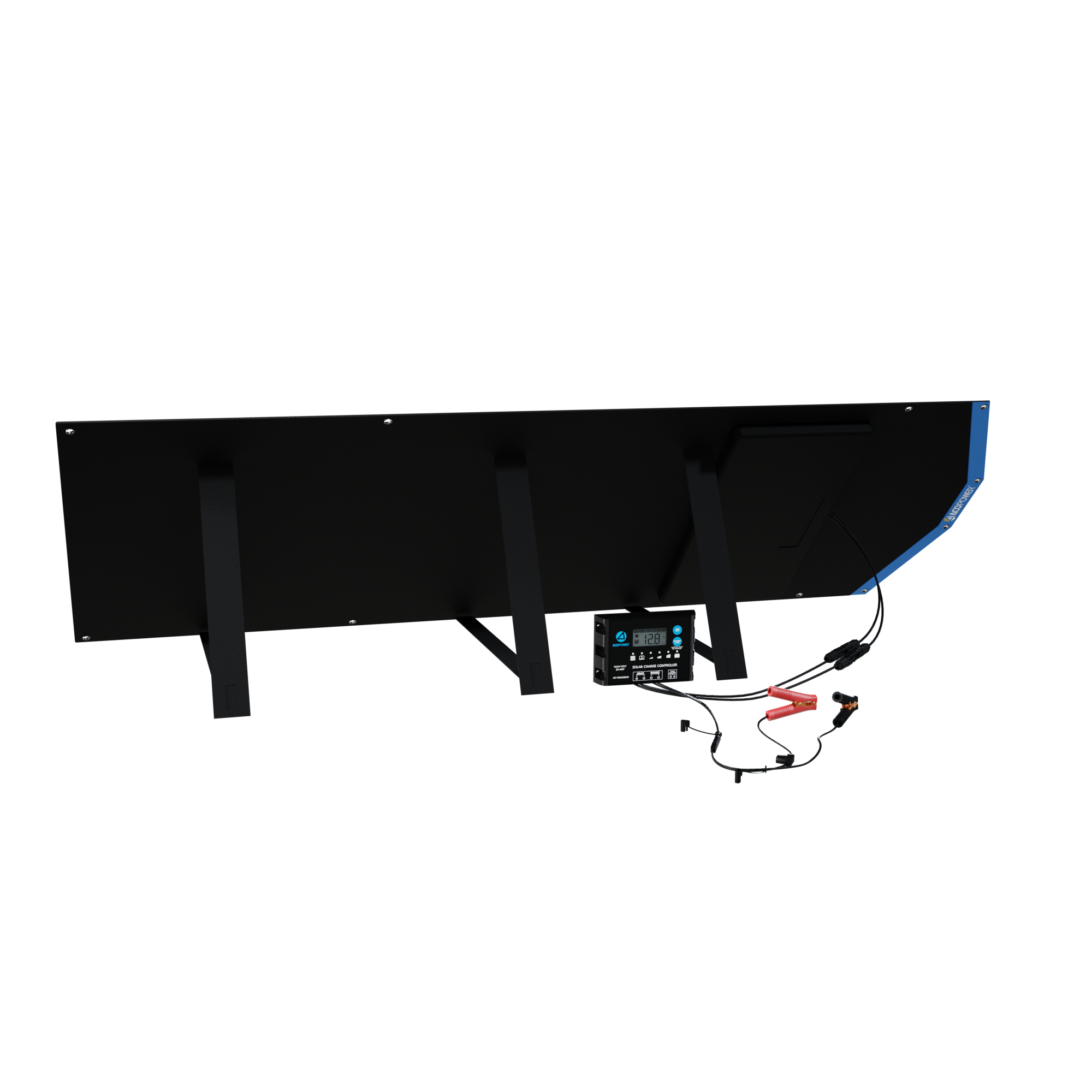

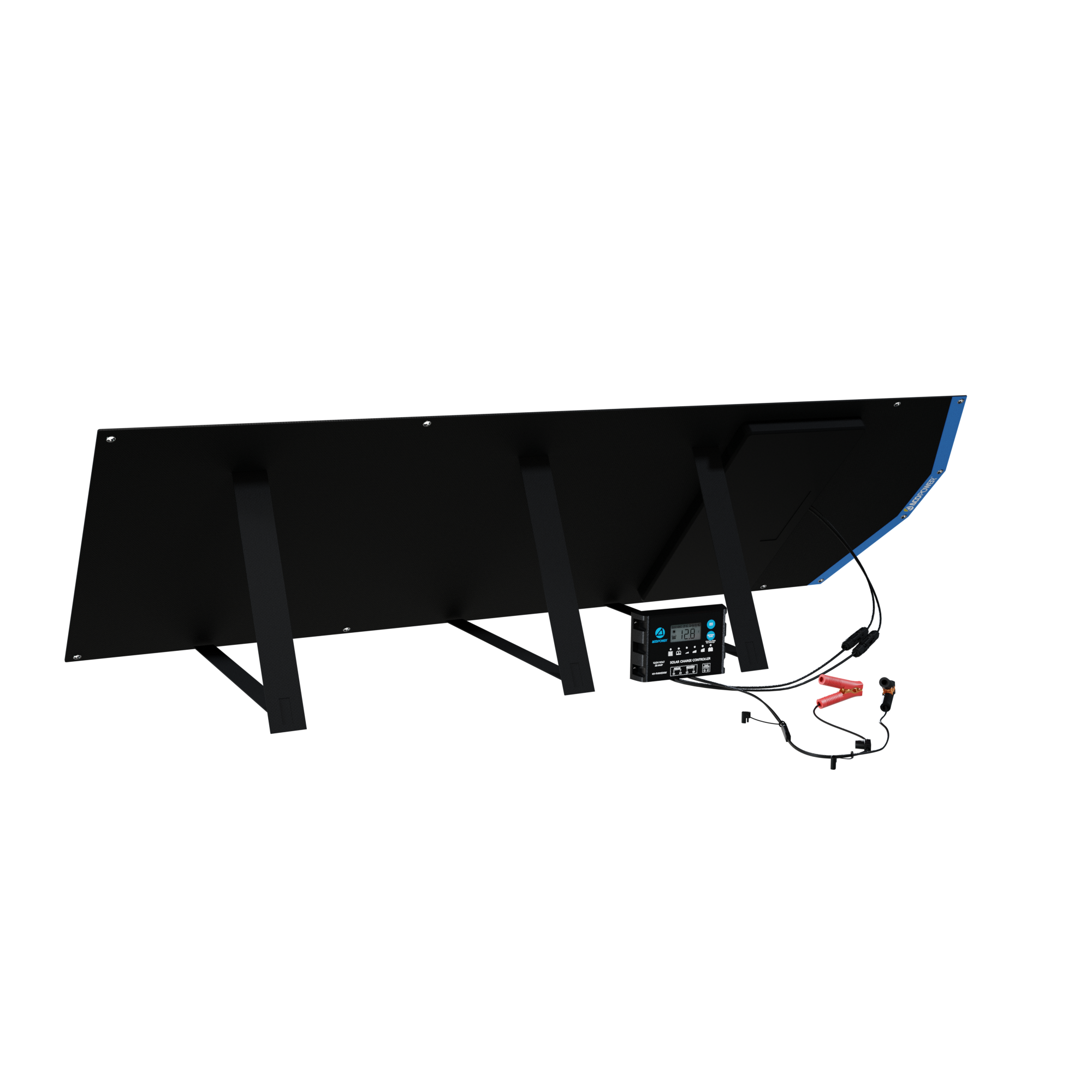

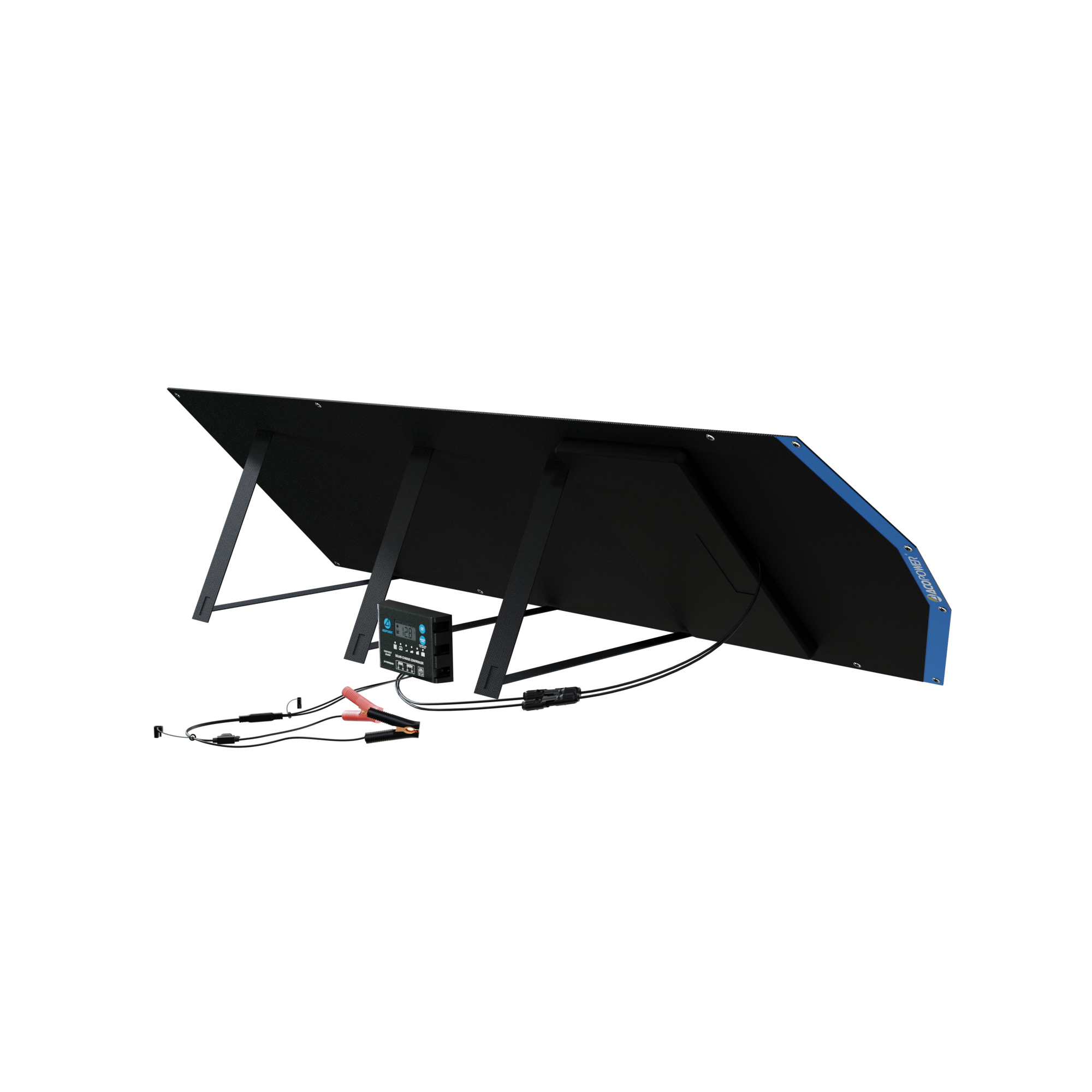

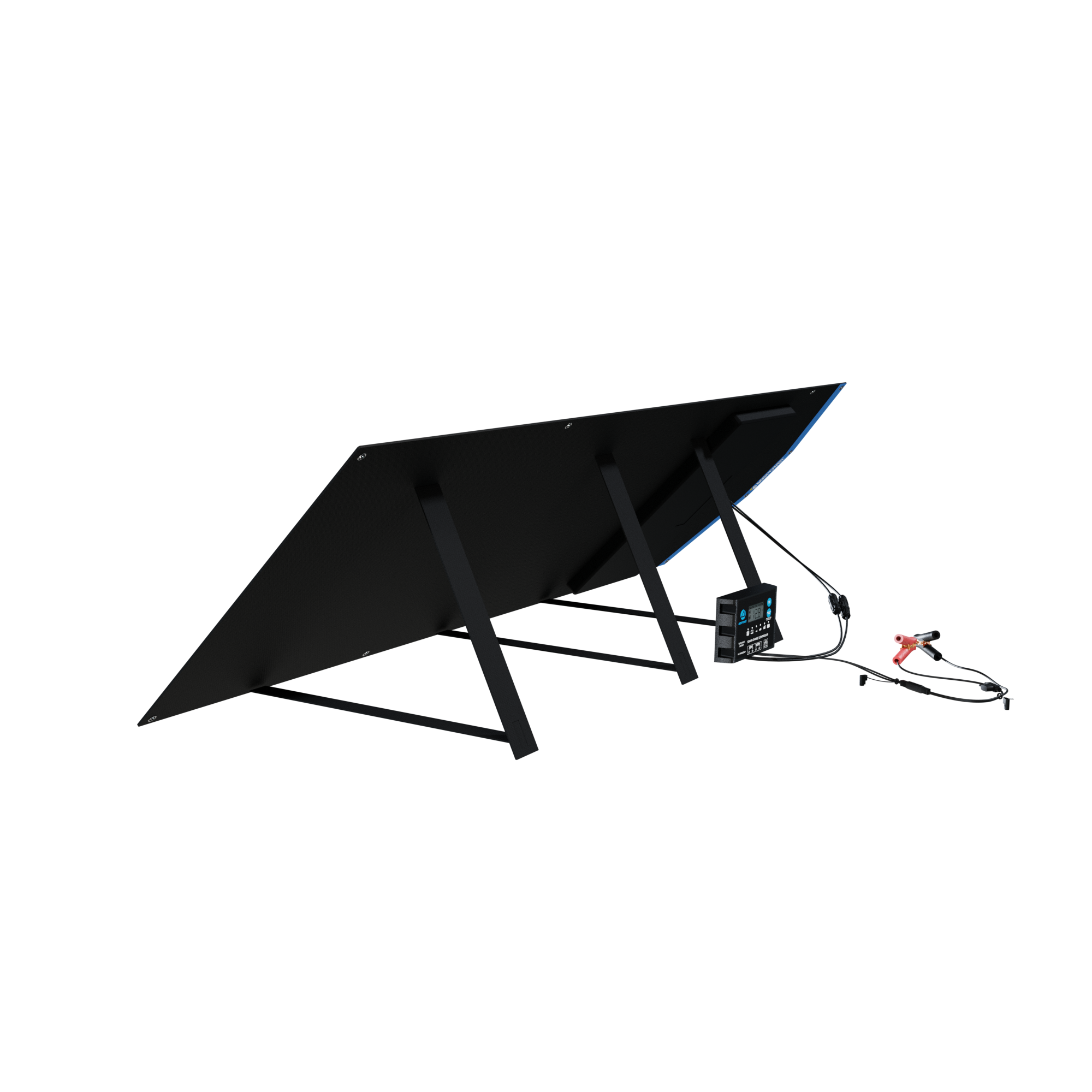

  • Light and portable handle design, sets up in one minute! Includes an external pocket for cables and accessories, 3 support legs for easy set up.
  • High performance monocrystalline cells increase conversion efficiency up to 25%.
  • This kit includes a portable solar panel suitcase; 20A LCD waterproof charge controller, alligator clamps for battery charging, a USB QC 3.0 port, a USB-C(Type C) port, a DC to DC adapter, different sizes of connectors, two pairs of MC-4 Connectors, and an SAE to SAE adapter.
  • 3-USB SMART CHARGING TECHNOLOGY - The build-in smart IC chip identifies your device, and maximizes the charging speed while protecting your devices from overcharging and overloading. Charging current of USB ports is monitored and automatically adjusted according to the sunlight level.

20A LCD Charge Controller

  • Compatible with 8 battery-types: Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium.
  • Waterproof design, suitable for indoor, outdoor, camping, boat, and RV use.
  • 20 amps 12v/24v auto continuous charging capacity, enabling use of up to 12V/360watts, 24V/720watts.
  • Large negative ground LCD display design. Presets for volts, amps, amp hours and battery.
  • 5 charging states: soft, bulk, absorption, equalization and float, providing for 100% return of capacity and longer battery life. Over voltage, short circuit and reverse polarity protection.

Package Includes

  • 1 x 120W Foldable Solar Panel
  • 1 x 20A Charge Controller
  • 1 x Alligator Clamps
  • 1 x User Manual

If you have any questions regarding this product, please call us at 1 (626) 838-5511 or email support@acopower.com.

ACOPOWER 120W Foldable Solar Panel
Module Type: 3×40WMaximum Power: 120W
Open-Circuit Voltage (Voc): 24.64VMaximum Operating Voltage (Vmp): 20.88V
Short-Circuit Current (Isc): 6.32AMaximum Operating Current (Imp): 5.97A
Folded size: 22×17.3×0.8 in / 560×440×20mmUnfolded size: 56.7×22×0.2 in / 1440×560×4mm
Weight: 8.4lbs / 3.8kg
20A Charge Controller
Nominal system voltage: 12V/24V DCRated charge/discharge current: 20A
Max. PV open circuit voltage: 50VGrounding: Common Negative
Battery Start Charging Voltage: 3VTemperature Compensation Coefficient: -24mV/°C
Operating Temperature: -40°F to 140°FStorage Temperature: -40°F to 185°F
Terminals: Up to 10 AWGEnclosure: IP65
Dimensions: 5.59x 3.7x 1.06 inchesWeight: 1.1lbs
WARRANTY INFORMATION
Panels: The solar panel itself comes with an 18-months workmanship warranty and a 25-year 85% output warranty.
Accessories: 1-year material warranty
