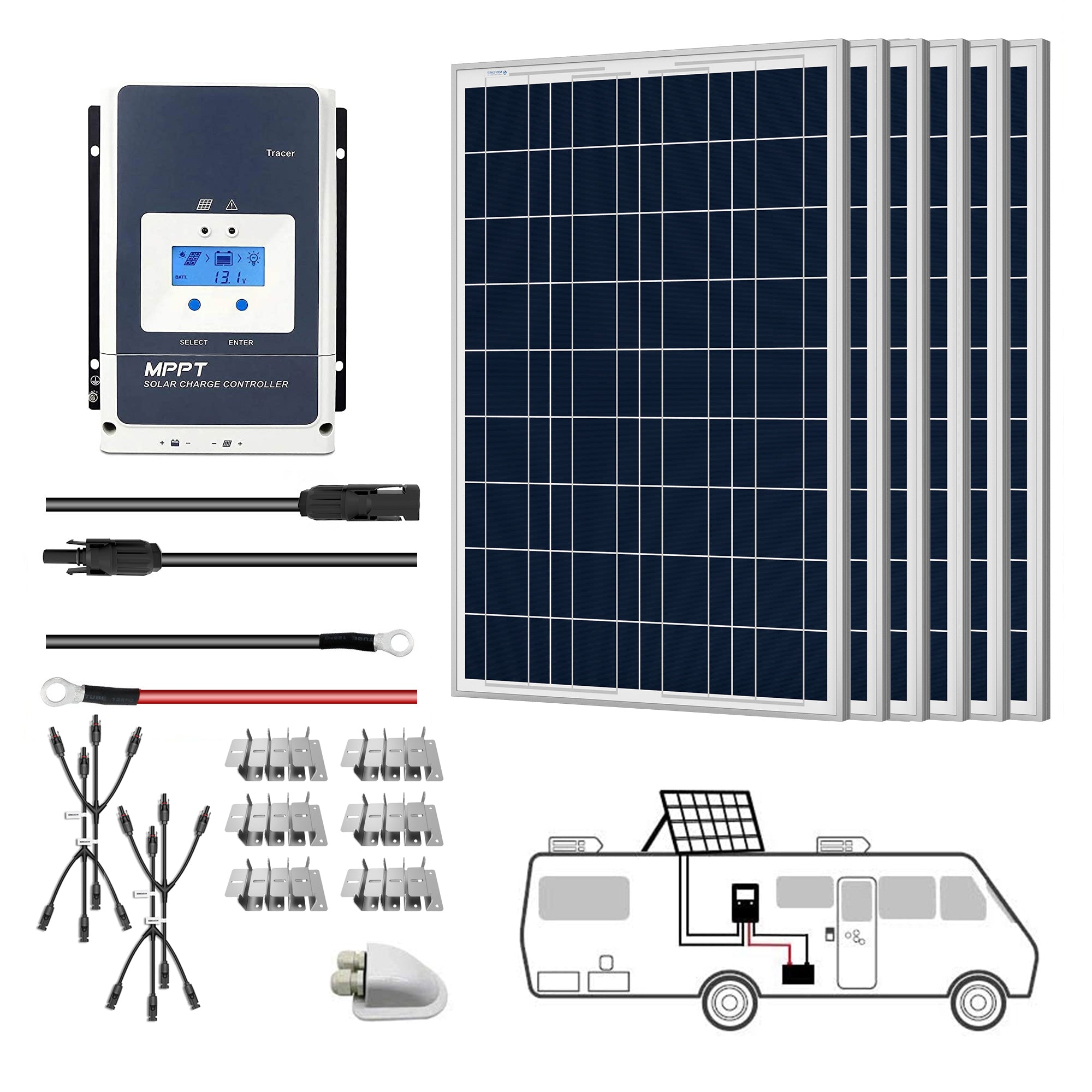

ACOPOWER 600W 12V Poly Solar RV Kits, 50A MPPT Charge Controller (6x100W 50A)

Regular price $ 959.80
Sale price $ 959.80 Regular price
Shipping calculated at checkout.

Pickup available at Walnut USA

Usually ready in 24 hours

ACOPOWER 600W 12V Poly Solar RV Kits, 50A MPPT Charge Controller (6x100W 50A)

  • Walnut USA

    Pickup available, usually ready in 24 hours

    4120 VALLEY BLVD
    Walnut CA 91789
    United States

    +16265757722

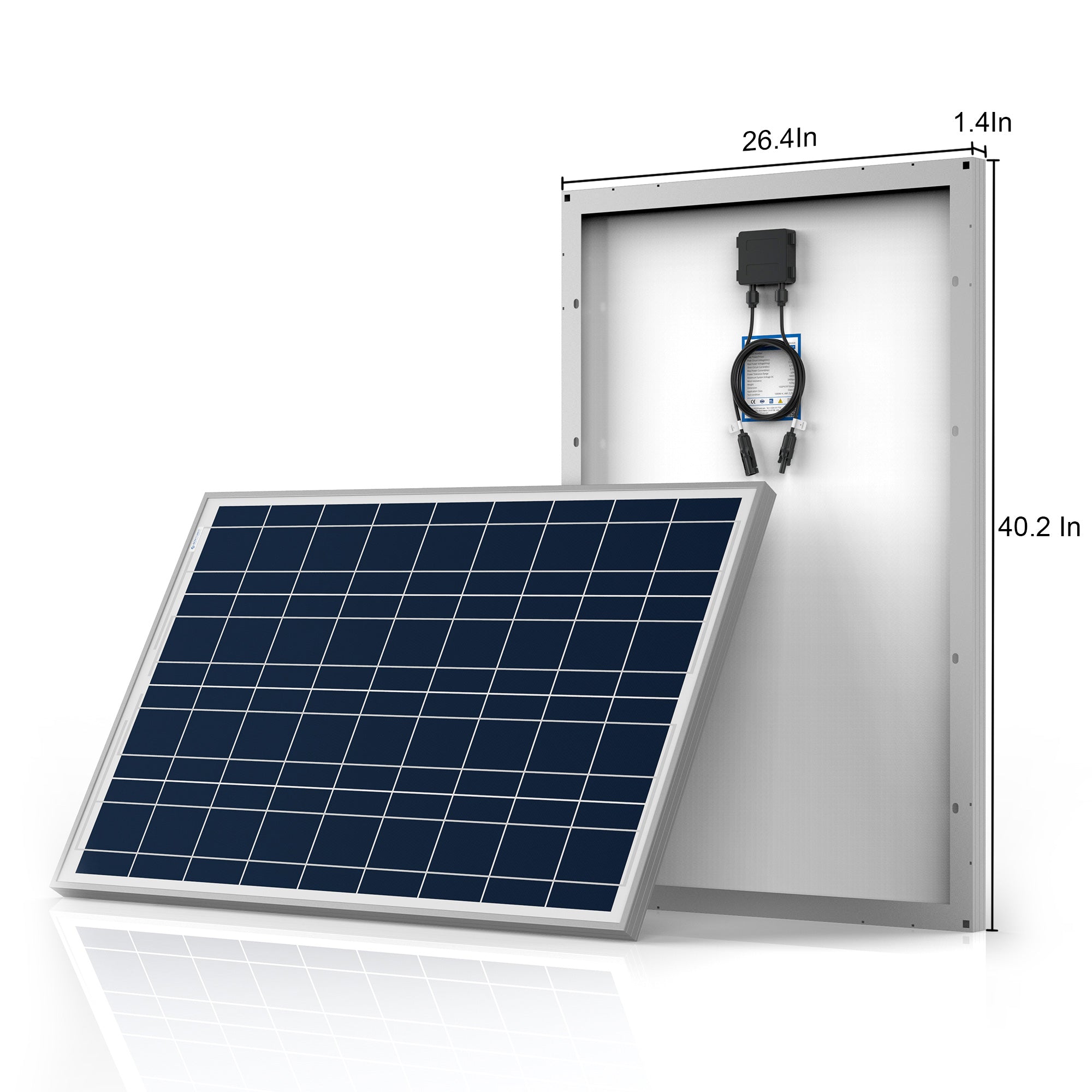

  • ACOPOWER 100 WATTS POLY SOLAR PANEL
  • Maximum Power at STC (Pmax): 100W
  • Maximum Operating Voltage (Vmp): 17.48V
  • Maximum Operating Current (Imp): 5.72A
  • Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
  • Open-Circuit Voltage (Voc): 22V
  • Short-Circuit Current (Isc): 6.21A
  • Operating Temperature: -40ºC to 85ºC
  • Weight: 9.5kg / 20.6 lbs
  • Maximum Power at STC (Pmax): 100W
  • Maximum Operating Voltage (Vmp): 17.48V
  • Maximum Operating Current (Imp): 5.72A
  • Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
  • Open-Circuit Voltage (Voc): 22V
  • Short-Circuit Current (Isc): 6.21A
  • Operating Temperature: -40ºC to 85ºC
  • Weight: 9.5kg / 20.6 lbs
  • Open-Circuit Voltage (Voc): 22V
  • Short-Circuit Current (Isc): 6.21A
  • Operating Temperature: -40ºC to 85ºC
  • Weight: 9.5kg / 20.6 lbs

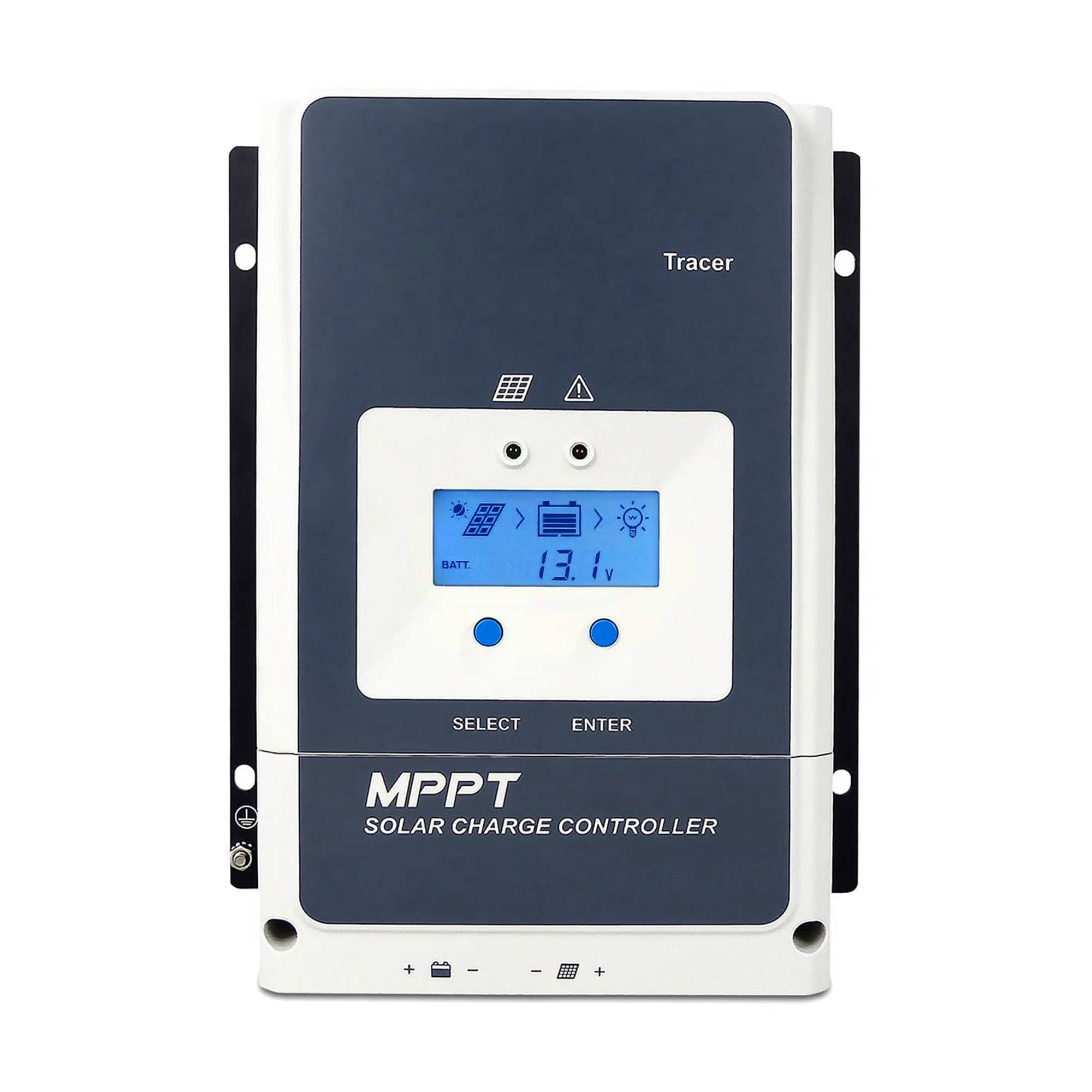

  • ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER
  • Nominal System Voltage: 12v/24v/36v/48v DC Auto
  • Rated Charge Current: 50A
  • Max. PV Open Circuit Voltage: 150V/138V
  • MPP Voltage Range: V(BAT)+2V~108V
  • Working temperature: -25℃~+50℃
  • RS485 Interface: RS485(RJ45)
  • Dimension: 261*216*119mm
  • Grounding: Common negative Design
  • Battery Input Voltage Range: 8V~68V
  • Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
  • Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
  • Storage temperature: -20℃~+70℃
  • Enclosure: IP33
  • Terminals: 16mm2/6AWG
  • Nominal System Voltage: 12v/24v/36v/48v DC Auto
  • Rated Charge Current: 50A
  • Max. PV Open Circuit Voltage: 150V/138V
  • MPP Voltage Range: V(BAT)+2V~108V
  • Working temperature: -25℃~+50℃
  • RS485 Interface: RS485(RJ45)
  • Dimension: 261*216*119mm
  • Grounding: Common negative Design
  • Battery Input Voltage Range: 8V~68V
  • Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
  • Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
  • Storage temperature: -20℃~+70℃
  • Enclosure: IP33
  • Terminals: 16mm2/6AWG
  • WARRANTY INFORMATION
  • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
  • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
  • Accessories: 1-year material warranty
  • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
  • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
  • Accessories: 1-year material warranty
  • USER MANUAL
